Default Turn signal mirror

im doing my turn signal mirror LED install

i dont think theres a point of doing a write up.. theres atleast a total of 3 between here and P*B*C..


reason im posting this was i didnt quite follow the way everyone did it...

its been done as:
cut thru the heating element and the threw the LEDs on top (they also etched the glass)
and other one was pealing off the heating element and throwing the whole LED assembly under it, then the heating element went on top.

my way was i used a hole puncher to make round holes in the heating element itself and then stick it right on the back of it.. i thought this would be easier than both ways before.. and this would keep my heated mirrors working like before, because the small amount you cut out wont make any difference

im not quite done yet.. but getting there..
and wiring is a whole different story

Name:  IMG00241-20100120-1715.jpg
Views: 14
Size:  132.1 KB

Name:  IMG00242-20100120-1715.jpg
Views: 15
Size:  136.2 KB

Name:  IMG00243-20100120-1738.jpg
Views: 13
Size:  113.7 KB

Name:  IMG00244-20100120-1749.jpg
Views: 13
Size:  86.9 KB

Name:  IMG00246-20100120-1749.jpg
Views: 13
Size:  100.1 KB

nothin is completely done yet... im just doing some testings and making sure the LEDs are sitting straight and praying that my heated mirrors are stil working :P jk i dont see why wont they..

but ill keep you updated

Last edited by SAMzGXP; 01-21-2010 at 03:57 AM.
SAMzGXP is offline   Reply With Quote
Old 01-20-2010, 09:11 PM   #2
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

Wow Samz, great work!
Toddster is offline   Reply With Quote
Old 01-20-2010, 09:13 PM   #3
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

i think doing it that way with the hole puch is a lot easier and cleaner than the other ways. nice job! can't wait to see the finished project
sawgunner is offline   Reply With Quote
Old 01-20-2010, 09:23 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

For those of us that don't visit, I appreciate seeing how you did it. I'm getting ready to do some for a car myself.

You didn't etch or anything, just punch and go?
BillBoost37 is offline   Reply With Quote
Old 01-20-2010, 09:31 PM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Did a little more research here. How did you peel back the heater? The W body ones are pretty darn stuck.

Edit: Got it with a razor, I'll need to find something thin and black to recoat or figure out how to punch them through the heater clean without pulling it off. It'* possible for me though.

Name:  IMG_5076.jpg
Views: 15
Size:  74.3 KB
BillBoost37 is offline   Reply With Quote
Old 01-20-2010, 11:03 PM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Hey Bill, why don't you and Sam get together and do a write up for the Tech info area? Make a good article for mods IMO.
Mike is offline   Reply With Quote
Old 01-21-2010, 03:44 AM   #7
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

thanks Todd.. glad you like it

Quote:
Originally Posted by sawgunner View Post
i think doing it that way with the hole puch is a lot easier and cleaner than the other ways. nice job! can't wait to see the finished project
yes punching holes is alot easier and cleaner.. i this way all you see is PERFECTLY round circles with no blurryness around them..

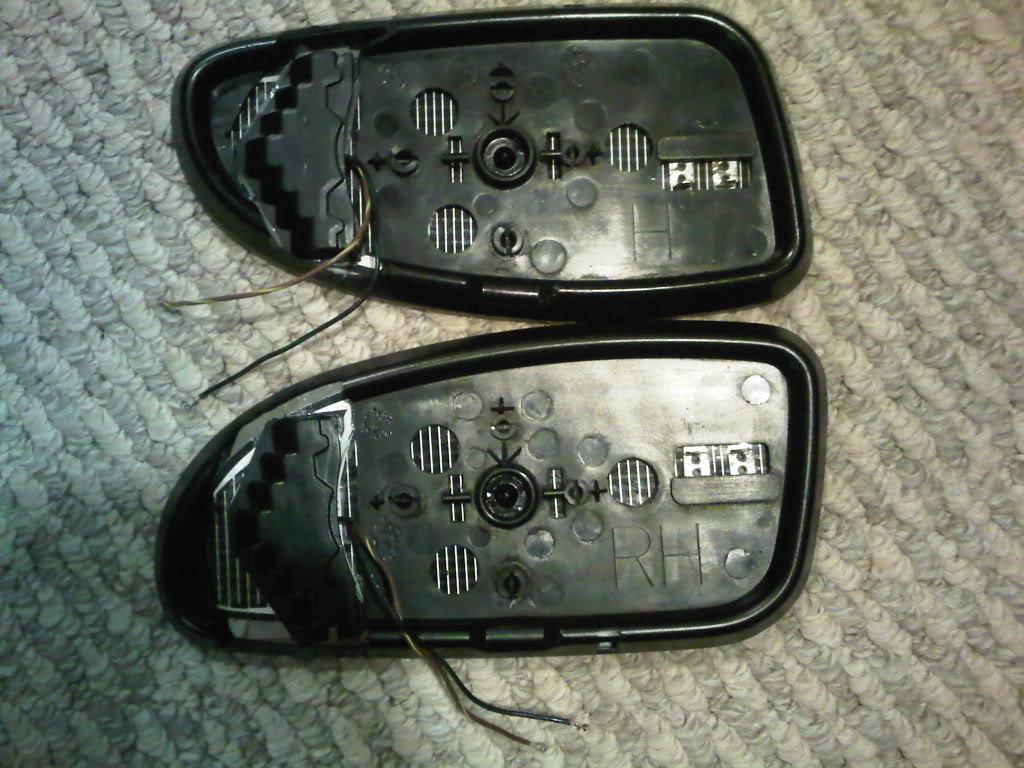

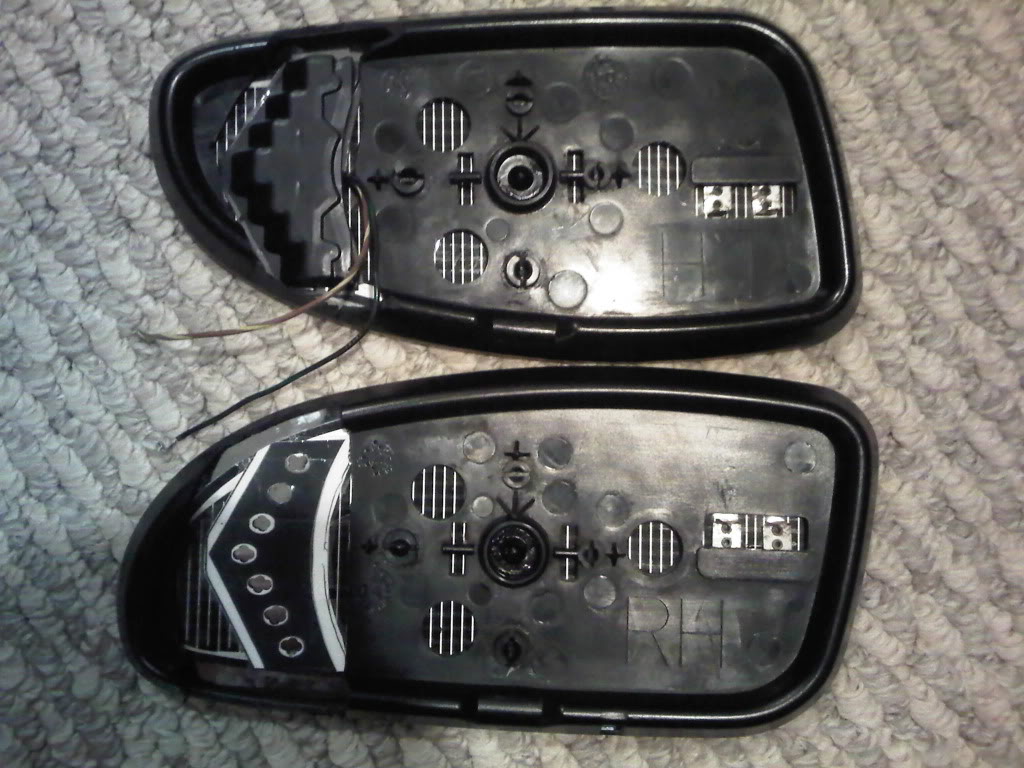

second mirror is done.. just gotta put it back together and run the wires.. this could take me some time, just kinda busy with life and work...

Quote:
Originally Posted by BillBoost37 View Post
For those of us that don't visit, I appreciate seeing how you did it. I'm getting ready to do some for a car myself.
You didn't etch or anything, just punch and go?
to take the mirror off the car, turn the driver side one all the way to the left and the passenger side all the way to the right, then closer to the window on both sides, tuck your fingers all the way inside till you feel the middle of the mirror.. from there pull out evenly, dont apply crazy force.. its just a snap in, and make SURE not to apply the force to the corners only make sure you reached the center.. honestly.. my biggest worry was how to remove the mirrors.. and it turned out to be the easiest thing ever.. just have common sense and remember you have glasss in your hands not plastic

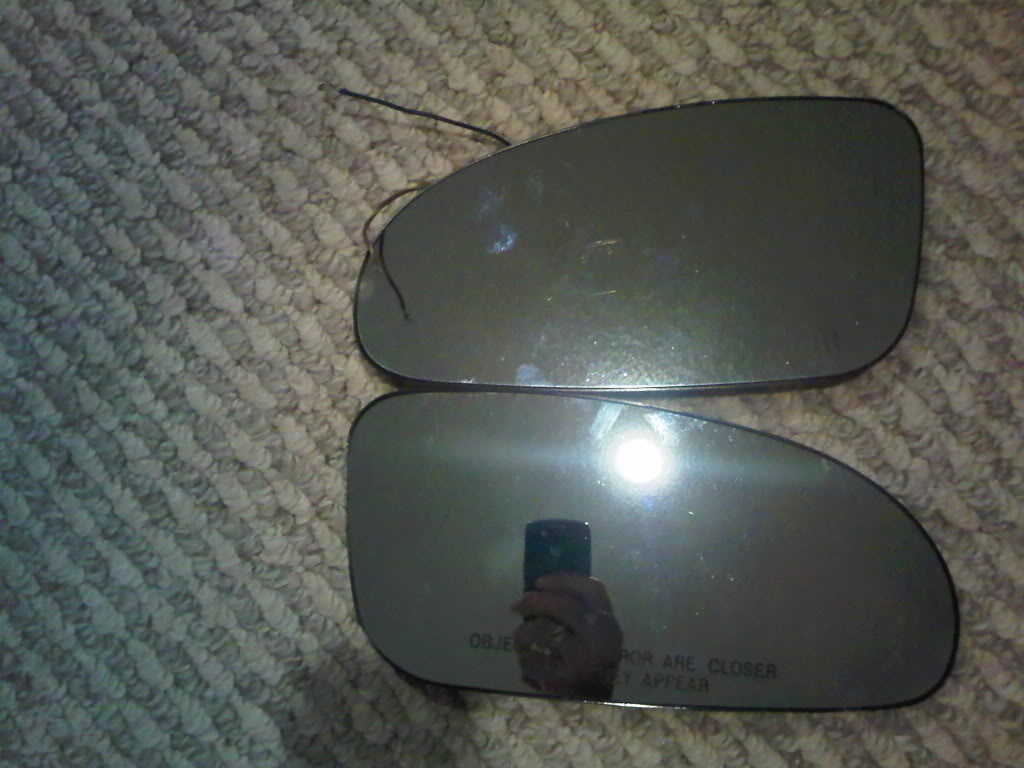

and to answer your question, no i didnt do any etching or anything.. my mirror still look 101% stock on the outside.. you cant even tell...

Name:  IMG00252-20100121-0034.jpg
Views: 14
Size:  85.5 KB

Name:  IMG00250-20100120-2154.jpg
Views: 11
Size:  80.1 KB

Name:  IMG00253-20100121-0034.jpg
Views: 12
Size:  133.4 KB

Name:  IMG00254-20100121-0034.jpg
Views: 15
Size:  146.7 KB

Quote:
Originally Posted by BillBoost37 View Post
Did a little more research here. How did you peel back the heater? The W body ones are pretty darn stuck.
Edit: Got it with a razor, I'll need to find something thin and black to recoat or figure out how to punch them through the heater clean without pulling it off. It'* possible for me though.

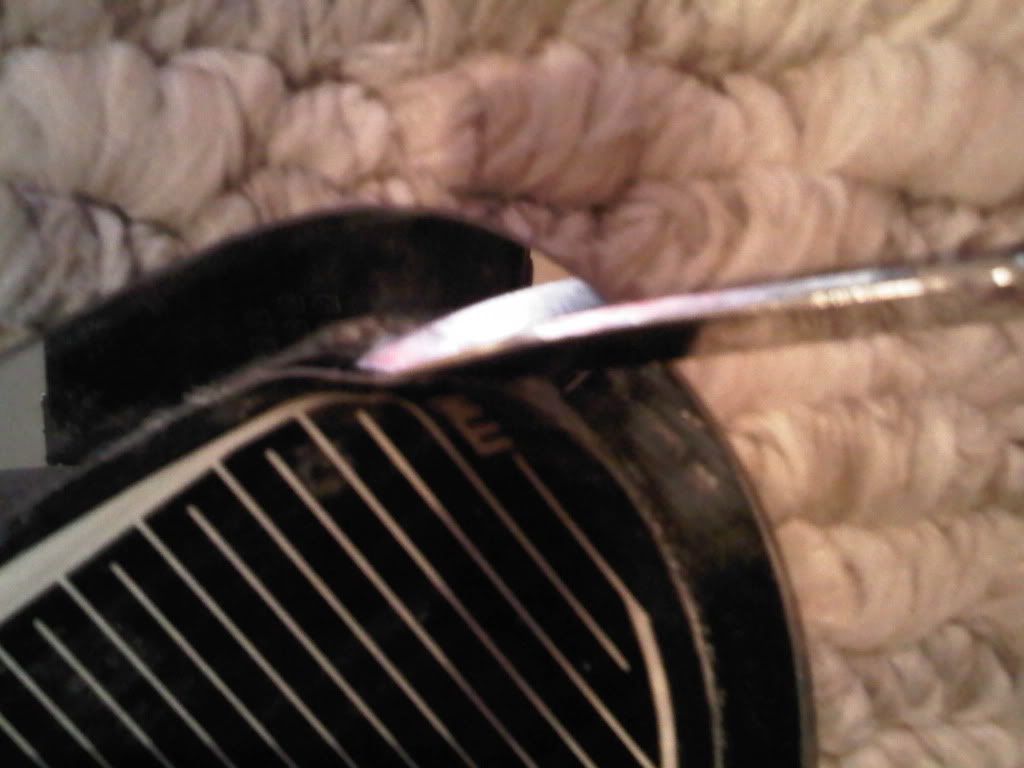

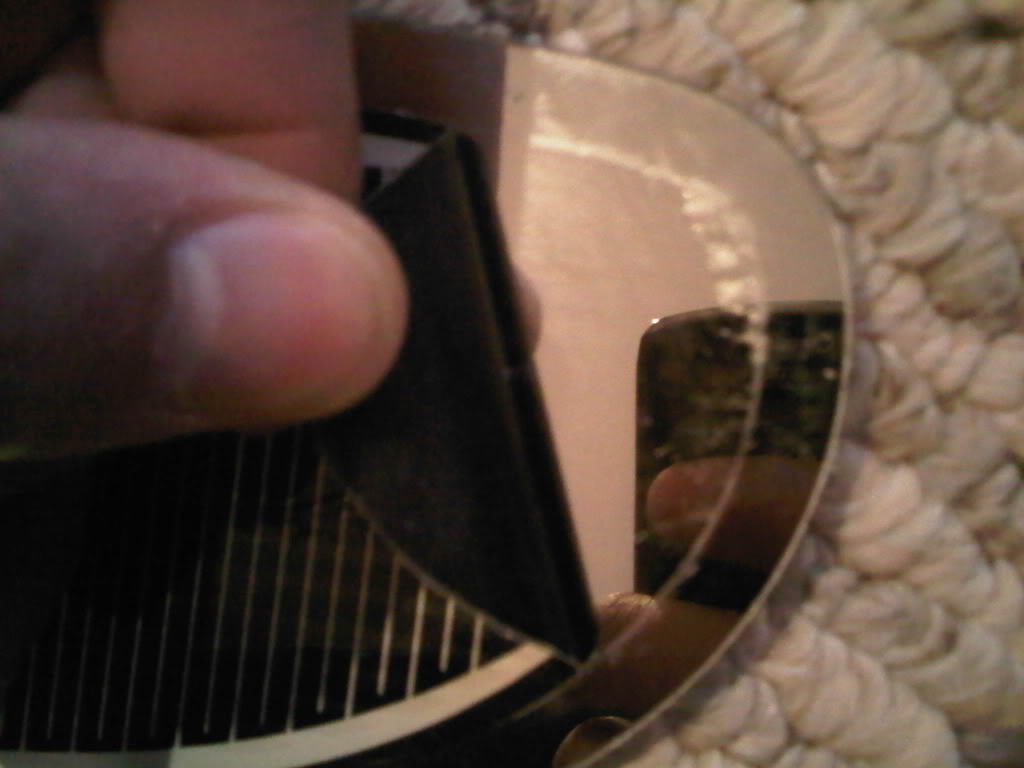

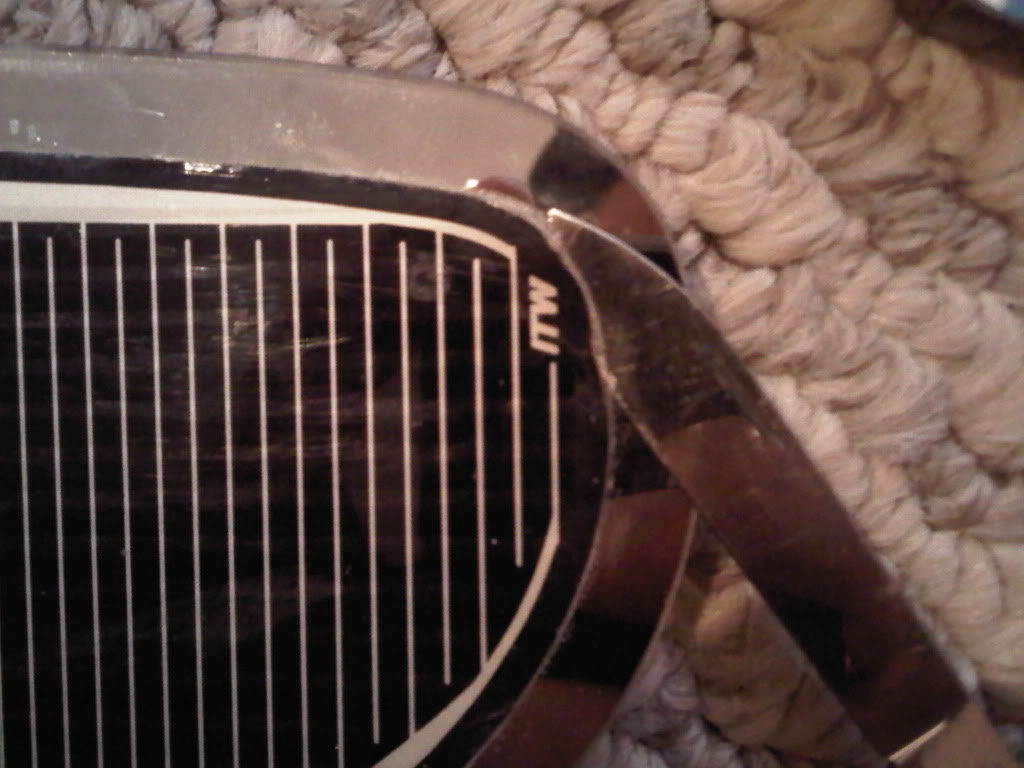

mine was very easy.. i peeled the corner just a bit with a knife and from there i easily pulled it with my hand.. it was like having masking tape on a car.. very easy :* but if its giving you hard time throw it in the oven... that should do it

Name:  IMG00247-20100120-2144.jpg
Views: 11
Size:  85.9 KB

Name:  IMG00248-20100120-2144.jpg
Views: 11
Size:  68.0 KB

Name:  IMG00249-20100120-2144.jpg
Views: 13
Size:  55.2 KB

if you remove it try to keep your finger prints away from it.. it wont stick as good if you have them all over.. i gotta admit my prints were all over and i didnt have a problem.. but for an older car could be different

Last edited by SAMzGXP; 01-21-2010 at 04:05 AM.
SAMzGXP is offline   Reply With Quote
Old 01-21-2010, 03:49 AM   #8
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

Quote:
Originally Posted by Mike1995 View Post
Hey Bill, why don't you and Sam get together and do a write up for the Tech info area? Make a good article for mods IMO.
write up is easy... i didnt take much picture because the info is all over and thought its clear.. but if you guys really want i can use my pictures and the others to make a nice write up..




and before i forget i would like to thank "gtpsuprchrgd03", "harofreak00" & "ddalder" for all their help and information

and for anyone that would like to do this mod, "gtpsuprchrgd03" would be more than happy to sell you an amazing set for just 20 bucks shipped..

more pics to come soon
SAMzGXP is offline   Reply With Quote
Old 01-21-2010, 12:18 PM   #9
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Looking great! These are the type of things we like to see members share here. Thanks for sharing Sam!
Purplehazeir is offline   Reply With Quote
Old 01-21-2010, 12:48 PM   #10
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

thanks!!


anyone any idea how to remove the door panels?
