Old 11-03-2009, 12:11 AM   #31
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Yes he has 1.8:1 but he'* not running stock heads. He has the clearance to run that much lift.
I've got the S1X also and have been looking at the Yella Terra 1.6:1 Roller Rockers. I've got a set of 1.9:1, but after I got the cam I thought that retaining the stock rocker lift or near rocker lift would be okay on stock heads. I don't think I would go over 1.7:1. You think I should stick to the 1.6:1?
Purplehazeir is offline   Reply With Quote
Old 11-03-2009, 08:19 AM   #32
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think you should stick with the 1.6:1 on the stock heads. You will have clearance problems going to 1.7:1
Danthurs is offline   Reply With Quote
Old 11-03-2009, 08:23 AM   #33
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Do you plan on replacing the case bearings?
BillBoost37 is offline   Reply With Quote
Old 11-03-2009, 08:31 AM   #34
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Those look perfect and will be regreased.
Danthurs is offline   Reply With Quote
Old 11-03-2009, 04:01 PM   #35
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Got the supercharger all done.

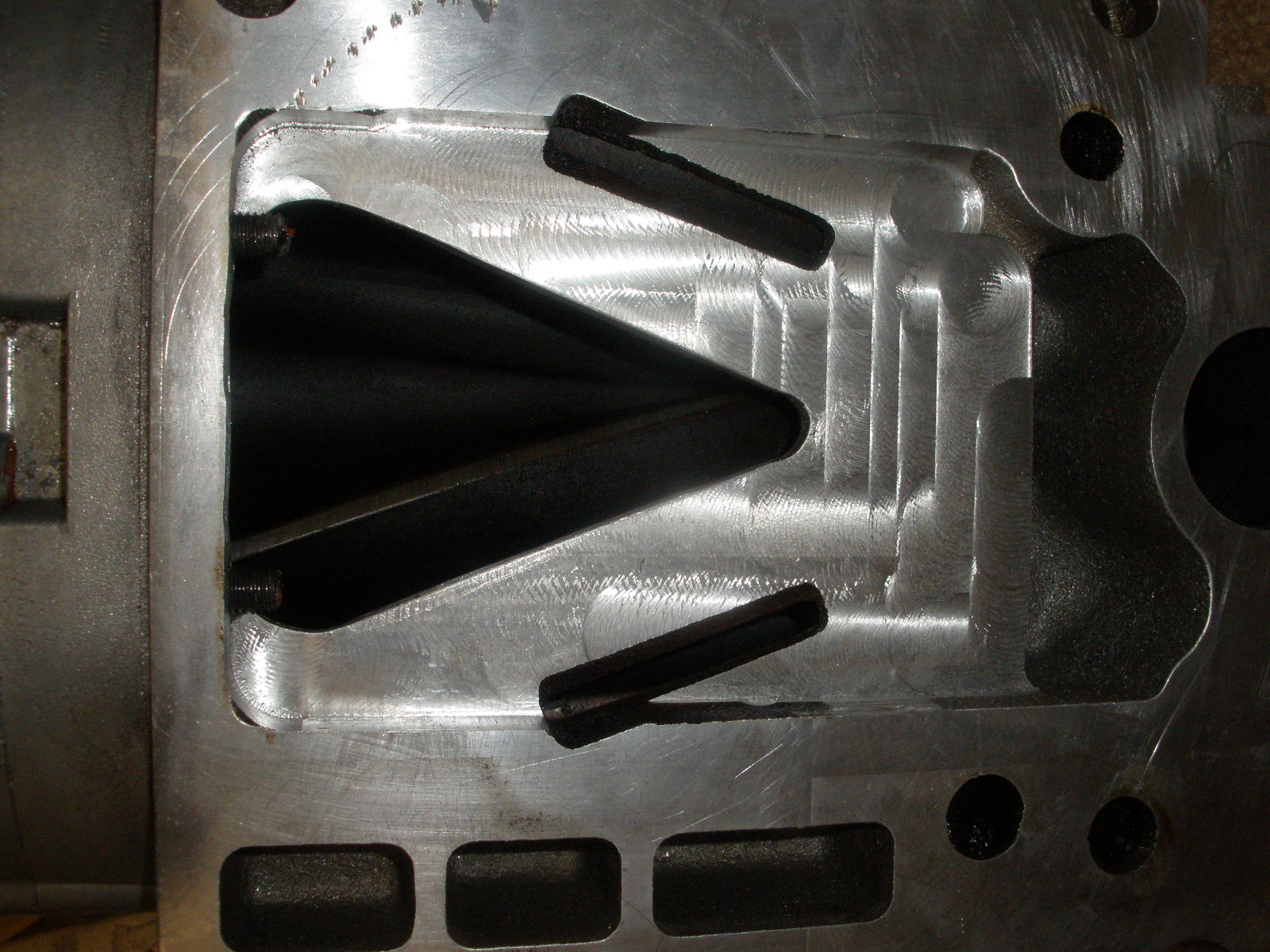

Finished porting out the inlet.

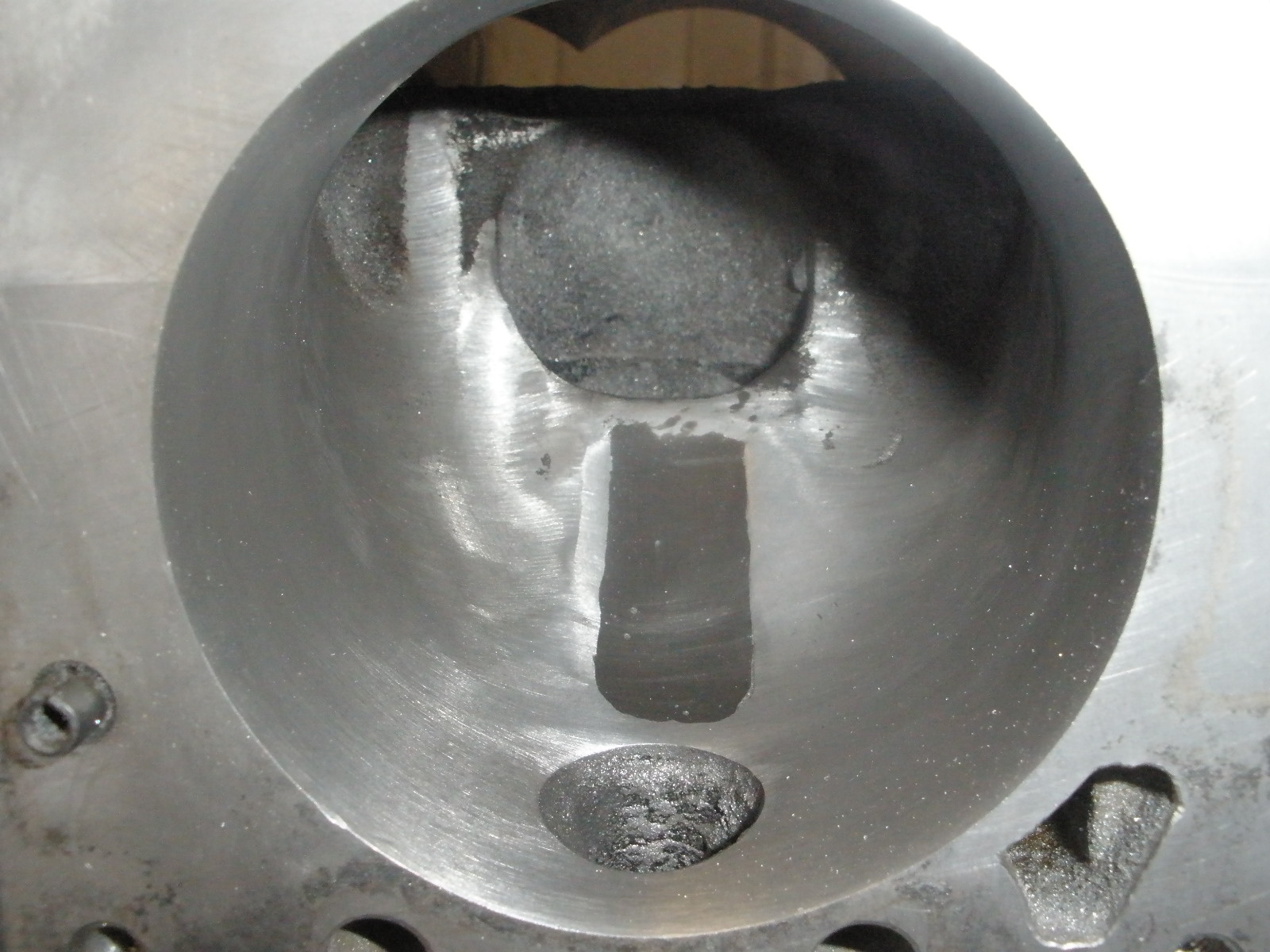

A view of the inlet. I filled in the divot.

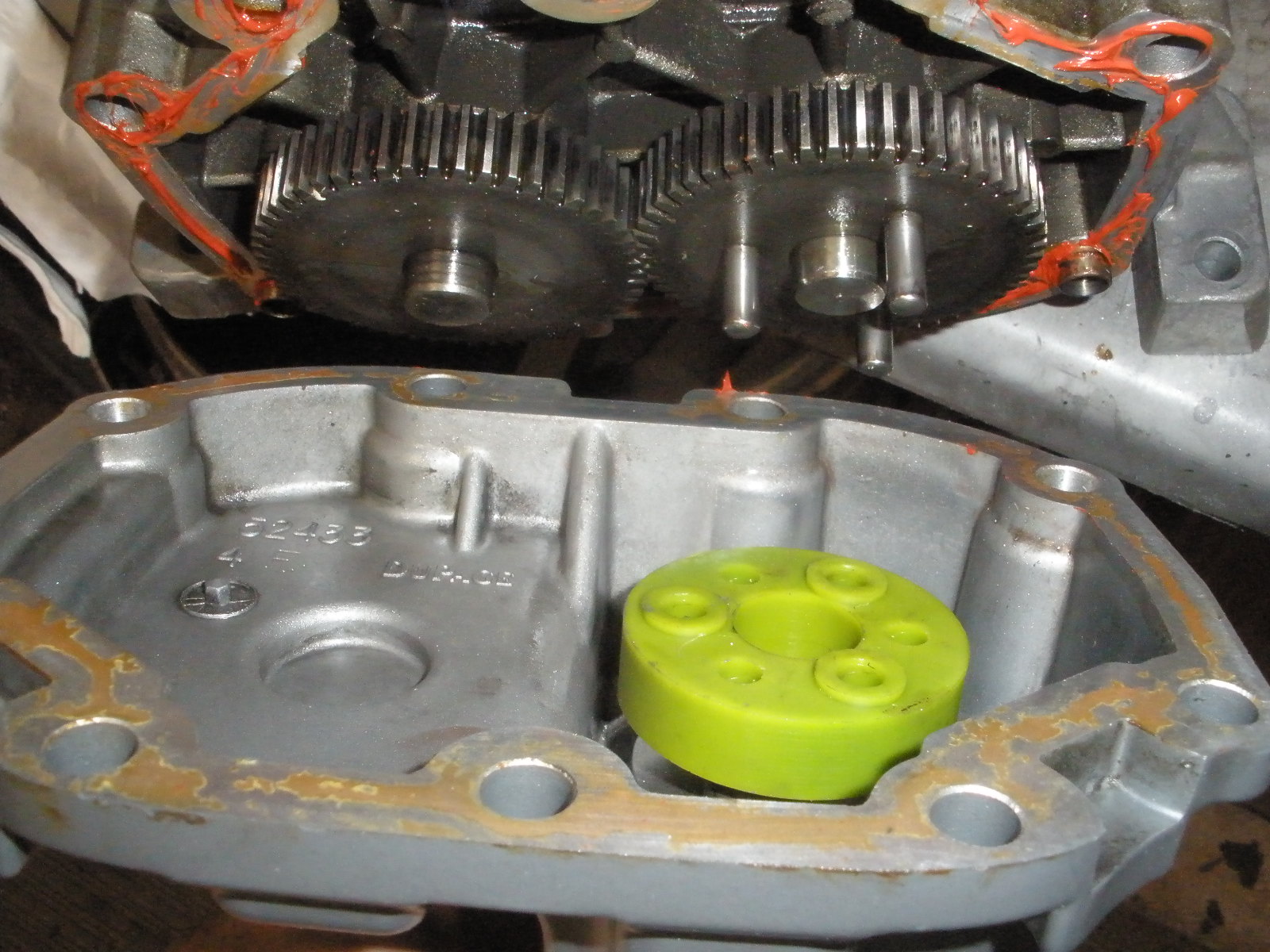

Brand new green coupler.


I have one last thing to do, and that is to cut off those 2 bottom bolts so they sit flush.

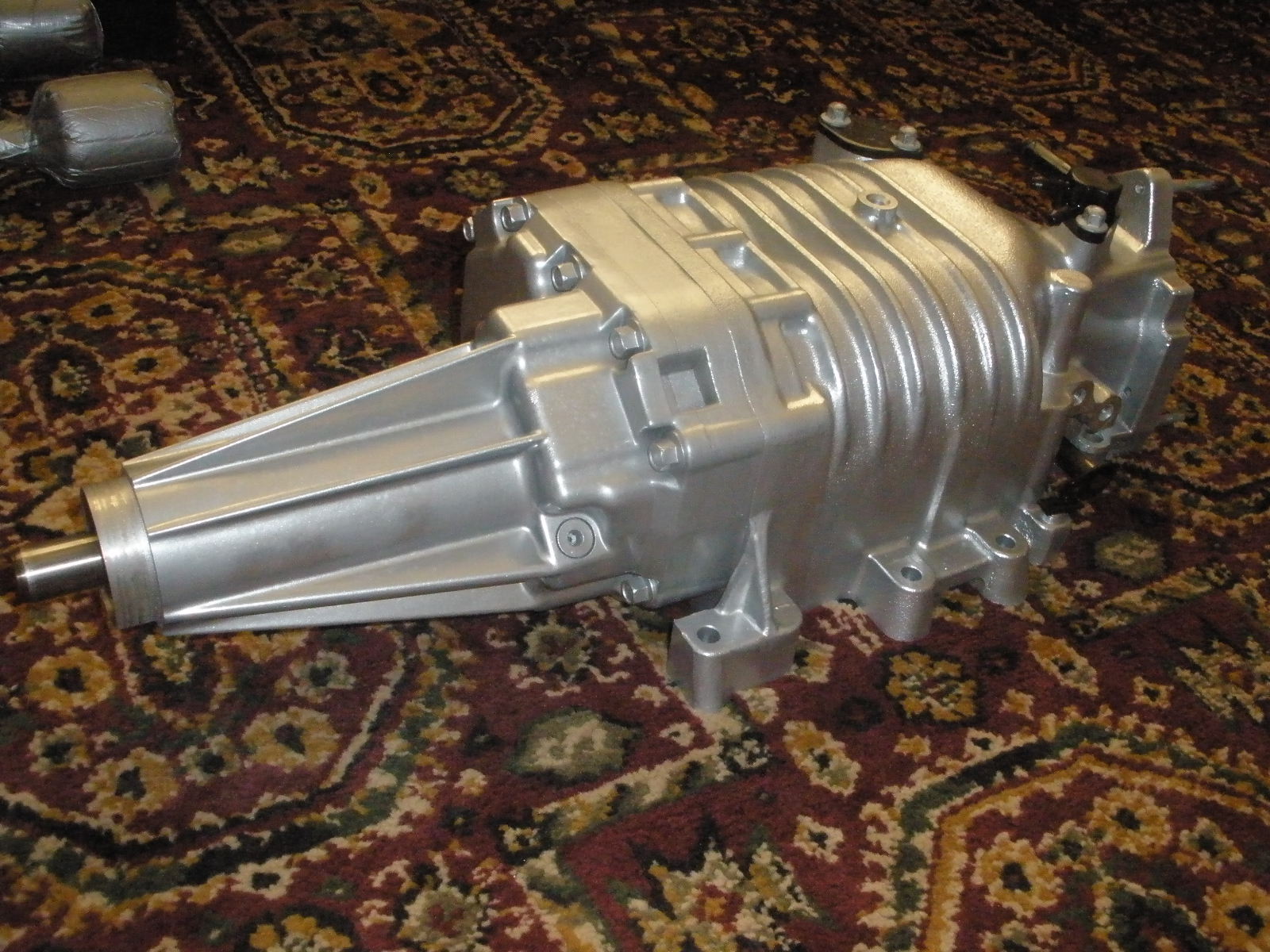

And there she is all done. now wouldn't that look great on top of your engine?
Danthurs is offline   Reply With Quote
Old 11-03-2009, 04:06 PM   #36
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nicely done! Looks great Dan. What did you use to fill in the divot on the intake?
Purplehazeir is offline   Reply With Quote
Old 11-03-2009, 04:15 PM   #37
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Some JB weld. I roughed up the surface with a small carbide bit and then pushed it in to place.
Danthurs is offline   Reply With Quote
