Default Rebuilding a supercharger

Here I am rebuilding a M62 supercharger. When I'm all done I will make up a write up and post it in the tech info area. This will cover all superchargers, the only exception is the gen5 needle bearings.

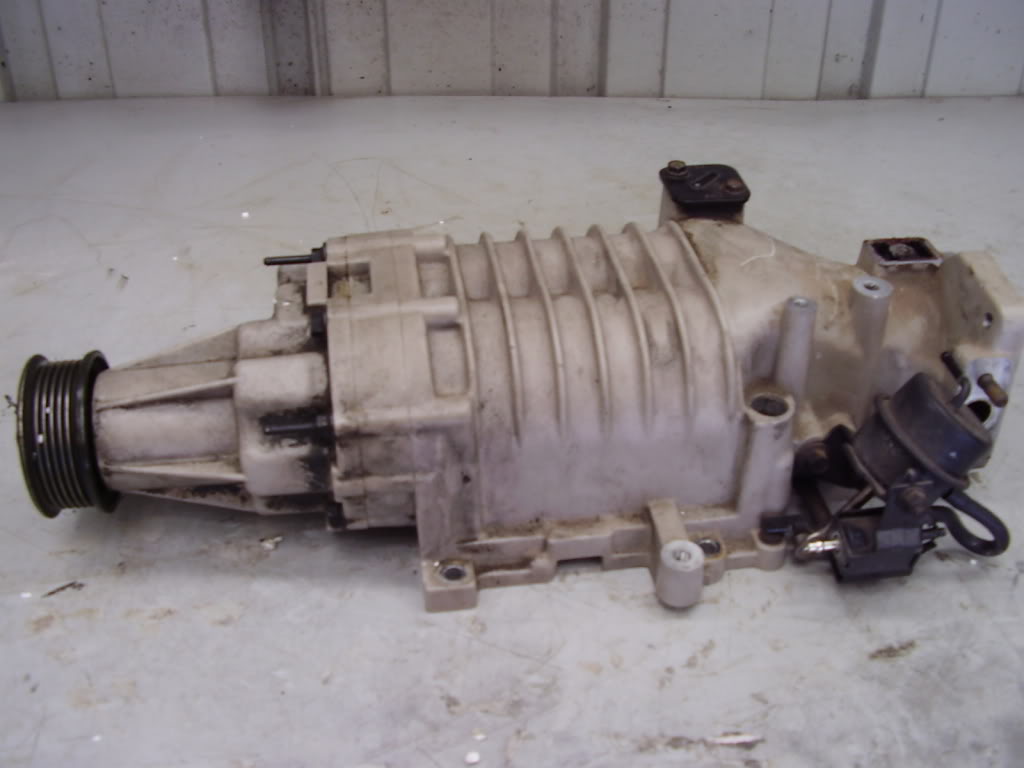

The M62
Name:  P5260108.jpg
Views: 13
Size:  67.2 KB

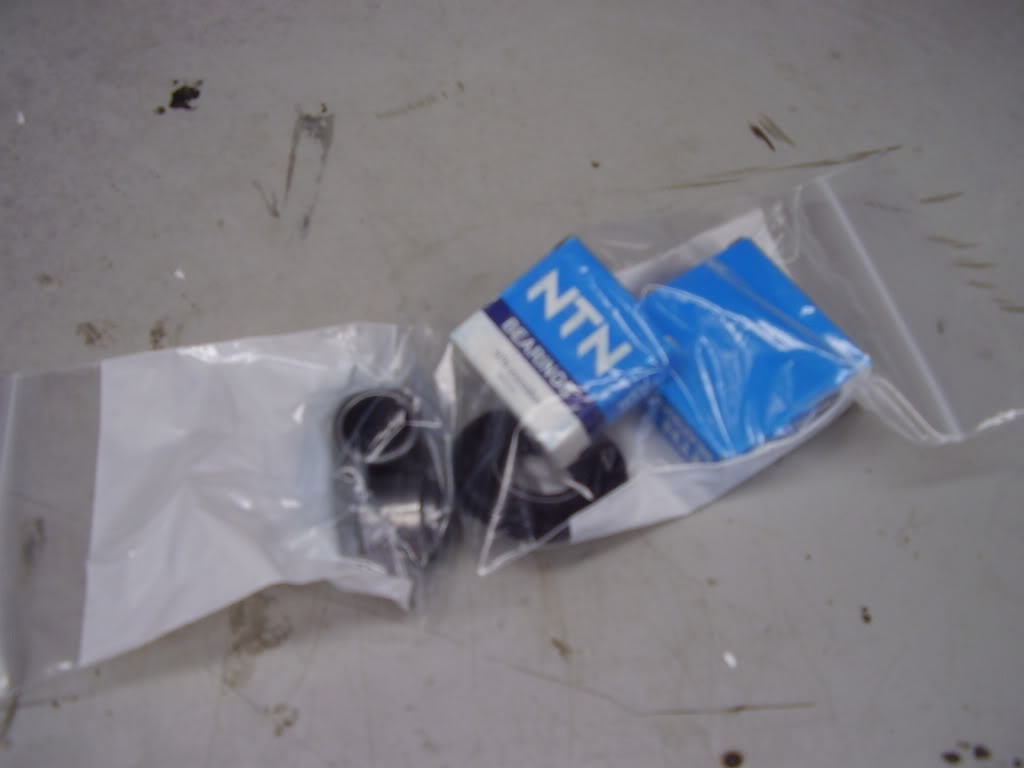

The rebuild parts, bearings and seal.
Name:  P5260109.jpg
Views: 16
Size:  48.6 KB

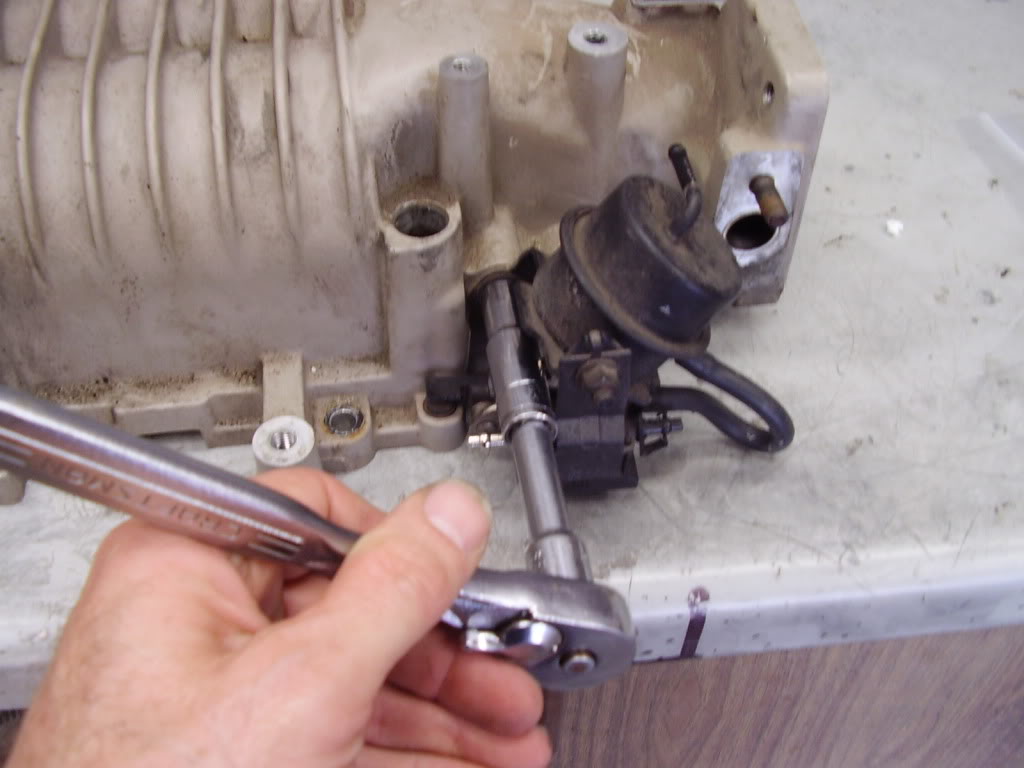

Removing all the parts.
Name:  P5260110.jpg
Views: 16
Size:  80.5 KB

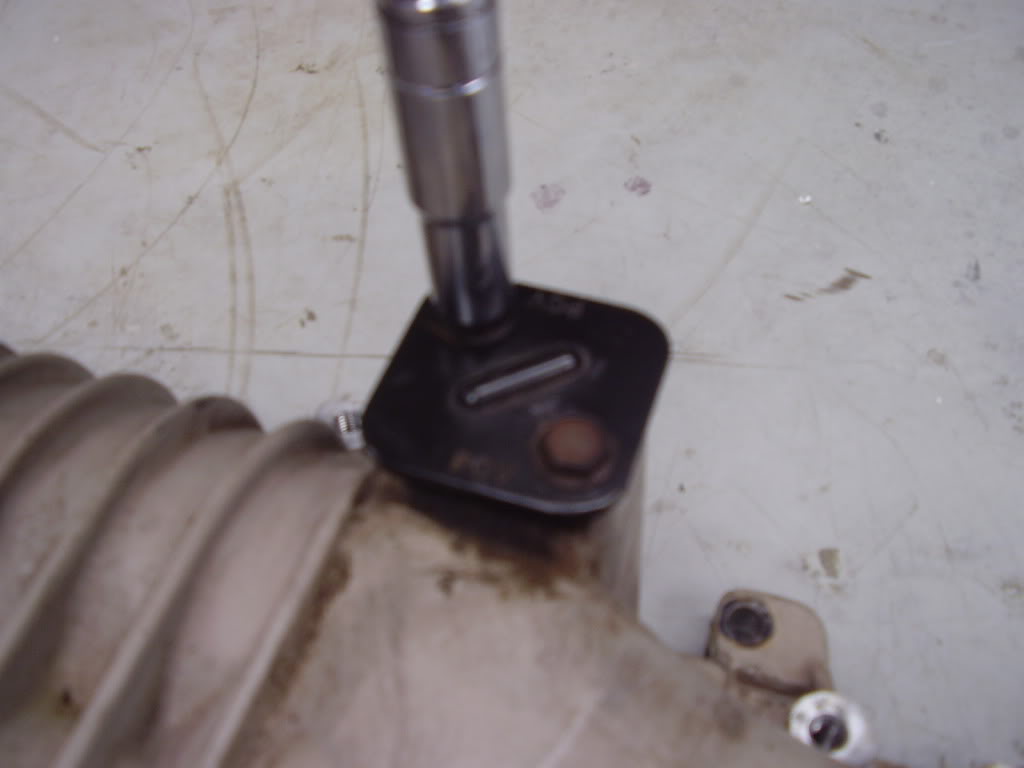

PCV valve.
Name:  P5260111.jpg
Views: 12
Size:  48.9 KB

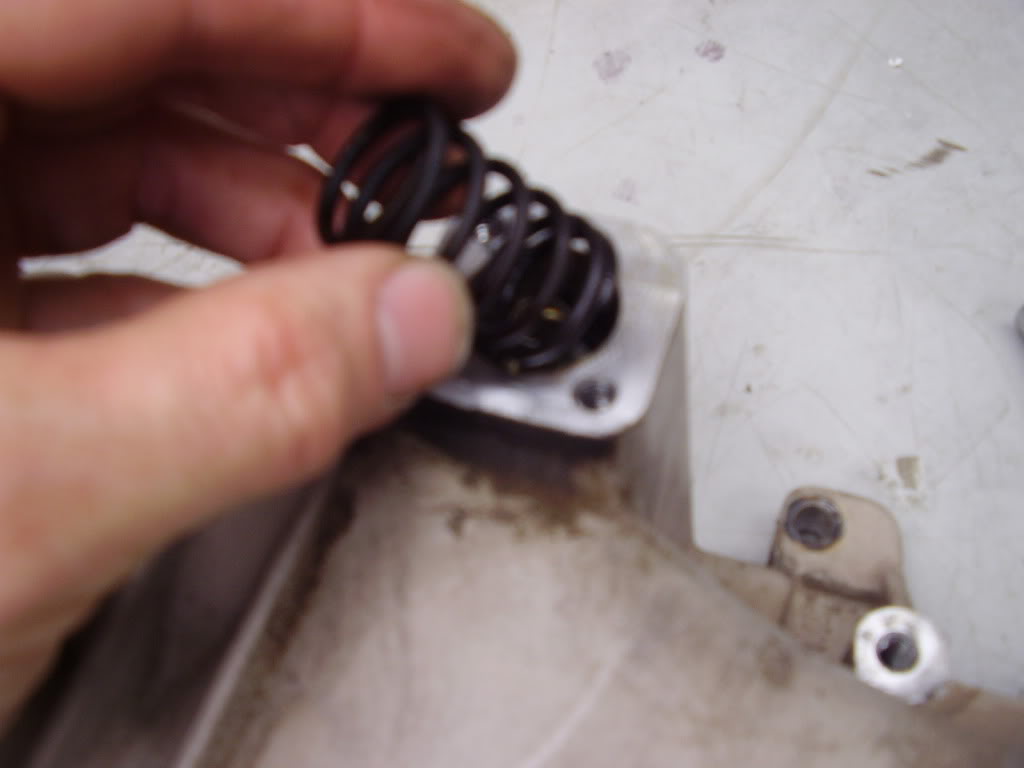

Name:  P5260112.jpg
Views: 13
Size:  50.8 KB

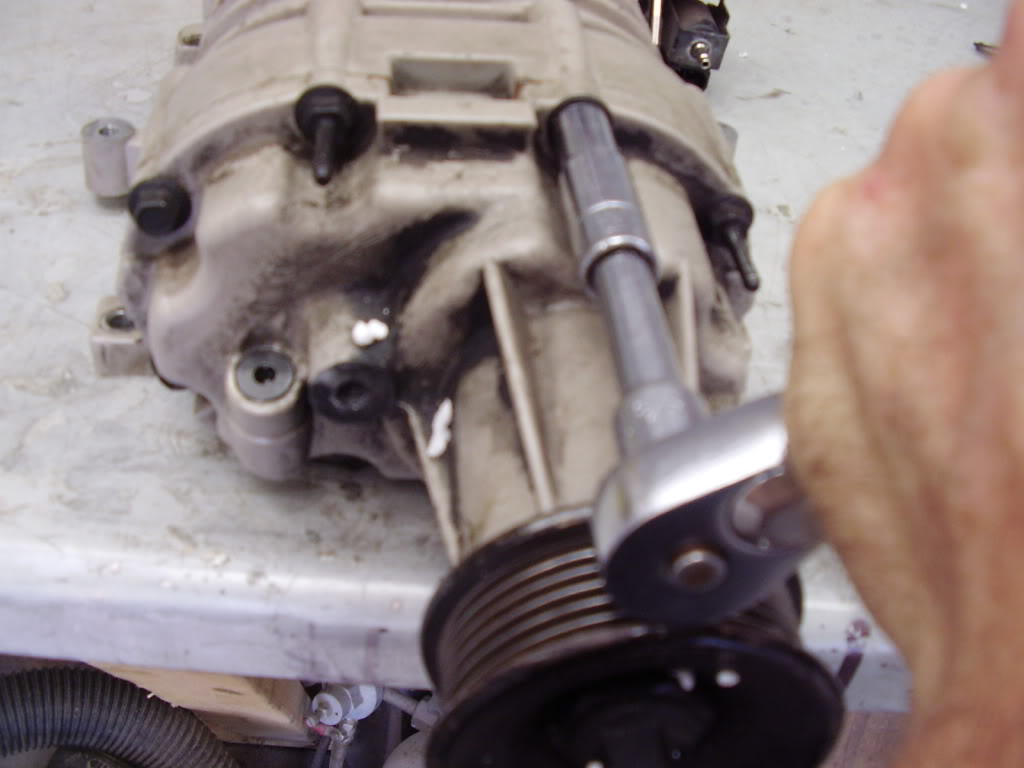

Removing the snout.
Name:  P5260113.jpg
Views: 17
Size:  73.0 KB

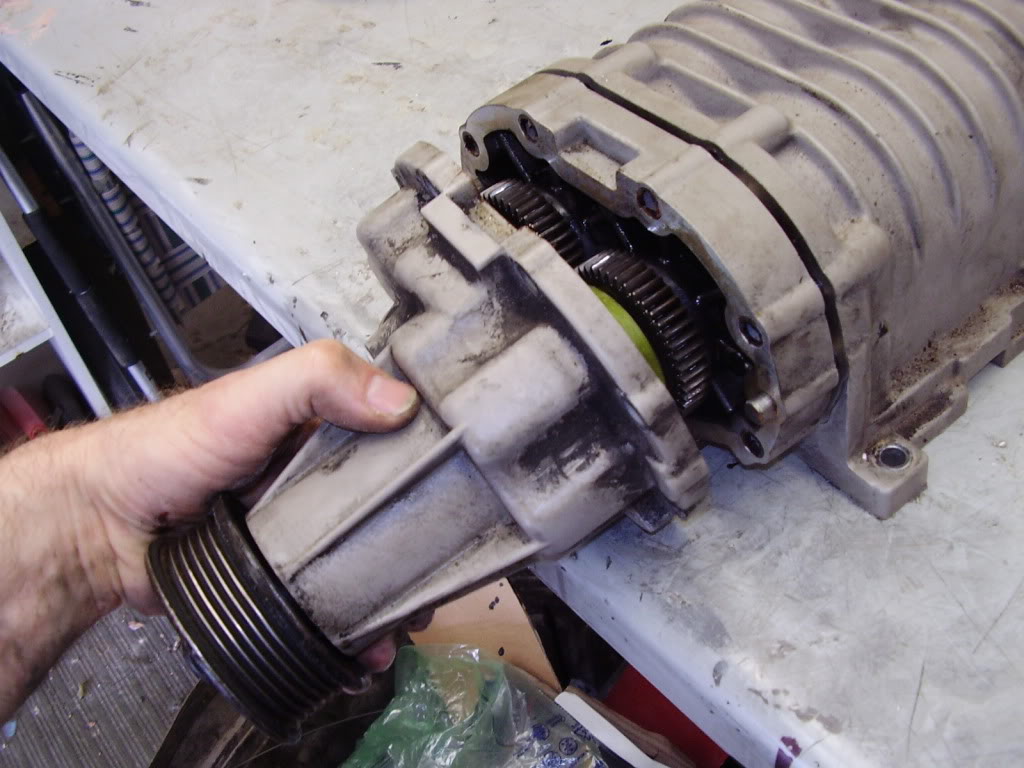

Opening it up.
Name:  P5260114.jpg
Views: 14
Size:  118.2 KB

Coupler
Name:  P5260115.jpg
Views: 15
Size:  65.1 KB

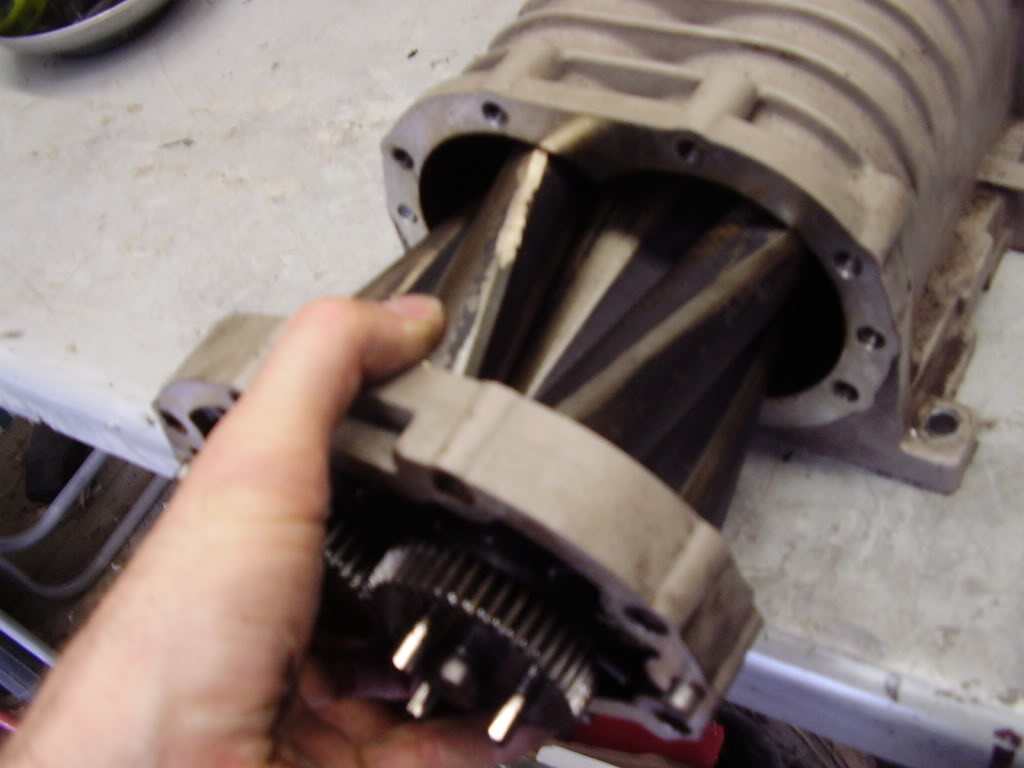

Rotors.
Name:  P5260116.jpg
Views: 13
Size:  70.8 KB

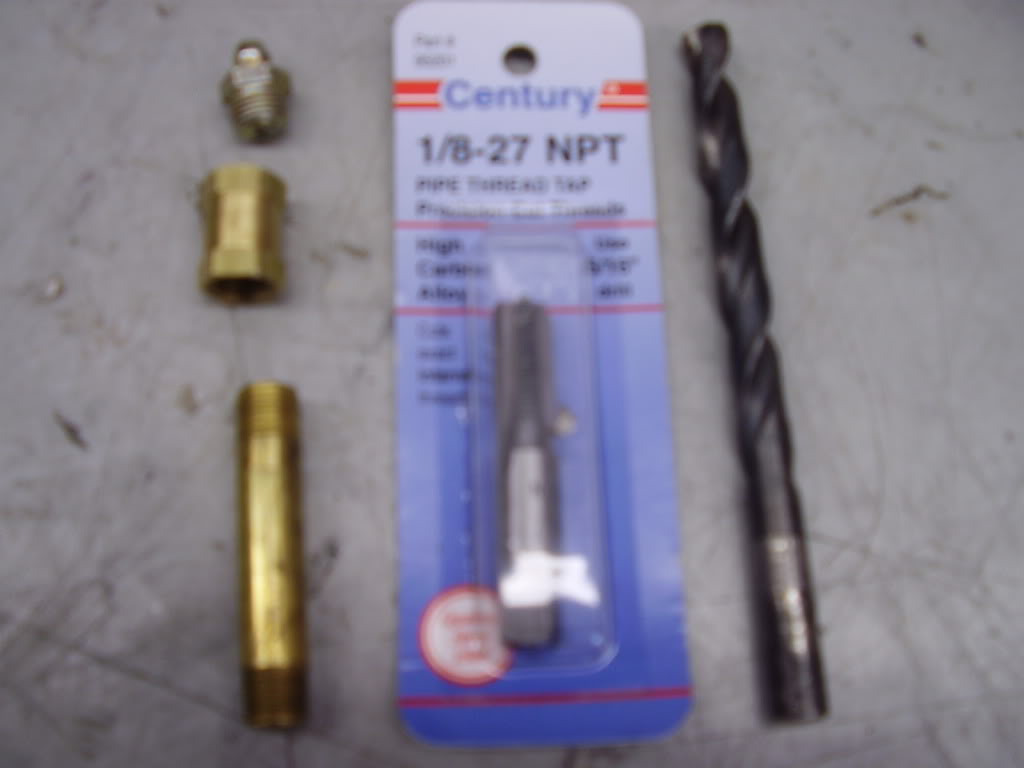

Parts needed to remove the needle bearings. 1/8" NPT tap, 1/8" brass nipple, 1/8" brass NTP coupler, and a 1/8" NTP zerk. And a 11/32 drill bit.
Name:  P5260118.jpg
Views: 13
Size:  53.4 KB

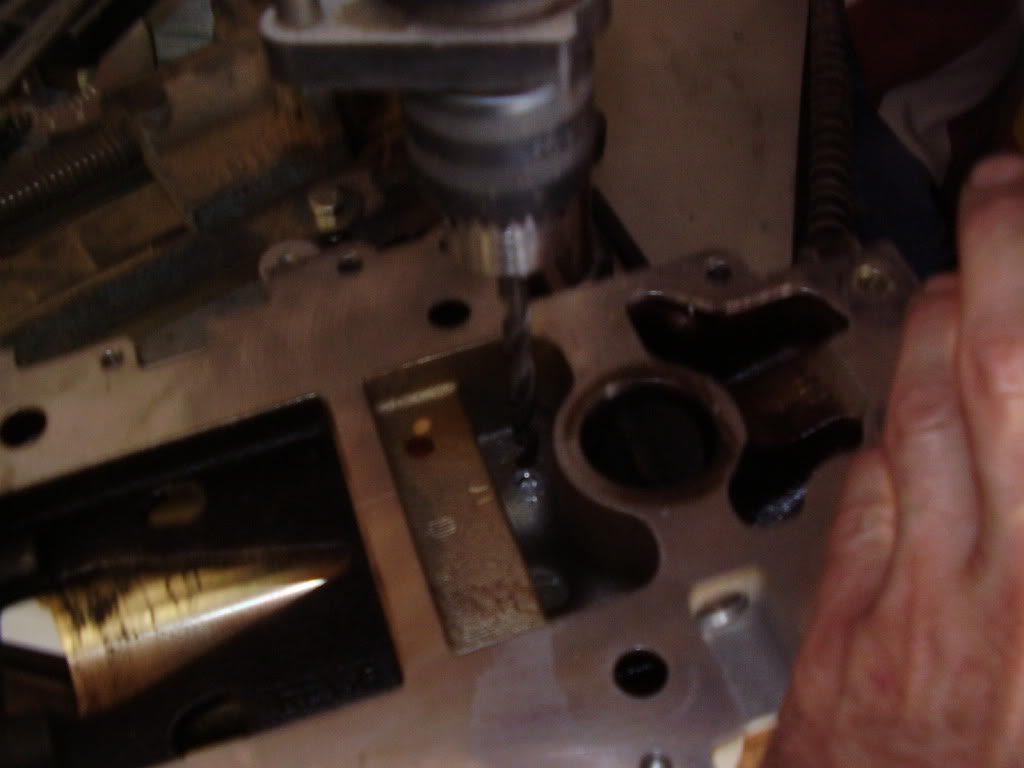

Drilling out behind the bearings.
Name:  P5260119.jpg
Views: 14
Size:  59.4 KB

All drilled.

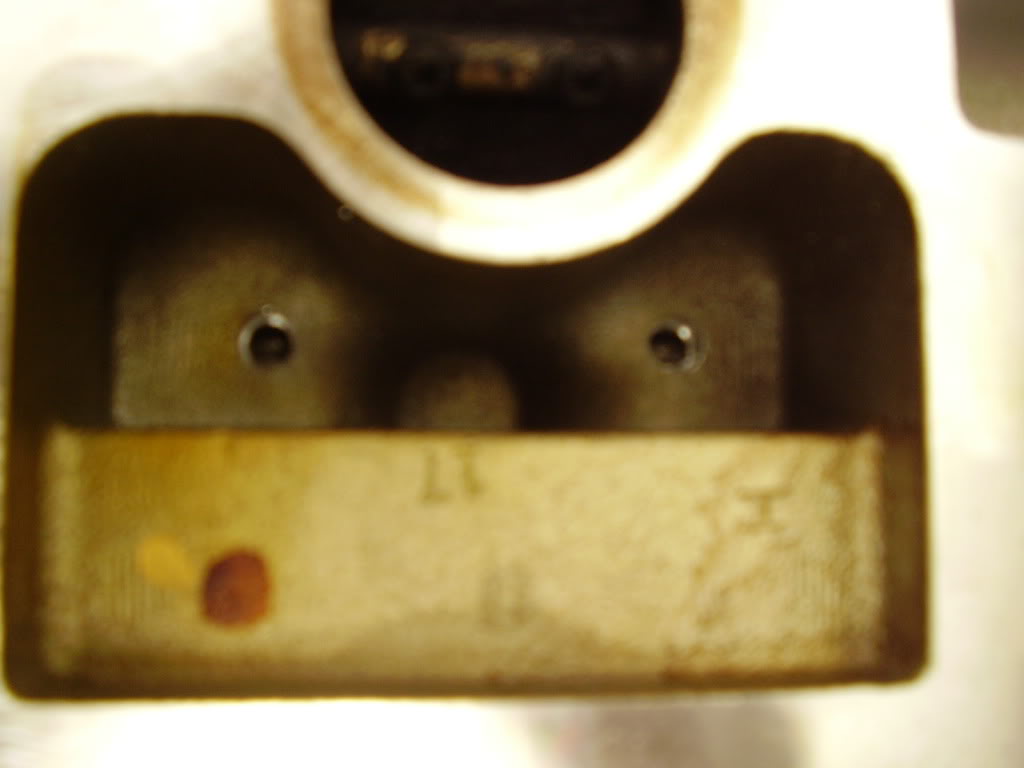

Name:  P5260121.jpg
Views: 14
Size:  54.0 KB

Tapping the holes.
Name:  P5260122.jpg
Views: 11
Size:  75.6 KB

Installed the zerk
Name:  P5260123.jpg
Views: 15
Size:  56.3 KB

Could be messy when the bearings come out, so putting a rag in the way.
Name:  P5260124.jpg
Views: 14
Size:  65.4 KB

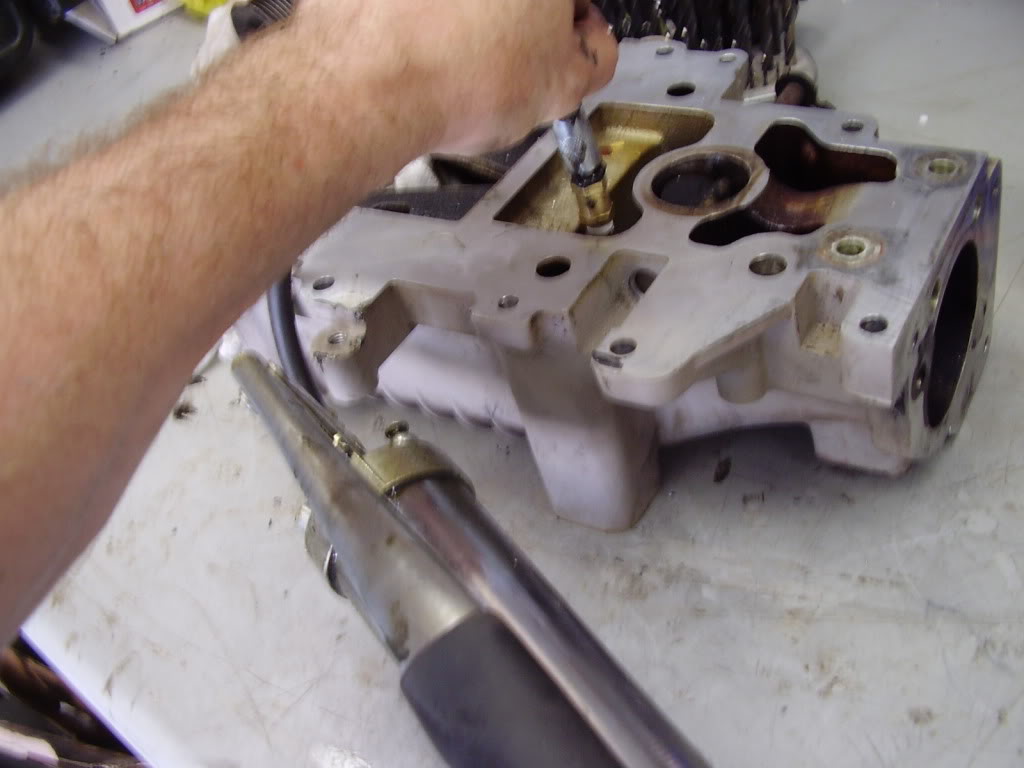

Pumping grease in.
Name:  P5260125.jpg
Views: 11
Size:  79.2 KB
Danthurs is offline   Reply With Quote
Old 05-26-2010, 06:22 PM   #2
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Whats your preferred method of pressing the needle bearings back in?
Rockstar04 is offline   Reply With Quote
Old 05-26-2010, 06:26 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Take a 17mm socket with a long extension. Put the socket on the extension upside down. Then press them in with a Arbor press.

By the way, it'* going to take a good grease gun to force them out. Mine is leaking around the end so I'm taking it in to work. I'm already looking at a new grease gun.
Danthurs is offline   Reply With Quote
Old 05-26-2010, 06:57 PM   #4
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Take a 17mm socket with a long extension. Put the socket on the extension upside down. Then press them in with a Arbor press.

By the way, it'* going to take a good grease gun to force them out. Mine is leaking around the end so I'm taking it in to work. I'm already looking at a new grease gun.
Yep...takes a grease gun with little miles on it or lot'* of pressure to get those bearings to pop out.

I've used a piece of iron wood dowel, a small level and a dead blow...little taps until it get'* going, and then heavier taps. The key is to keep the dowel perpendicular to the case.

DO NOT PUT GREASE ON THE OUTSIDE OF THE NEEDLE BEARING TO AID IT IN....bad things will happen!
Purplehazeir is offline   Reply With Quote
Old 05-26-2010, 07:10 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, goes in dry. You don't want them to spin or work out.
Danthurs is offline   Reply With Quote
Old 05-26-2010, 07:43 PM   #6
Senior Member
Posts like a Turbo

Join Date: May 2009
Location: OHIO
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
trixster68 is on a distinguished road
Default

WoW I see you got it. I am glad it got there in one piece. The write up is sure nice and the pictures Rock! I must say thank you Dan for helping me out and doing this for me. I can't wait to put it back in my Bonnie and fire her up.
trixster68 is offline   Reply With Quote
Old 05-26-2010, 07:56 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Should go out Tuesday, darn holiday weekend is messing things up.
Danthurs is offline   Reply With Quote
Old 05-26-2010, 08:01 PM   #8
Senior Member
Posts like a Turbo

Join Date: May 2009
Location: OHIO
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
trixster68 is on a distinguished road
Default

That'* all right with me it will just be nice to have a car again. She is just sitting in the driveway hoping for a better day. Been walking and it hasn't been no fun, I guess not having a job right has helped. I am just trying to get by each day right now until something comes along. Thanks so much Dan! You are the Best!
trixster68 is offline   Reply With Quote
Old 05-27-2010, 08:10 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dan since you are buying a new gun, consider the trigger handle ones. I love mine for one handed operation while holding the hose on the zerk with the other.

I've used a press, and gently tapped with sockets and a brass hammer. Both work about the same, the key is to install straight....this is much tougher on an M90 as the inlet is angled to one side.

Tapping an M90 it would be nice to have a longer tap. The distance from the side of the casing and the depth could be a challenge for someone going at it for the first time.

Hehe found the pics from a write up I did in the past.

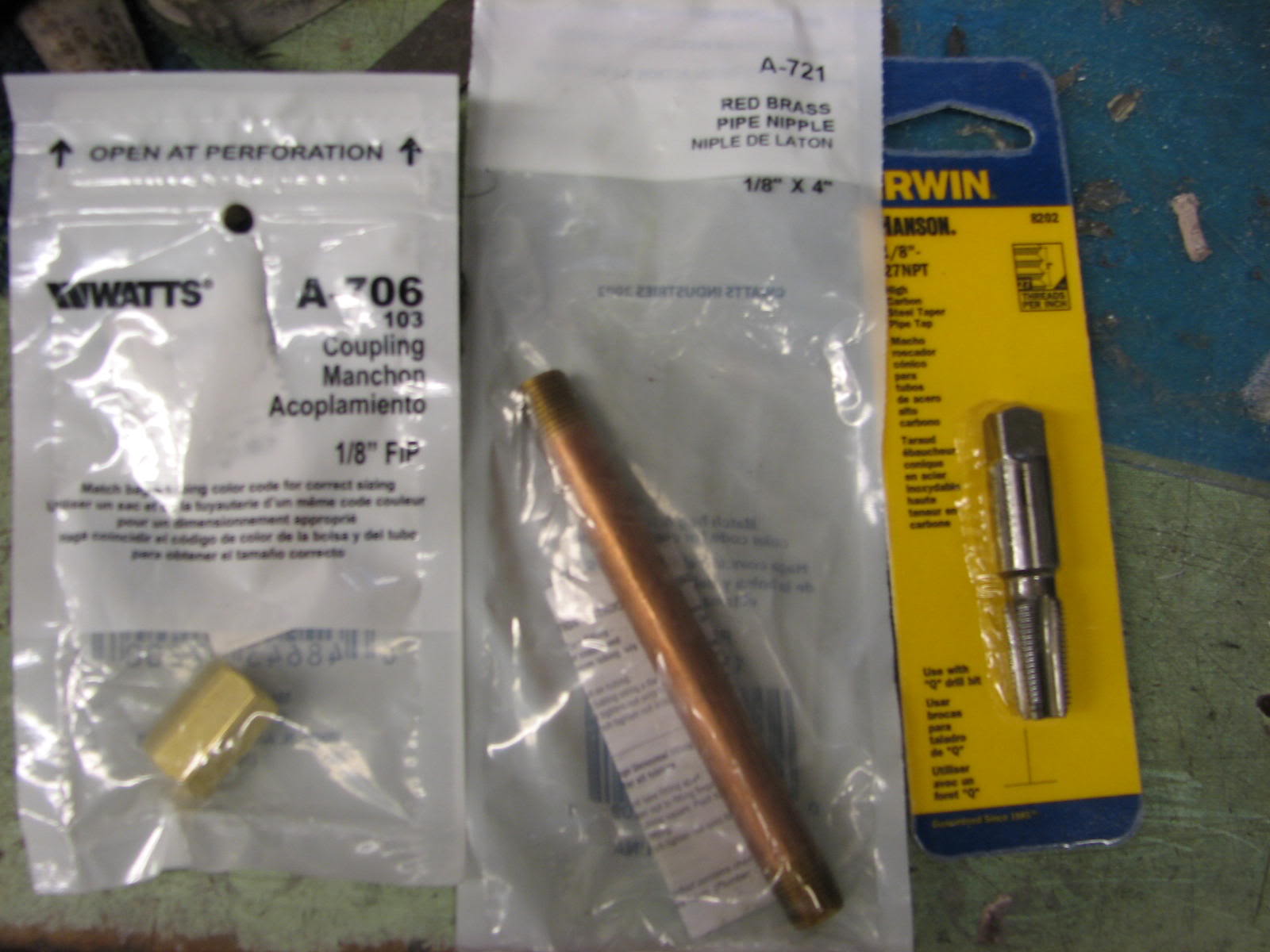

Name:  yeah001.jpg
Views: 13
Size:  140.3 KB

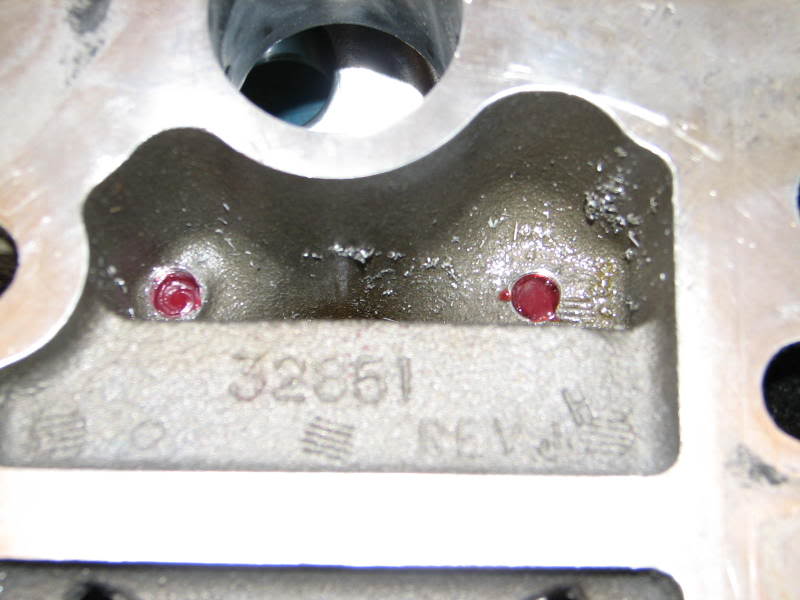

Notice the hole on the left in this pic. It'* tight to the side
Name:  yeah006.jpg
Views: 13
Size:  48.4 KB

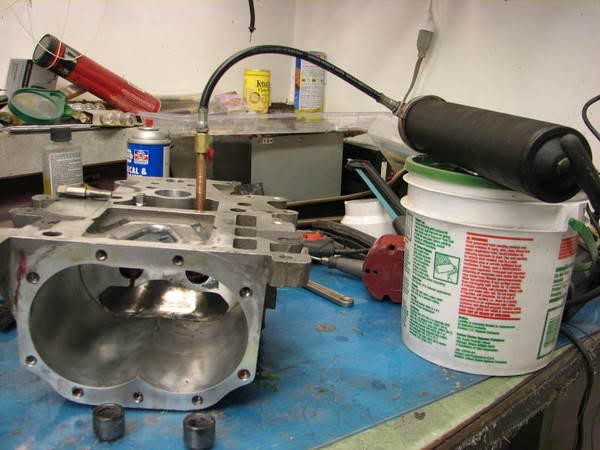

Name:  yeah002.jpg
Views: 14
Size:  43.5 KB

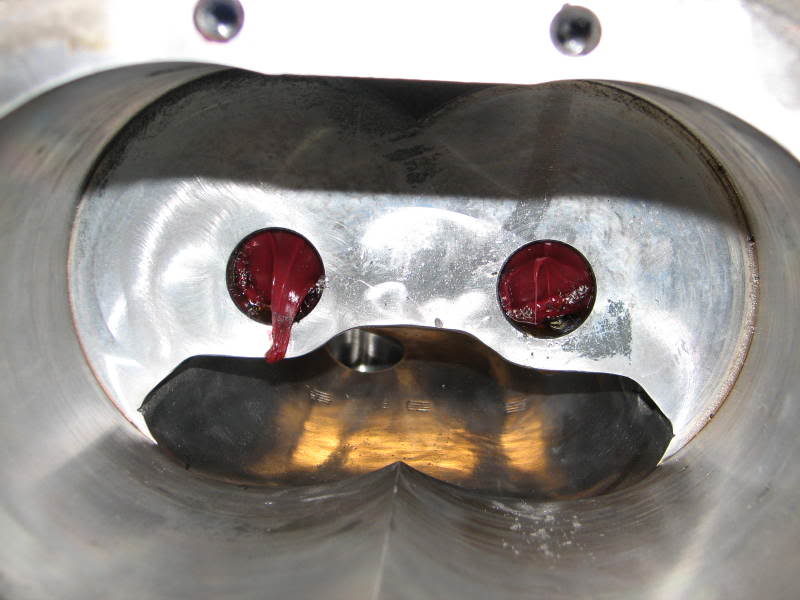

Fire in the hole (Pop)
Name:  yeah007.jpg
Views: 16
Size:  49.6 KB
BillBoost37 is offline   Reply With Quote
Old 05-27-2010, 01:03 PM   #10
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

took me forever to know how to remove them when i was polishing my M90 lol

but thanks for sharing
