Default Rebuilding a supercharger

I finally got enough time in my life to start working on the extra supercharger I had sitting on the shelf.

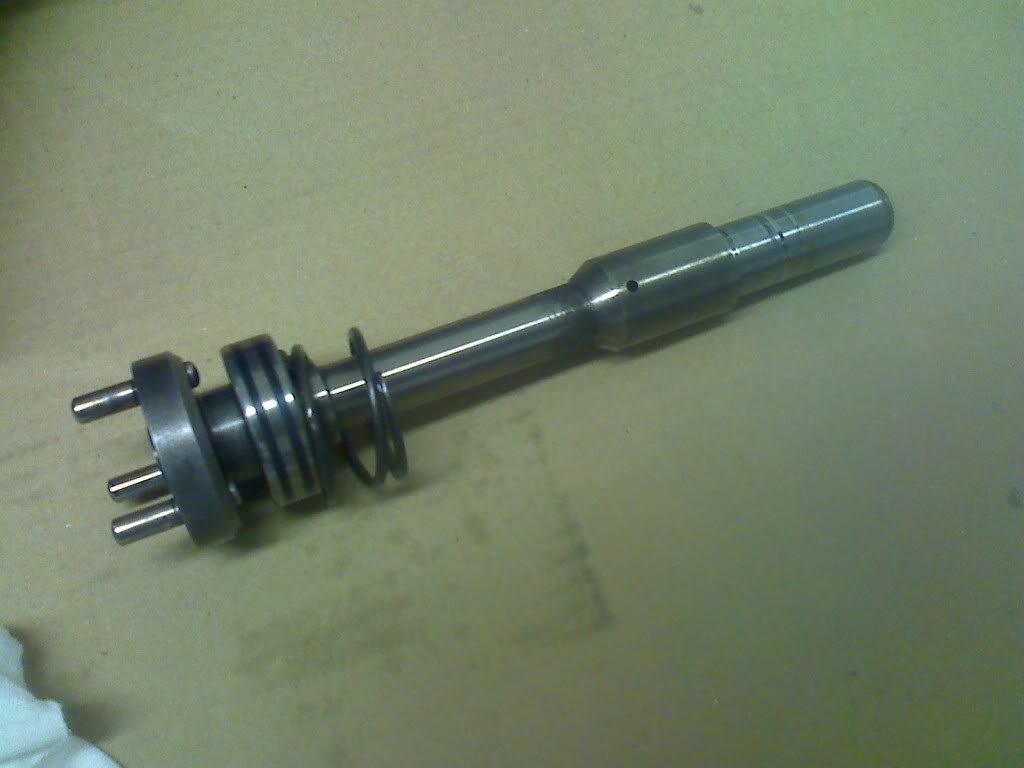

Pressed out the shaft.
Name:  1101090954a_321379.jpg
Views: 23
Size:  46.1 KB

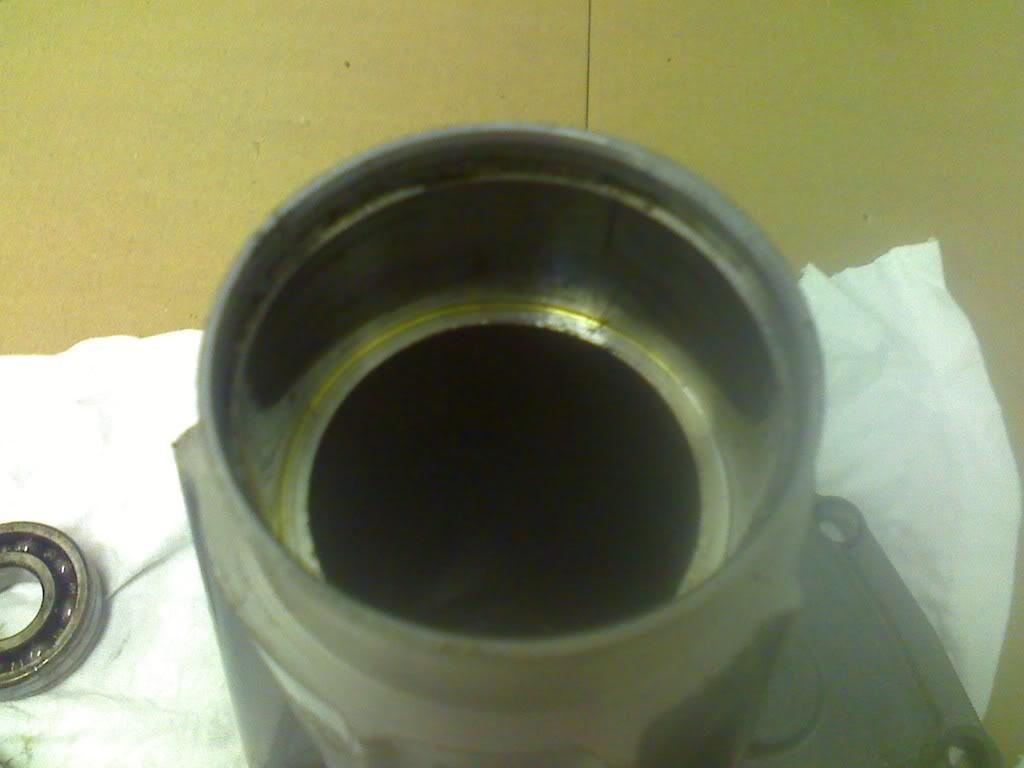

Here'* the end of the snout where the outer bearing and oil seal sits. this is behind the pulley.
Name:  1101090956a_339464.jpg
Views: 20
Size:  51.9 KB

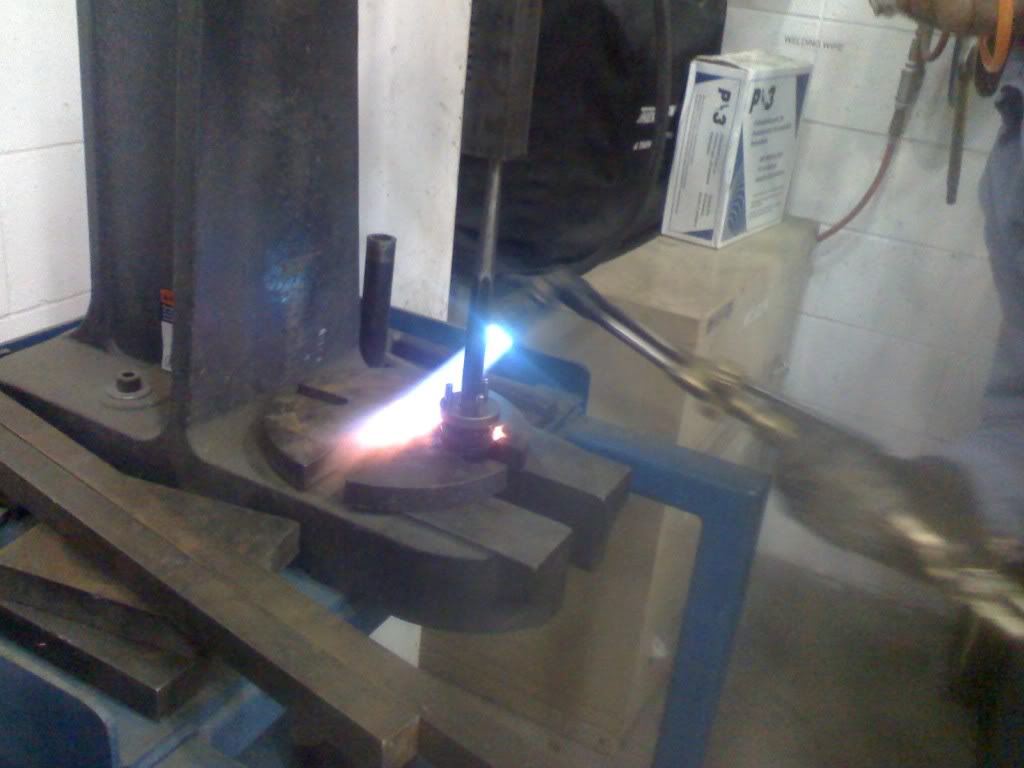

Getting the inner bearing and coupler shaft off was a bit more of a task. But I finally won the fight.
Name:  1101091003a_338754.jpg
Views: 22
Size:  61.6 KB

This is what the end of that shaft looks like.
Name:  1101091003b_249115.jpg
Views: 35
Size:  34.5 KB

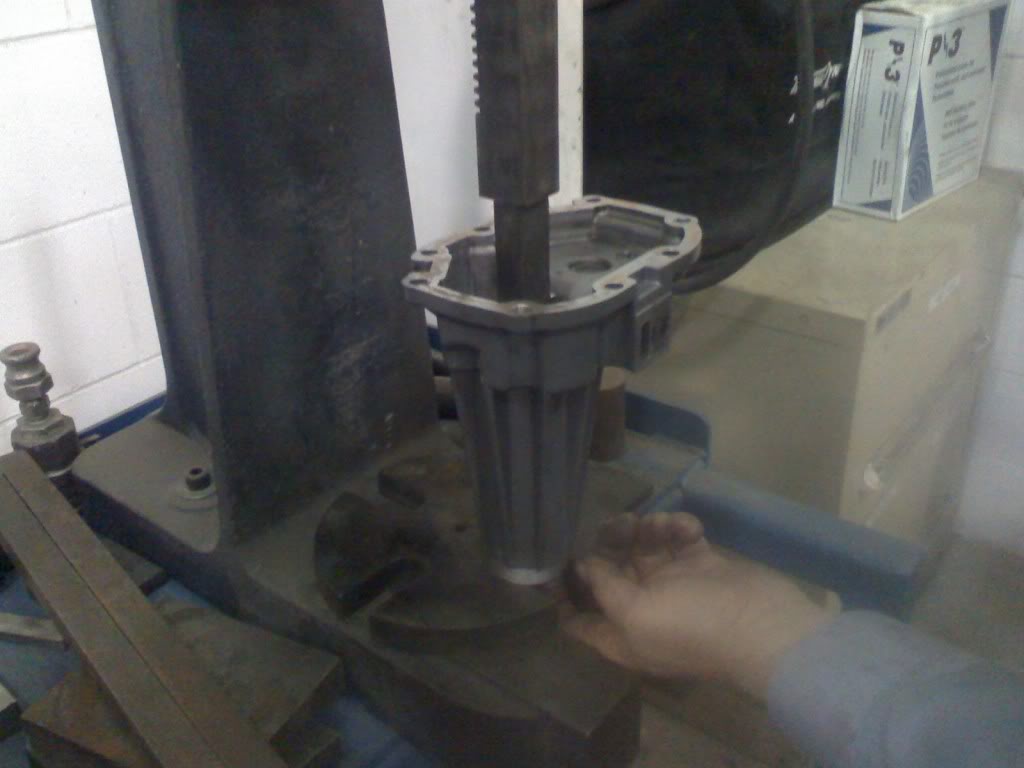

Pressed the new bearings on, and then pressed the shaft back in to the snout.
Name:  1101091022a_319251.jpg
Views: 20
Size:  55.0 KB

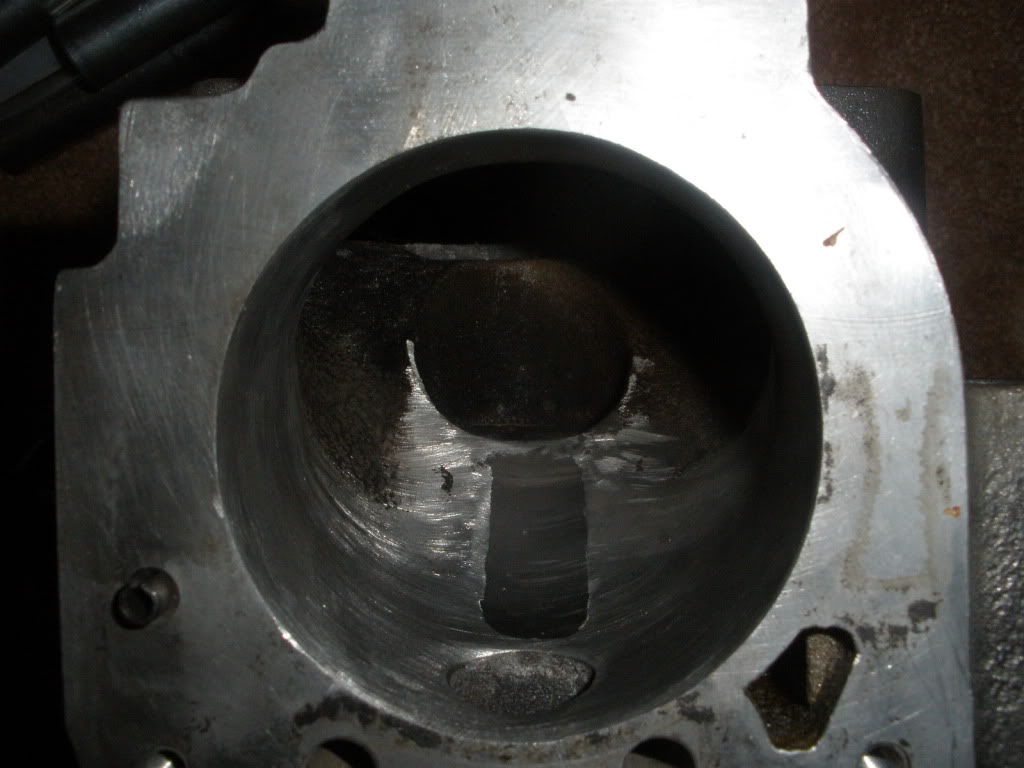

This is the inlet on the case, where the throttle body attaches. The divot has been filled in and is opened up to a bit over 73mm, I plan to take this to 75mm and then polish it up.
Name:  PB010149.jpg
Views: 26
Size:  98.8 KB

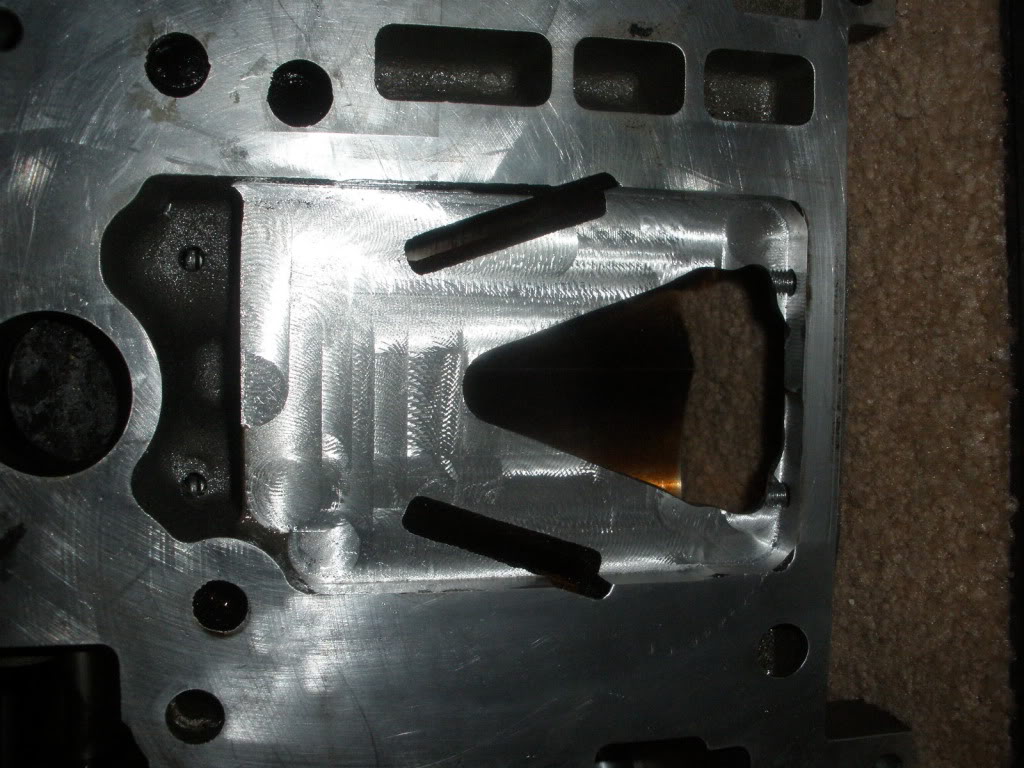

And here'* the outlet, all opened up and ready for a intercooler.
Name:  PB010150.jpg
Views: 21
Size:  159.7 KB

I plan to have this done this week. If anyone is interested, I will be selling this when done. Watch the for sale section, it will be posted soon.
Danthurs is offline   Reply With Quote
Old 11-02-2009, 06:50 PM   #2
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Got some more work done. Finished the outlet.

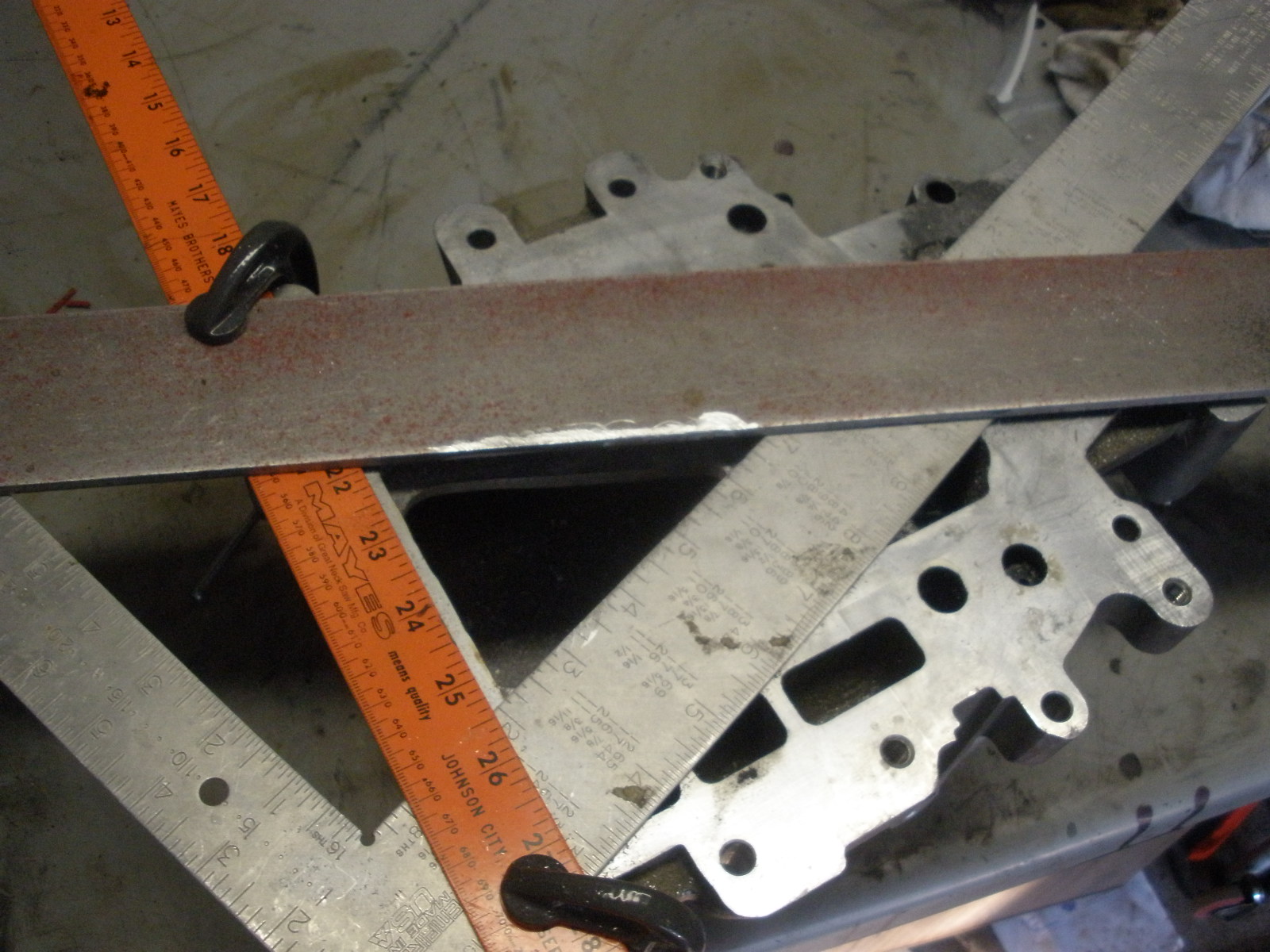

Marked off the area I wanted to remove

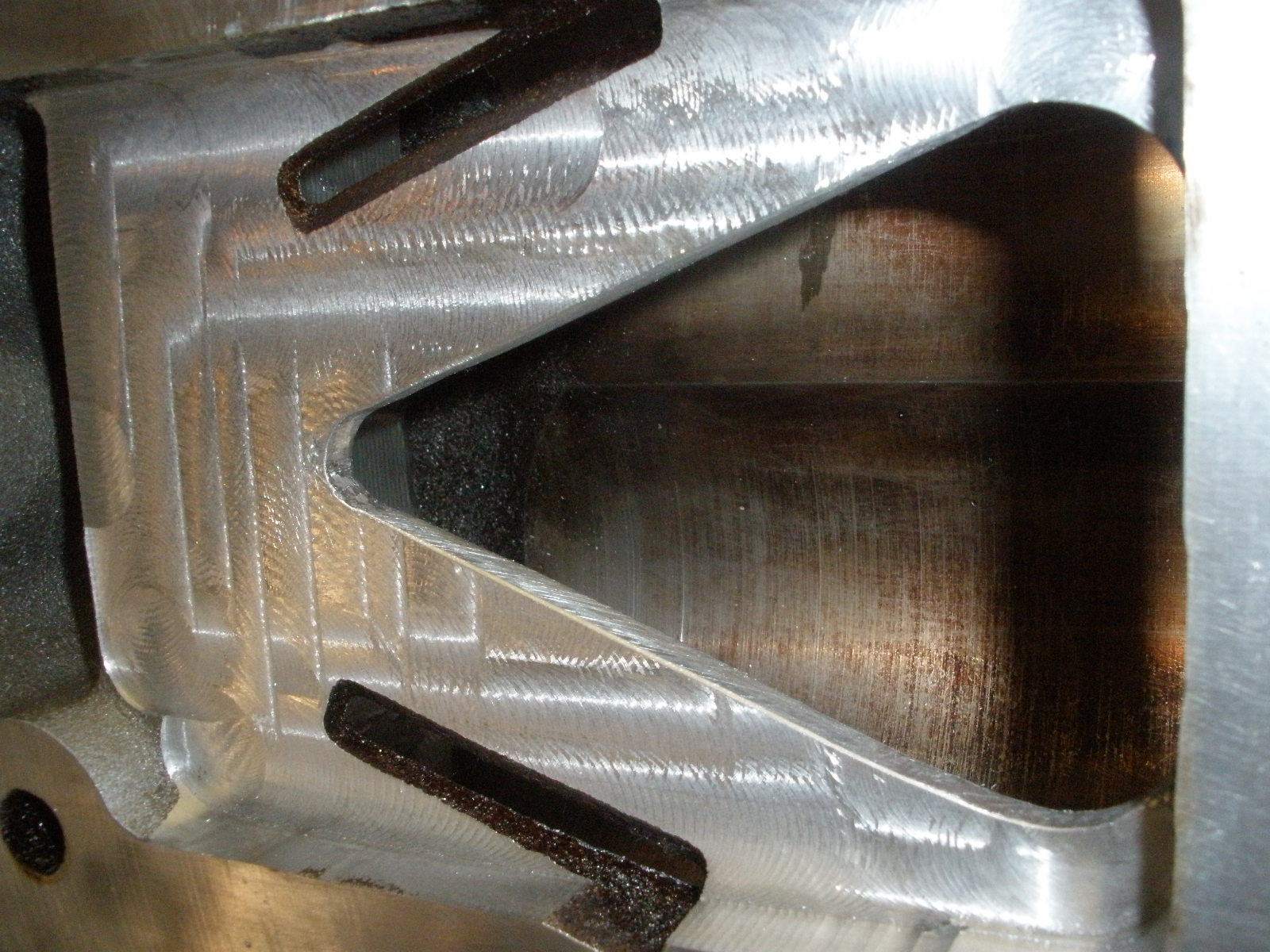

Here she is, all ported out, I'm very happy with this.

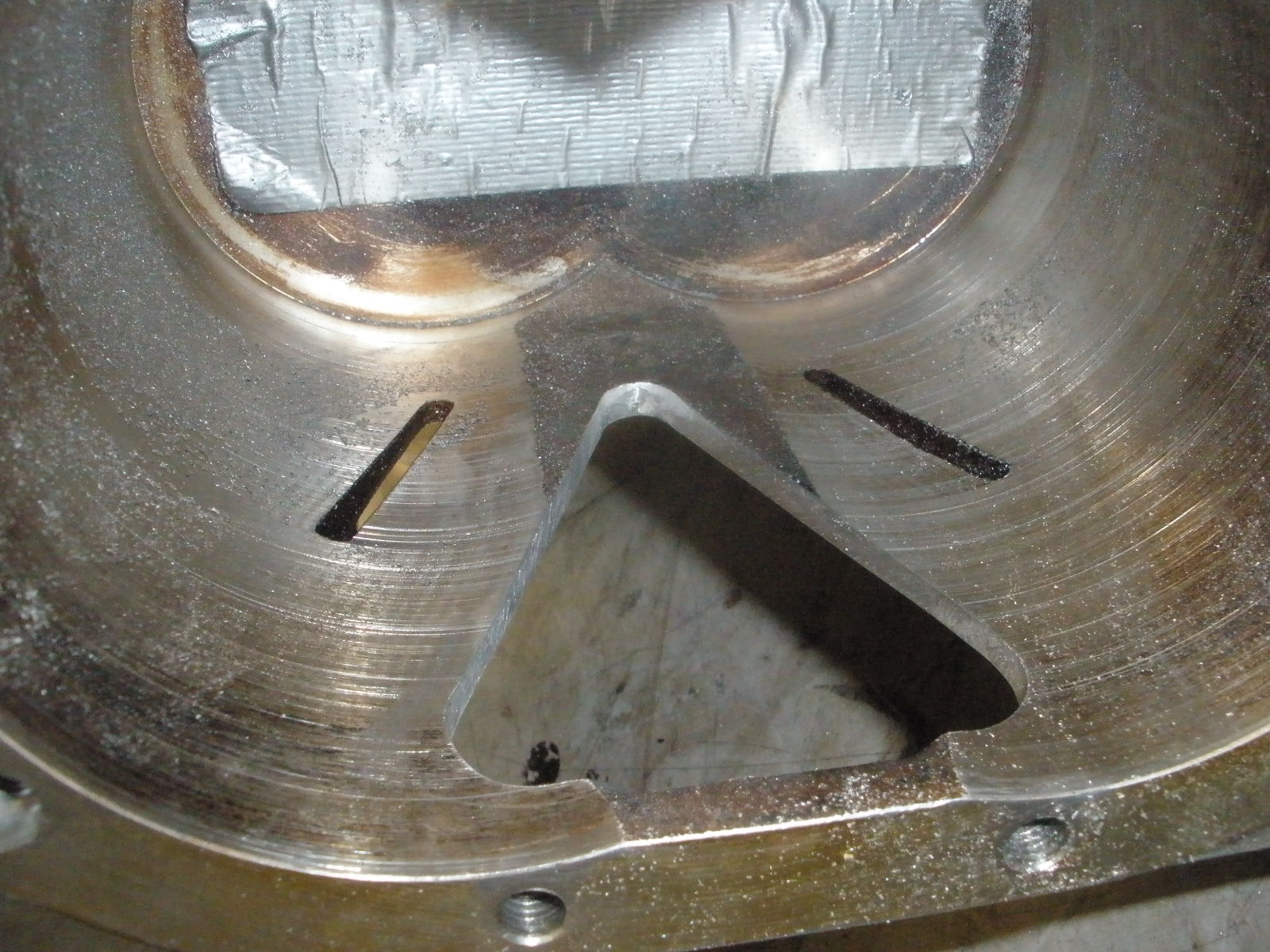

Inside view.
