hello all. today i decided to install some driving lights because on my way home from work at night, i drive on exclusively 2 lane hilly back roads that are covered by trees.

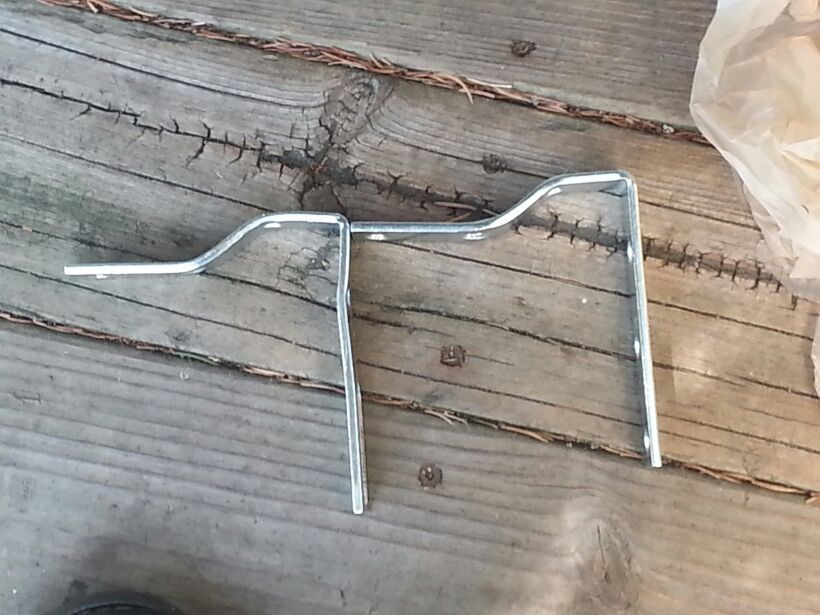

i started by making some mounts out of some $1.50 fence brackets. with a c-clamp, my porch and a crescent wrench

Name:  fb024fa6-6061-43bc-9cac-f245d4690777_zps0a8726fa.jpg
Views: 19
Size:  93.7 KB

Name:  7b4113d4-1bee-45fc-91f0-31ae6e64266b_zpsc7db9308.jpg
Views: 20
Size:  81.7 KB

then i ran the wiring (not pictured) behind all the panels, and up to the garage door opener panel. i made it ground switched because i didnt want to have hot wires ran behind the panels. i also ran this wire thru the ground switched headlights. that way the driving lights cant be turned on without the low beams. this wire went to a relay, ran the same as this diagram. just substitute the "horn" for a switch, and the "compressor" for the lights.

Name:  wolodiagram_zps26b175ff.png
Views: 21
Size:  54.3 KB

i then drilled the hole, and mounted the switch.

Name:  93460337-d4a4-4cd1-9576-f1fb46a47ad0_zps315ee3af.jpg
Views: 19
Size:  71.8 KB

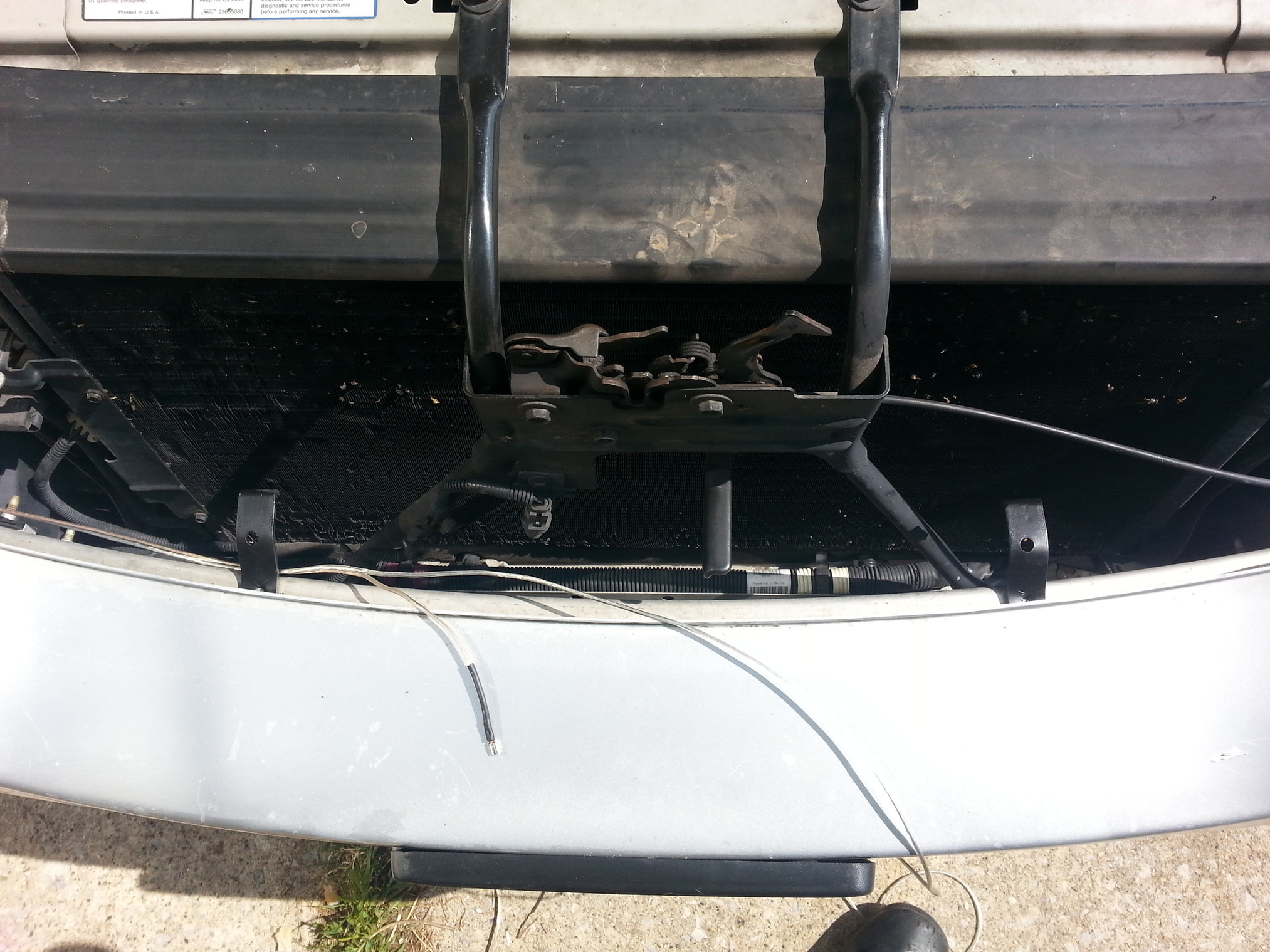

then i used some zip screws to attach the mounts to the bumper.

Name:  20140808_151532_zpsfd0e88e6.jpg
Views: 16
Size:  995.0 KB

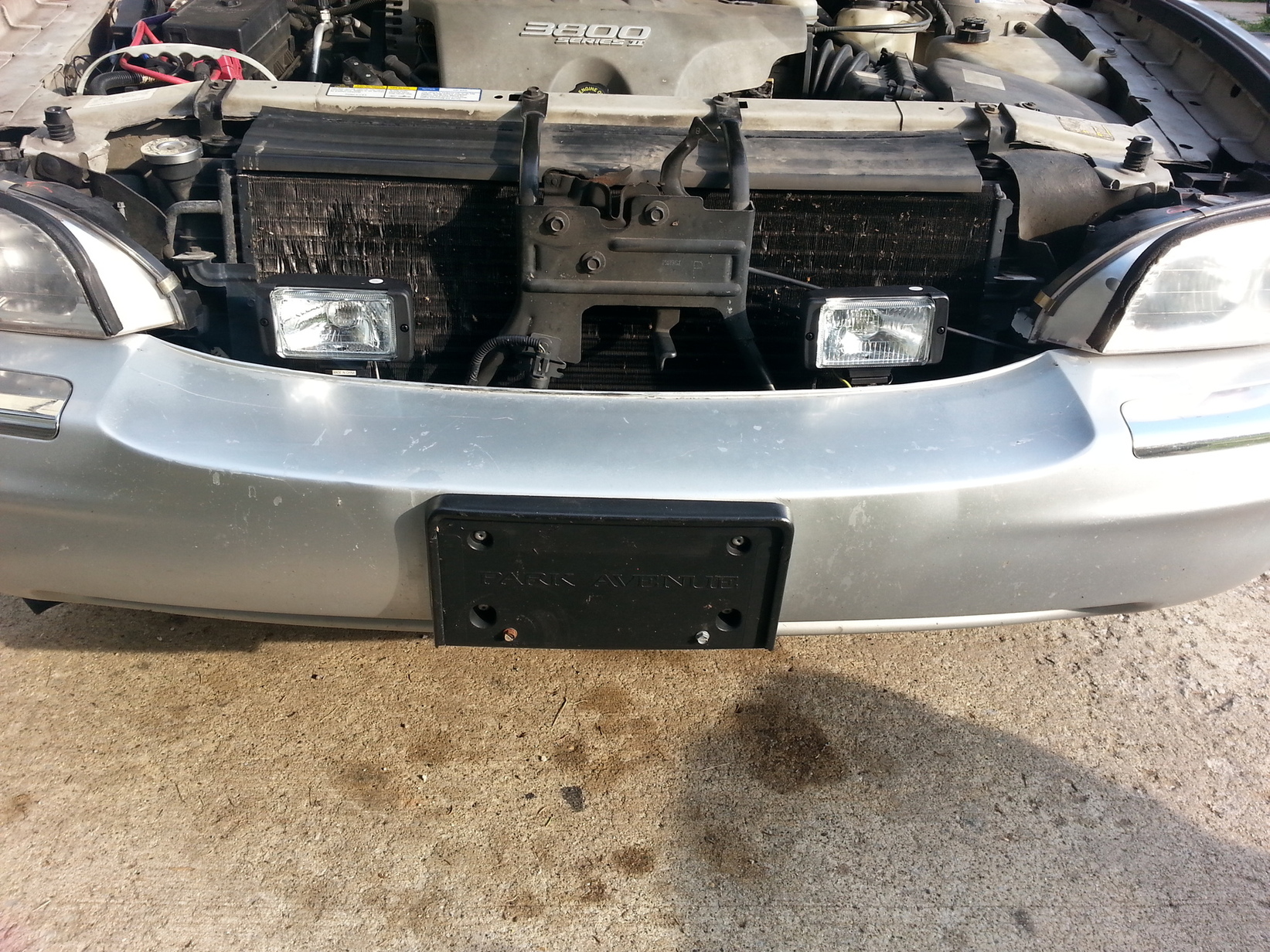

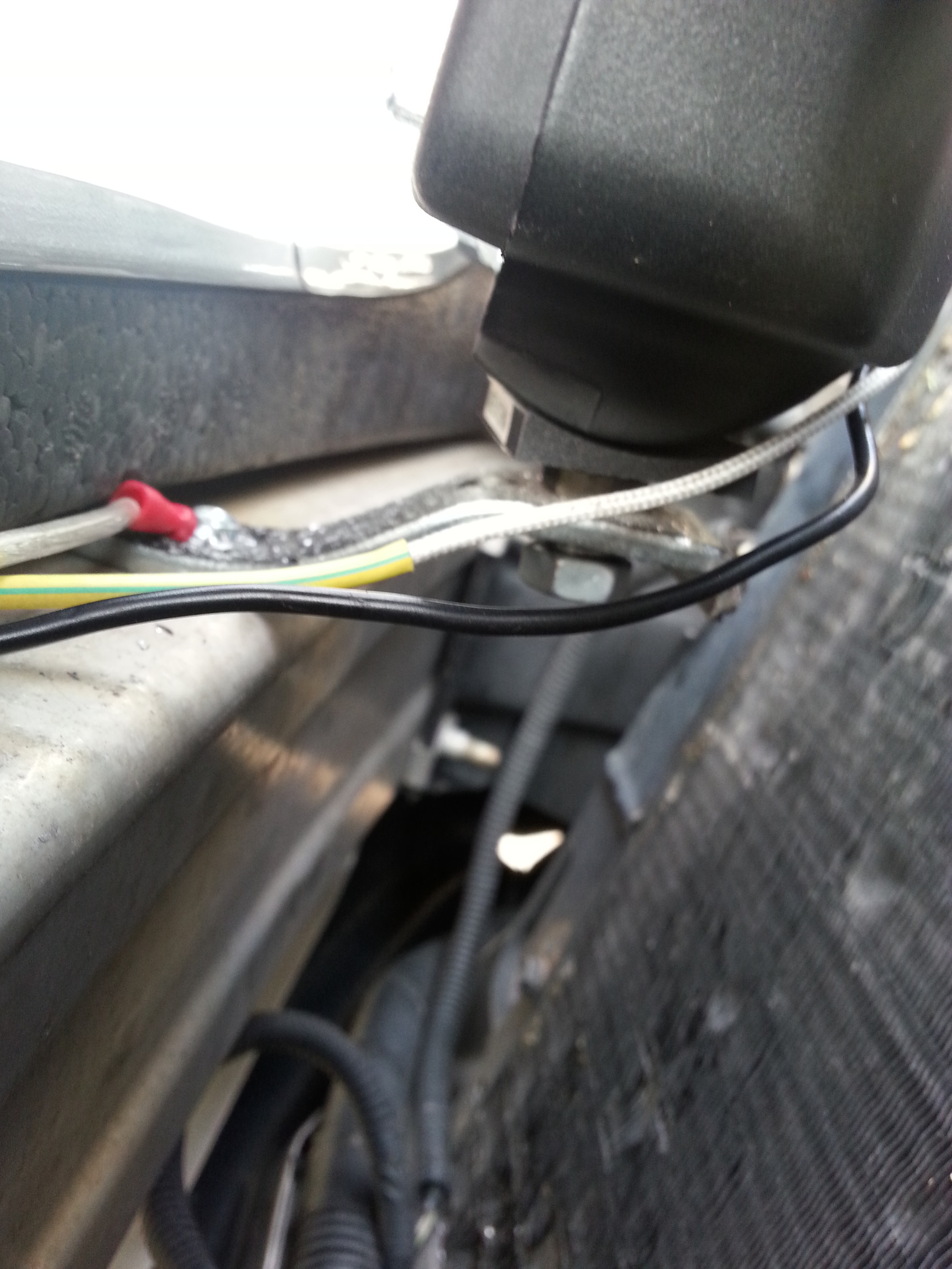

and bolted on the lights

Name:  20140808_174757_zps85399586.jpg
Views: 19
Size:  1,004.8 KB

Name:  20140808_174811_zps4c74450f.jpg
Views: 13
Size:  991.4 KB

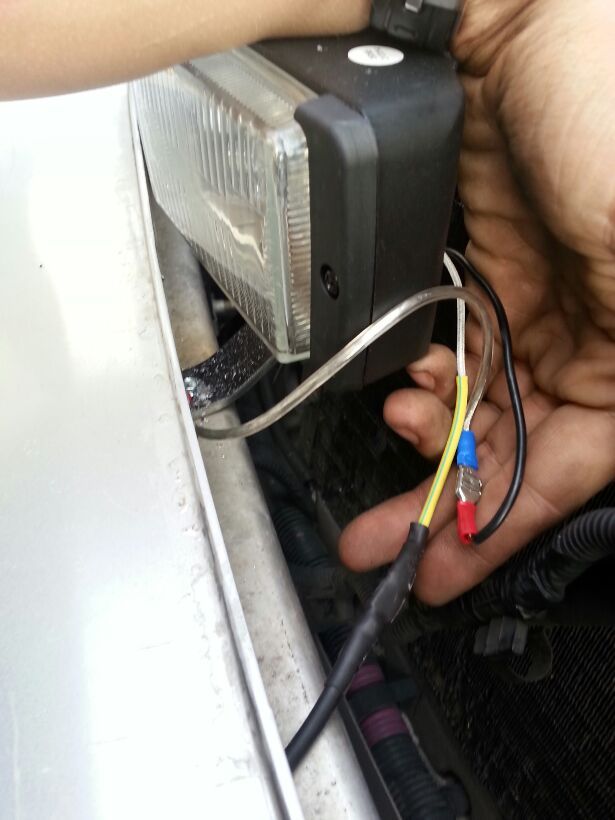

then i hooked up the wires. all my connections were made with terminations and shrink wrap so i can easily replace them without risking the weatherproofing.

Name:  e12c6afd-56ff-4e6a-864a-048c506d4ec9_zpsf80ff75a.jpg
Views: 18
Size:  54.8 KB

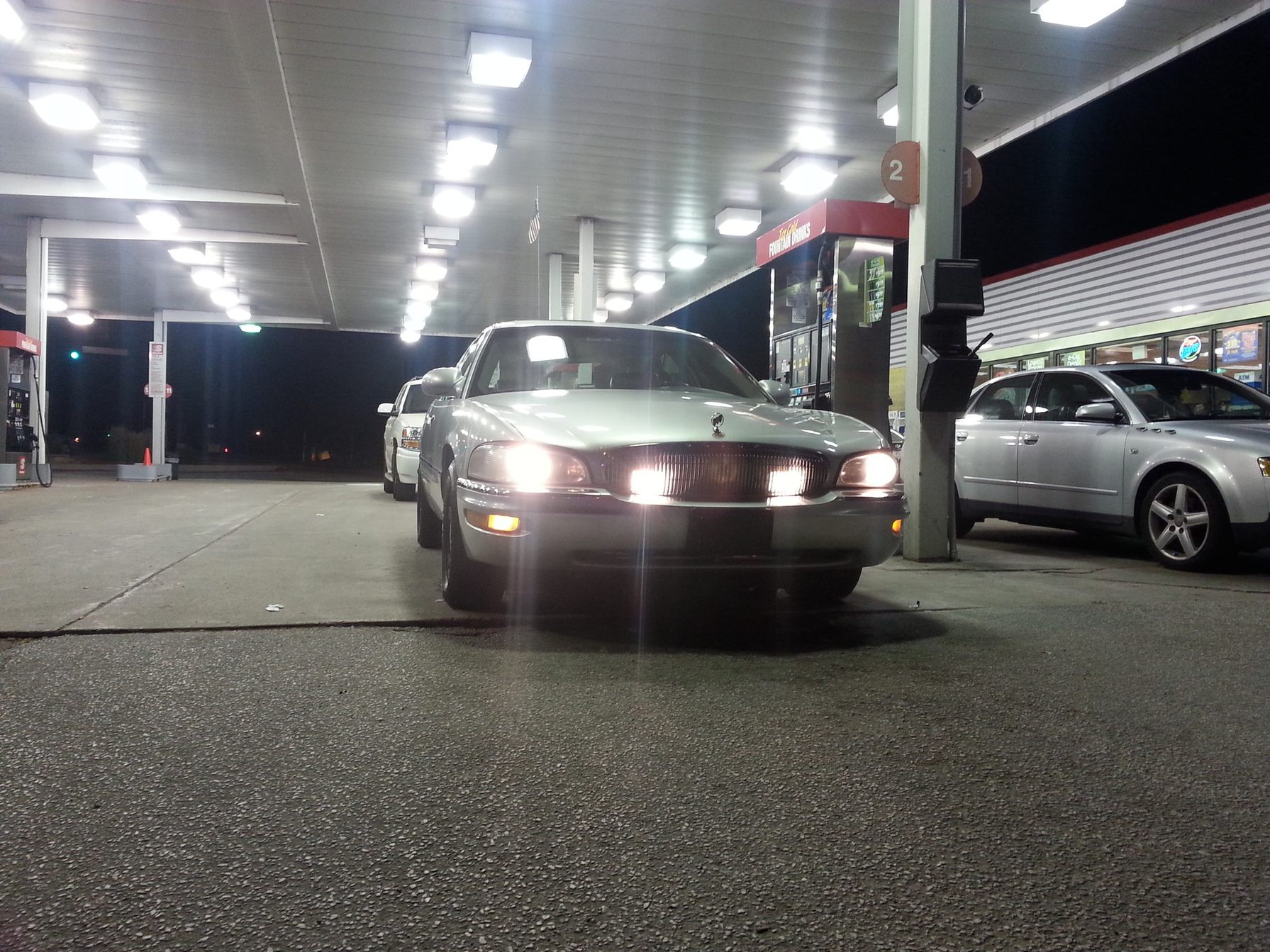

only thing left to do was try em out!

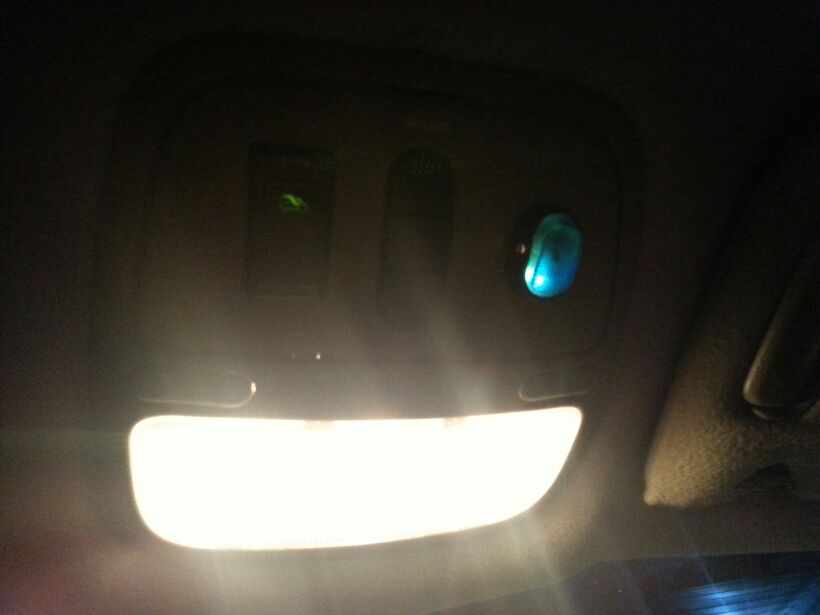

the switch illuminates even though its ground switched. not exactly sure how, but everything works so its cool by me

Name:  118a1b15-064b-4711-993a-4c68b1c12830_zps7fccdbaa.jpg
Views: 19
Size:  33.3 KB

Name:  9b13914f-2756-4556-a624-be8b0495457c_zpse21f5800.jpg
Views: 17
Size:  28.7 KB

Name:  20140809_001325_zpsa0e09560.jpg
Views: 18
Size:  1,013.1 KB

Name:  20140809_001311_zps2736b5ff.jpg
Views: 15
Size:  1,007.2 KB

and lastly, a video of the lows alone, and the lows+ the driving lights.

any comments/ constructive criticism welcome!
Attached Thumbnails
my driving light install-fb024fa6-6061-43bc-9cac-f245d4690777_zps0a8726fa.jpg   my driving light install-7b4113d4-1bee-45fc-91f0-31ae6e64266b_zpsc7db9308.jpg   my driving light install-wolodiagram_zps26b175ff.png   my driving light install-93460337-d4a4-4cd1-9576-f1fb46a47ad0_zps315ee3af.jpg   my driving light install-e12c6afd-56ff-4e6a-864a-048c506d4ec9_zpsf80ff75a.jpg

my driving light install-118a1b15-064b-4711-993a-4c68b1c12830_zps7fccdbaa.jpg   my driving light install-9b13914f-2756-4556-a624-be8b0495457c_zpse21f5800.jpg
eltatertoto is offline   Reply With Quote
The Following User Says Thank You to eltatertoto For This Useful Post:
Soft Ride (08-09-2014)
Old 08-09-2014, 04:20 AM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,591
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Very inventive and extra nice hidden driving lights there Jason!! Good Work..
Can you come over & do something for me..LOL.. I need some too!
Soft Ride is offline   Reply With Quote
Old 08-09-2014, 04:26 AM   #3
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

im really happy with how they turned out. bright enough that im not over driving my lights anymore, but not too bright to where ill have to turn em off for oncoming traffic. that way the brights still have a purpose. LOL.

the entire project including the lights, brackets C clamp and screws cost under $30.00 and only took about 2 hours to install.

on a side note, left over brake line works fantastic for getting the wire under the headliner to the compartment behind the garage door opener. LOL
eltatertoto is offline   Reply With Quote
Old 08-09-2014, 04:44 AM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,591
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Ya brake line feed ..ha ha..$30 good deal!! How many watts are those lights, 55watts ?
Soft Ride is offline   Reply With Quote
Old 08-09-2014, 01:18 PM   #5
certified crazy person
Certified GM nut
Thread Starter

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

55, but they are h1 bulbs so i can swap em for pretty much anything. the lens is glass and the reflector is metal. so i should be good on a higher wattage bulb
