Old 04-12-2011, 09:14 PM   #41
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yes, and engine started to die shortly after the transmission swap, and that'* when the flex plate was changed.
Danthurs is offline   Reply With Quote
Old 04-13-2011, 12:49 AM   #42
Senior Member
Posts like a Turbo

Join Date: Aug 2010
Location: Green River wy
Posts: 256
Thanks: 0
Thanked 0 Times in 0 Posts
hock is on a distinguished road
Default

Dan . after looking at the brgs and other parts . take the flex plate and mount it on a wheel balancer with the cone on the inside of flex plate it has the taper and retest for run out , caution only spin by hand . just a thought
hock is offline   Reply With Quote
Old 04-13-2011, 03:24 AM   #43
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

that sucks man, you spent so much time on it... wouldnt be better/cheaper to buy a used engine from a junk yard?
SAMzGXP is offline   Reply With Quote
Old 04-13-2011, 07:31 AM   #44
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Interesting stuff you are looking/checking Dan. I've never had the need/desire to do it and probably would have blown the next one if that'* the case.
BillBoost37 is offline   Reply With Quote
Old 04-13-2011, 02:10 PM   #45
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

OK, tore it all apart and here'* what I found

First drained the brand new oil. Keep in mind this is after about 10 mins of running.

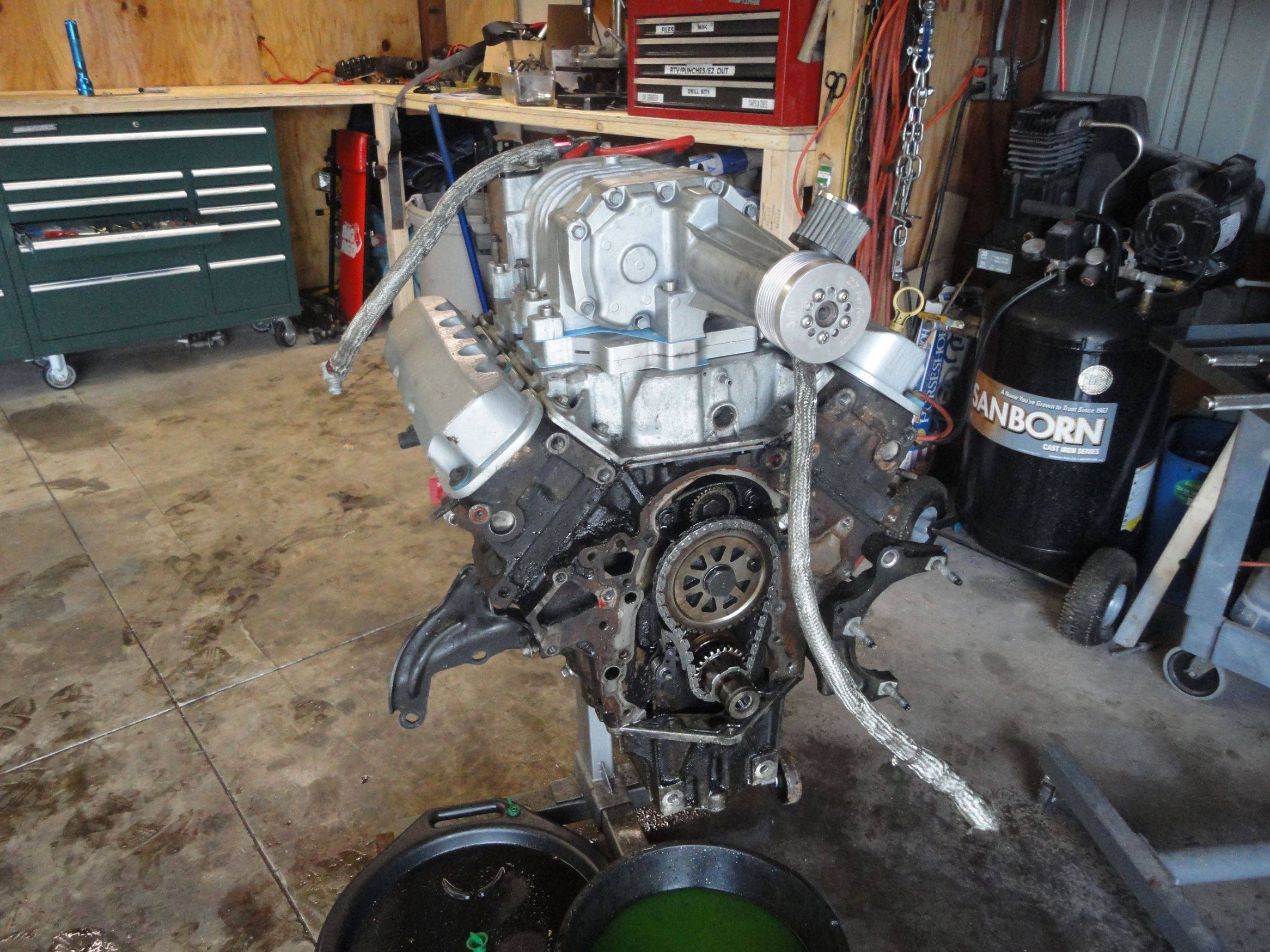

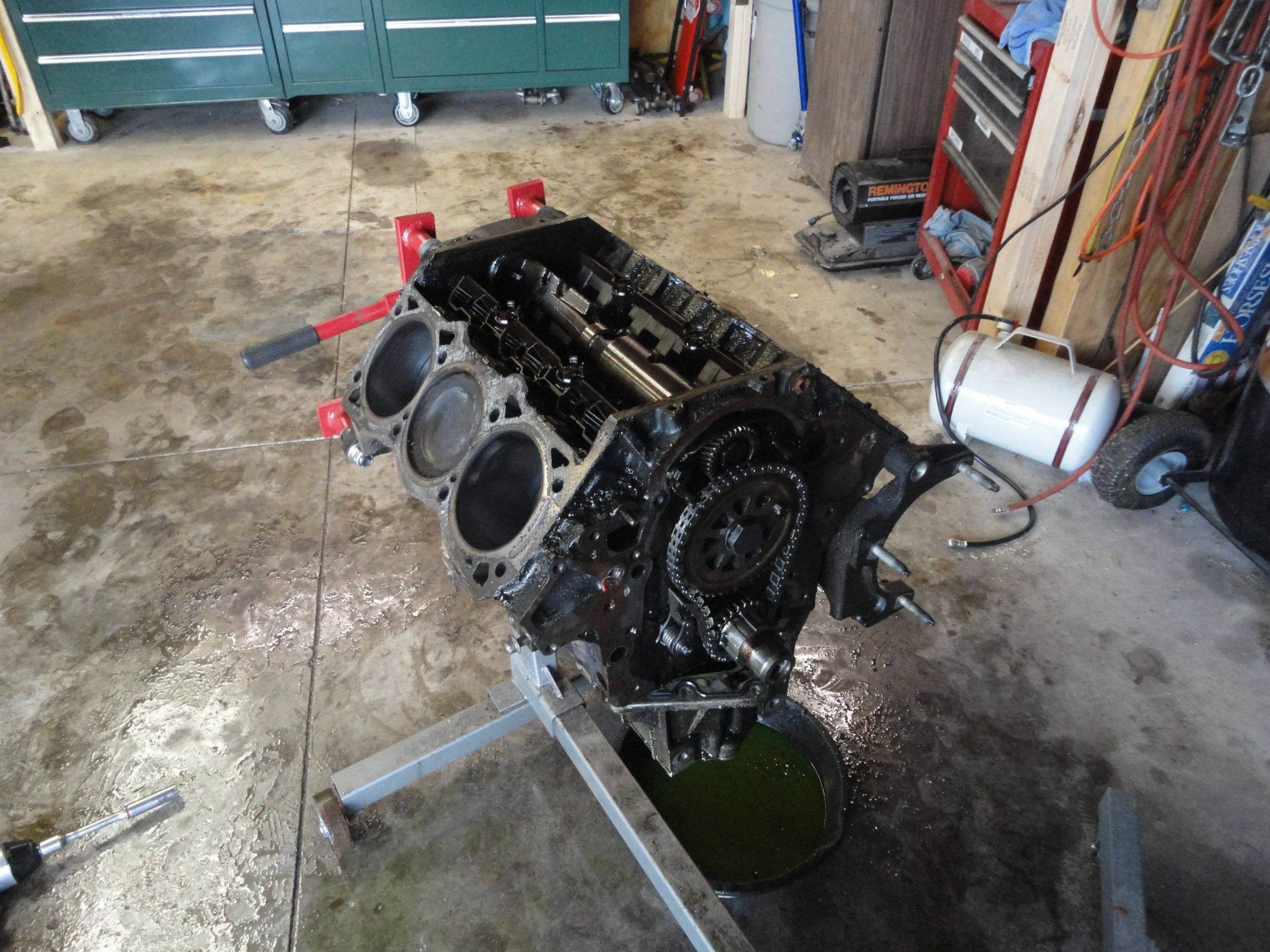

So I started to strip it down.


Not much left.

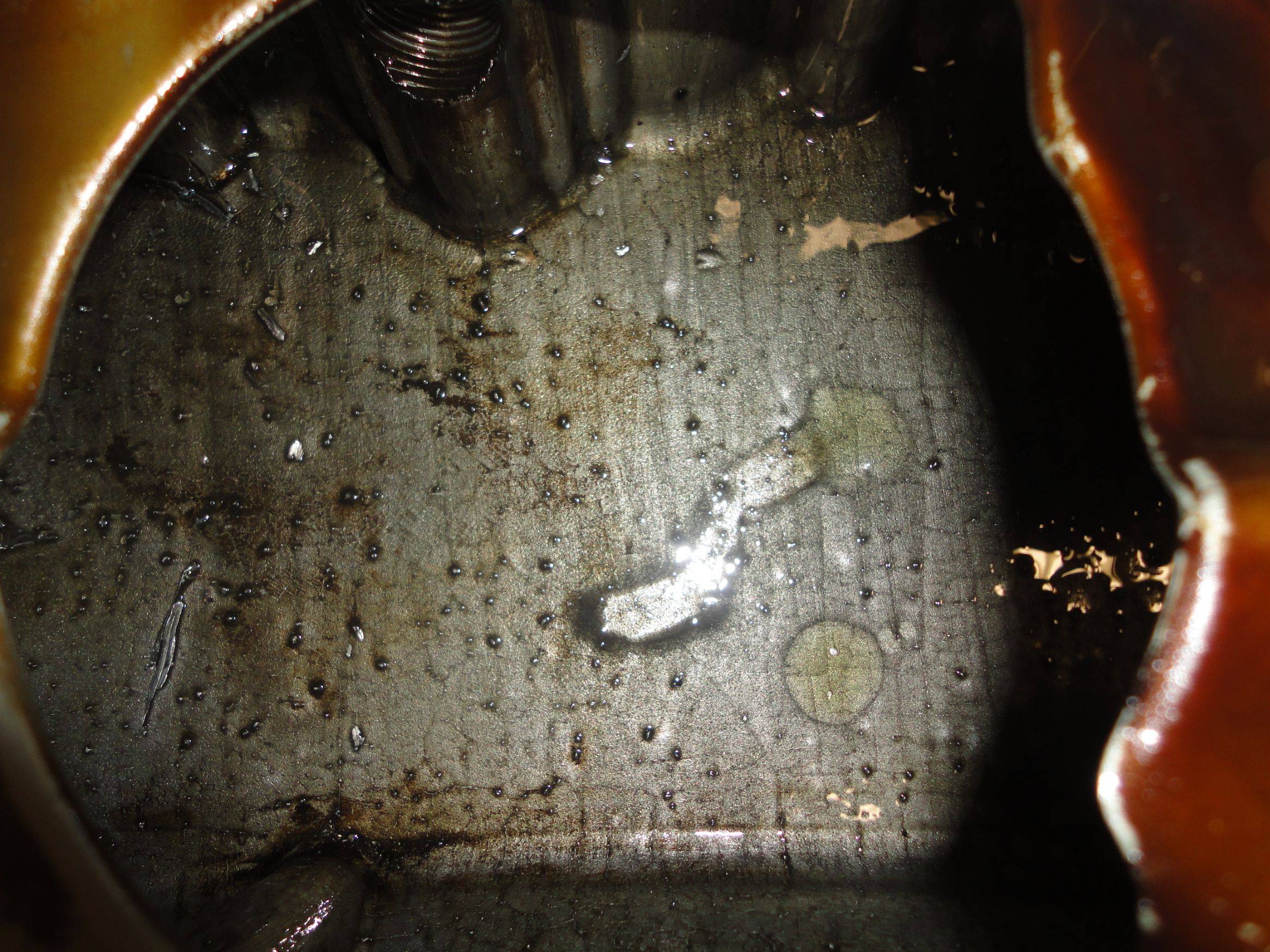

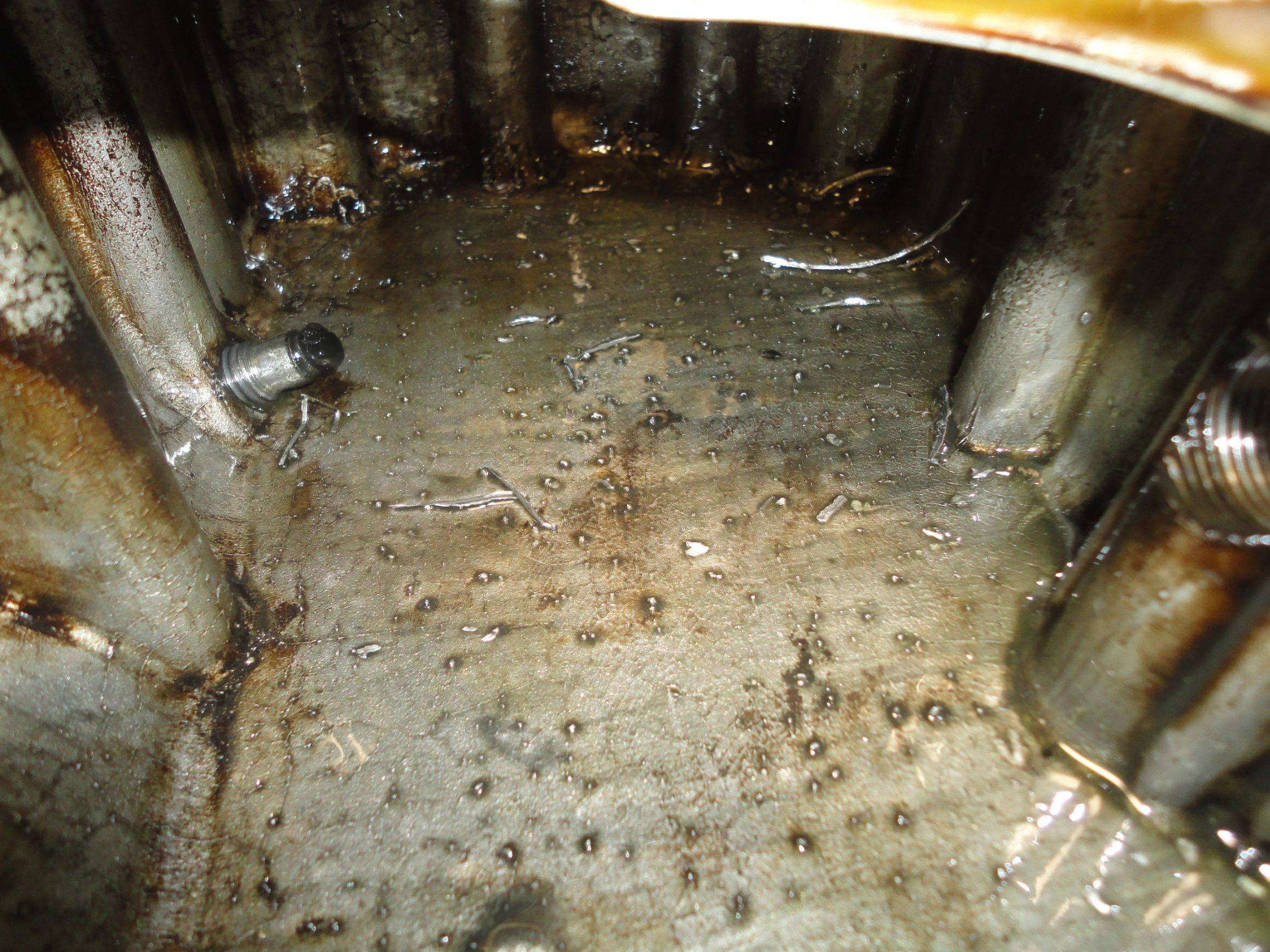

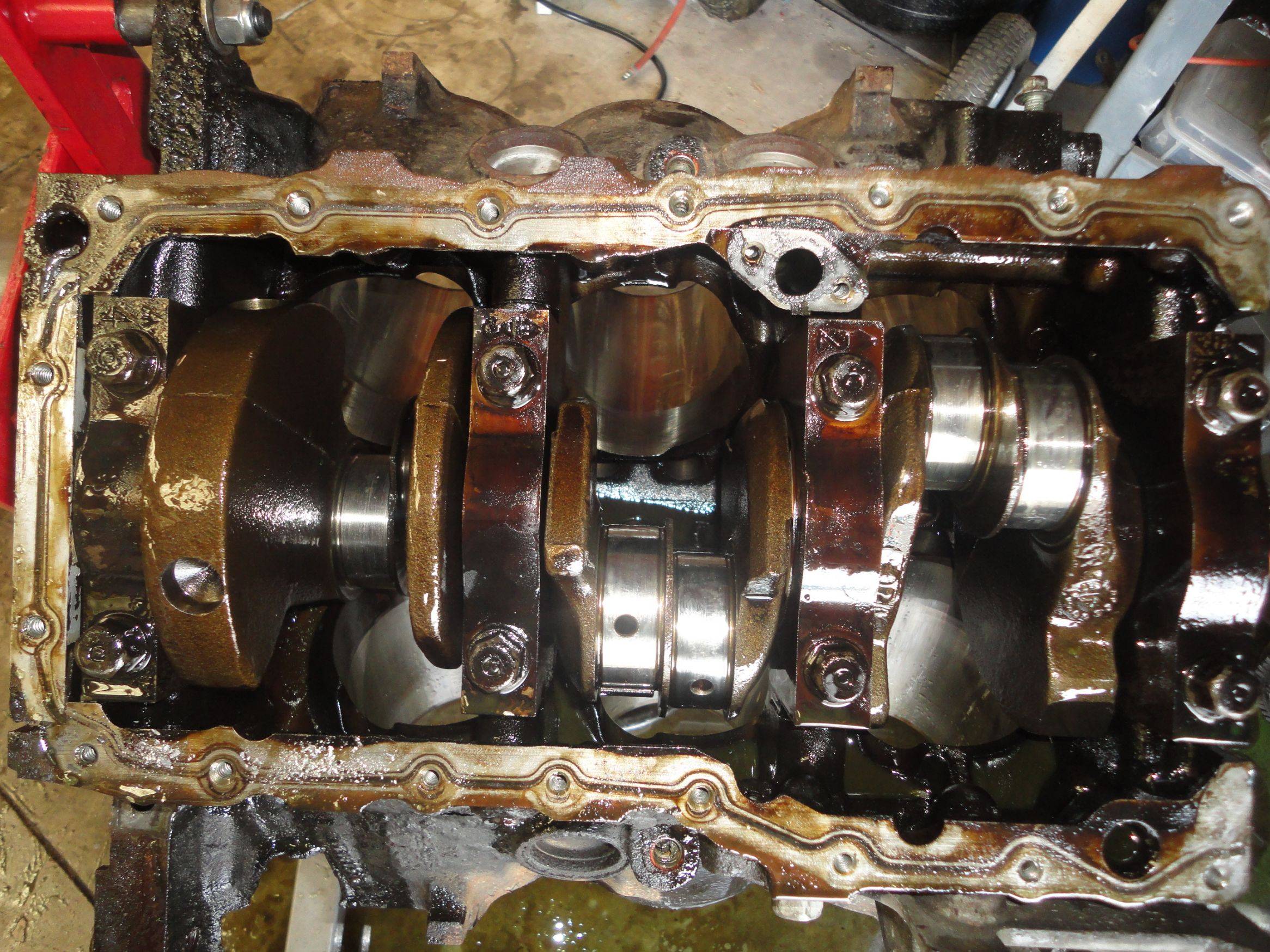

After I got the top stripped, I pulled the pan. Looks like a thin film of metal down there.

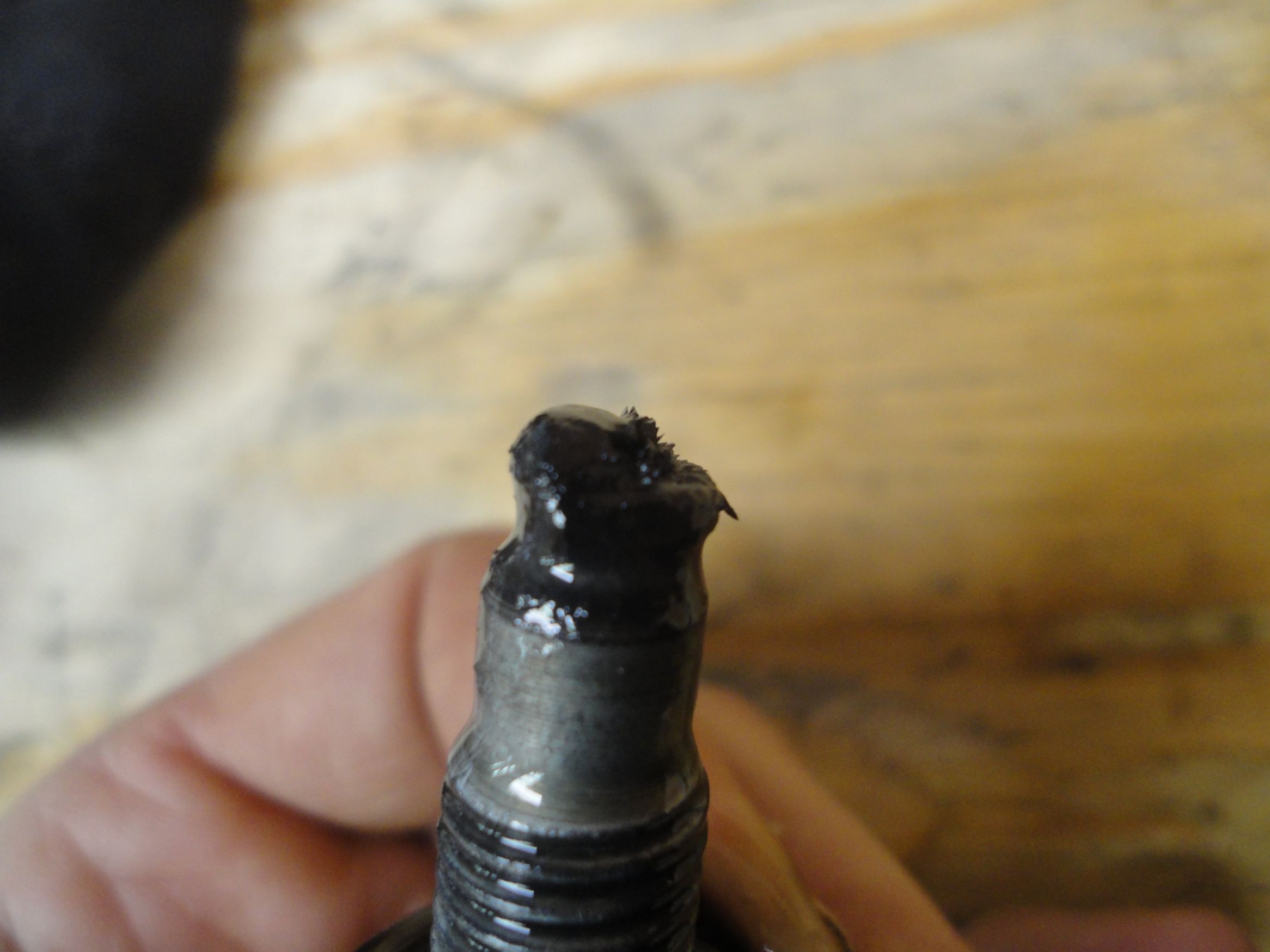

WAIT!!??!!?? What did I just see?

Well, well, well, what have we here?


Off with the rod bearings. Only fond one bad bearing, but none of them were spun.

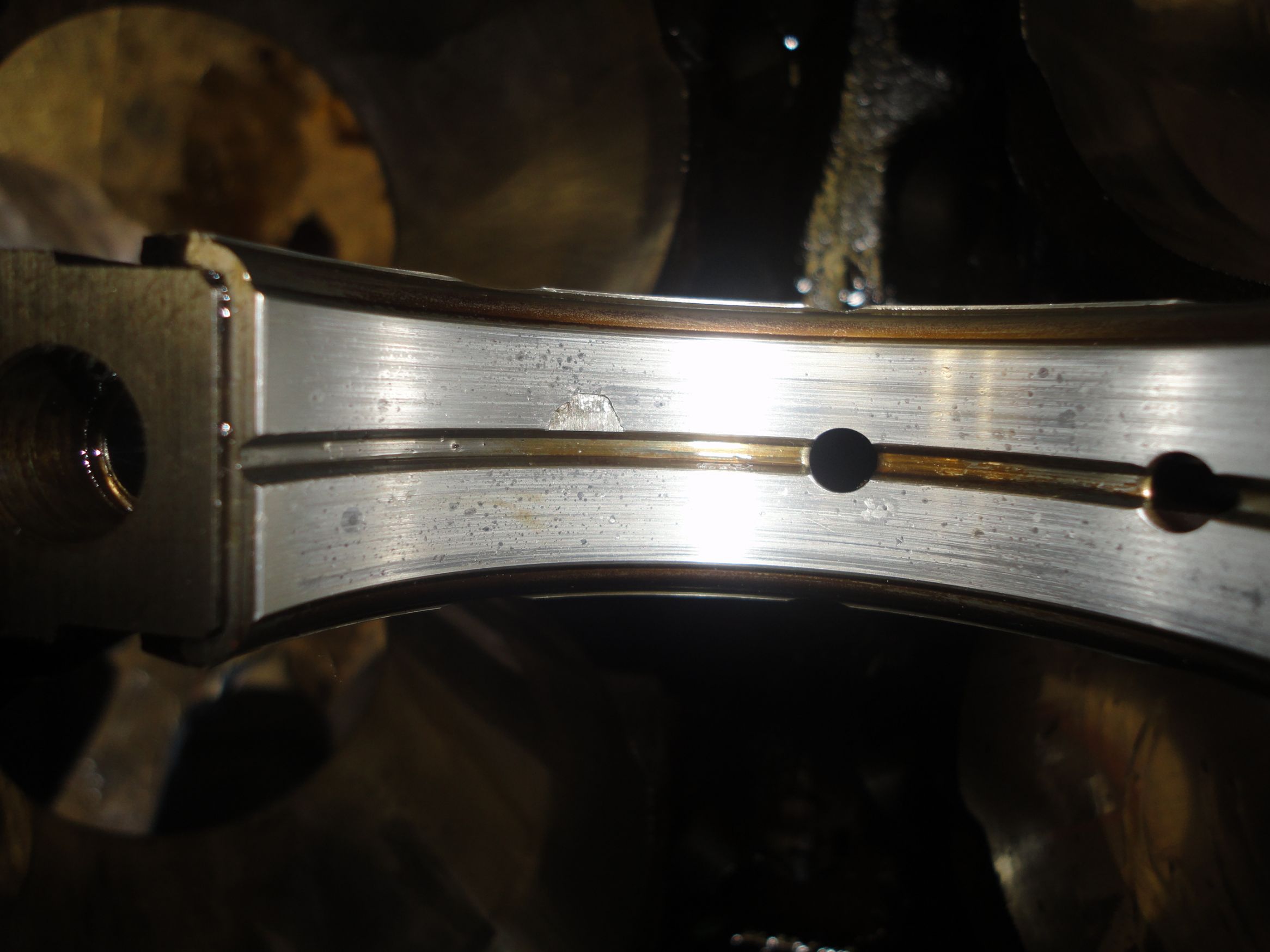

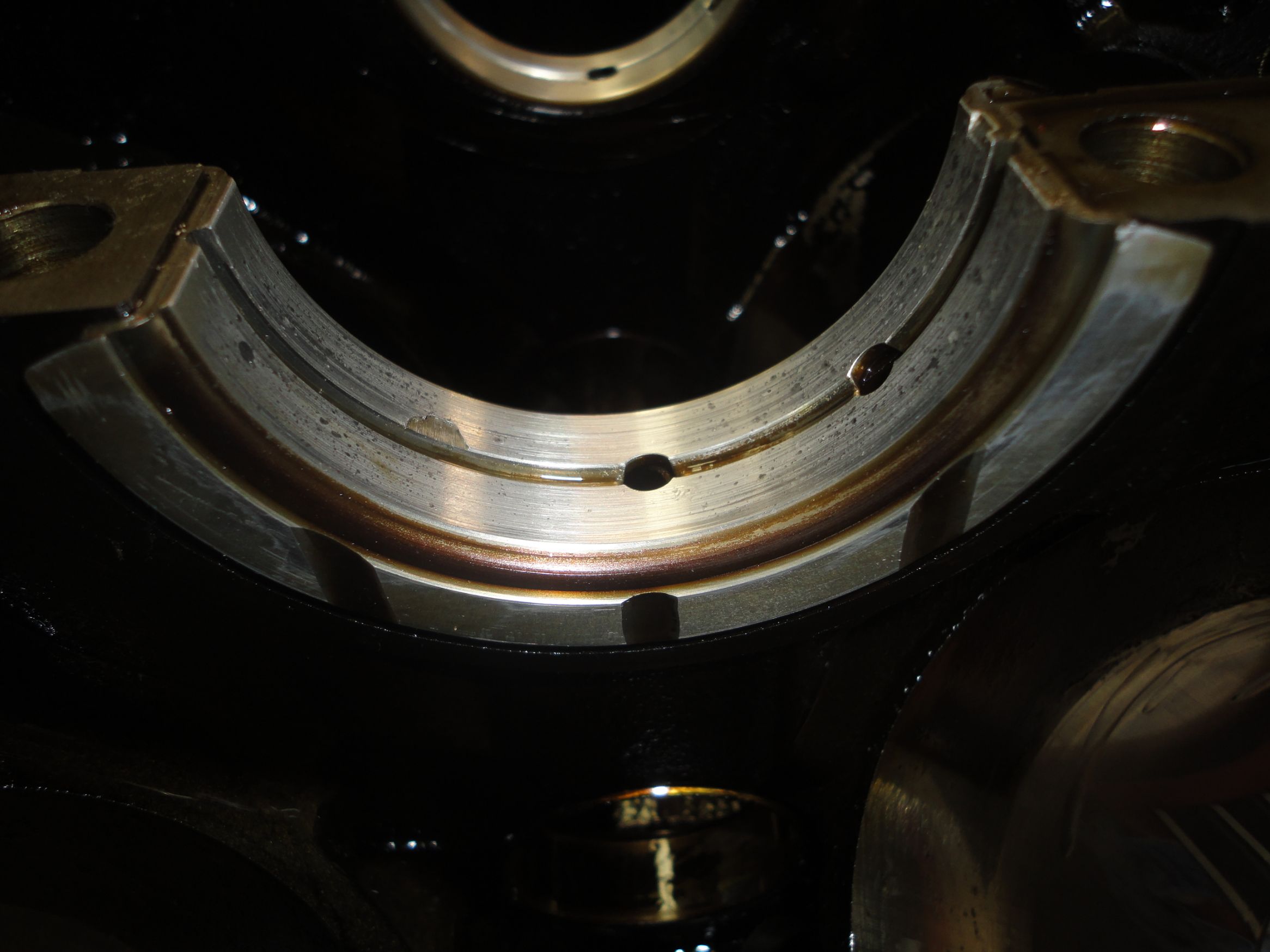

Found a chip in the #3 main.

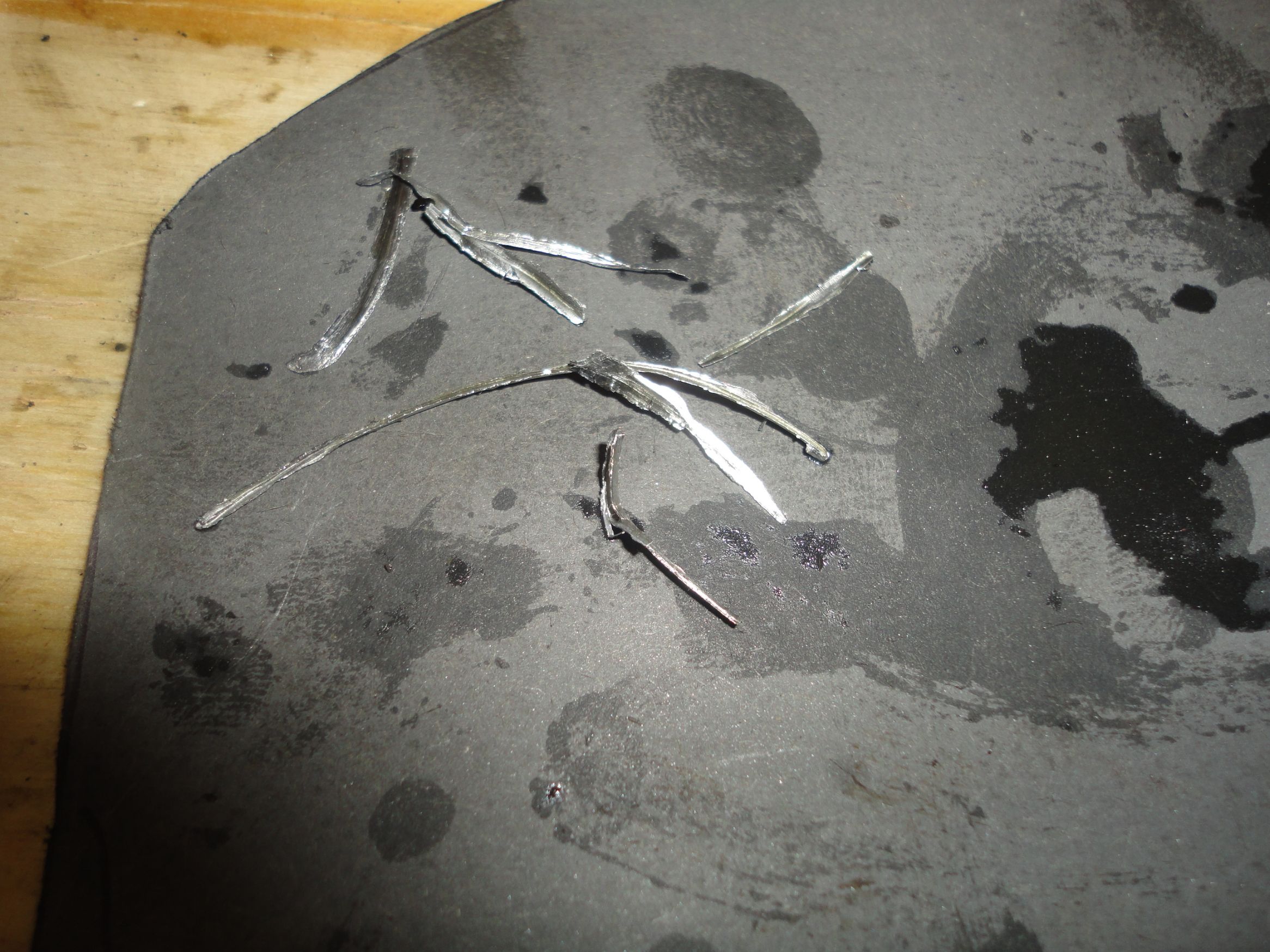

This is what I pulled out of the pan. Non magnetic, or very slightly magnetic, so it'* a bearing.

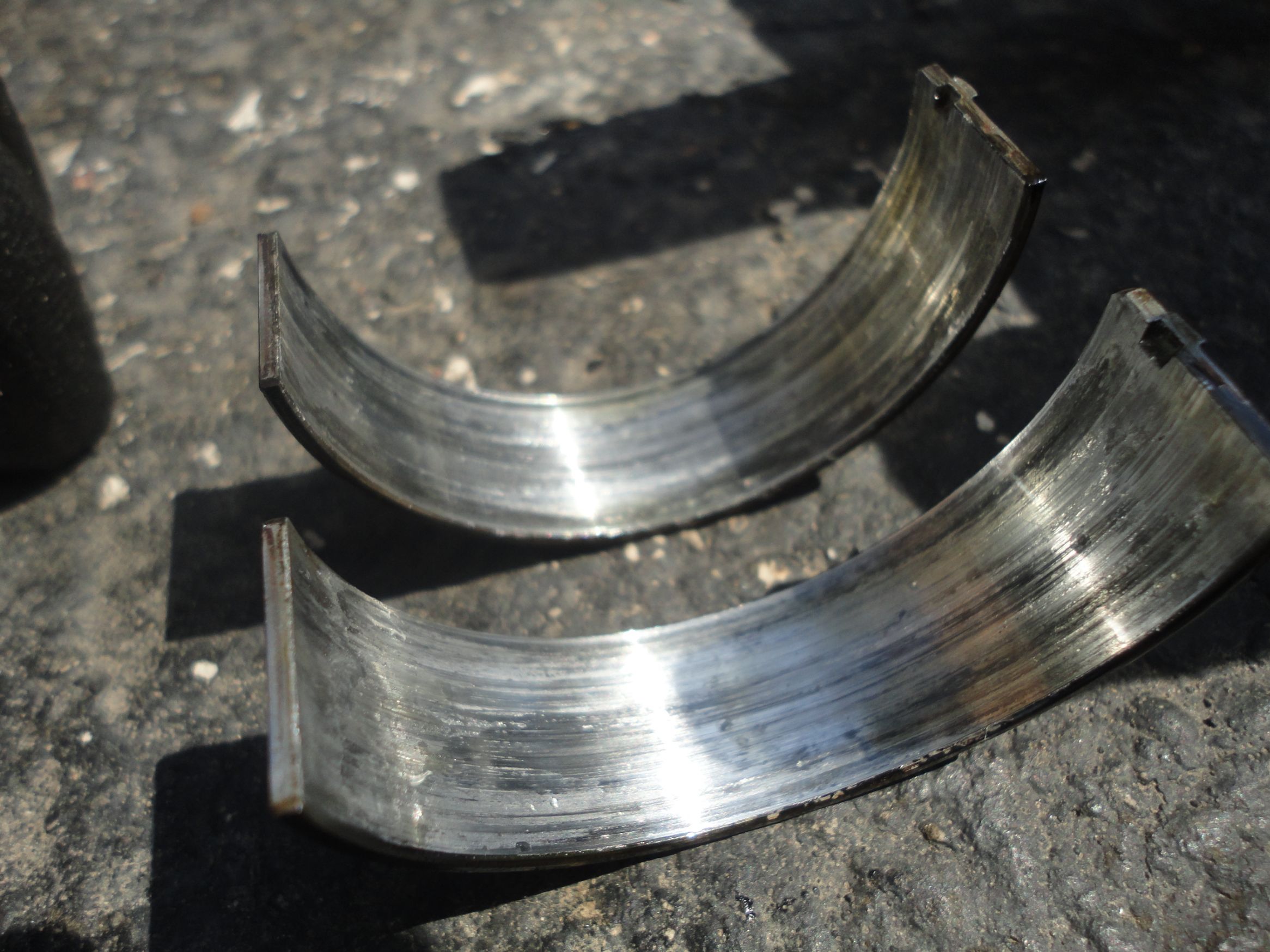

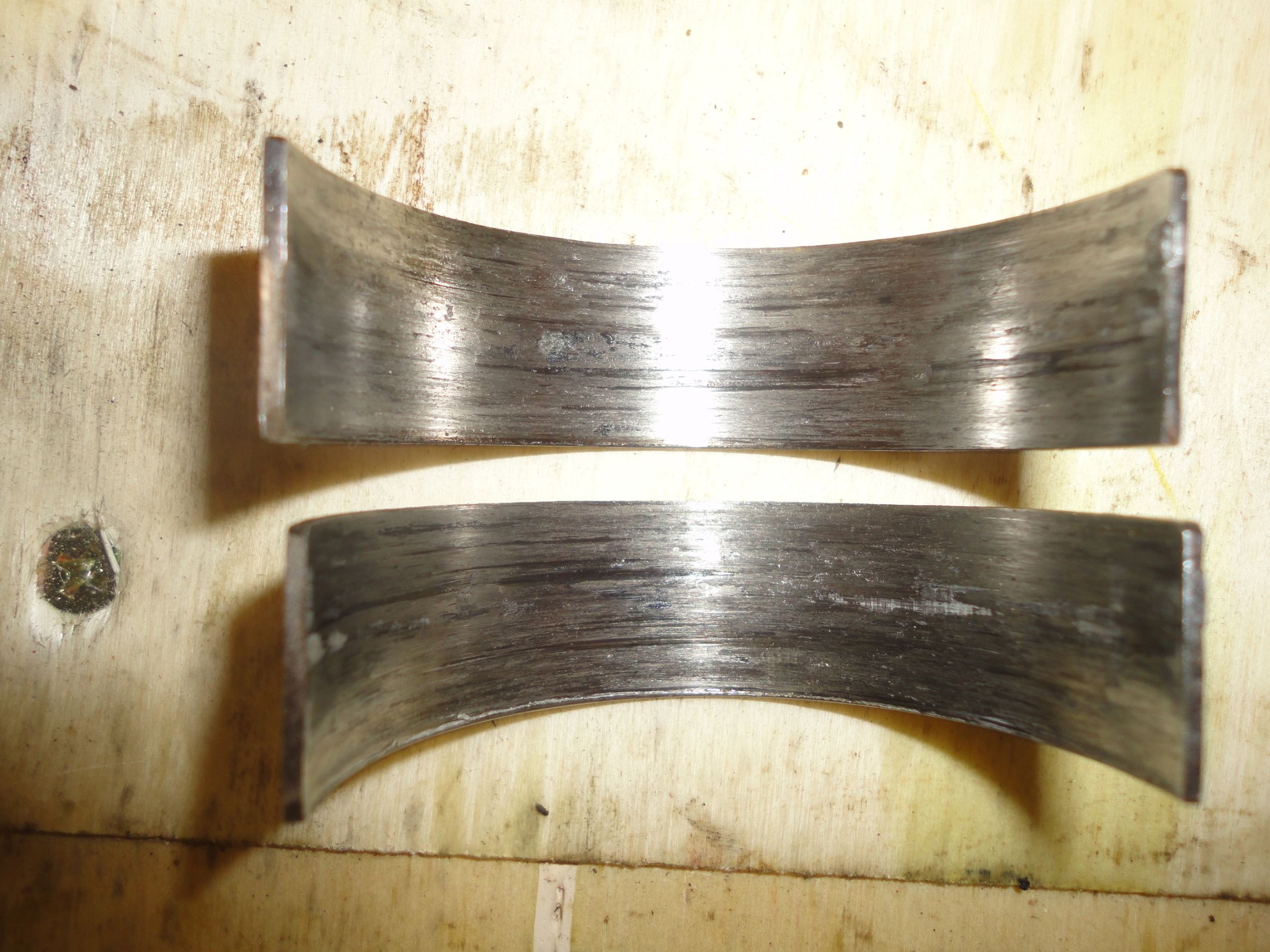

This was the worst rod bearing.


Still can't explain the chunks. The cam bearings look fine. 3 even had a bit of sludge build up on them, so there was no contact there, the front bearing looks good, smooth and shiny. Very odd.
Danthurs is offline   Reply With Quote
Old 04-13-2011, 02:20 PM   #46
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Typically I don't pull the mains, but that chunk couldn't have just jumped out. That'* odd. I'd be inclined to think the shavings are from that rod bearing. It'* common and in line with what would normally be found.
BillBoost37 is offline   Reply With Quote
Old 04-13-2011, 03:19 PM   #47
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks like #5 rod bearing is the bad one. Will post up some pictures a little later.
Danthurs is offline   Reply With Quote
Old 04-13-2011, 03:55 PM   #48
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

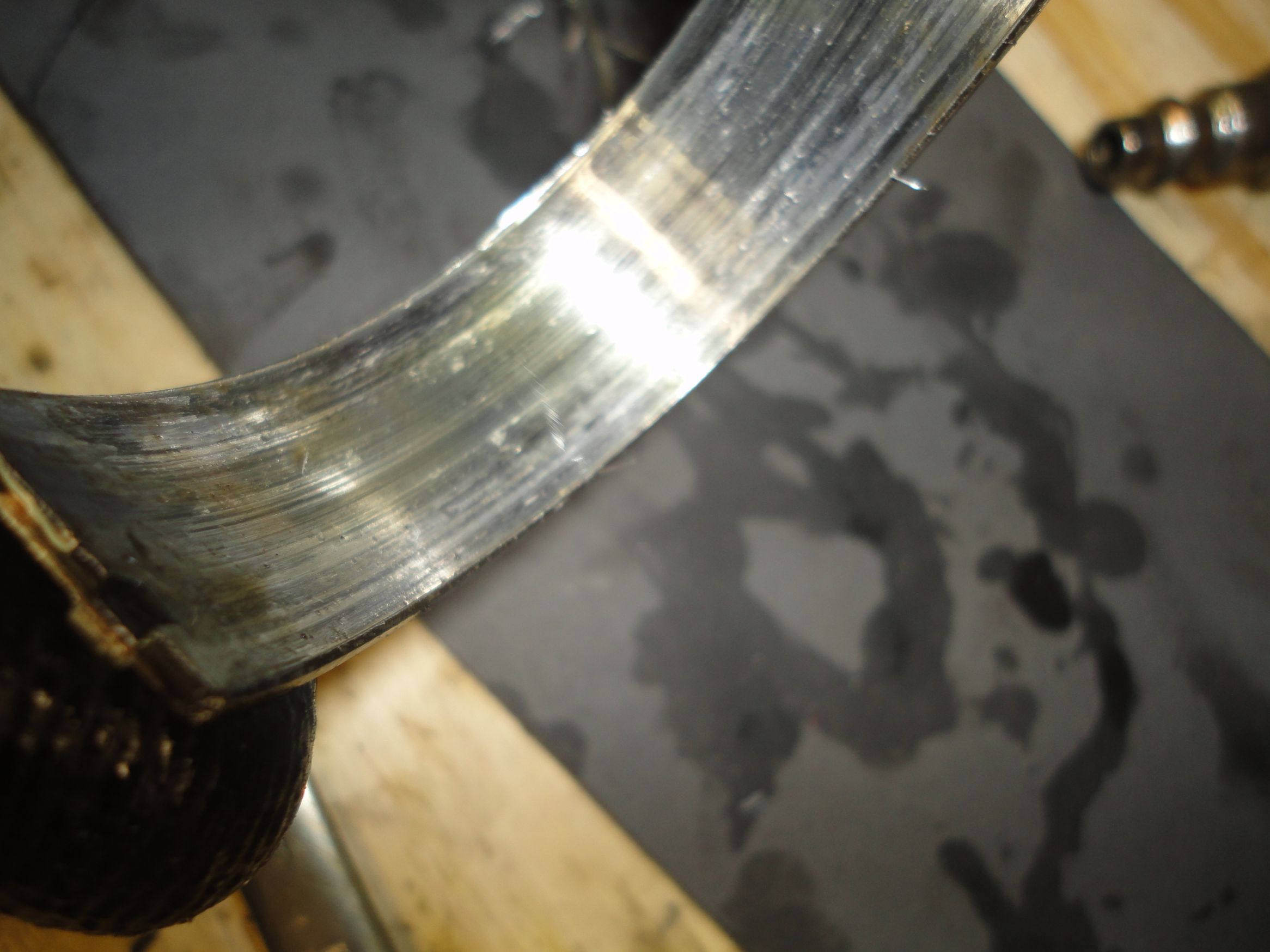

The bearings from #5 was still on the crank. This is the source of the metal in the pan.


You can see bits hanging off the edge.
Danthurs is offline   Reply With Quote
Old 04-13-2011, 05:33 PM   #49
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

That'* what mine looked like when I got it, except a lot dirtier.
Jonpro03 is offline   Reply With Quote
