Old 02-14-2006, 06:19 PM   #51
Senior Member
Posts like a Corvette

Join Date: Aug 2004
Location: South Bend, IN (hometown) Indianapolis,IN (college)
Posts: 1,598
Thanks: 0
Thanked 0 Times in 0 Posts
ELMACHOGERACHO is on a distinguished road
Default

Quote:
Originally Posted by randman1
Fuel pump module is simple, just don't forget to remove it from the donor car along with a length of the harness. I mounted mine in the general factory location and only had to run 2 additional wires if memory serves me right.



I used the entire tank assembly. Fuel pump, sender and all. Be carefull with the fuel level operating range though. The senders changed from 0 ohms empty/90 ohms full in 96 to 40 ohms empty/250 ohms full in 97
can you just get a high flow warlboro pump and leave the wiring the same?
ELMACHOGERACHO is offline   Reply With Quote
Old 02-14-2006, 10:47 PM   #52
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Good question. The module produces a dual pump speed. I don't know whether it is normal and WOAH! speeds versus normal and fuel economy speeds.

I'd read up on it if Boosty wasn't holding my manuals hostage. I think he'* gonna keep it until I get that LN3 drive train out of his garage. Sorry, Bill.
randman1 is offline   Reply With Quote
Old 02-15-2006, 11:49 AM   #53
Senior Member
Posts like a Northstar

Join Date: Jun 2005
Location: Yulee , FL ___ SEBF Survivor
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
ChaseSmith is on a distinguished road
Default

Also, the fuel lines are different between L36 and L67. The L36 has the plastic 90* ends, and the L67 has the stainless straight ends.
ChaseSmith is offline   Reply With Quote
Old 02-15-2006, 01:49 PM   #54
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by randman1
Good question. The module produces a dual pump speed. I don't know whether it is normal and WOAH! speeds versus normal and fuel economy speeds.

I'd read up on it if Boosty wasn't holding my manuals hostage. I think he'* gonna keep it until I get that LN3 drive train out of his garage. Sorry, Bill.
Hostage...lol... they are on the couch next to the code reader instructions and package you left with me.

I like the hostage idea though..

The pump puts out about 45lbs at idle and normal cruising. WOT spikes it up to 60lbs
BillBoost37 is offline   Reply With Quote
Old 02-15-2006, 03:51 PM   #55
Senior Member
Posts like a Corvette

Join Date: Aug 2004
Location: South Bend, IN (hometown) Indianapolis,IN (college)
Posts: 1,598
Thanks: 0
Thanked 0 Times in 0 Posts
ELMACHOGERACHO is on a distinguished road
Default

Quote:
Originally Posted by ChaseSmith
Also, the fuel lines are different between L36 and L67. The L36 has the plastic 90* ends, and the L67 has the stainless straight ends.
is is like that for all L36'*? i didnt know if 96'* were an oddball
ELMACHOGERACHO is offline   Reply With Quote
Old 02-15-2006, 04:01 PM   #56
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

96 L67 fuel lines look just like 97 L67...so at least that one didn't change...I think all L36'* are the same.

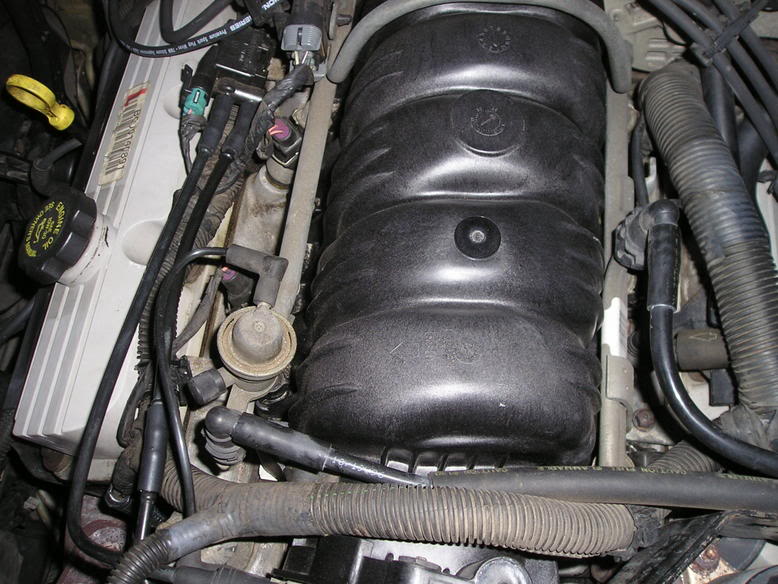

This is an L36
Name:  L36FuelRailConnections.jpg
Views: 0
Size:  87.7 KB

This is an L67
BillBoost37 is offline   Reply With Quote
Old 02-15-2006, 05:42 PM   #57
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Quote:
Originally Posted by ChaseSmith
Also, the fuel lines are different between L36 and L67. The L36 has the plastic 90* ends, and the L67 has the stainless straight ends.
Very good point. That could easily be overlooked. Personally I would not be comfortable with some sort of adaptor on the stock fuel lines to connect to the L67 rail. I'd swap the lines. Heck, once you got the car torn down that far, swapping the lines will only take an hour or so more.
randman1 is offline   Reply With Quote
Old 02-17-2006, 08:42 PM   #58
Member
Posts like a V-Tak

Join Date: Feb 2005
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
Fieroflyer is on a distinguished road
Default

I did not mention the fuel pump as I figured that was a given the l36 pump is not good enough. Those plastic fuel lines from the l36 won't work on the l67 but if you trace back to the firewall you will find nice metal lines you can just replace the line from there to the engine. I had to do that with mine as the guy I got the car from cut the plastic lines when prepairing to pull the old engine. The control module is to keep the fuel pump working pumping less fuel until needed, some say its not needed as the fuel system will just return the extra fuel to the tank when not using boost. I always add either the fuel speed control module or use the GTP, Regal dropping resistor and the second relay to control it. The dropping resistors are $66 cdn from the dealer compared to 3 or 4 hundred dollars for a new control module. Dan
Fieroflyer is offline   Reply With Quote
