Thumbs up Buick rendevouz a/c speed selector plug?

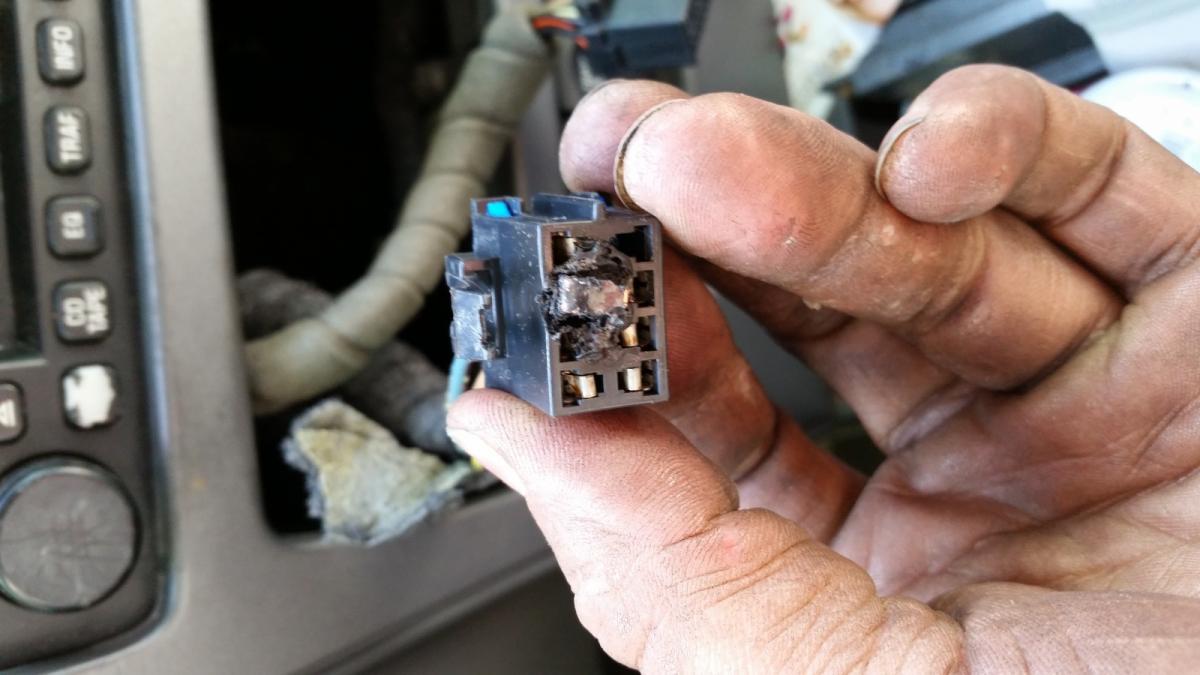

2003 buick rendevouz.customer complains of no speeds on blower.removed control panel to find plug was partially melted.any ideas? i assume the blower resistor block looks the same.cut the plug off and install new plug along with blower resistor block?





[IMG][/IMG]
Attached Thumbnails
Buick rendevouz a/c speed selector plug?-29paucz.jpg
tsaw5500 is offline   Reply With Quote
Old 07-16-2014, 07:31 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

sometimes the socket isnt very tight from the factory and the loose connection builds heat. heat makes it expand too and the problem just compounds with use. i would do as you say, solder a new pigtail on it, make sure there is nothing wrong with the resistor pack, and the pins that plugs into
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
WilliamE (07-16-2014)
Old 11-20-2014, 09:14 PM   #3
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

ever since i put the new pigtail on it the dash illumination lights do not work.all gauges and lcds work right but no back lighting.almost as if a bulb went out.once i replaced the blower controls all the blower controls work well.having a hard time trying to figure out where the dash illumination gets its power? any good websites to get wiring diaghrams?
tsaw5500 is offline   Reply With Quote
Old 11-20-2014, 11:19 PM   #4
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Loose terminal fit cause heat buildup as already mentioned. Applying electrical grease to connections helps to eliminate terminal fretting.
chevy82 is offline   Reply With Quote
Old 11-21-2014, 09:09 PM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

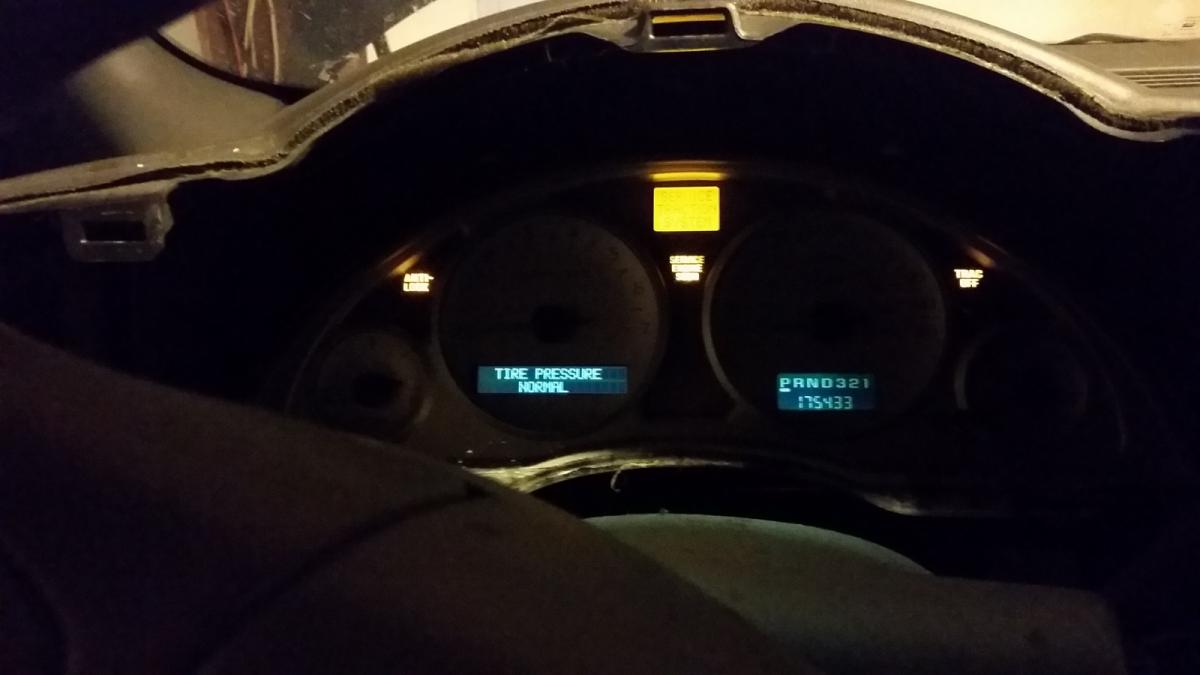

i put on new pigtail and now the cluster illumination lights do not glow.dimmer seems to work fine with the backlights for lcd screens and radio. no illumination on hvac controller either.cant read at night[IMG][/IMG]
Attached Thumbnails
Buick rendevouz a/c speed selector plug?-pltz7.jpg
tsaw5500 is offline   Reply With Quote
Old 11-21-2014, 09:57 PM   #6
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

knowing want you now by having a melted plug. I'd be looking at a bad ground circuit, considering your electrical issue your having.
