Default 2003 buick rendevouz dash board illumination

is the cluster in the buick rendevouz all one piece or does the illumination run off a seperate wire? recently the blower controls werent working so i removed and the plug was slightly melted.and the dash illumination hasnt worked since i installed new plug..but the new blower controls work good.
thanks in advance
tsaw5500 is offline   Reply With Quote
Old 11-14-2014, 08:26 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i would guess its not one piece, since you changed a plug, must be there. could be that the two wires join there and you only put one back in the plug
jwfirebird is offline   Reply With Quote
Old 11-14-2014, 08:30 AM   #3
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

first thing check ALL!!! fuses some do more then they say
REGAL GUY is offline   Reply With Quote
Old 11-20-2014, 07:11 PM   #4
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

Quote:
Originally Posted by REGAL GUY View Post
first thing check ALL!!! fuses some do more then they say
thanks for your input guys. everything works on the instrument cluster along with everything else in the vehicle it is the backlight in the cluster that doesnt work. like burnt out bulbs. everything else works perfect on the instrument cluster tho. checked both instrument cluster fuses but to be safe will probably check all fuses in both fuse blocks.
tsaw5500 is offline   Reply With Quote
Old 11-21-2014, 03:30 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I assume you have tried your dimmer control for the brightness of the cluster?

At night, moving the dimmer control has no effect? What about the HVAC and radio modules? Do they change when when you adjust the dimmer?

Checking all fuses is the first step, but if your I/P doesn't light, and the radio and HVAC lights up ok, sounds like a cluster problem....

Or is this only a problem in daylight?
Tech II is offline   Reply With Quote
Old 11-21-2014, 09:06 PM   #6
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

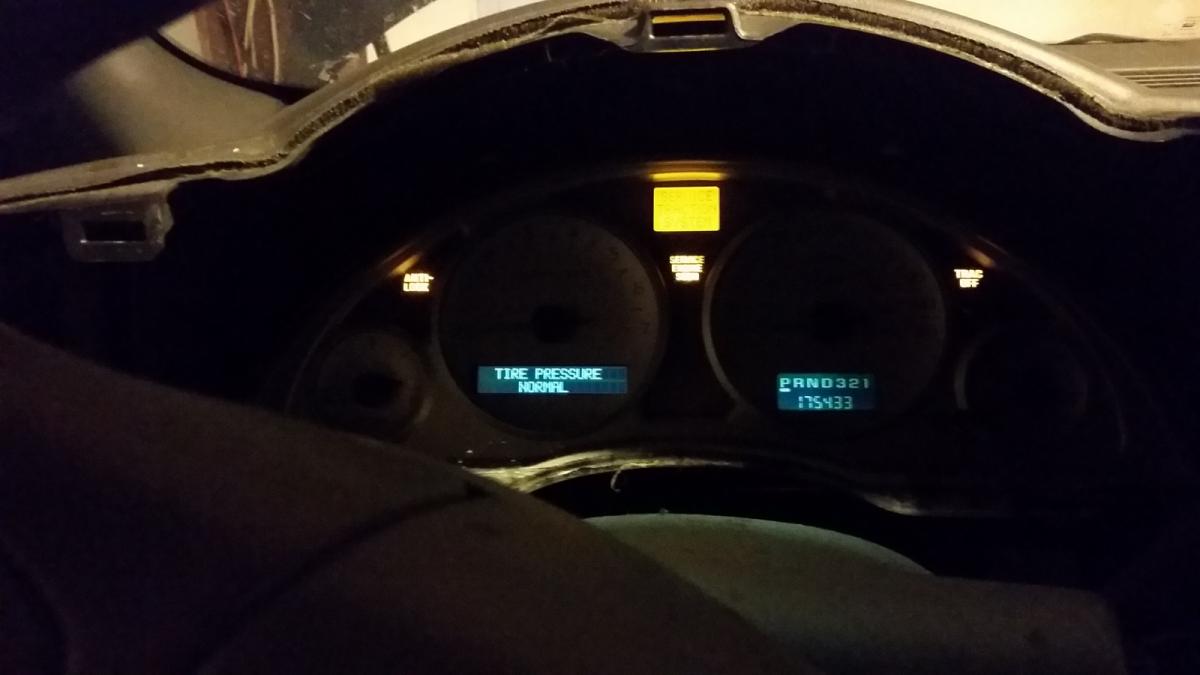

my dimmer control does seem to work as it changes the backlight on the lcd screens along with the dimmnes on the radio.the hvac illumination doesnt work either so i hought maybe they may be connected.the hvac controller works good with all blower settings and mode settings.as i mentioned the lights(ilumination) on the hvac controller do not work.The issue is my customer couldnt read her mph at night. there should be a picture below.[IMG][/IMG]
Attached Thumbnails
2003 buick rendevouz dash board illumination-pltz7.jpg
tsaw5500 is offline   Reply With Quote
Old 11-23-2014, 10:41 AM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Do you have a scan tool capable of reading "B" codes?

Does your scan tool have the ability to read data from the DIM and IPM?
Tech II is offline   Reply With Quote
Old 11-24-2014, 12:53 PM   #8
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Aug 2013
Posts: 174
Thanked 7 Times in 5 Posts
tsaw5500 is on a distinguished road
Default

thanks everyone for your help.problem solved.dimmer issues
