Default Problem installinf tranny filter on 99 Malibu

I'm in desperate need of some expert advice. I'm changing the tranny fluid and filter on my 99 Malibu. When I removed the filter it also said to remove the old black retaining ring that holds the filter in place ( might have been better off re-using it but I'm not sure ). I have tried everything I can think of but can not get the new retaining ring installed and fully seated into the opening where it goes. All of the old material has been removed and the surface is good and clean. I have tried installing the ring by it self as well as installing it on the filter and then trying to get it seated in the opening but nothing is working and all I do is cause the ring to lose it'* shape which causes me to have to buy replacements 2 times so far. Please any help and tips on this would be so greatly appreciated as I'm trying to get this done before my daughter heads back to school and obviously she can't drive it like this.
daveyboy43 is offline   Reply With Quote
Old 09-12-2011, 04:24 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I always leave that seal in, but seeing you removed the old one. You start the new one, then use a deep well socket that is the same size and a plastic or rubber mallet to tap it in to place.
Danthurs is offline   Reply With Quote
Old 09-12-2011, 04:33 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

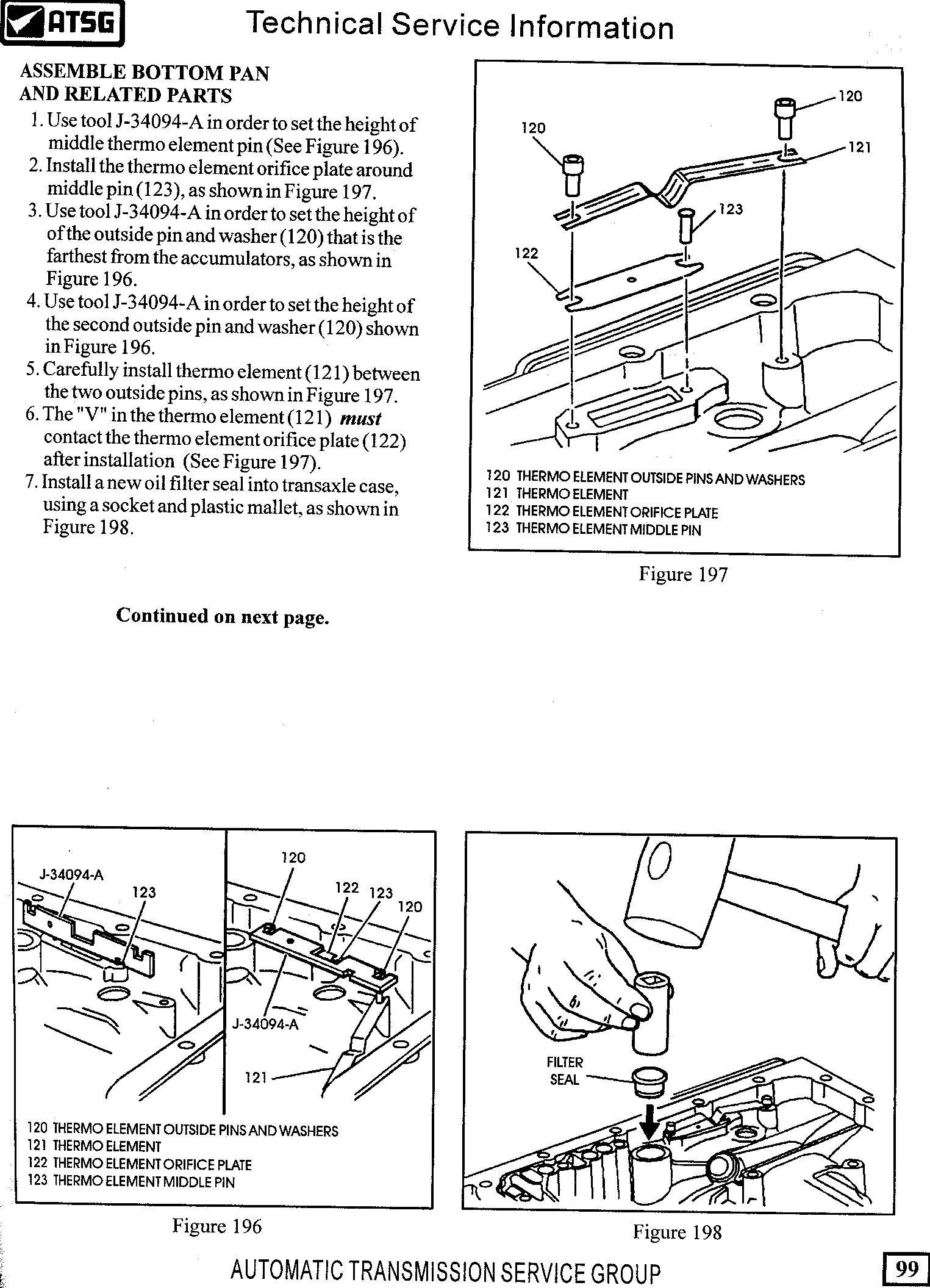

Hope this helps.

Danthurs is offline   Reply With Quote
Old 09-12-2011, 04:55 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2011
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
daveyboy43 is on a distinguished road
Default

I've tried that twice and it loses it'* shape so bad that when you get it in plave it'* loose and then falls out.
daveyboy43 is offline   Reply With Quote
Old 09-12-2011, 05:02 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sounds like you might not be going in straight. But that is the proper procedure.
Danthurs is offline   Reply With Quote
Old 09-12-2011, 05:12 PM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2011
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
daveyboy43 is on a distinguished road
Default

Is there anything I can use or do to make sure I keep it straight?
daveyboy43 is offline   Reply With Quote
Old 09-12-2011, 05:14 PM   #7
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Do the new rings look any different dimensionally than the old one? Did you try re-installing the old one? Are you applying grease to the new ones to help them install?
2kg4u is offline   Reply With Quote
Old 09-12-2011, 05:15 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Your eyes, that'* about it. Wiggle it straight, then put the socket on it, tap, then look, adjust as needed. If there is a good trick to this, SGP358 would know it.
Danthurs is offline   Reply With Quote
