Unhappy LIM Replacement

Hi guys. I'm looking for some advice. I recently took my 06 Malibu in to the chevy dealership and it was diagnosed with a lower intake gasket leak. They quoted me $695 for the repair. Car runs perfectly fine tho. The leak is visible on the outside. I'm just wondering if this is a reasonable price and if the upper also needs to be replaced?
BuLuv is offline   Reply With Quote
Old 08-19-2013, 12:22 AM   #2
Junior Member
Thread Starter

Join Date: Aug 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
BuLuv is on a distinguished road
Default

Any advice or knowledge about this is appreciated.
BuLuv is offline   Reply With Quote
Old 08-19-2013, 12:44 AM   #3
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Which engine?
rjolly87 is offline   Reply With Quote
Old 08-19-2013, 12:45 AM   #4
Junior Member
Thread Starter

Join Date: Aug 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
BuLuv is on a distinguished road
Default

It'* the 3.5 liter.
BuLuv is offline   Reply With Quote
Old 08-19-2013, 08:16 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

sounds reasonable for someone to do. but its mostly labor, i would imagine you could get a kit and do it yourself under a hundred, rockauto has reasonable prices and alot of engines have felpro updated designs if there was a problem.
jwfirebird is offline   Reply With Quote
Old 08-19-2013, 01:56 PM   #6
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Justin is correct, you are mostly paying for labor, you can get the lower intake manifold gasket for 66.79 from RockAuto.
FEL-PRO Part # MS98013T , that comes with all the gaskets you should need, the only thing I do not see in the kit is the injector o-rings.

The Fel-PRO kit recommends replacing the bolts, if you can clean the threads well, then you could reuse them, but for 15.34 Rockauto has them.
FEL-PRO Part # ES72226

I wish I could be of more help, bit I am mainly familiar with the 3800 II 3.8L, not the 3.5L.
WilliamE is offline   Reply With Quote
Old 08-19-2013, 06:04 PM   #7
Junior Member
Thread Starter

Join Date: Aug 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
BuLuv is on a distinguished road
Default

Ok thanks for the advice guys! I don't think I have the time or ability to do this myself...
BuLuv is offline   Reply With Quote
Old 08-19-2013, 11:35 PM   #8
Senior Member
Posts like a Northstar

1REDCAV's Avatar

Join Date: Aug 2010
Location: Mesa, AZ
Posts: 577
Thanked 5 Times in 5 Posts
1REDCAV is on a distinguished road
Default

I'd recommend doing the upper intake, as well, so you won't have to do it later on down the road...how many miles are on your Malibu?
1REDCAV is offline   Reply With Quote
Old 08-20-2013, 01:27 AM   #9
Junior Member
Thread Starter

Join Date: Aug 2013
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
BuLuv is on a distinguished road
Default

My bu' has 141000 miles on it.
BuLuv is offline   Reply With Quote
Old 08-20-2013, 02:11 PM   #10
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by 1REDCAV View Post
I'd recommend doing the upper intake, as well, so you won't have to do it later on down the road...how many miles are on your Malibu?
Are you sure he has a nylon upper intake?

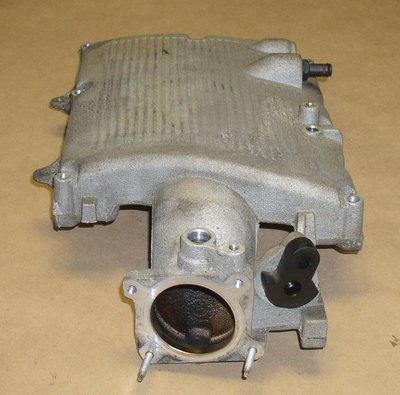

I searched RockAuto and can only find the gasket, so I searched Nalley Buick Parts, and I found a pic of the plenum, it looks aluminum to me, attaching a pic of it.
He'll have to have the upper intake removed to get to the lower, and the LIM Kit comes with the plenum gasket, so I think he'll be ok as long as they put the new plenum gasket on.
Unless I am wrong, and his is in fact nylon/plastic.
Attached Thumbnails
LIM Replacement-gm-12604753-intake-plenum.jpg
