Turned the key on my 2002 MC SS, V6, 3.8L, and the Intake Manifold exploded.

Anyone ever hear of the Intake Manifold Exploding on a GM V6, 3.8L? It sounded like a 12ga shotgun. Fortunately no one was looking into the engine compartment at the time as they likely would have been killed given the amount of shrapnel from this explosion. Note that the explosion was powerful enough to blow off the oil cap, which is screwed on with very thick threads.

The vehicle was at my mechanics at time and in his forty years he'* not seen an intake manifold explode save for those residing on Top Fuel or Funny Cars.

Am advising NHTSA Chairman via USPS Restricted Delivery Mail (which, under Federal Law, can only be signed for by the Addressee which will ensure delivery to his direct and personal attention). Hoping this is not another attempt at GM trying to save a few cents (vis-a-vis The Ivey Memo where GM put the value of Human Life at just over two bucks, the Ignition Switch issue to save fifty-seven cents, et al).

Any input greatly appreciated.
Attached Thumbnails

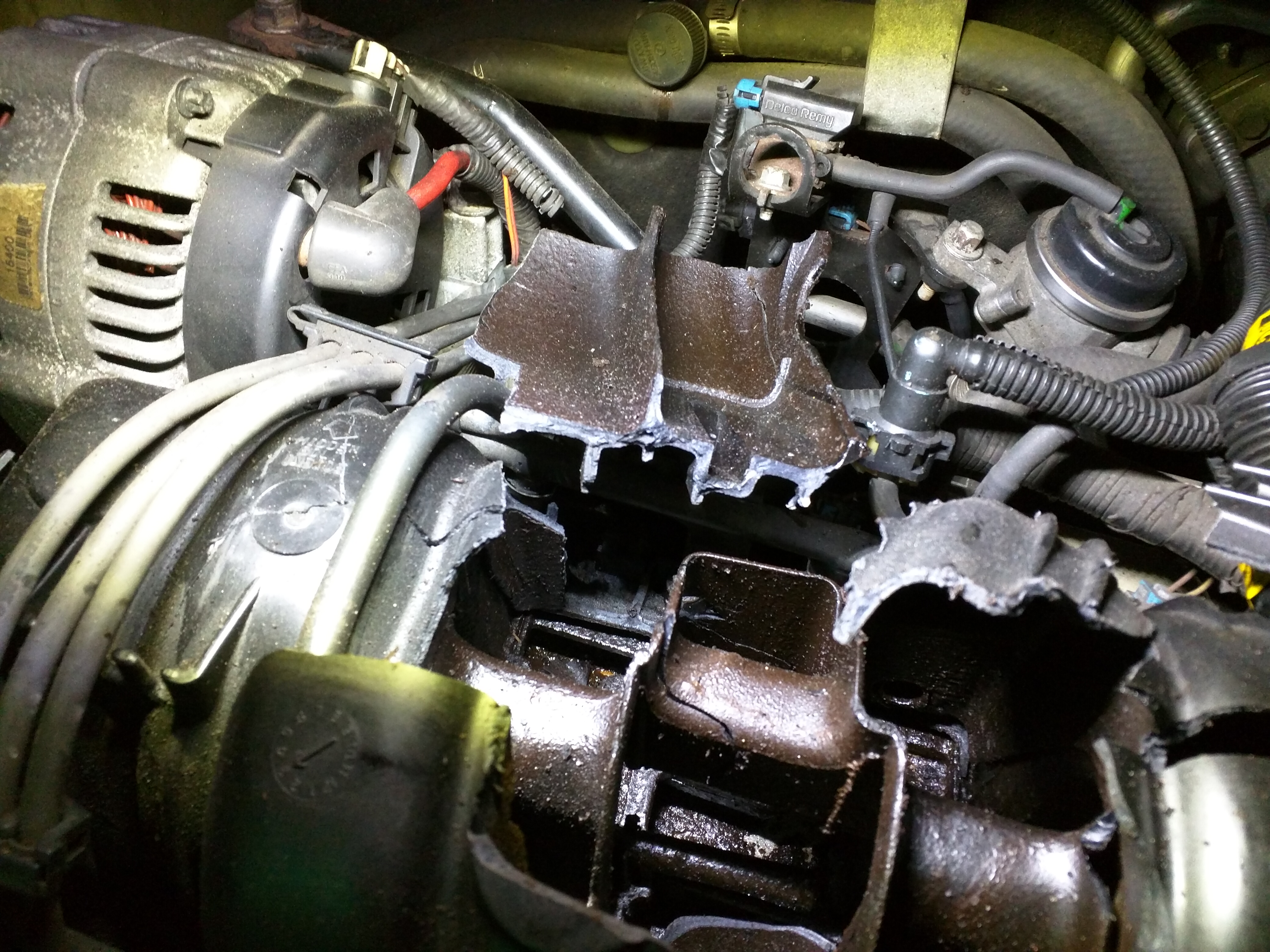

Intake Manifold Exploded-img_20151110_160138_01.jpg   Intake Manifold Exploded-img_20151110_160142_01.jpg   Intake Manifold Exploded-img_20151110_160145_01.jpg   Intake Manifold Exploded-img_20151110_192746.jpg
LGLDSR is offline   Reply With Quote
Old 11-12-2015, 12:30 AM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Why was it in the shop?

Some 3.8'* were recalled for faulty fuel pressure regulators. The diaphragm would rupture causing fuel to enter the intake system through the vacuum lines. At best the vehicle would run excessively rich because of uncontrolled fuel ingestion, at worst the vehicle catches fire or in certain circumstances the intake explodes.
rjolly87 is offline   Reply With Quote
The Following User Says Thank You to rjolly87 For This Useful Post:
Soft Ride (11-12-2015)
Old 11-12-2015, 05:48 AM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

This is probably the 5th one I have seen on here that exploded. Maybe 2 or 3 more I personally seen in the junkyard the same way.
As already mentioned, its due to a faulty FPR.
Mike is offline   Reply With Quote
The Following 2 Users Say Thank You to Mike For This Useful Post:
Soft Ride (11-12-2015), WilliamE (11-13-2015)
Old 11-12-2015, 04:35 PM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,591
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Wow that FPR diaphragm must have leaking fuel heavily, to cause it to completely blow apart like that.
For members wondering about their FPR'*, here is a good video showing the FPR leak eventually.
You can advance the video to about 1 min 50 seconds to where the FPR is shown.
It starts spraying out fuel at 3:57.
Soft Ride is offline   Reply With Quote
The Following User Says Thank You to Soft Ride For This Useful Post:
WilliamE (11-13-2015)
Old 11-12-2015, 06:30 PM   #5
Junior Member
Thread Starter

Join Date: Nov 2015
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
LGLDSR is on a distinguished road
Default

Quote:
Originally Posted by rjolly87 View Post
Why was it in the shop?

Some 3.8'* were recalled for faulty fuel pressure regulators. The diaphragm would rupture causing fuel to enter the intake system through the vacuum lines. At best the vehicle would run excessively rich because of uncontrolled fuel ingestion, at worst the vehicle catches fire or in certain circumstances the intake explodes.
Thank you, Jolly. In researching that recall you spoke of the affected engines were according to GM through Model year 2000 (in the case of the Monte Carlo). I am exhibiting identical symptoms and am waiting to hear from GM with respect to this issue. In the meantime I assume they are shredding any relevant documents and / or Memo'* stating "Hey, this isn't just through the 2000 Model year" using a DOD approved shredder. On a serious note, I have lost all respect for GM with the revelations over the Ignition Switch issue. As many as 303 people - Men, Women, Children - are now in their graves so those bastards could save fifty-seven cents on a switch and then hid that fact for a decade. And don't even get me going on The Ivey Memo (where GM put the value of a Human Life at just over two bucks).

For those who have not heard of The Ivey Memo, and while both the NY Times and the LA Times also have excellent articles on same, this article sums it up well:

The Ivey Memo: The Original Cold Document That Made GM Squirm

I saw the video today at the garage from the perspective of an outside video camera mounted to a concrete wall and approximately twenty feet up and fifteen feet back from the vehicle. Bearing in mind that the hood was closed and locked the concussion was enough to vigorously vibrate the camera when it exploded. Fortunately as mentioned earlier no one had their head in that engine compartment when the key was turned. The video will be on YouTube in short order.

The vehicle had been brought there due to it stalling.

Again, thank you VERY much for your assistance!

Best,

Lyman
LGLDSR is offline   Reply With Quote
Old 11-12-2015, 11:29 PM   #6
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Looking forward to it.

In the meantime, enjoy this 3.8 v6 explosion, likely from the same issue.
rjolly87 is offline   Reply With Quote
The Following 2 Users Say Thank You to rjolly87 For This Useful Post:
Soft Ride (11-14-2015), WilliamE (11-13-2015)
Old 11-13-2015, 12:49 AM   #7
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Yup, faulty FPR the cause for sure.
Dorman actually makes the upper intake with strengthened baffles, and the UIM also comes with a reduced diameter EGR stovepipe for issues with the EGR gases burning the UIM till it causes the coolant ports going into the throttle body to leak.

When you replace that UIM be sure to go ahead and replace your lower intake manifold gasket with the aluminum framed one, as well as replace the coolant elbow with the aluminum one.
Glad nobody was hurt when that exploded!
WilliamE is offline   Reply With Quote
Old 11-14-2015, 11:36 PM   #8
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,591
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Makes me want to go out & buy a new FPR, regardless if I think mine is fine or not.
Soft Ride is offline   Reply With Quote
Old 11-15-2015, 12:11 AM   #9
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 787 Times in 616 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Stalling is one of the symptoms of a bad FPR....a small leak, is no problem on a cold engine......but on a warm engine, it can cause a stall, or a hard restart, because the engine is running too rich.....
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
Soft Ride (11-15-2015)
