Default '05 Uplander EBCM Pinout

Hoping someone can help with a diagram or pinout list.

My 2005 Uplander is showing codes for both front wheel speed sensors. I've replaced both hubs recently and still get the codes. I've tried searching for the pinout of the EBCM (GM ASSM PN 88964106).

Could some kind soul provide me the pinout info so i can test the sensors and wiring to the EBCM.

Thanks!
Chris
ChrisN812 is offline   Reply With Quote
Old 10-03-2014, 10:38 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,148
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Attached Thumbnails

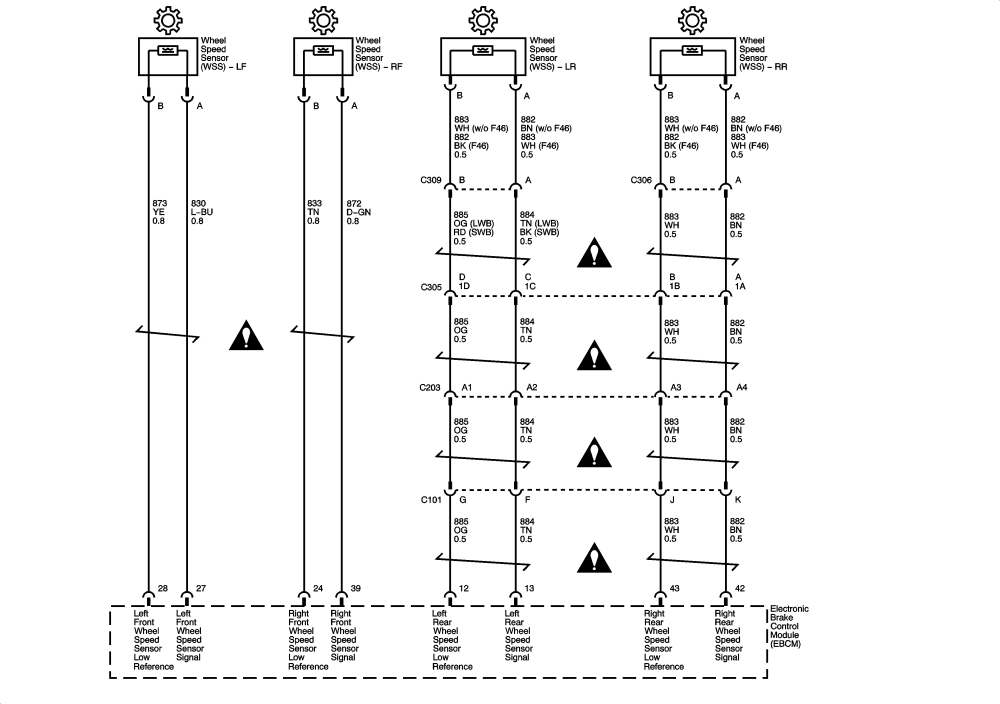

'05 Uplander EBCM Pinout-0996b43f80242887.gif
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (10-04-2014)
Old 10-04-2014, 01:12 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

What are the actual codes?
Mike is offline   Reply With Quote
Old 11-08-2014, 01:41 PM   #4
aus
Junior Member

Join Date: Nov 2014
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
aus is on a distinguished road
Default

How do I locate the pins on the EBCM connector. I know I'm looking for 42 and 43 for the RR speed sensor but I don't know where they are on the connector. Is there a numbering sequence or a diagram somewhere?
