Default What part # is this? I believe it'* an air hose of some sort.

Vehicle: 2004 Buick Regal LS (3800 Series II, V6)

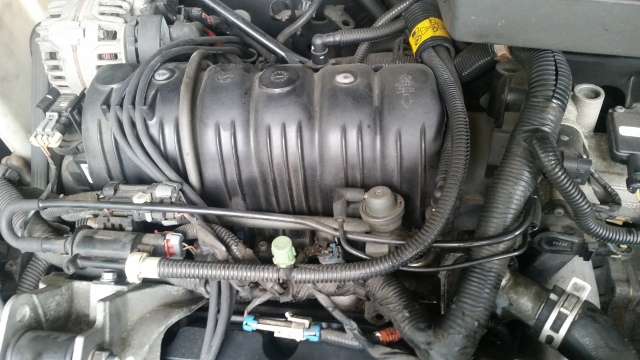

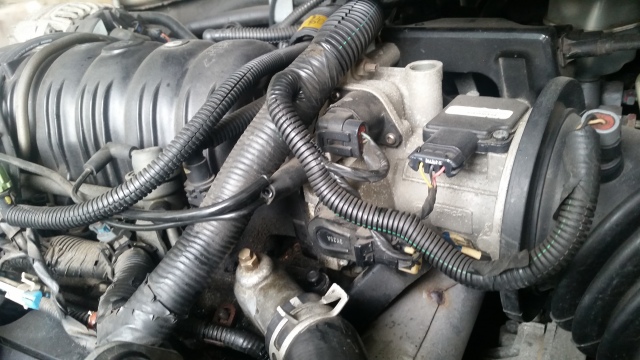

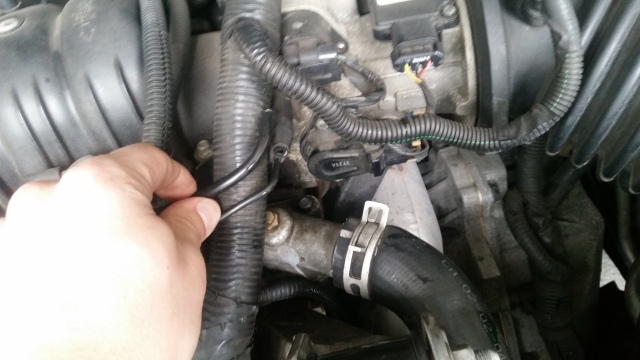

If anyone can identify the part below that needs replacing it would be very much appreciated. If you look closely its that small thin tube that has broken off. It came to my attention when changing the coolant thermostat. A part # or area to look in RockAuto is acceptable as well since I'm pretty much baffled on this one.


Attached Thumbnails
What part # is this? I believe it's an air hose of some sort.-34t4iyw.jpg   What part # is this? I believe it's an air hose of some sort.-28t9yzk.jpg   What part # is this? I believe it's an air hose of some sort.-148zngk.jpg
NCarts is offline   Reply With Quote
Old 03-07-2016, 04:28 PM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

A little hard to tell from your pictures, but looks like a vacuum line running to the fuel pressure regulator. I am not sure if you can buy that as an assembly, but you can purchase some stock vacuum line from any parts store (comes in a roll, sold by the foot) and just hook it up to both of the ports the existing line is hooked up to. Those plastic vacuum lines tend to crack.
2kg4u is offline   Reply With Quote
Old 03-07-2016, 04:48 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I think it is the vac source line to the purge solenoid.....just dig out the plastic piece out of the rubber housing.....get a short piece of plastic tubing, to stick back in there and join the two plastic pieces with a short piece of vac line.....

Or take a little trip to your local yard and take one off a motor.....
Tech II is offline   Reply With Quote
Old 03-07-2016, 04:57 PM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by Tech II View Post
Or take a little trip to your local yard and take one off a motor.....
Good luck with that. Do you know how many times I've tried pulling those vac fittings? I stopped trying and just got brand new fittings to jury rig from the HELP section at Autozone.
Mike is online now   Reply With Quote
Old 03-07-2016, 06:07 PM   #5
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Agree with MIke, just take the part you need into somewhere like AutoZone or Advance Auto, and show them what you need, it should be in the HELP section as Mike mentioned.

If the small thin tube is broken off in the soft rubber connector, and you cannot remove it, they will have that connector in the HELP section.
Just be sure it still reaches the area well enough to be able to use it without adding a little extension to the hard plastic tube part.
WilliamE is offline   Reply With Quote
Old 03-07-2016, 09:45 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Mike, you have to talk to it it....be gentle......tell it all the fun it will have on your motor, instead of sitting in a yard doing nothing.......you can't go Hulk on it!
Tech II is offline   Reply With Quote
Old 03-08-2016, 01:38 AM   #7
Junior Member
Thread Starter

Join Date: Mar 2016
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
NCarts is on a distinguished road
Default

Thanks for the help guys. I managed to find the GM OEM, complete harness assembly, for around $25 on eBay. The vac source line was a good start. I tried to see if I could find a non-OEM equivalent part for cheaper but no luck. GM#24506671.
NCarts is offline   Reply With Quote
Old 03-08-2016, 01:54 AM   #8
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

The only thing you really needed was the rubber end that both hard plastic lines go into, that goes for like 3.00 at a local auto parts store, you only needed the whole harness is the plastic hard line was too short to fit in the new soft rubber connector..
