Default Lesabre air ride

does anyone know anything about the air ride shocks on the rear of a 2003 Buick Lesabre I need some help locating the components
breid2138 is offline   Reply With Quote
Old 09-28-2014, 09:20 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

most of the stuff is kinda in the rear pass fender you have to look from under neath. what are you looking for and trying to do specifically?
jwfirebird is offline   Reply With Quote
Old 09-28-2014, 11:50 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Sep 2014
Posts: 31
Thanked 3 Times in 3 Posts
breid2138 is on a distinguished road
Default elc

The ELC system has stopped and I actually looking for a electric schematic of this system so I can start running tests
breid2138 is offline   Reply With Quote
Old 09-28-2014, 12:49 PM   #4
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

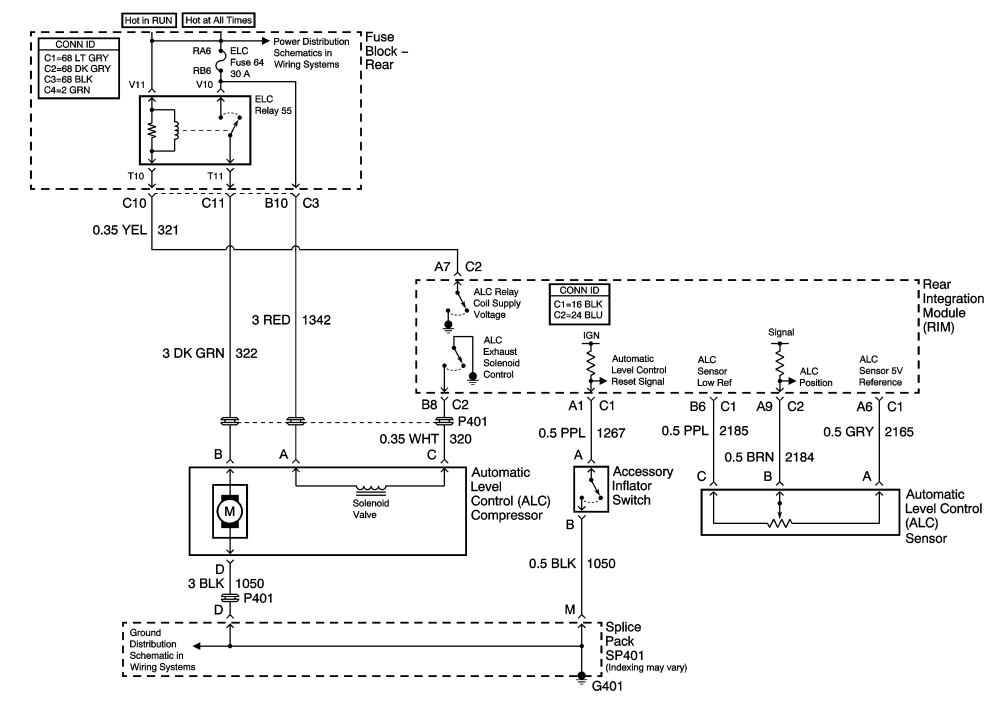

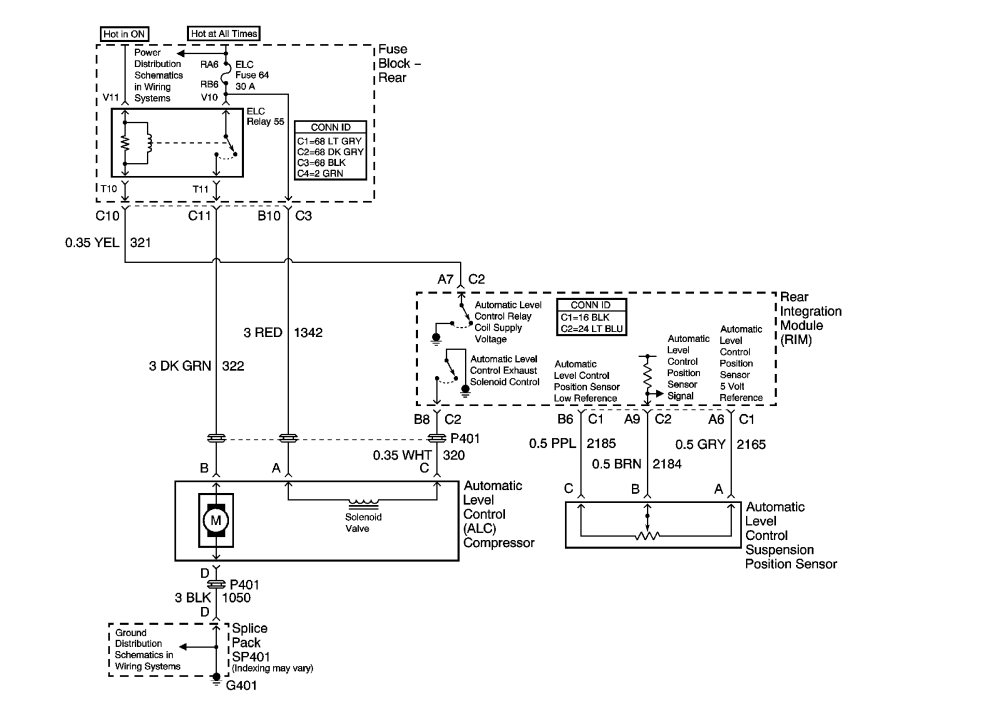

OKEEEDOKEE.....there are several, but this will get you started.....the level sensor is on the driver'* side, rear wheel area....





Attached Thumbnails
Lesabre air ride-0996b43f80244a5e.gif   Lesabre air ride-0996b43f80241527.gif   Lesabre air ride-0996b43f80241619.gif
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
breid2138 (10-03-2014)
