Default 1999 Buick Century Oil Leak

So I was driving home last night and my Low Oil light was on - I have never seen it lit before. Of course it was dark so I waited until today to take a look at everything. Oil was barely registering on the dip stick so I jacked it up. Little bit of oil pooled up around the drain plug but the pan beside it had oil dripping from multiple spots and fairly consistently, hence why I have had 4+ quarts of oil go missing from my car. Here is a pic of the part, and yes, my dumbass tried to tighten the bolts and broke one, so now I have to deal with that as well.

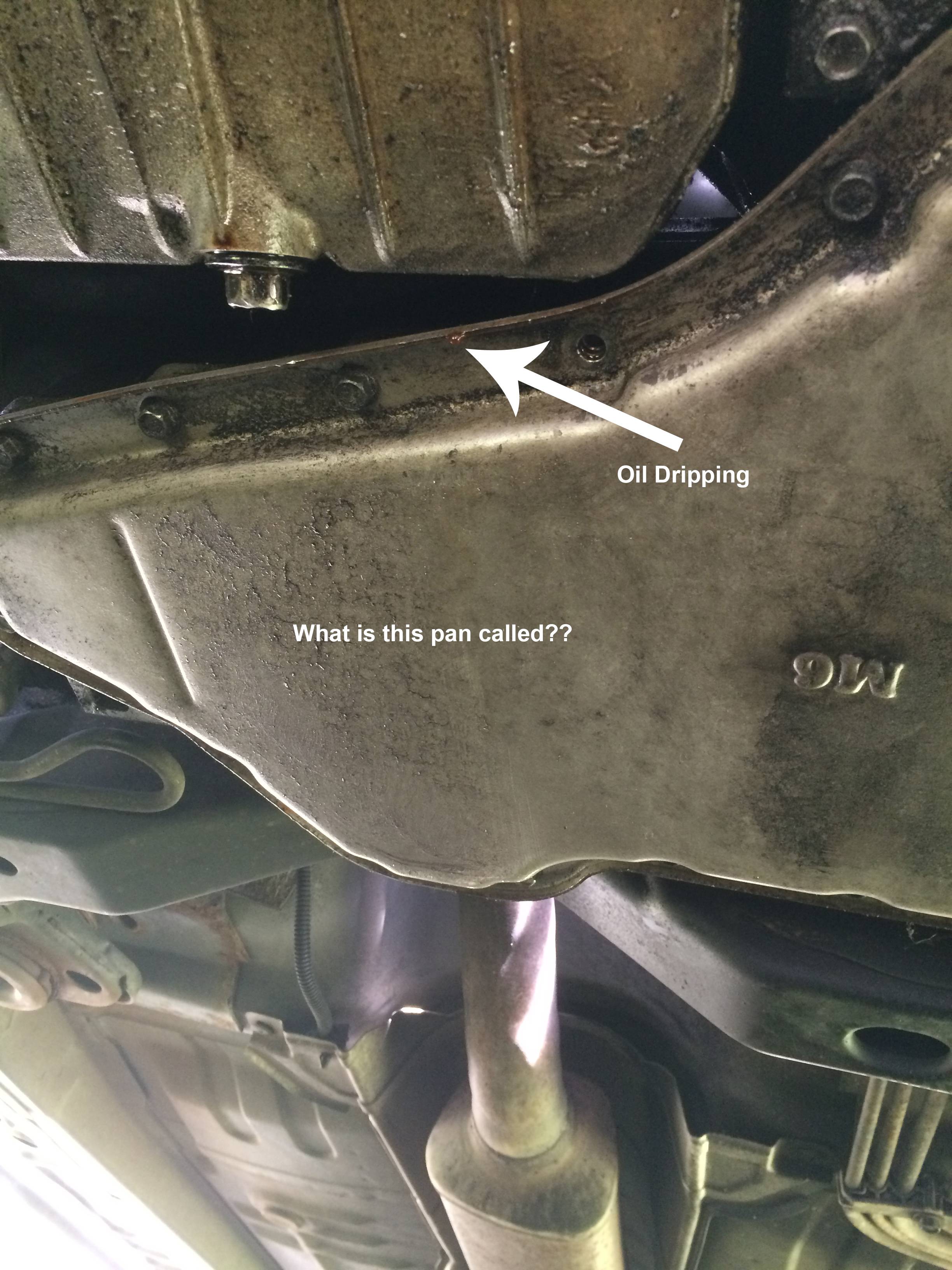

Here is a picture of what I am looking at. Please help!




Direct link:
http://imgur.com/SV45rcQ
Tearitup is offline   Reply With Quote
Old 09-28-2014, 02:07 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The pan you have labeled "M6", is your transmission fluid pan. I highly suggest you get that broken bolt fixed. That'* why you have a drip of red trans fluid(end of arrow).

As far as the low oil light and barely any oil on the dipstick, I suggest you top it off with about 1.5 quarts of oil. Start with a full quart, then add a little bit at a time.

Now, go to the car wash and find a way to wash the whole bottom side, back side, and front side of the engine. Everything below the valve covers. When you park your car for the final time tonight, place a large piece of clean cardboard so that it cover the entire engine and transmission area underneath. We want to see where if any drips are coming from.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
WilliamE (09-29-2014)
Old 09-28-2014, 02:15 PM   #3
Member
Posts like a V-Tak
Thread Starter

Tearitup's Avatar

Join Date: Jul 2011
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
Tearitup is on a distinguished road
Default

I broke the bolt myself because I saw that it was leaking around the sides of that M6 pan and I was trying to tighten anything that I found was lose. So you are telling me that has nothing to do with my oil problem?
Tearitup is offline   Reply With Quote
Old 09-28-2014, 02:48 PM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Brent if you have lost so much oil it probably is coming from the oil pan gasket or oil pressure sensor above oil filter. Also the trans pan is probably leaking as well with the bolt broken. I normally in these situations get a engine cleaner spray & water wash the whole area down from above & below, then have a better look.
Mike'* idea of cardboard under is good you can tell where the drips are and how much each is leaking, after washing it & wont be mixing as easily and oil drops are more brown whereas trans fluid is reddish.
I would definitely/ immediately, get the oil level full again and also ensure the trans fluid is checked now & after after driving a while when it is hot, running in park, get it on the full mark- add slowly= keep checking.
I would also roll up some cloth or j-cloth in a round fashion leaving some outside the hole to grab on later to remove, to plug up the hole in trans pan before washing. That way water wont get in there as a precautionary step.
Anytime you get an oil light it should be checked immediately. Continuing to drive is not a good idea. I always have extra oil in the trunk to add should I need to day or night.

Last edited by Soft Ride; 09-28-2014 at 02:56 PM.
Soft Ride is online now   Reply With Quote
Old 09-28-2014, 02:55 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Your trans leaking oil has nothing to do with your ENGINE current oil level.

Once you top off your engine oil, we need to determine where the oil is going. Most of the time with 3800'*, its either....
A. Valve cover gasket
B. Leaking oil pressure sensor
C. Oil pan gasket
Mike is offline   Reply With Quote
Old 09-28-2014, 09:31 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Mile, that isn't a 3800 oil pan......it'* a 3.1/3.4.....and it'* leaking on the back side, away from the filter and oil pressure switch......lower intake or valve cover or seal at dummy distributor shaft?

That is clean looking oil....a recent oil change?
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (09-29-2014)
Old 09-28-2014, 10:21 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Thanks for the clarification. Somehow it was stuck in my head that he had a 3.8.
Mike is offline   Reply With Quote
Old 09-29-2014, 05:10 AM   #8
Member
Posts like a V-Tak
Thread Starter

Tearitup's Avatar

Join Date: Jul 2011
Posts: 38
Thanks: 0
Thanked 0 Times in 0 Posts
Tearitup is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Mile, that isn't a 3800 oil pan......it'* a 3.1/3.4.....and it'* leaking on the back side, away from the filter and oil pressure switch......lower intake or valve cover or seal at dummy distributor shaft?

That is clean looking oil....a recent oil change?
Not recent at all. I was in the process of changing the engine oil only.
Tearitup is offline   Reply With Quote
Old 09-29-2014, 12:14 PM   #9
Senior Member
Posts like a Camaro

Join Date: Apr 2004
Location: Land of Lincoln
Posts: 1,107
Thanked 5 Times in 4 Posts
scottydl is on a distinguished road
Default

Oil still visible on the dipstick would indicate 1 to 1.5 quarts low, which isn't all that odd on an older car over the course of an entire oil change. What make you think you lost 4+ quarts? If that happened all at once and you kept driving, the engine would seize up before too long.
scottydl is offline   Reply With Quote
Old 09-29-2014, 05:10 PM   #10
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

How far up in there did that bolt break off?
Usually when you over tighten it is almost a flush break, or close to it, it looks more like a bolt was removed, and not put back
As the others said, that needs to be replaced or you will always have a slow transmission fluid leak, and if not constantly monitored till you fix it, you could run really low on fluid, and possibly damage something with the transmission internals.
WilliamE is offline   Reply With Quote
