Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 07-20-2014, 07:33 PM   #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default Hazards/Turn Signals not working

Hi,
I have a 2002 Buick Lesabre custom, I am trying to narrow down the problem of the turn signals not working. I checked the two 15amp fuses. They where ok but replaced them to be sure. I replaced the Flasher Hazard/Turn Signal Lamp module located behind the ODBII port. That didnt work, However when I used the directional lever I can feel the solenoid activate inside the module just one click. The Brake lights and headlights work fine as does the wipers and washer. My next step is to replace the Turn Signal Switch. But before I shell out $200 for the switch I thought I would ask here for advice. I read that sometimes aftermarket modules can be bad so I ordered a OEM ACDelco 25654870 and I will try that one first.

Thanks
Tagdot is offline   Reply With Quote
Old 07-20-2014, 10:11 PM   #2
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

Let us know if that fixes it if not it sounds like the multifunction switch. But is your 4way switch on the sterring column or on the dash. If its on the dash it could be the 4way switch.
rjblazer is offline   Reply With Quote
Old 07-20-2014, 11:03 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,147
Thanked 782 Times in 611 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

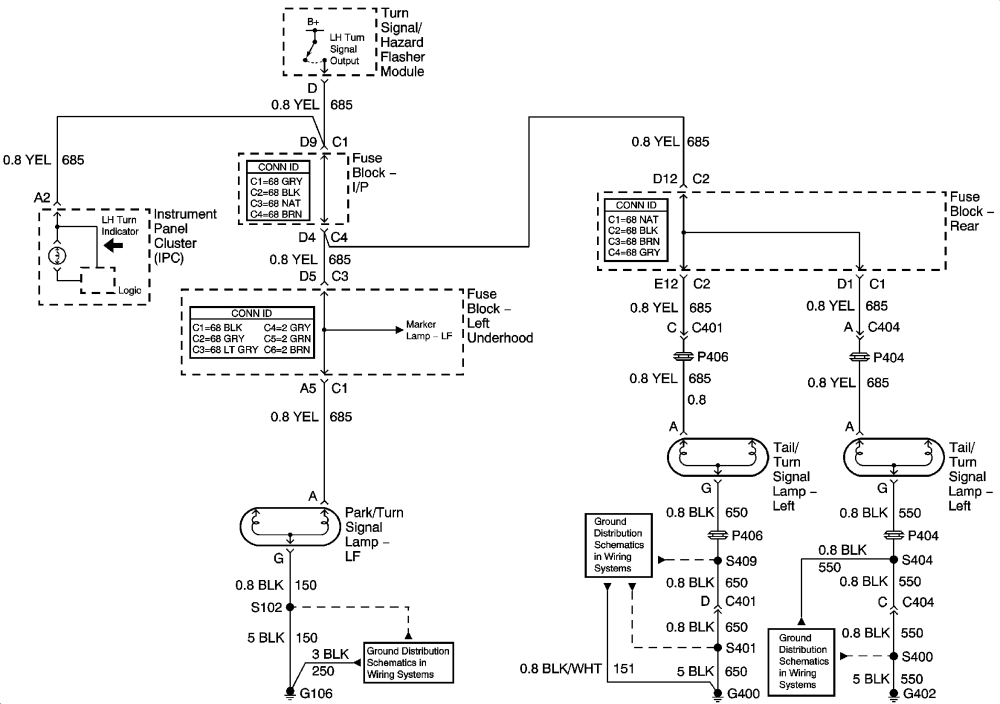

This is from a 2001, should be the same as a 2002.......

Disconnect the harness into the module......with key in the on position, turn directional lever to left turn......do you have power at terminal C, orange wire? If no, check T/SIG fuse....if fuse ok, either bad multifunction switch or open wire....

If you have power, check for power at terminal H and ground at terminal A.....if ok, jumper terminal H to terminal D....if left directional lights are on, bad module.....

If lights do not come on, there is an opening in the wiring, possibly at the fuse block....





Attached Thumbnails
Hazards/Turn Signals not working-0996b43f80244ac3.gif   Hazards/Turn Signals not working-0996b43f80244ac2.gif
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (07-21-2014)
Old 07-21-2014, 12:50 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default

Ok Thanks, 2nd oem module was a no go. Time to start checking the wires at the module plug, Thanks for that information. I will let you know what I find
Thank you
Tagdot is offline   Reply With Quote
Old 07-25-2014, 06:50 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default

Update... I have the new AC DELCO D6244D TURN SIGNAL MULTI FUNCTION SWITCH. I connected all but one plug on the new harness. The old harness has 2 wires that go all the way to the back up under the dash and no clip I can see. I found the new harness has two similar wires that have a connector at the end but is to short to go all the way to the back. I am thinking I should cut the new end and splice it to the wires going to the back? Not sure what they go to. The first picture shows the 2 wires with the connector on the new harness, the 2nd shows the 2 wires from the old harness. To me they look the same but I am color blind so I need help with it.
Attached Thumbnails
Hazards/Turn Signals not working-wire1.jpg   Hazards/Turn Signals not working-wire2.jpg

Last edited by Tagdot; 07-25-2014 at 06:51 PM.
Tagdot is offline   Reply With Quote
Old 07-26-2014, 11:44 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default

Ok I am guessing the wires go to the Twilight Sentinel Switch.
Tagdot is offline   Reply With Quote
Old 07-26-2014, 11:58 AM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default

The New multifunction switch didnt solve the problem. Time to start checking for bad connections
Tagdot is offline   Reply With Quote
Old 07-27-2014, 12:35 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jun 2013
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
Tagdot is on a distinguished road
Default

I give up. Replaced the fuses, bulbs, Hazard/Turn Signal Lamp module, and the Turn Signal multi Function switch. It couldn't be the Body Control Module could it?
Tagdot is offline   Reply With Quote
Old 07-27-2014, 06:20 PM   #9
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,147
Thanked 782 Times in 611 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Did you check the wiring like I suggested in post #3?
Tech II is offline   Reply With Quote
Old 07-27-2014, 06:30 PM   #10
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

You have done all that stuff. Have you checked the grounds?
rjblazer is offline   Reply With Quote
