Question Confused re P1406 Code

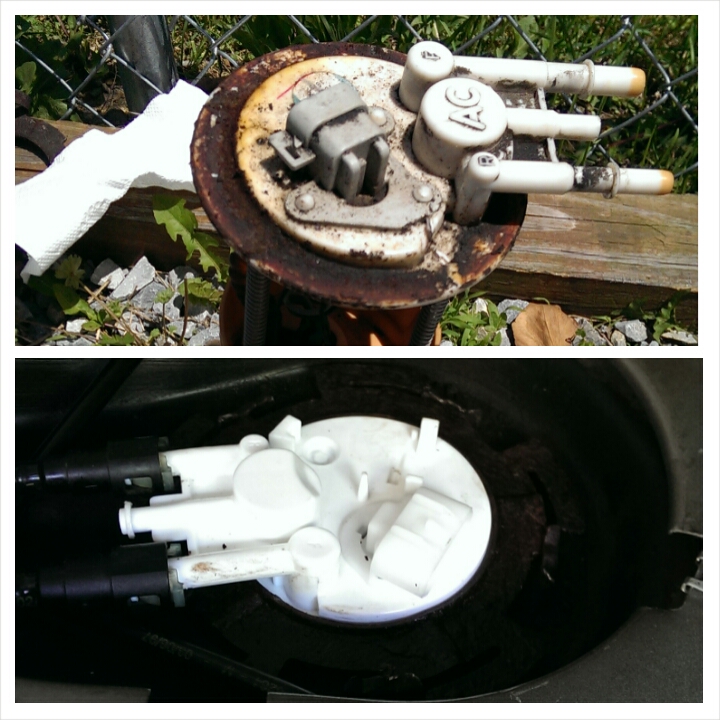

Just replaced my fuel pump in my 97 park ave over the weekend, (due to a bad sensor) everything is workin, but I also had a P1406 code constantly coming up..... after the pump change the code went away... Whats up with that?
Attached Thumbnails
Confused re P1406 Code-20140518_131609_android.jpg
wonderwoman305 is offline   Reply With Quote
Old 05-19-2014, 09:25 PM   #2
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

I don't think the two are related, just coincidental.

You need to determine if the EGR solenoid is working as it should, or if you have a problem with the reference circuit, if both of those are fine the EGR port may be clogged somewhere around the intake manifold area.
I tried to find some good info on here, but all I could find was info on how to test if the solenoid is functioning.
I did find a really good video on the problem though.


Does the car run really rough now, or no change in idle?
Also, does your cruise control still function properly?
I ask because I am pretty sure the reference circuit is shared with the same fuse that controls the cruise control, if you can test and verify the solenoid functions, and verify if the reference circuit is getting 5 volts, if the reference circuit is not getting 5 volts then I'd check the fuse for that first, it may be fuse #5, but I am not sure as I do not have a diagram handy.
If it is not the fuse you may have a wiring problem, which will require a diagram, I'll see if I can find one.
WilliamE is offline   Reply With Quote
Old 05-20-2014, 12:21 PM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the egr is often intermittent when its starting to go, sometimes it seals sometimes not
jwfirebird is offline   Reply With Quote
Old 08-11-2015, 12:19 AM   #4
Member
Posts like a V-Tak

Join Date: Jun 2008
Location: Chicago IL area
Posts: 42
Thanked 1 Time in 1 Post
sandman900ss is on a distinguished road
Default

This is such a common code that comes up, in my experience. Do most owners just clean it as best as possible? That seems to work.

Or, is a new EGR available from GM or Rock Auto and best way to go in the long run?
sandman900ss is offline   Reply With Quote
Old 08-11-2015, 06:46 AM   #5
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

They are available on RockAuto for from 60.00 to 154.00, I'd avoid the cheaper ones and go with AC Delco personally, I am sure one of the others would work well, I just have always preferred AC Delco.
Of course I'd always try to clean it first, as they are not relatively cheap.
WilliamE is offline   Reply With Quote
Old 08-11-2015, 09:52 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,148
Thanked 783 Times in 612 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

More often than not, this code is caused by the pintle position sensor differing from the commanded position....this could be caused by carbon not allowing the valve to completely close, a blockage in the exhaust forcing exhaust gases to unseat the pintle, or a bad EGR....
Tech II is online now   Reply With Quote
