Old 07-23-2010, 04:14 PM   #11
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

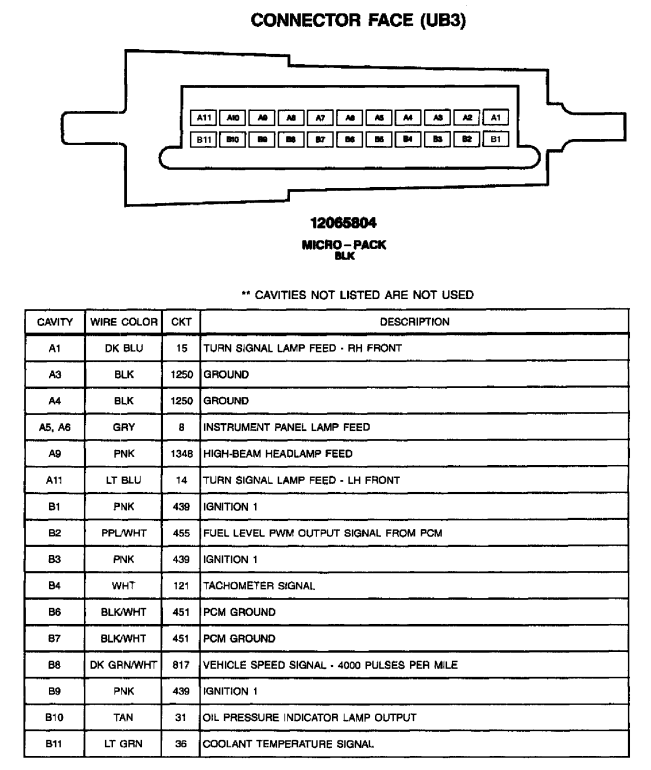

UB3: Sport Cluster

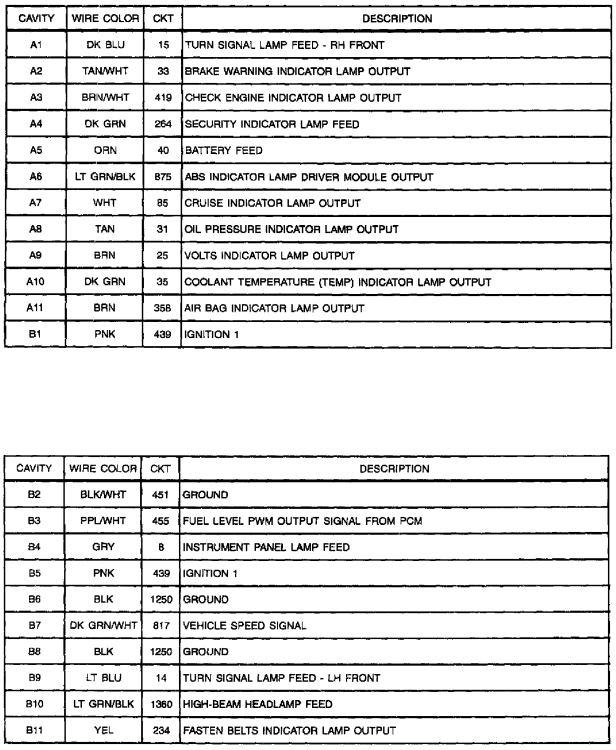

???: Base Cluster

RobertISaar is offline   Reply With Quote
Old 07-23-2010, 04:15 PM   #12
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Ok cool I just wanted to make sure it did come for your year.

Going dual zone can be a lot of work. For the Bonneville you'd need:
Instrument panel module
HVAC control module
G201 (x2) [I'm assuming this is a sensor?]
Recirculation Actuator
Air temperature actuator (L & R)
Mode actuator
Air temperature sensor (x6)
10A Fuse
And lots of wiring and harnesses

Beings the LeSabre and Bonneville are fairly close it would most likely be similar for your case
yutzybrian is offline   Reply With Quote
Old 07-23-2010, 04:22 PM   #13
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

G201 should be grounds, at location 201.... or at least that'* the way alldata/FSM does it.
RobertISaar is offline   Reply With Quote
Old 07-23-2010, 05:11 PM   #14
Member
Posts like a V-Tak
Thread Starter

3800_cruiser's Avatar

Join Date: Mar 2010
Location: Clarksville, TN
Posts: 37
Thanks: 0
Thanked 0 Times in 0 Posts
3800_cruiser is on a distinguished road
Default

Very helpful info there. I would assume I can put in a digital HVAC thermostat that'* not dual-zone. Don't really want that much trouble, it would just be nice to set the temp and not have to keep tweaking the ***** & buttons. Not that big of a deal though.
3800_cruiser is offline   Reply With Quote
