Default how hard to change coolant elbow ?

If my coolant elbow goes bad how hard is it to chg ? What process to chg ? Also do they make a metal one ?
goldfinger22 is offline   Reply With Quote
Old 07-19-2010, 11:53 PM   #2
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

The easiest way I found was to remove the alternator and tensioner assembly and then change both. It was pretty quick and easy and you didn't have to tear apart most of the top end (as I had forgot to change the coolant elbows when I changed my LIM and UIM gaskets and therefore did not want to tear it back apart again). To my knowledge there are no metal ones. Just get the $5 ones from Autozone, lube them up with some coolant, and stick them in the hole.
yutzybrian is offline   Reply With Quote
Old 07-20-2010, 07:30 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Dec 2006
Posts: 471
Thanks: 0
Thanked 1 Time in 1 Post
goldfinger22 is on a distinguished road
Default

theres more than one ??
goldfinger22 is offline   Reply With Quote
Old 07-20-2010, 07:39 PM   #4
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

A lower and an upper. You can't hardly see the lower one while the motor is all together and in. It hooks into the back of the tensioner. Make sure when you do them put the new ones into the tensioner first then carefully fit the other ends of the elbows into their respective holes.
yutzybrian is offline   Reply With Quote
Old 07-20-2010, 10:13 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Dec 2006
Posts: 471
Thanks: 0
Thanked 1 Time in 1 Post
goldfinger22 is on a distinguished road
Default

im confused, the elbows go thru the tensioner ?? Any diagrams ?? So all you have to do is remove the tensioner and alt ?
goldfinger22 is offline   Reply With Quote
Old 07-20-2010, 10:45 PM   #6
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Yes, and I think Brian may be confused??? Maybe I am too?

Only one coolant elbow on the L36 engines that ever need to be replaced that I know of.

This one...

Mike is offline   Reply With Quote
Old 07-20-2010, 10:48 PM   #7
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Hardly Mike since mine has two elbows and is an L36
yutzybrian is offline   Reply With Quote
Old 07-20-2010, 10:50 PM   #8
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Quote:
Originally Posted by goldfinger22 View Post
im confused, the elbows go thru the tensioner ?? Any diagrams ?? So all you have to do is remove the tensioner and alt ?
They go into the tensioner and then there is a channel in the tensioner to connect elbow to elbow. Don't forget to take the belt off too
yutzybrian is offline   Reply With Quote
Old 07-21-2010, 07:11 AM   #9
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by yutzybrian View Post
Hardly Mike since mine has two elbows and is an L36
Am I missing something Brian? Show a pic maybe?
Mike is offline   Reply With Quote
Old 07-21-2010, 08:42 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

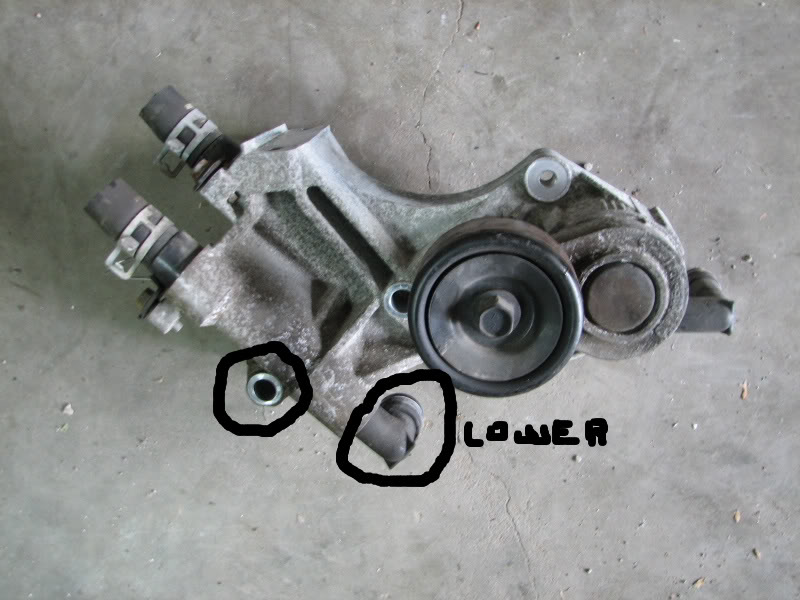

96-99 had a tensioner that the lower elbow was molded as part of it. The issue here was that when ganking the tensioner off, people would break the timing cover. A change was made to 2 plastic elbows. The below picture shows an 00+ tensioner with the second plastic elbow labeled lower. Some 99'* had a 96-98 looking tensioner and a second plastic elbow. See Mike..you aren't losing your mind (that happened loooooong ago)

Name:  IMG_3103-1.jpg
Views: 257
Size:  78.4 KB
