1999 buick regal gsx no crank. - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 01-08-2016, 01:24 PM   #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default 1999 buick regal gsx no crank.

I was 90 miles away from home. I shut the car off for one minute and no crank. New battery good starter. I can jump starter at starter solenoid and relay. Cranks fine but no start. Key reads same resistance on wires as key so cylinder is good. I did order a new if switch and installed it. Have power to switch and thru switch. Vats maybe ? I'm looking for a wiring diagram. I tried the relearn on the ignition. I have no power at neutral safety switch on yellow or purple wire. The security light is solid on no flash. No crank help please. Ty
hedgeguy is offline   Reply With Quote
Old 01-08-2016, 07:25 PM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

The steady security light typically indicates that the wrong resistance is read on the key, or there may be another more serious problem. If you have confirmed that the key is making a good steady connection, you may have to wait until you can get help with wiring.

A shot in the dark, have you tried pulling the battery for a while? There is nothing to lose at this point, because electronics. LOL. Just make sure if you have a delco loc stereo you make sure you don't have a code you have to worry about, because that makes battery disconnecting annoying if it comes up.
rjolly87 is offline   Reply With Quote
Old 01-08-2016, 09:55 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default

it still has the factory radio. It'* still works . How long should I disconnect the battery
hedgeguy is offline   Reply With Quote
Old 01-08-2016, 10:29 PM   #4
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I don't think disconnecting the battery will help......the fact that your SECURITY or THEFT LIGHT is on solid, with the key in the on position, means there is a code set.......when you tested the wiring(resistance with key in ignition lock cylinder) up the column, did you test it at the 2 wire connector under the dash or at the harness connector, "C2", of the BCM?

Have you scanned for "B" and "P" codes?

My guess is you have a problem with the Passkey system.... that'* why when you jump the starter, it doesn't run because the injectors are not firing because the BCM is not sending a crank signal or a fuel enable signal to the PCM....

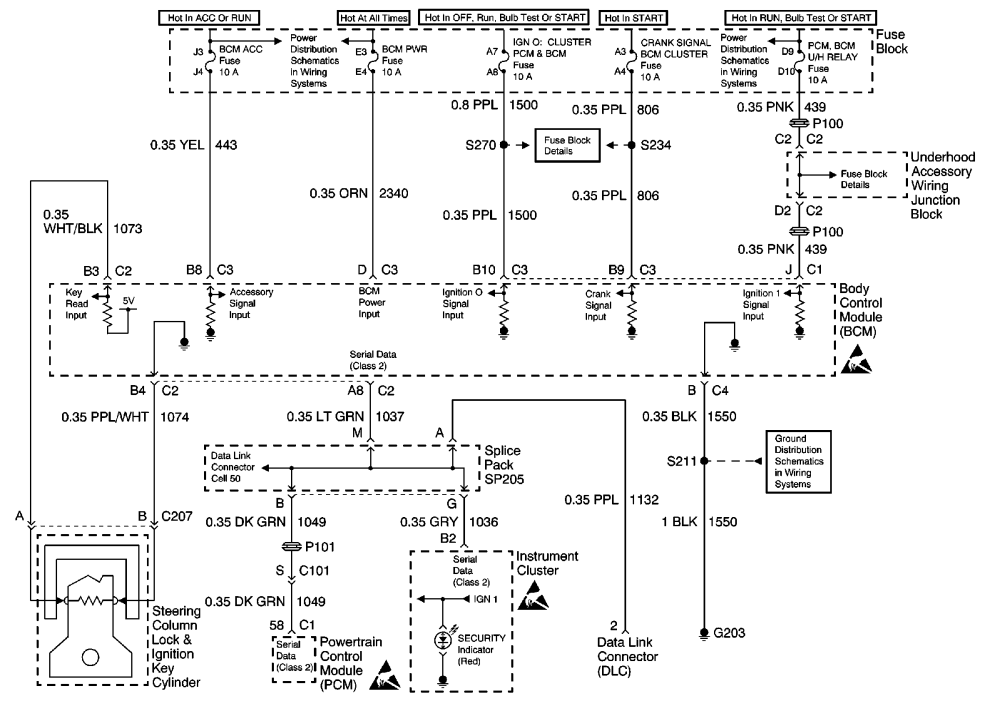

These are schematics for a 2000 Regal





Attached Thumbnails
1999 buick regal gsx no crank.-0996b43f802438ec.gif   1999 buick regal gsx no crank.-0996b43f802438ae.gif
Tech II is offline   Reply With Quote
Old 01-09-2016, 12:07 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default

When it was on the trailer I swung it bye O'Reilly. No communication with their scanner. I tested the resistance at the first connection under the dash.
hedgeguy is offline   Reply With Quote
Old 01-09-2016, 10:54 AM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Well, it'* not a good sign, when a scanner can't communicate with a vehicle......

first thing you have to do is check all fuses.....

Also, if you have a voltmeter, check at the 16 pin DLC connector for power/ground, #'* 4,5, and 16(power)......

Here is a good link for testing:

Diagnose NO Communication result of your scanner using diagnostic link connector
Tech II is offline   Reply With Quote
Old 01-09-2016, 12:14 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default

K thanks. I did check dlc for 12 v and ground. I will check the others as required.
hedgeguy is offline   Reply With Quote
Old 01-11-2016, 06:30 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default

my ground wire at bcm shows open ground when plugged in. when i unplugged it wire shows good ground.
hedgeguy is offline   Reply With Quote
Old 01-11-2016, 10:32 PM   #9
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Check the connector in the harness for tightness on that circuit.....then test the connector with ohm meter while flexing that wire....if ok, possible bad BCM....
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
hedgeguy (01-13-2016)
Old 01-11-2016, 10:41 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2015
Location: Pittsburg Ks
Posts: 11
Thanked 3 Times in 2 Posts
hedgeguy is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
Check the connector in the harness for tightness on that circuit.....then test the connector with ohm meter while flexing that wire....if ok, possible bad BCM....
I tried about everything I could think of. What got me was unplugged the wire showed it was grounded. But when I plugged it back in it showed it was a partial ground on bcm. I have power to pcm on crank circuit and nothing on output on crank wire on pcm. In other words the crank circuit is controlled inside the pcm. But if bcm is bad could bcm keep the pcm from firing crank circuit since the security light is on ,?
hedgeguy is offline   Reply With Quote
