Old 05-11-2016, 09:10 AM   #11
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2016
Location: Indianapolis, IN
Posts: 15
Thanks: 0
Thanked 5 Times in 3 Posts
90LeSabre is on a distinguished road
Default UPDATE

UPDATE:

I pulled the engine over the weekend and found the cause of all of my problems. The oil pickup was plugged solidly, causing the engine to suck oil from the bypass. Apparently an earlier failure of the cam timing chain gear resulted in nylon debris entering the oil pan and thus plugging the pickup causing oil delivery issues to the crank bearings. The front main really took a beating, which absolutely accounted for my knocking on startup, when warm (at idle), balancer "shimmy", and oil slinging from the front crank seal.

The rear main showed some pretty good wear, but not as much as the front. The #2 and #3 mains looked fine, as do all of the rod bearings.

The crank is in the shop now, and it looks like it will take a cutting of .020 to bring it back. I should have the crank and new bearings (crank and rod) back by the end of the week...then the fun of reassembly and re-installation begins!
90LeSabre is offline   Reply With Quote
Old 05-11-2016, 01:18 PM   #12
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Glad you found the issue, let us know how it runs once you get the crank back, and get it all installed.
WilliamE is offline   Reply With Quote
Old 05-11-2016, 07:53 PM   #13
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Are we talking about the LN3?

If so, they did not use a nylon timing set. That went the way of the old LG3, or the 3800 predecessor.

I am glad that you found a pretty substantial issue however.
rjolly87 is offline   Reply With Quote
Old 05-11-2016, 08:48 PM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2016
Location: Indianapolis, IN
Posts: 15
Thanks: 0
Thanked 5 Times in 3 Posts
90LeSabre is on a distinguished road
Default

Quote:
Originally Posted by WilliamE View Post
Glad you found the issue, let us know how it runs once you get the crank back, and get it all installed.
Thank you, will do!


Quote:
Originally Posted by rjolly87 View Post
Are we talking about the LN3?

If so, they did not use a nylon timing set. That went the way of the old LG3, or the 3800 predecessor.

I am glad that you found a pretty substantial issue however.
I did not know that. The muck clogging the pickup screen was tough stuff...even lacquer thinner didn't touch it. Since the LN3 didn't use nylon, I have no idea what could have gotten in there and did that. I'm not taking any chances trying to clean the old pickup, I am also replacing it with a new unit.

Thanks for the info. I'm glad I found this issue when I did...we'd have hated to lose a car this nice over something this easily fixed!
90LeSabre is offline   Reply With Quote
Old 05-23-2016, 09:29 AM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2016
Location: Indianapolis, IN
Posts: 15
Thanks: 0
Thanked 5 Times in 3 Posts
90LeSabre is on a distinguished road
Default

FINAL UPDATE:

I got the crank back last Thursday. Mains turned .020 and rods .010 under....I reassembled the engine on Friday and installed in the car Saturday, and I am happy to report SUCCESS!! The engine is quiet, the balancer runs true and the oil slinging is now a thing of the past, and it runs like it did when it was new. Total cost to fix: $175.00

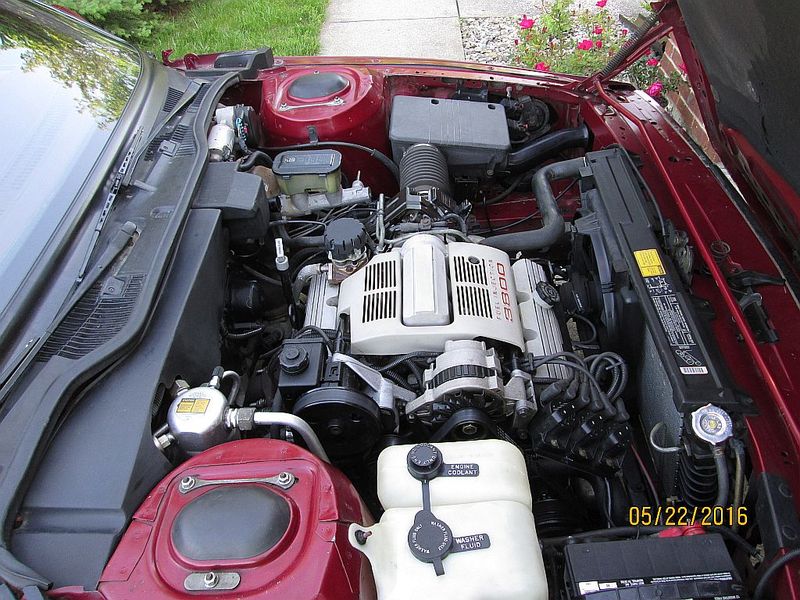

Here are a few pics of the car I took last evening. These pictures show the reason I was so determined in fixing this problem.





Attached Thumbnails
1990 LeSabre LM3 Vibrating Crankshaft - Thoughts on my plan?-1.jpg   1990 LeSabre LM3 Vibrating Crankshaft - Thoughts on my plan?-2.jpg   1990 LeSabre LM3 Vibrating Crankshaft - Thoughts on my plan?-3.jpg
90LeSabre is offline   Reply With Quote
Old 05-23-2016, 12:27 PM   #16
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Glad it runs good now, and yeah I can see why you were determined, that car looks extremely well taken care of, thanks for sharing those pics!
WilliamE is offline   Reply With Quote
Old 05-23-2016, 01:05 PM   #17
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

As a rookie, one of my first oil changes was on a LeSabre.....I released the hood latch, and I am trying to lift that hood from the front to no avail.....finally a tech came over laughing and lifted it from the rear....
Tech II is offline   Reply With Quote
Old 05-23-2016, 02:47 PM   #18
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,581
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

This is what an older car can look like when an owner cares about their ride!
Dave I got to say great job on assembly & getting the engine re-installed!
You will be again enjoying your Olds for many years ahead now!
Finally I got some competition for under the hood detailing!
Soft Ride is offline   Reply With Quote
Old 05-23-2016, 05:03 PM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Apr 2016
Location: Indianapolis, IN
Posts: 15
Thanks: 0
Thanked 5 Times in 3 Posts
90LeSabre is on a distinguished road
Default

Thanks guys, it feels great to have it back. I take a lot of pride in caring for my vehicles. This job (as all I undertake) was done completely by the book...all of the retainers, clips, loom retainers etc are all in their respective places, just as they were installed at the factory, and all of the fasteners removed were torqued to factory specs on install.

Life is good!!
90LeSabre is offline   Reply With Quote
The Following 2 Users Say Thank You to 90LeSabre For This Useful Post:
Soft Ride (05-23-2016), WilliamE (05-23-2016)
Old 05-24-2016, 03:05 PM   #20
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,142
Thanked 778 Times in 608 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Looks like a freakin' Buick to me, Soft Ride!
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
Soft Ride (05-24-2016)
