Default passenger side rear window!

hey guys I need some serious help. my passenger side rear window stopped working yesterday and it won't go up but isn't all the way down either. a few more symptoms are, when I hit the switch it sounds like I hear the cable flapping around inside the door, when I took the door off the cable also looked kinda like it may have been broken. my question is though, how do I know if I need to repair my regulator, motor, or the cable? I read the techinfo article about the regulator but didn't know if that was the procedure that I should just follow or if there was something else I should do. please help me guys. I wanna fix it asap before it rains
black_friday is offline   Reply With Quote
Old 09-04-2007, 12:30 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

That'* the classic symptom for the window regulator failure. Don't try to operate the window, as it will make a real mess of the cables.
Archon is offline   Reply With Quote
Old 09-04-2007, 10:38 AM   #3
Senior Member
Posts like a Turbo

Join Date: Mar 2007
Posts: 279
Thanks: 0
Thanked 0 Times in 0 Posts
ptrfair is on a distinguished road
Default

depending on where you look, my regulator was 190.00. Keep the motor from the old one as a spare. theyre not cheap. If anyone knows of a place to get inexpensive regulators besides NAPA, otherwise thats the best price i could find.

If all else fails...duct tape is mans best friend and a universal problem solver.
ptrfair is offline   Reply With Quote
Old 09-04-2007, 11:46 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

If you're up to it, try the repair first. If not, check Ebay. Some are selling a Dorman replacement for I think around $90. At least one member was happy with it.
Archon is offline   Reply With Quote
Old 09-05-2007, 06:02 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

black_friday's Avatar

Join Date: Dec 2006
Location: Cincinnati, Ohio
Posts: 484
Thanks: 0
Thanked 0 Times in 0 Posts
black_friday is on a distinguished road
Default

http://www.1aauto.com/1A/WindowRegul...ampaign=NexTag

I found this. It is the regulator, cable, and motor for $99.99 with a lifetime warranty. I think I am gonna go with this. What do you guys think?
black_friday is offline   Reply With Quote
Old 09-10-2007, 08:55 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Sep 2007
Location: Bryan, Ohio
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Rob S is on a distinguished road
Default

Quote:
Originally Posted by briancole23
http://www.1aauto.com/1A/WindowRegulators/Pontiac/Bonneville/1AWRG00261/484944?utm_source=NexTag&utm_medium=cpc&utm_campai gn=NexTag

I found this. It is the regulator, cable, and motor for $99.99 with a lifetime warranty. I think I am gonna go with this. What do you guys think?
Brian, I ordered the regulator for the left rear window on my 2001 from 1Aauto two days ago. I'll let you know what it'* like--perceived quality, similarity/differences from OEM-- when it gets here.

The window was lowered and would not go back up while my wife was driving the car. Attempting to raise the window severely kinked one of the cables and destroyed the ridges on the plastic spool. I've got the window held in the up position now by use of a piece of 1/2 inch diameter PEX plumbing pipe about 8 inches long placed into the window track. After seeing the price of a replacement regulator, I seriously debated leaving the PEX in place...didn't figure I'd ever really need to drop the rear windows. But I decided to see what the aftermarket has to offer as a regulator replacement. Besides, to me this is how a car slowly turns to junk; little things are let go and soon add up.
Lets see if I still believe that after I've had to change out all the regulators!
Rob S is offline   Reply With Quote
Old 09-10-2007, 09:51 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

FWIW - I've had good luck with the repair with several kinks and bends in the cable, as well as the ridges on the spool being virtually gone.

If anyone plans on throwing away their old regulators, please send them to me instead. PM me if interested.
Archon is offline   Reply With Quote
Old 09-13-2007, 09:59 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Sep 2007
Location: Bryan, Ohio
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Rob S is on a distinguished road
Default

Archon, I'll keep you in mind if I decide to get rid of the OEM regulator.

I got the aftermarket regulator today from 1A Auto; tomorrow I hope to get it installed. I'll get photos of it and the original regulator and post them here for comparison if anyone is interested.
Right off, I can state that the aftermarket one is made in China...I guess that surprises no one. Its design is a bit different than the original, but it shares the same fault as the original in that the cable ends are held in the plastic of the sled and I can see them pulling through the plastic eventually. The motor is different than the original, too. My initial opinion is that the aftermarket one is made more cheaply than the OEM unit, if that'* possible. I'll know more after I get it installed and tested out.
Rob S is offline   Reply With Quote
Old 09-14-2007, 03:29 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Feb 2006
Location: Janesville, WI
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Solid_Dark is on a distinguished road
Default

I have the exact same problem on the exact same window. This will be the third regulator I've had to replace. I might as well change out the front passenger window as well before it goes bad. I know it'll happen sooner or later, lol. There'* a dude on Ebay who sells regulators for a good price, and the quality is excellent. I'm sure there are several on there for decent deals. Good luck with it. Hopefully I'll get mine done next week.
Solid_Dark is offline   Reply With Quote
Old 09-16-2007, 10:40 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Sep 2007
Location: Bryan, Ohio
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Rob S is on a distinguished road
Default

Here'* some photos of the aftermarket replacement regulator from 1A Auto for the driver'* side rear window:

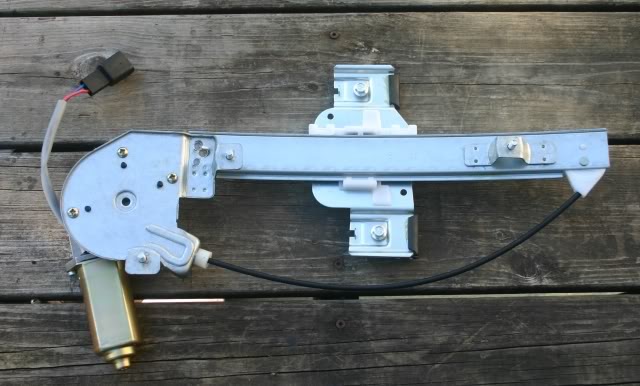

Interior side of the regulator:

Name:  WindowRegChinafullemail.jpg
Views: 1
Size:  49.7 KB

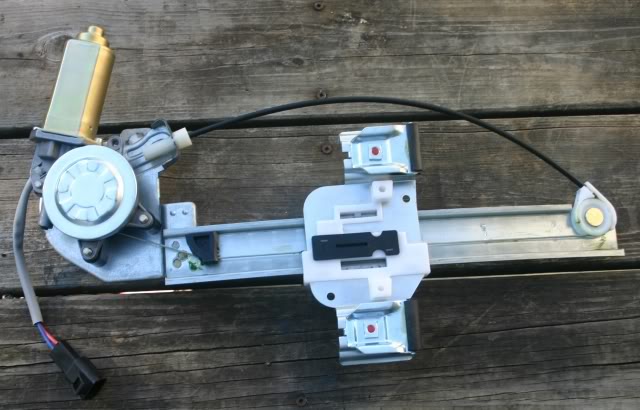

Exterior side of the regulator:

Name:  WindowRegChinaexteriorsideemail.jpg
Views: 1
Size:  51.5 KB

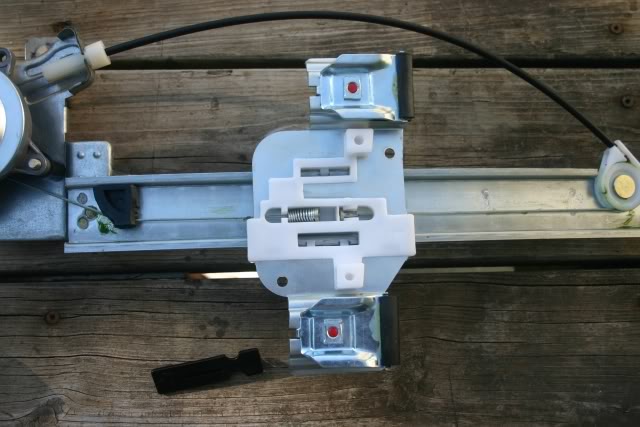

Close up of the sled and the method of cable termination:

Name:  WindowRegChinasledconstructionemail.jpg
Views: 1
Size:  49.4 KB


Like I stated above, I'm not convinced that this design is any better than the original OEM one. I hope to get this installed later today.
Rob S is offline   Reply With Quote
