Old 01-02-2008, 02:20 PM   #11
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

I idle up to 3,000 rpms... is this normal after having taken all that apart.. i had to take off the throttle body positioning sensor... is there a special way to twist and put on or does it just go right on?

So I guess is it my TB Positioning sensor or is it normal?

It'* done this twice:
It goes straight to 2,000 then after about 8 seconds it gently increases towards 3,000 (or higher) but I shut it off around 3,000 rpms

I also have a small antifreeze leak between the LIM and my thermostat housing and between the thermostat housing and upper radiator hose. The below gasket (LIM gasket) which i replaced remains leak free. I cleaned off the surface of the Thermostat housing because it had gunk build up. Maybe that'* why?
jbmark33 is offline   Reply With Quote
Old 01-02-2008, 02:35 PM   #12
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

idle is wayyy too high. you need to adjust the throttle position sensor, im pretty sure thats what u mean by tb pos sens.

do you have a scan tool with live data?
samueljackson is offline   Reply With Quote
Old 01-02-2008, 02:37 PM   #13
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Your TPS is not adjustable. Do you have a check engine light on?

If not, start looking for vacuum leaks.
vital49 is offline   Reply With Quote
Old 01-02-2008, 02:40 PM   #14
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

yeah my SES came on, i called my buddy with his OBDII code reader...
jbmark33 is offline   Reply With Quote
Old 01-02-2008, 02:41 PM   #15
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by vital49
Your TPS is not adjustable. Do you have a check engine light on?

If not, start looking for vacuum leaks.
sorry for the bad info, i thought they were still adjustable till the ser 3.
samueljackson is offline   Reply With Quote
Old 01-02-2008, 04:27 PM   #16
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Well it ended up being the Trottle body positioning sensor. You could either put it on and turn left or right. I turned it right instead of left to line up the screw holes. The spring inside the TB pos. sensor was actually holding the TB open a little, hence high idle.

Other than that, I fixed the leak from the rad. hose to the T-stat housing by scraping off all the gunk from the previous dex-cool.

Still leaking from the LIM to the T-stat housing. So, I am going to go pick up that little rubber gasket.
jbmark33 is offline   Reply With Quote
Old 01-03-2008, 11:42 PM   #17
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Got all the leaks fixed, here'* some pictures...

Let me know how my engine looks..

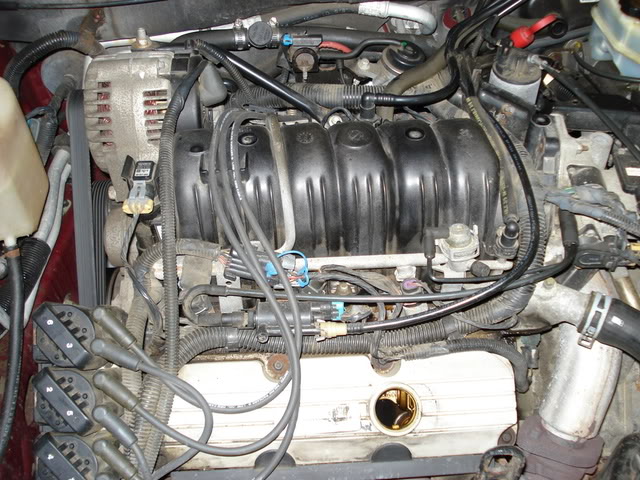

My L36
Name:  DSC00264.jpg
Views: 1
Size:  95.7 KB

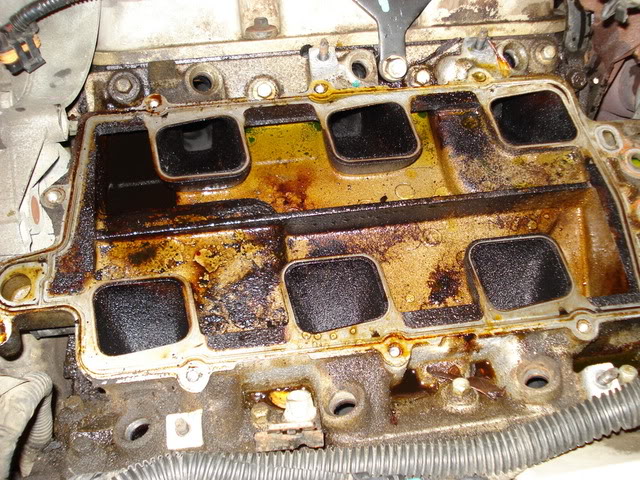

My LIM.. dirty
Name:  DSC00280.jpg
Views: 1
Size:  127.6 KB

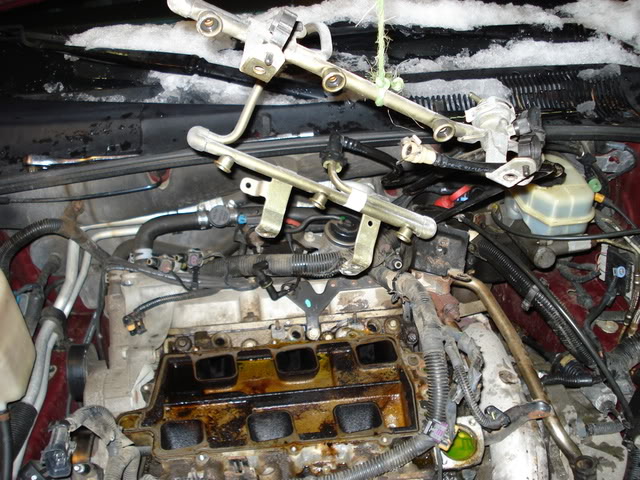

Fuel rail trick... yes that'* rope attached to my open hood
Name:  DSC00281.jpg
Views: 1
Size:  100.1 KB

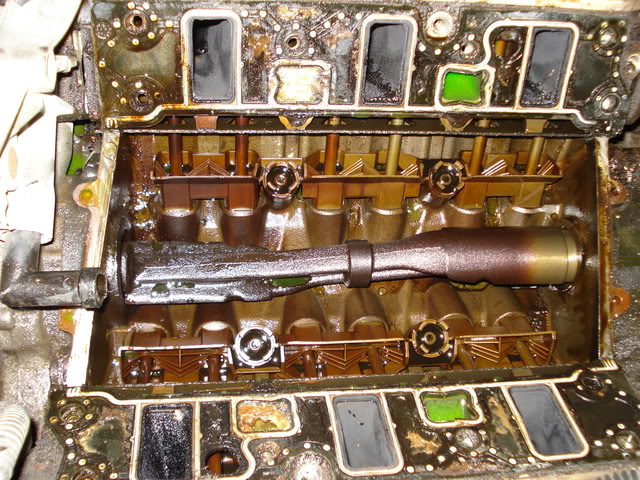

Old Nasty LIM Gasket with gunk in it?
Name:  DSC00286.jpg
Views: 0
Size:  126.7 KB

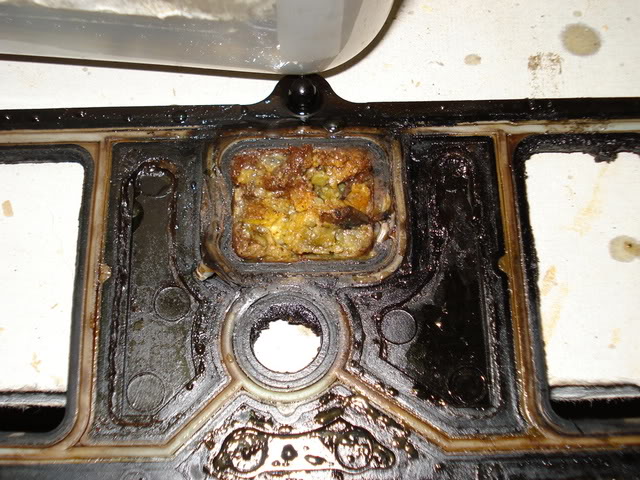

Closer up on gasket and gunk:
Name:  DSC00289.jpg
Views: 0
Size:  98.6 KB

Gunk
Name:  DSC00290.jpg
Views: 1
Size:  61.1 KB

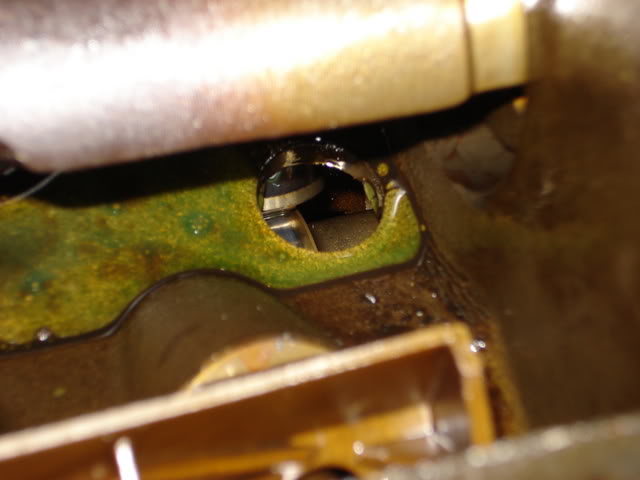

Why I am getting my oil changed tomorrow
Name:  DSC00292.jpg
Views: 0
Size:  33.8 KB

New LIM Gasket Installed
Name:  DSC00296.jpg
Views: 0
Size:  112.5 KB

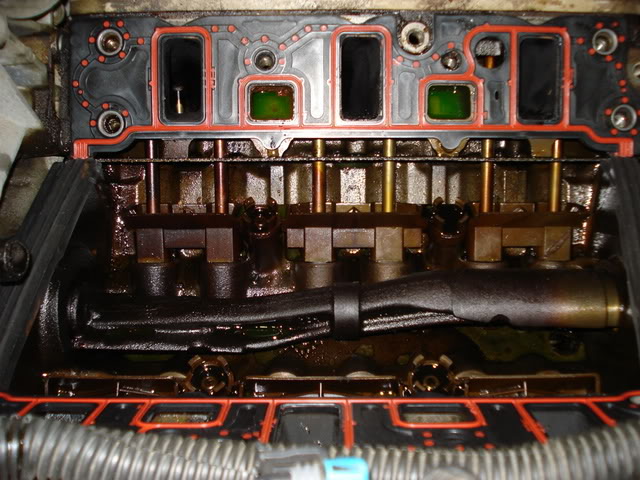

Looks MUCH better..
Name:  DSC00297.jpg
Views: 3
Size:  84.9 KB

Feel free to tell me what you think of anything.
jbmark33 is offline   Reply With Quote
Old 01-04-2008, 08:41 AM   #18
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default



Those coolant passages were NASTY. Dang.

Did you replace the coolant by-pass elbow? You should, if not. Also, why didn't you use the aluminum frame LIM gaskets?
vital49 is offline   Reply With Quote
Old 01-04-2008, 01:21 PM   #19
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Yeah I cleaned all the passages out real good, that'* what all those chunks were.

I remember seeing Bill Boost use the orange one... I didn't think anything of it until I put it in...ohhh yeah aren't the aluminum ones like white/grayish looking?
jbmark33 is offline   Reply With Quote
Old 01-04-2008, 01:29 PM   #20
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

did you dab any RTV in the corners of the gaskets? doesnt look like it.

the aluminum framed gaskets would have been a wiser choice, but those plastic ones are better than what you took out.

there is a lot of coolant sitting around everywhere, did you get that cleaned up before you got it back together? changed your oil yet?
harofreak00 is offline   Reply With Quote
