Old 01-04-2008, 01:38 PM   #21
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

I put the RTV silicone on it right after i took the picture...

I wiped out all the antifreeze that were in the oil passageways and I am getting my oil changed today.
jbmark33 is offline   Reply With Quote
Old 01-04-2008, 03:59 PM   #22
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Here'* the after story... and a few pictures...

I thought I saw some antifreeze leaking out of the throttle body area, but i took some pictures and maybe it was left over from the whole operation.

Got my oil changed and it all looks good... but an interesting comment on the receipt.

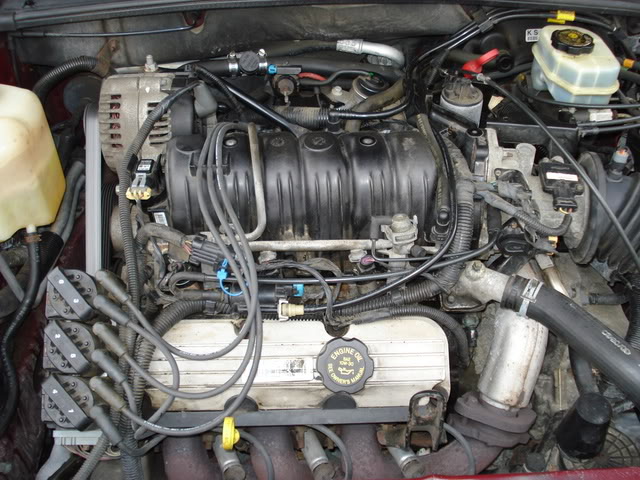

My L36 after shot.
Name:  DSC00308.jpg
Views: 0
Size:  88.9 KB

Under throttle body front
Name:  DSC00309.jpg
Views: 0
Size:  30.9 KB

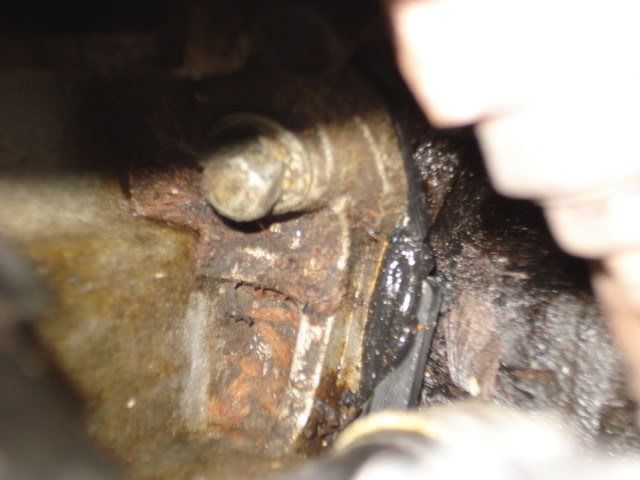

RTV Silicone on back or LIM Gasket driver side
Name:  DSC00312.jpg
Views: 0
Size:  41.7 KB

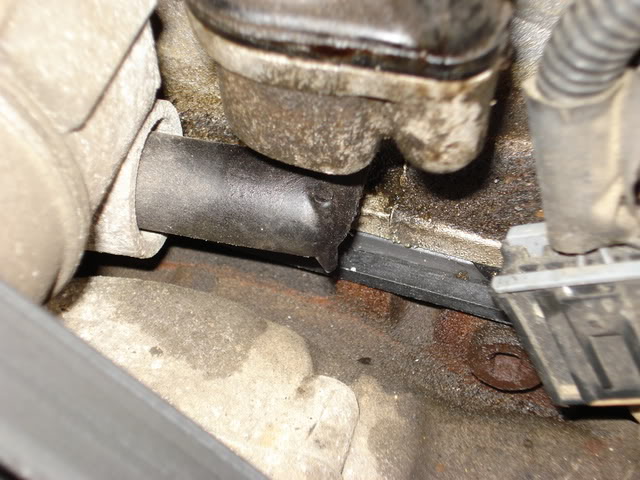

Passenger side LIM Gasket Dry -- that wet is from before... (it never really dried up)
Name:  DSC00314.jpg
Views: 0
Size:  71.0 KB

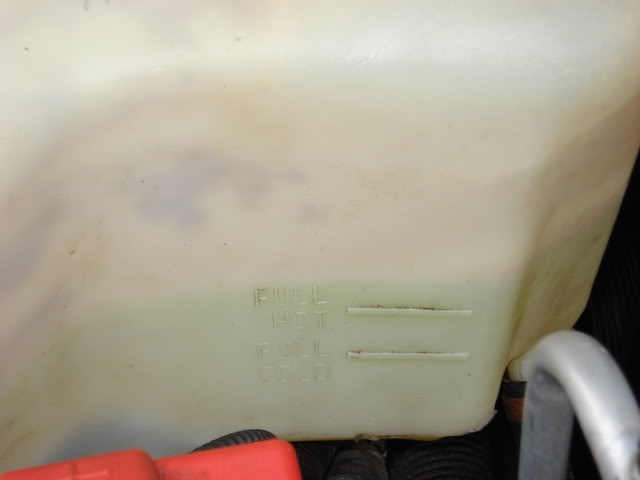

Good Antifreeze level
Name:  DSC00315.jpg
Views: 0
Size:  20.4 KB

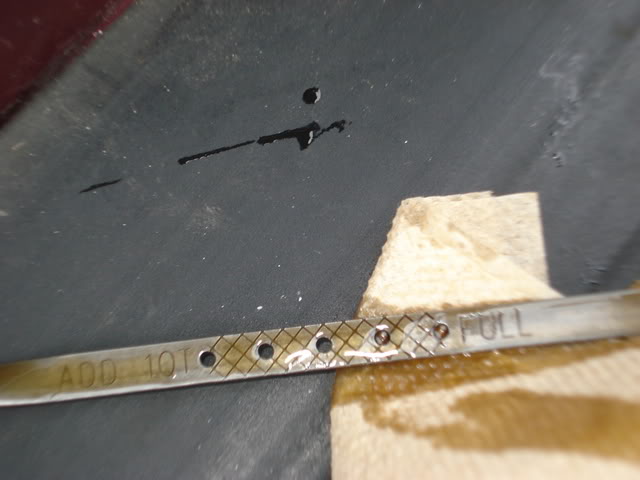

CLEAN oil
Name:  DSC00316.jpg
Views: 0
Size:  36.2 KB

Ha. ha.
Name:  DSC00320.jpg
Views: 0
Size:  39.8 KB
jbmark33 is offline   Reply With Quote
Old 01-04-2008, 04:01 PM   #23
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

You reused that elbow? Being the original, you should have replaced it.
vital49 is offline   Reply With Quote
Old 01-04-2008, 04:04 PM   #24
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

It was in good shape...
jbmark33 is offline   Reply With Quote
Old 01-04-2008, 04:06 PM   #25
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

when it cracks and leaks... then you can kick yourself.

but for now, good job
harofreak00 is offline   Reply With Quote
Old 01-09-2008, 10:50 AM   #26
Junior Member

Join Date: Jan 2008
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
isnms is on a distinguished road
Default

Thanks for your photos. We're about to do this on a '98 Monte Carlo.

I also found the info in the Techinfo section on 95-03 Upper Intake Failure Information.

This site is great
isnms is offline   Reply With Quote
Old 01-09-2008, 01:13 PM   #27
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Pictures were the least I could do, if you have any questions feel free to PM me.
jbmark33 is offline   Reply With Quote
Old 01-10-2008, 08:02 PM   #28
Junior Member

Join Date: Jan 2008
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
isnms is on a distinguished road
Default

Did you replace the egr pipe with the smaller diameter pipe?

I just got my intake manifold kit from ZZP and it did not include one. I went back and read the description and does not say it is included. I then searched for on on their site and came up empty.
isnms is offline   Reply With Quote
Old 01-11-2008, 12:05 AM   #29
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

if by egr pipe you mean that stove pipe looking thing... no i just put it back together the way it came off... so i guess it'* still whatever size the regular one is.

Is there a particular reason for swapping it out for the other sized one?
jbmark33 is offline   Reply With Quote
Old 01-11-2008, 12:16 PM   #30
Junior Member

Join Date: Jan 2008
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
isnms is on a distinguished road
Default

The description of the APN kit suggest that the smaller diameter of the stove pipe allows for a larger air gap, between it and the plenum, which creates an insulation from heat transfer to the new plenum.

http://www.automotivepartsnetwork.co...tallation.html
Quote:
The NAM sleeve in conjunction with the NAM plenum allows for a larger airspace around the sleeve and plenum. Hot exhaust gases flowing through the tube will not overheat the plenum. Overheating causes the upper plenum to become prone to cracking and eventually cause engine coolant to leak inside the combustion chamber resulting in severe engine damage.
Guess I had done some much research, I got my kits confused.
So it'* not a necessary replacement but a possible enhancement to for their kit?

The Techinfo article here also indicates the Dorman kit includes the resized stove pipe.
http://www.bonnevilleclub.com/forum/...e=article&k=38

But appears to be an incorrect description as it is not indicated, as included, on this site that does sell the Dorman
http://www.northernautoparts.com/Pro...ctModelId=9088

I just spoke with ZZP and they said what they sold me is the Dorman and does not include the stovepipe
https://www.zzperformance.com/grand_...ts1.php?id=629

So I guess I'm good to go
isnms is offline   Reply With Quote
