Default The notorious LIM...

No words needed...

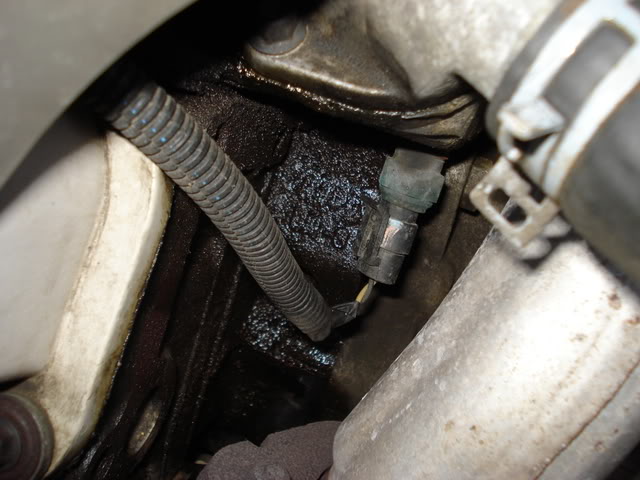

Name:  DSC00071.jpg
Views: 6
Size:  55.4 KB

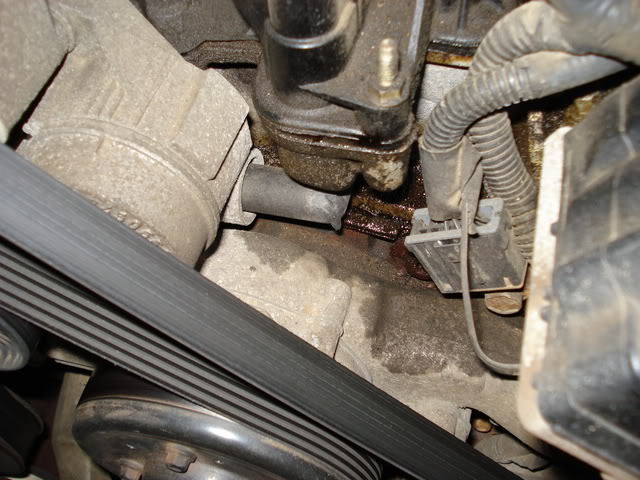

Name:  DSC00070.jpg
Views: 8
Size:  73.9 KB

Losing antifreeze slowly... looks like I am sharing my mom'* intrigue with her until my dad and I get a chance to rip it apart...
jbmark33 is offline   Reply With Quote
Old 12-28-2007, 06:34 PM   #2
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

We are borrowing a friend'* garage and I am going to be taking it apart myself... the only part I am hesitant about are the fuel lines.

Any helpful hints with any or all of the work?
jbmark33 is offline   Reply With Quote
Old 12-28-2007, 06:42 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

don't remove the lines from the rail. Simply take the rail off, and move it out of the way, still connected, while you work on it.
harofreak00 is offline   Reply With Quote
Old 12-28-2007, 06:45 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

Out of curiosity, how many miles do you have on your car?

Oh, and make SURE you get all the coolant out of your upper/lower intake.
petraman is offline   Reply With Quote
Old 12-28-2007, 09:37 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

I have 138,000 miles on my car... and I am going to be doing some research, but is there a guide or order in which to take the engine apart to get to the LIM? I did a Series II last winter with my dad on my mom'* intrigue, but I was wondering if there were any recommendations or hints on the order.
jbmark33 is offline   Reply With Quote
Old 12-28-2007, 10:26 PM   #6
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

harofreak00 is offline   Reply With Quote
Old 12-29-2007, 02:41 AM   #7
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

Thanks, I momentarily forgot about the techinfo tab...
jbmark33 is offline   Reply With Quote
Old 01-01-2008, 03:17 PM   #8
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Apr 2007
Location: Edinboro, PA
Posts: 567
Thanks: 0
Thanked 0 Times in 0 Posts
jbmark33 is on a distinguished road
Default

How much antifreeze should i expect to lose while doing this? I see that our system holds 3.17 Gallons... I was thinking of getting 2 gallon jugs of prestone (not premixed) and just adding water with it.
jbmark33 is offline   Reply With Quote
Old 01-02-2008, 10:30 AM   #9
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

that sounds like a good plan, but in order for that to work, you need to completely drain the block.

Quote:
Originally Posted by J Wikoff
The block drain plugs are just above the knock sensor here and on the other side of the block in the same place.

harofreak00 is offline   Reply With Quote
Old 01-02-2008, 12:31 PM   #10
Senior Member
Posts like a Camaro

Join Date: Aug 2006
Location: West Michigan
Posts: 1,152
Thanks: 0
Thanked 1 Time in 1 Post
Grimm is on a distinguished road
Default

Quote:
Originally Posted by jbmark33
I have 138,000 miles on my car... and I am going to be doing some research, but is there a guide or order in which to take the engine apart to get to the LIM? I did a Series II last winter with my dad on my mom'* intrigue, but I was wondering if there were any recommendations or hints on the order.
Alldata has the complete service manual for the 2003 Bonneville as a sample of their service, so that should also help with the disassembly.
http://www.alldatadiy.com/alldata/AF...5388/110535819
