Quote:
Originally Posted by latitud_rt View Post
Word of advise....those rubber o rings in the help kit are useless and will start to leak in a few months. I had to pull mine back apart and resuse the factory o-rings and then silicone the heck out of it to get it to not leak. I tried getting rubber o-rings that I could use as a replacement, but didnt have any luck.
Seems that you may have had an install issue. I've installed well over 50 of these and never had an issue. Clean the LIM, WP and tensioner where these elbows go in to be free of any debris and then lightly coat the o-rings in vasoline or oil etc to help them slide in w/o getting nicked.

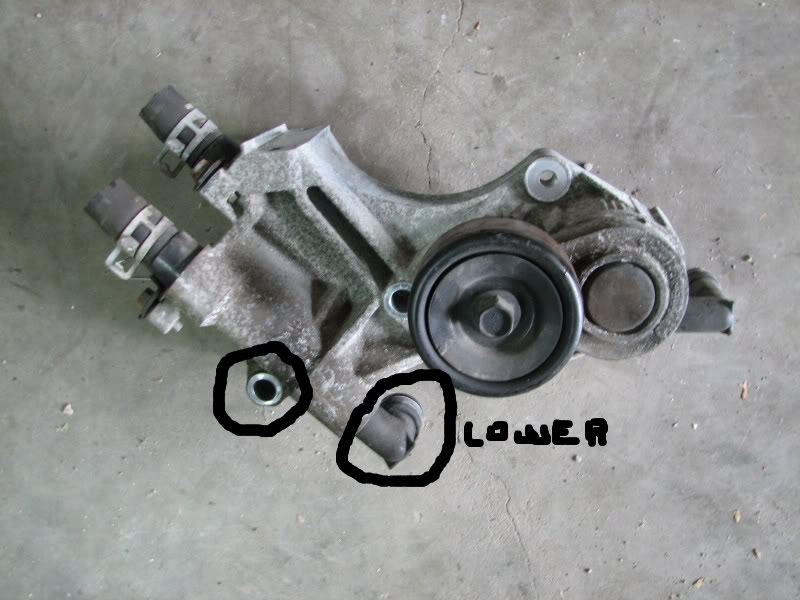

On the tensioner there is one bolt at the back of the engine you won't be able to see. It is circled in the below picture

Name:  IMG_3103-1.jpg
Views: 6
Size:  78.4 KB
BillBoost37 is offline   Reply With Quote
Old 09-28-2009, 04:27 PM   #12
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Great info. Thanks!
WS-13 is offline   Reply With Quote
Old 09-28-2009, 09:59 PM   #13
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No problems with my O rings. They do need a light lube or they can tear, or twist.
Danthurs is offline   Reply With Quote
Old 09-29-2009, 10:55 PM   #14
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Ok, I bought and replaced the old fittings and O-rings with the new ones. The install was easy and pretty straight forward with the helpful info posted up. Again, thanks! The leak is now gone and after driving it for a full day, the coolant level in right where it'* suppose to be.

Check out the condition of the old fittings. It'* no wonder why they were leaking. The forward (to the front) fitting was actually completely broken on both side that holds on the O-ring. I had to dig the broken pieces out of both the intake manifold and pully assembly. The pics are from my cell phone, so their not that great.


WS-13 is offline   Reply With Quote
Old 09-29-2009, 11:08 PM   #15
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You got to love the easy fixes. Great to here it'* all better now.
Danthurs is offline   Reply With Quote
Old 09-29-2009, 11:17 PM   #16
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Good job on the repair!

We have seen instances where the elbows have broken off and the person making the repairs has not completely pulled out all the bits and pieces, only to install the new elbows and have bigger leaks.
Purplehazeir is offline   Reply With Quote
Old 09-30-2009, 08:59 AM   #17
Junior Member
Posts like a V-Tak

Join Date: Jan 2008
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
latitud_rt is on a distinguished road
Default

The install on mine were fine. The o-rings included in the "help" pack were orange. I made sure everything was clean and there was no debris and I lightly lubed the new orings before putting them in. What happened was that the o-rings became flat. Kinda hard to explain, but they actually flattened out and would no longer seal. I took them back out and used the new plastic fittings and the original o-rings and so far no leaks in 30,000 miles. Maybe I got a bad set of o-rings.
latitud_rt is offline   Reply With Quote
Old 09-30-2009, 12:52 PM   #18
Junior Member

Join Date: Mar 2008
Location: Archbald Pa
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
JM2149 is on a distinguished road
Default

i had coolant leaking and couldnt figure it out! come to find out the neck on the radiator had a crack in it and was leaking like crazy! had to get NEW radiator and it was 160 bucks...
JM2149 is offline   Reply With Quote
