Unhappy Coolant leak?

So, my 02 SLE seems to be leaking coolant from somewhere. I can smell it immediately after driving the car, and my over flow reservoir is constantly low. It'* not leaking when the car is parked so it must be leaking only when the engine is running. When I took a closer look, the upper half of the intake manifold on the passenger side looked wet with residue around it. Are there any common places for the 3800 series to be leaking coolant over time? I checked all the hoses and coolant lines, and they seem fine? Any input would be greatly appreciated.

Thanks in advance.
WS-13 is offline   Reply With Quote
Old 09-27-2009, 09:53 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

There'* a elbow from the LIM to the water pump on the passenger side. A bit hard to see so you may have to get your head under there. It'* plastic and has rubber O rings
Danthurs is offline   Reply With Quote
Old 09-27-2009, 09:55 PM   #3
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
There'* a elbow from the LIM to the water pump on the passenger side. A bit hard to see so you may have to get your head under there. It'* plastic and has rubber O rings
Thanks I'll check that out. Just for clarification LIM?
WS-13 is offline   Reply With Quote
Old 09-27-2009, 09:56 PM   #4
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Quote:
Originally Posted by WS-13 View Post
Thanks I'll check that out. Just for clarification LIM?
Nevermind...just got it "lower intake manifold".

Last edited by WS-13; 09-27-2009 at 09:58 PM.
WS-13 is offline   Reply With Quote
Old 09-27-2009, 09:58 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

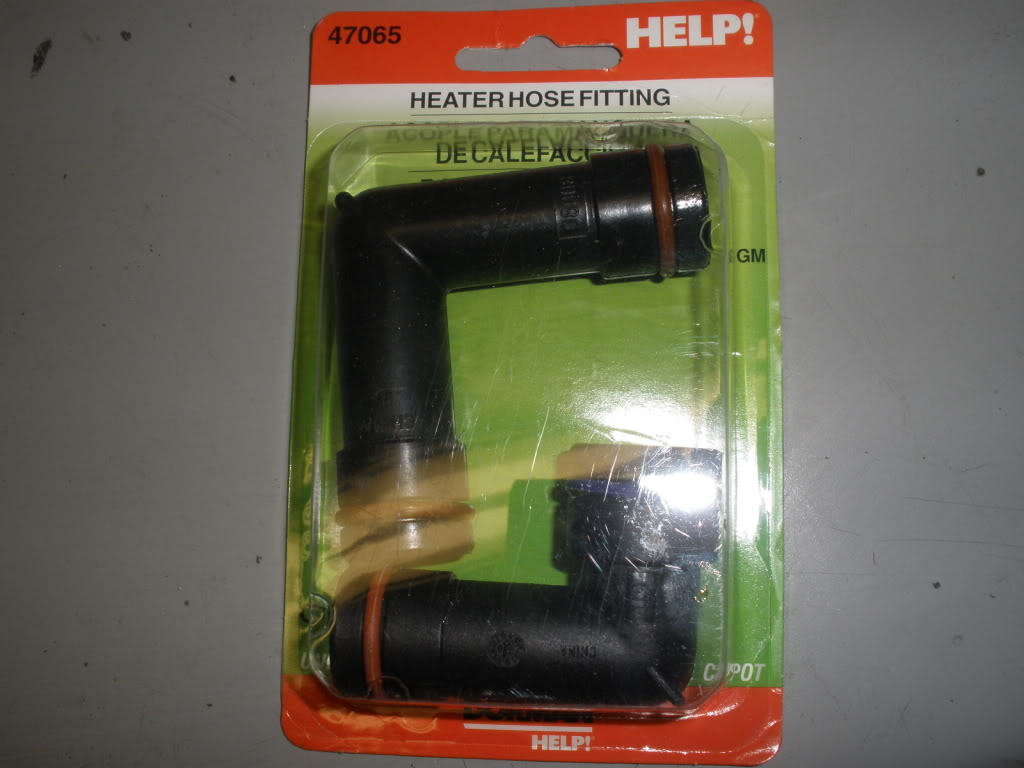

This is what your looking for.

Name:  P3150001.jpg
Views: 17
Size:  75.7 KB
Danthurs is offline   Reply With Quote
Old 09-27-2009, 09:58 PM   #6
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Gotcha...again thanks!
WS-13 is offline   Reply With Quote
Old 09-28-2009, 10:47 AM   #7
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Will the fitting that you have in the picture fit my application? I haven't removed it yet, but that definitely looks like where my leak is comming from.
WS-13 is offline   Reply With Quote
Old 09-28-2009, 10:59 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Yes, those elbows fit all Series 2 motors.

Easiest way to change out the elbow is to remove the alternator and it'* bracket..
BillBoost37 is offline   Reply With Quote
Old 09-28-2009, 01:43 PM   #9
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Yes, those elbows fit all Series 2 motors.

Easiest way to change out the elbow is to remove the alternator and it'* bracket..
Ok, thanks. I'll pick those up and swap them out tonight when I get home.
WS-13 is offline   Reply With Quote
Old 09-28-2009, 02:00 PM   #10
Junior Member
Posts like a V-Tak

Join Date: Jan 2008
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
latitud_rt is on a distinguished road
Default

Word of advise....those rubber o rings in the help kit are useless and will start to leak in a few months. I had to pull mine back apart and resuse the factory o-rings and then silicone the heck out of it to get it to not leak. I tried getting rubber o-rings that I could use as a replacement, but didnt have any luck.
