Default Blower Fan Help.

Looking for information:
This morning my HVAC'* system Fan decides not to blow air. Im new to the forum and to this car, I just got it last week. Any info on where to look first would be great. 2000 SSEI. The HVAC unit operates correctly but the fans dont blow any air.

Thanks
Tdog1220 is offline   Reply With Quote
Old 03-13-2012, 01:31 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

take the connector off the fan and see if you have voltage when the fan is supposed to be on, if so the fan is bad. if not you have to work back and see why. sometimes the connectors are bad.
jwfirebird is offline   Reply With Quote
Old 03-13-2012, 02:18 PM   #3
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Check all your fuses.
2kg4u is offline   Reply With Quote
Old 03-16-2012, 06:02 PM   #4
Member
Posts like a V-Tak

Join Date: Apr 2011
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
Ryder248 is on a distinguished road
Default

i had the same problem with my blower and what i did to fix it was take the blower down from under the passenger side dash and it is 2-3 screws holding the blower motor together, so after i got it apart you will see 2 magnetic contacts that make the blower spin and the shaft itself most likely the connection between the contacts and the shaft is bad and thats why the blower isnt working. all i did was scrape off the corrosion from the shaft and put the blower back together and good as new didnt need to spend the $130 to get a new blower
Ryder248 is offline   Reply With Quote
Old 09-03-2012, 10:02 PM   #5
Junior Member
Posts like a Ricer Type-R

OldsGuy's Avatar

Join Date: Nov 2009
Location: On the peninsula
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
OldsGuy is on a distinguished road
Default

Thanks for this info. I did this over the weekend and fixed it.
OldsGuy is offline   Reply With Quote
Old 09-03-2012, 10:17 PM   #6
Junior Member
Posts like a Ricer Type-R

OldsGuy's Avatar

Join Date: Nov 2009
Location: On the peninsula
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
OldsGuy is on a distinguished road
Default

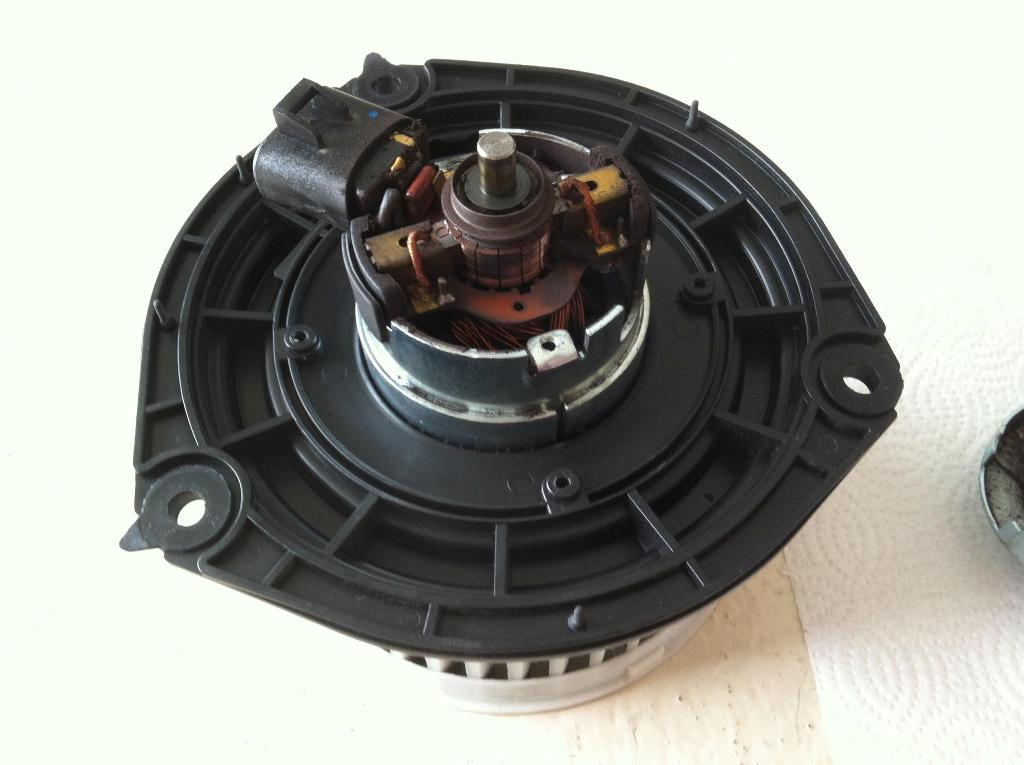

Heres what the blower looks like apart. Clean the copper strands on the center shaft and carefully move back the two spring loaded contacts and clean those as well. I also scrubbed the white plastic blades below.
Attached Thumbnails
Blower Fan Help.-blower.jpg
OldsGuy is offline   Reply With Quote
Old 09-25-2012, 10:55 PM   #7
Member
Posts like a V-Tak

CrazyGunner's Avatar

Join Date: Jun 2009
Location: Olds
Posts: 36
Thanks: 0
Thanked 0 Times in 0 Posts
CrazyGunner is on a distinguished road
Default

my blower motor is making noise like it wants to die is there a bearing i can lube or am I better off getting a new one?
CrazyGunner is offline   Reply With Quote
Old 09-26-2012, 05:28 AM   #8
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,639
Thanked 993 Times in 771 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Your better off getting a new one. Blowers are typically unserviceable and are just replaced.
Mike is online now   Reply With Quote
