Default lost all oil pressure while driving....photos of engine

Hey everyone. Well, I think my 94 bonneville SE is dead.

My dad was driving it with me in the passenger seat....it has had an oil leak for a little while now, but thought it was nothing serious. On the way home it started knocking, not too terribly. The oil pressure guage started to bottom out into the red, the car gave an audible alarm.....my dad accelerated a little bit to get up a hill and then we lost all oil pressure, the car shut off, and we were stranded...

Towed it home, got on the forum, and did some research. It has been about a month since the accident. Apparently, I think my problem is the UIM/LIM, and am not sure if it could be as serious as a cracked head/thrown rod/seized motor....I plan on draining all the oil and then opening up the engine.

I consider myself good with tools and am a good problem solver, as well as a good critical thinker, but I have never disassembled an engine....but I am more than willing to give it a go.

Here are some pics to help....

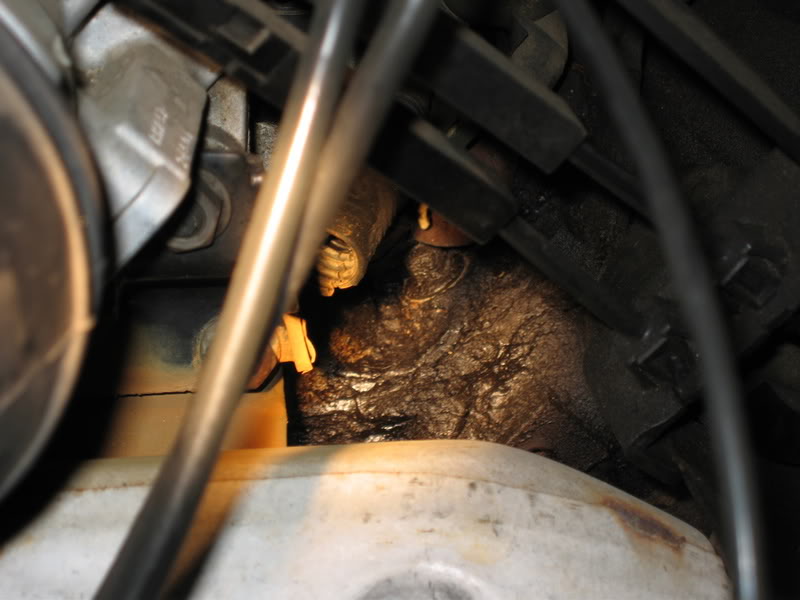

Driver side, low on the engine
Name:  IMG_6853.jpg
Views: 1
Size:  57.6 KB

Driver side
Name:  IMG_6854.jpg
Views: 1
Size:  91.6 KB

Driver side
Name:  IMG_6856.jpg
Views: 1
Size:  61.4 KB

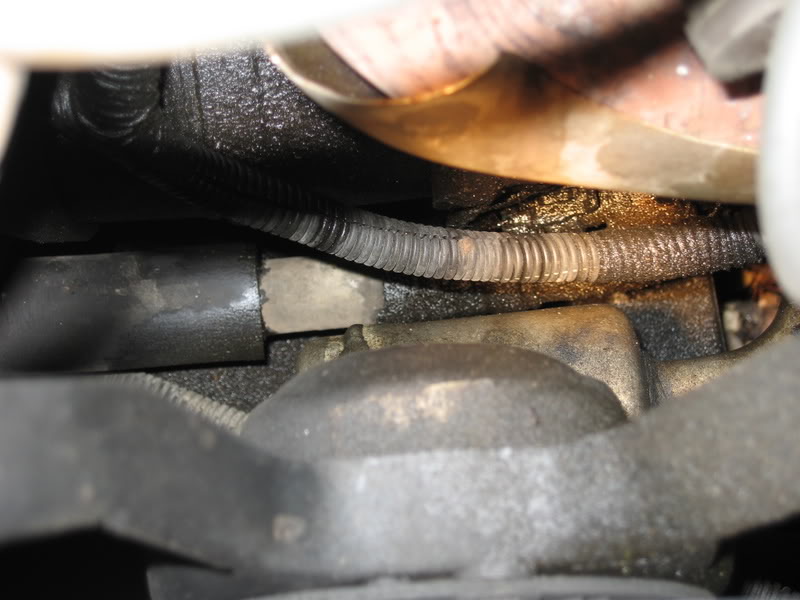

Behind radiator
Name:  IMG_6858.jpg
Views: 1
Size:  65.0 KB

Passenger side
Name:  IMG_6859.jpg
Views: 1
Size:  64.0 KB

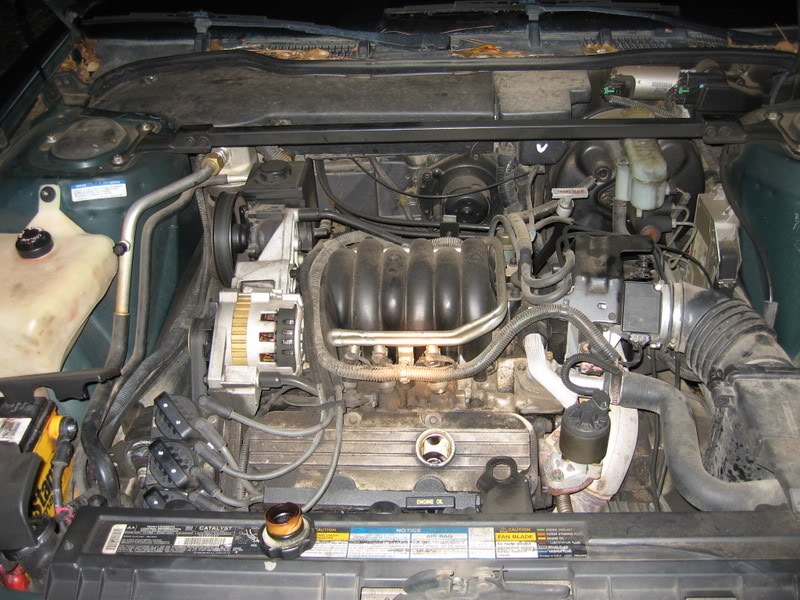

Whole engine
Name:  IMG_6860.jpg
Views: 1
Size:  116.2 KB

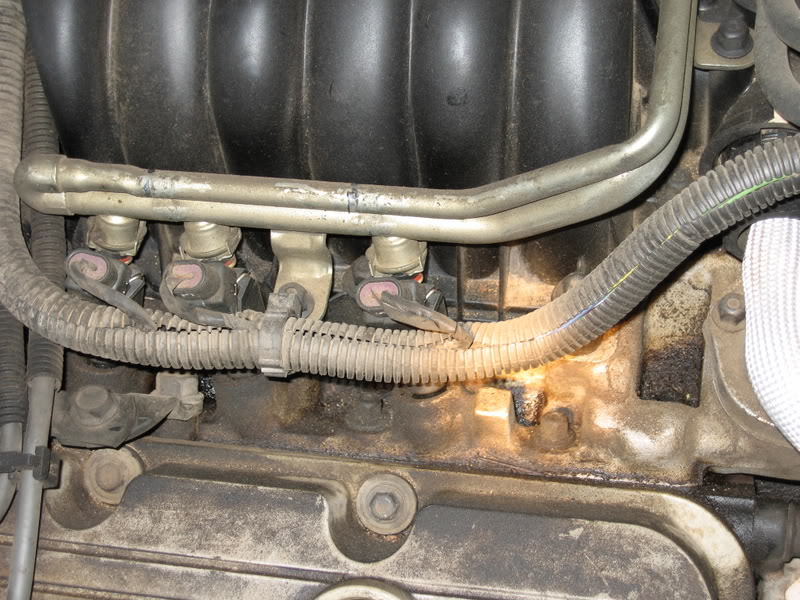

Looking over engine
Name:  IMG_6861.jpg
Views: 1
Size:  127.1 KB

Driver side
Name:  IMG_6862.jpg
Views: 1
Size:  69.9 KB

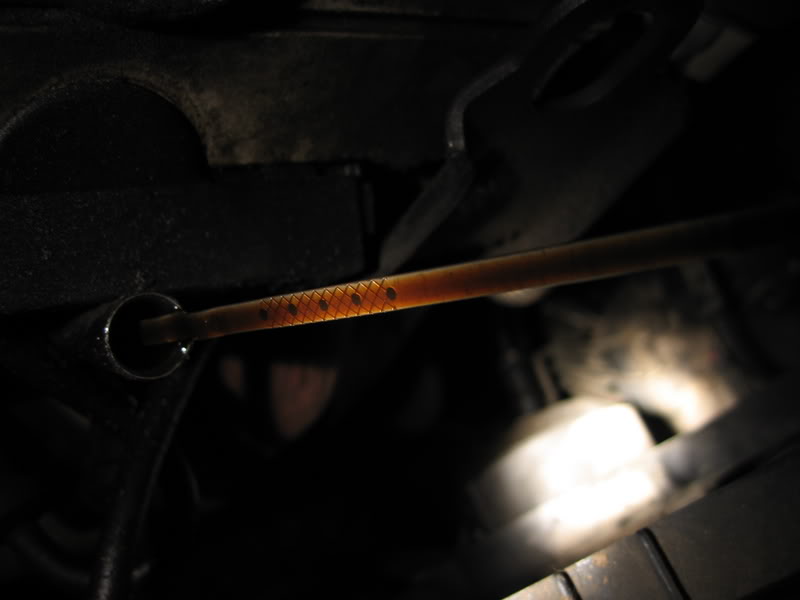

Dip stick, is the oil like milk to you? I don't think it is, IMO.
Name:  IMG_6864.jpg
Views: 1
Size:  27.4 KB

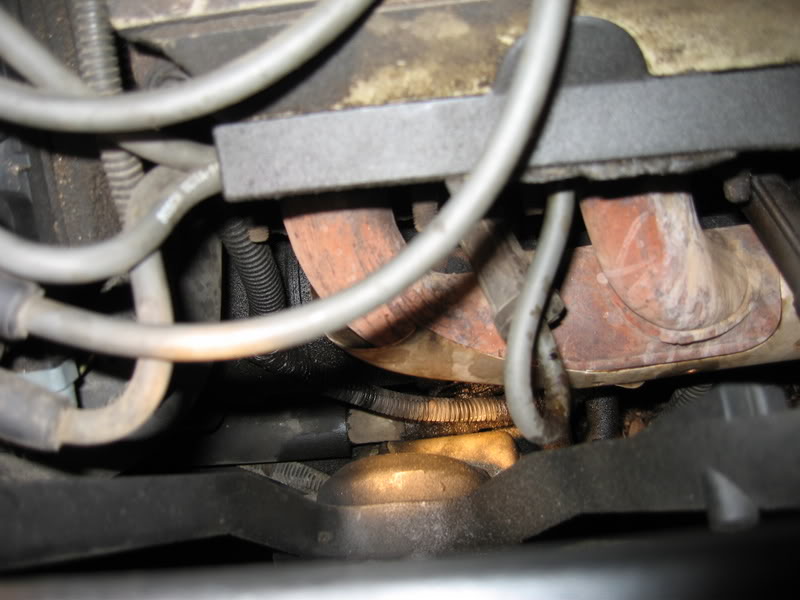

Front of engine
Name:  IMG_6865.jpg
Views: 1
Size:  61.8 KB


********FYI********
We have 3 Bonnevilles, all are SE from 94-95. I looked today, all are leaking oil in the same spots....this sucks.


Any help is appreciated guys.
pinionlc is offline   Reply With Quote
Old 01-29-2007, 12:12 AM   #2
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

The pics look normal enough. Driving with a knock and no oil pressure usually means you will need a crank and bearings. Driving it that way until it stopped means you would probably need cam and balance shaft bearings, too as the oil system filled up and circulated little abrasive bits from the rods and mains. Plus a thorough cleaning of lifters, block, and all oiled parts.

I would be considering a junk yard motor at this point.
bill buttermore is offline   Reply With Quote
Old 01-29-2007, 12:16 AM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The UIM problem isn't much of an issue till 95 when they changed how the EGR is routed. If you lost oil pressure but still have oil... I suppose the oil pump coulda gone. Drain the oil and look for shiny stuff in it.
J Wikoff is offline   Reply With Quote
Old 01-29-2007, 12:18 AM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2006
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
pinionlc is on a distinguished road
Default

Thanks. I will drain the oil tomorrow and report what I find. There is oil in it, and when I checked it today it seemed like there was way more than normal.
pinionlc is offline   Reply With Quote
Old 01-29-2007, 12:20 AM   #5
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Did the coolant level change?
J Wikoff is offline   Reply With Quote
Old 01-29-2007, 12:33 AM   #6
Senior Member
Posts like a Turbo

Join Date: Oct 2006
Location: Whitewater, Wisconsin
Posts: 319
Thanks: 0
Thanked 0 Times in 0 Posts
nicklikesmilk is on a distinguished road
Default

damn, your story sounds almost exactly like mine...my car did die at one point, but it started a minute later and ran fine....then a few days later i heard knocking and found out i spun a bering....my motor is apart now and quite sludged up, but it'* a good motor and worth rebuilding....i think all i'll need that'* new is a connecting rod, and bearings...we aren't sure about the crankshaft yet, although i'm told i'll probably need a new one...anyway, that might be what you're looking at..sorry this had to happen to you as well, but i'm glad for you that you didn't throw a rod or anything...good luck
nicklikesmilk is offline   Reply With Quote
Old 01-29-2007, 08:00 AM   #7
Senior Member
Posts like a Northstar

Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road
Default

Not that it matters, but what'* your milage?
PEARL_JAM is offline   Reply With Quote
Old 01-29-2007, 11:29 AM   #8
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

Quote:
Originally Posted by pinionlc
Thanks. I will drain the oil tomorrow and report what I find. There is oil in it, and when I checked it today it seemed like there was way more than normal.
It sounds like a cracked block leaked coolant into the pan.

Concur on the used engine. Unless you want to completely go through it, they're never right after they seize up.
Bob Dillon is offline   Reply With Quote
Old 01-29-2007, 11:32 AM   #9
Senior Member
Posts like a Camaro

Join Date: Feb 2005
Location: Gilroy, California
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
Bob Dillon is on a distinguished road
Default

.
Quote:
i think all i'll need that'* new is a connecting rod, and bearings...we aren't sure about the crankshaft yet, although i'm told i'll probably need a new one..
Buy the entire crank kit, exchange, and get reconiditoned rods, if and ONLY if the cylinder walls aren't too scored.

There'* a lot of damage you don't see to the various parts when an engine seizes up due to low or no oil pressure.
Bob Dillon is offline   Reply With Quote
Old 01-29-2007, 11:53 AM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2006
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
pinionlc is on a distinguished road
Default

It has 190K on it, and it has had a slow, but steady coolant leak for about 6 months now....thought it just might be a leak in a hose because I replaced the radiator about a year ago.
