Default Error Codes...

DTC P0134 HO2S Circuit Insufficient Activity Sensor 1
DTC P0135 HO2S Heater Performance Sensor 1
DTC P1406 Exhaust Gas Recirculation (EGR) Position Sensor Performance

I take it the first two are are just me in need of a new O2 sensor. Whats the deal with the EGR, and how do I fix it?

BTW...I got an Aeroforce...pics later...I'm cold from installing it.
captainmiller is offline   Reply With Quote
Old 11-28-2006, 11:30 PM   #2
PopaDopaDo
True Car Nut

popatim's Avatar

Join Date: Jan 2005
Location: NY
Posts: 4,957
Thanks: 0
Thanked 0 Times in 0 Posts
popatim is on a distinguished road
Default

You can try cleaning it and your electrical connections (battery,cables,grounds...) and see if it goes away.

On another note that I don't quite understand, why would you pick up an aeroforce before an O2 sensor that'* probably killing your mileage and costing you $$$$ ?
popatim is offline   Reply With Quote
Old 11-28-2006, 11:42 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by popatim
On another note that I don't quite understand, why would you pick up an aeroforce before an O2 sensor that'* probably killing your mileage and costing you $$$$ ?
cuz the aeroforce probably just told him that he needs an o2
harofreak00 is offline   Reply With Quote
Old 11-29-2006, 01:40 AM   #4
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
Quote:
Originally Posted by popatim
On another note that I don't quite understand, why would you pick up an aeroforce before an O2 sensor that'* probably killing your mileage and costing you $$$$ ?
cuz the aeroforce probably just told him that he needs an o2
The SES light is part of the reason I got the aeroforce. I wanted a scan tool anyway.
captainmiller is offline   Reply With Quote
Old 11-29-2006, 07:35 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Cap...first thing I'd do is follow the FSM diagnostic procedure for those codes.

Simply dropping an O2 on may not fix the actual problem. I've found this to be very true when someone gets a car scanned etc. The guy at the autoparts store (in our scenario...we'll call him Andrew ) says.."oh.. the code says O2 in it..this means you need an O2"

This is not always the case. Following the FSM diagnostics will point you to diagnose if the problem truly is an O2 or a bare wire etc..
BillBoost37 is offline   Reply With Quote
Old 11-29-2006, 02:27 PM   #6
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

Well...I don't have the 1996 FSM yet unfortunatly. What is the procedure for diagnosing it? With the aeroforce I can read O2 values etc. if that helps.

However, I have put about 20,000km on the car since I got it and I have no idea if the O2 was ever replaced anyway, so I was just planning on doing it sooner or later as it is probably overdue.

I got another different O2 code last night. It is throwing codes like crazy. I havn't got the EGR code back yet.

DTC P1133 HO2S Insufficient Switching Sensor 1
captainmiller is offline   Reply With Quote
Old 11-29-2006, 02:30 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Ok..insufficient switching is a good one for replacing and checking the O2.

Watch your aeroforce for mV on the bank 1 O2. If it moves quickly from 100/300 to 700/900 then you are good..if it'* slow or doesn't move. Time to replace.
BillBoost37 is offline   Reply With Quote
Old 11-30-2006, 04:08 PM   #8
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2004
Location: Winnipeg, Manitoba, Canada
Posts: 1,445
Thanks: 0
Thanked 0 Times in 0 Posts
captainmiller is on a distinguished road
Default

It is slow, and doesn't move much at all...so my new O2 is in the mail.

However, I got the EGR code again. I take it this is also a sensor problem? Where is it located?
captainmiller is offline   Reply With Quote
Old 11-30-2006, 04:54 PM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by captainmiller
It is slow, and doesn't move much at all...so my new O2 is in the mail.

However, I got the EGR code again. I take it this is also a sensor problem? Where is it located?

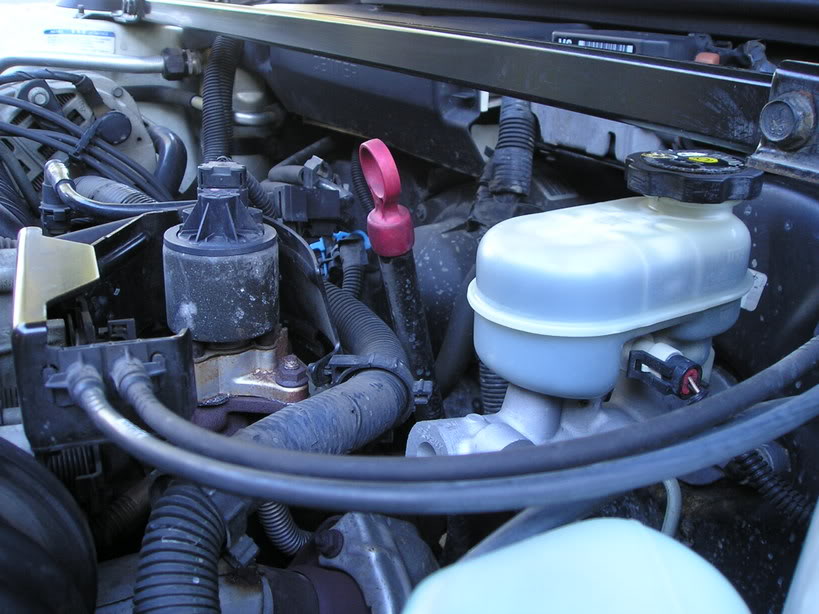

the EGR on the Series 2 SC is on the back of the motor right behind the TB....

Here is a Pic
Name:  L36EGR.jpg
Views: 2
Size:  88.3 KB
it is the round cylinder with the connector at the top

although this is a S2 NA its the in the same place as your car
1993 SLE is offline   Reply With Quote
