confused please help - Page 3 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 04-24-2008, 04:04 PM   #21
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
red bonnie is on a distinguished road
Default

with new oil and plugs a few times, as well as the gaskets etc, cost me over 400.00 so far, im going back over the torque speqs now.
red bonnie is offline   Reply With Quote
Old 04-24-2008, 04:14 PM   #22
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by red bonnie
with new oil and plugs a few times, as well as the gaskets etc, cost me over 400.00 so far, im going back over the torque speqs now.
ouch,



be careful not to swap inch #* with foot #*. thats a common misshap that can really ruin a weekend.
samueljackson is offline   Reply With Quote
Old 04-24-2008, 04:25 PM   #23
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
red bonnie is on a distinguished road
Default

if one of the lower inside intake bolts were loose, could that put the coolentup into the plenum?
red bonnie is offline   Reply With Quote
Old 04-24-2008, 04:30 PM   #24
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
red bonnie is on a distinguished road
Default

where the stove pipe goes into the upper plenum, i can see that throttle body gasket, does this mean my plenum is screwd? could this be my problem its all melted inside there
?
red bonnie is offline   Reply With Quote
Old 04-24-2008, 04:40 PM   #25
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Can you post some pics? That would really help us.
vital49 is offline   Reply With Quote
Old 04-24-2008, 05:10 PM   #26
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
red bonnie is on a distinguished road
Default

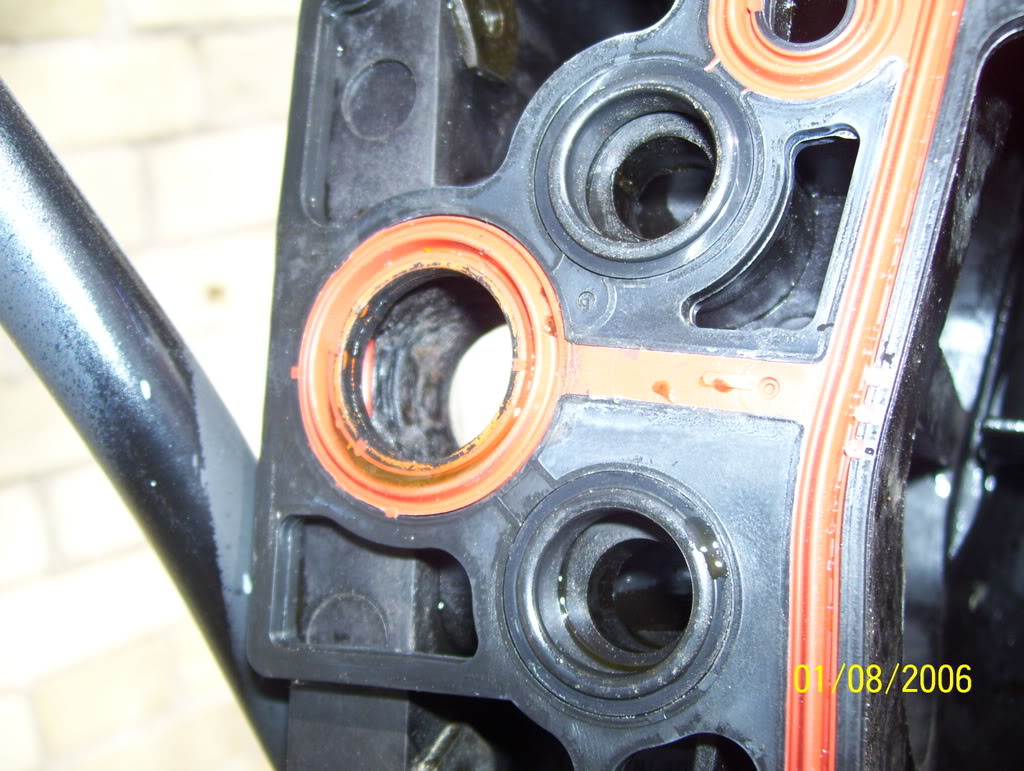

Name:  stovepipeplenum001.jpg
Views: 1
Size:  163.3 KB

red bonnie is offline   Reply With Quote
Old 04-24-2008, 05:12 PM   #27
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by red bonnie
samueljackson is offline   Reply With Quote
Old 04-24-2008, 05:15 PM   #28
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

that doesn't look good.

can you get a better pic of where the egr goes, with the upper gasket removed.
samueljackson is offline   Reply With Quote
Old 04-24-2008, 05:46 PM   #29
Member
Posts like a V-Tak
Thread Starter

Join Date: Mar 2008
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
red bonnie is on a distinguished road
Default

note the small hole and the wide gap,, burnt threw

[img][IMG]
http://i274.photobucket.com/albums/jj274/redbonnie/stovepipeplenum222002.jpg[/IMG]

[/img]Name:  stovepipeplenum222001.jpg
Views: 2
Size:  63.3 KB
red bonnie is offline   Reply With Quote
Old 04-24-2008, 10:33 PM   #30
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Yep, that upper is toast. And it is certainly leaking coolant. That'* why we wanted to know if you had changed the upper intake. The UIM we recommend is gonna set you back about $115 delivered to you from APN. That is a kit that includes the UIM gasket, o-rings, brake booster vacuum fitting, new top for the PCV chamber, and two reduced diameter stovepipes for your LIM. (You would use the pipe with the larger base.)

If, by now you are out of money, and if you have the time, you can repair the perforated upper yourself with a stainless steel sleeve and JB weld using the method described here for about $25. http://www.bonnevilleclub.com/forum/...ic.php?t=33565

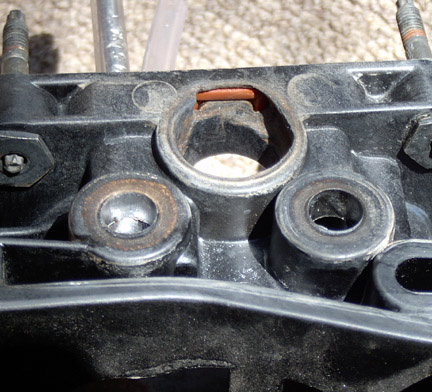

You can take an upper that looks like this:
Name:  9plugholes.jpg
Views: 1
Size:  80.9 KB

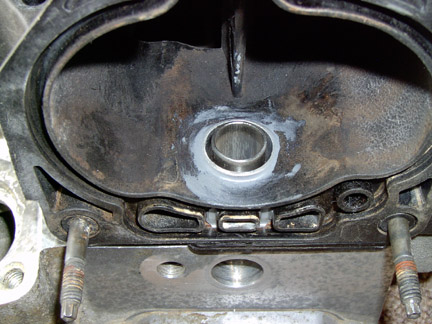

And repair it so that it looks like this:
Name:  viewfromtop.jpg
Views: 1
Size:  68.4 KB

You can re-use the new UIM gasket you just bought. It will work fine. If you are interested in trying this, I can provide you with the parts you will need. PM me if interested.
bill buttermore is offline   Reply With Quote
