Old 02-24-2008, 05:51 PM   #11
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2008
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
brianthenewguy is on a distinguished road
Default

Oh, I forgot to say that i put the volemeter on the small wire, and nothing, even when the key was turned to the start or just the on position.

Thanks
brianthenewguy is offline   Reply With Quote
Old 02-24-2008, 06:07 PM   #12
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

There are no fusible links for the small wire. Give me a few minutes & I'll post a wiring diagram.
Technical Ted is offline   Reply With Quote
Old 02-24-2008, 06:15 PM   #13
Junior Member

Join Date: May 2006
Location: BonnevilleHell
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
clm2112 is on a distinguished road
Default

Quote:
Originally Posted by brianthenewguy
So if anyone may know where the fusibile links are, or where the next step would be to look, I am freely open to suggestions.
Cool, that'* good progress...you have a working Battery and Starter. Now, you can do the divide and conquer approach.

A fusible link looks like nothing more than a piece of black plastic hose around the orange or red wires. They are typically near the juction block where the battery'* power gets split between the various wires going to the fuse block.

Instead of searching out the fusible links, you can go to the other end of the circuit and check for power there. If you pull the "CRANK" fuse out of the fuse block and check for voltage there, you know the power is good up to that point. Basiclly, keep splitting the circuit at various points until you track down the bad component.

You can also check the base of the ignition column, where the actual ignition switch is located (It is *not* inside the steering column with the lock cylinder and key, instead the key turns and moves a metal pushrod to the actual switch...right about were the brake pedal connects to the underside of the dash.)
clm2112 is offline   Reply With Quote
Old 02-24-2008, 06:15 PM   #14
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Here is the starter circuit from my '95 FSM. Don't know how much different a 98 might be???

Name:  95startercircuit640.jpg
Views: 3
Size:  95.7 KB

[edit: Sorry, did not see that Technical Ted was on the way with help. Maybe he will have the FSM scan for the '98. Looks like you've got an army of help on hand - your beer bill just got higher. ]
bill buttermore is offline   Reply With Quote
Old 02-24-2008, 06:21 PM   #15
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

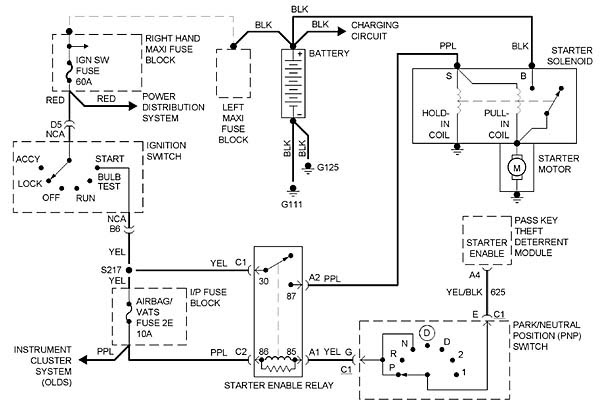

Here'* the 98 diagram.

Name:  97Starting.jpg
Views: 3
Size:  42.5 KB
Technical Ted is offline   Reply With Quote
Old 02-24-2008, 06:30 PM   #16
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

I'm gonna let TechnicalTed continue as he has the correct FSM for you.
bill buttermore is offline   Reply With Quote
Old 02-24-2008, 06:49 PM   #17
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

Bill - jump in anytime you have something to add, we can split the beer.

Newguy - Let'* double check what the security light is doing. Sit in the car with all the doors, hood & trunk closed. Now turn the key to the run position & see if the security light comes on & then turns itself off after a few seconds.

If the the light goes out then while attempting to start wiggle the shifter around. If that doesn't help then shift into neutral & try starting. If it still doesn't start pull fuse 2e & check it closely. Let us know what you find & we'll continue.
Technical Ted is offline   Reply With Quote
Old 03-01-2008, 04:21 PM   #18
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2008
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
brianthenewguy is on a distinguished road
Default

Sorry I haven't been here for a while Classes are killing me.

So I sat in the car. The only time that the Security light is on, is when the door is open. I put the key in the ignition switched it to run, Still no security light the entire time. Then tried to wiggle things around and still no go. So the door is open, Security light blinking. Door is closed, no light. Key in ignition in run, no security light. So I am not sure what that tells me.

THanks for the help
brianthenewguy is offline   Reply With Quote
Old 03-01-2008, 05:02 PM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Feb 2008
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
brianthenewguy is on a distinguished road
Default

I checked fuse 2e, and the fuse was ok, the connection of the fuse itself was a bit brown. I cleaned it off a bit and stuck it back in. I took the voltmeter, to the fuse, and got no power through the fuse when the key was in the run position. But then the voltmeter would catch a small reading when the key would turn to the start position. So again. Fuse 2e looks ok.

I was looking at the diagram above, and saw that the starter relay might be the next thing to look at. But I cannot find it for the life of me.

Any suggestions?

Thanks
brianthenewguy is offline   Reply With Quote
Old 03-01-2008, 05:29 PM   #20
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

When you sat in car & turned the key to run did the security light come on for a couple seconds?
