Old 06-06-2006, 04:30 PM   #11
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

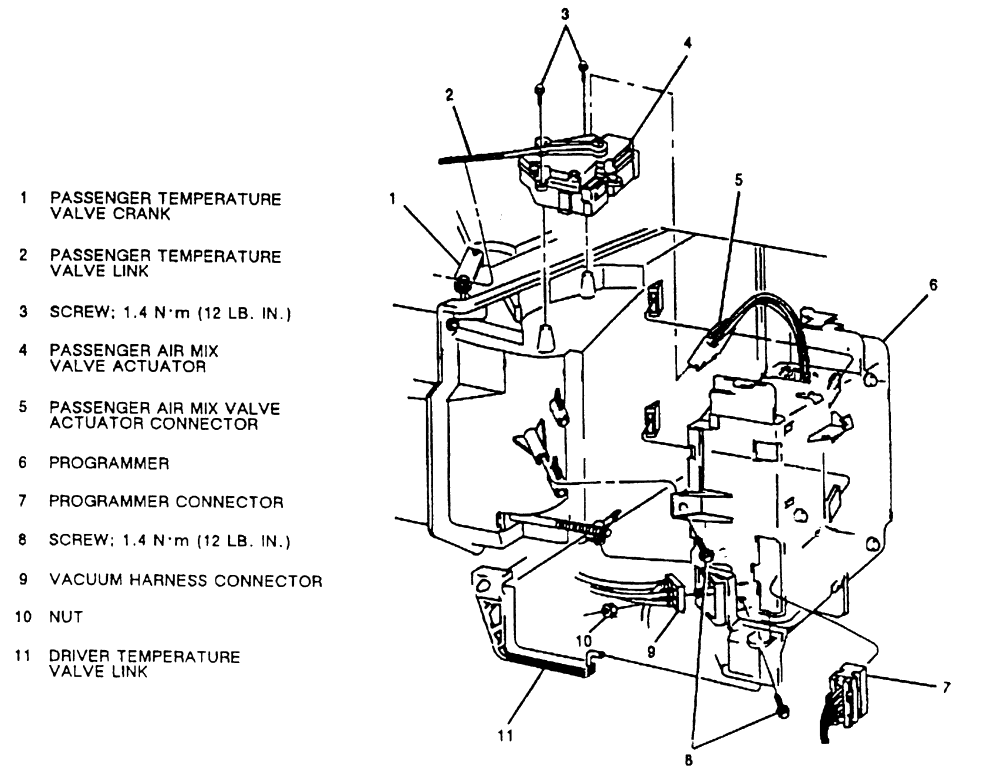

Here is a drawing showing the airmix door actuator location. I don't believe you can get to it though the glove box. You have to go from underneath or take the dashboard off.

Name:  0900823d8017f925.gif
Views: 2
Size:  89.4 KB
Echo SSEI is offline   Reply With Quote
Old 06-06-2006, 04:49 PM   #12
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Right..both items can only be gotten to from underneath or dash removed.
BillBoost37 is offline   Reply With Quote
Old 06-06-2006, 04:50 PM   #13
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

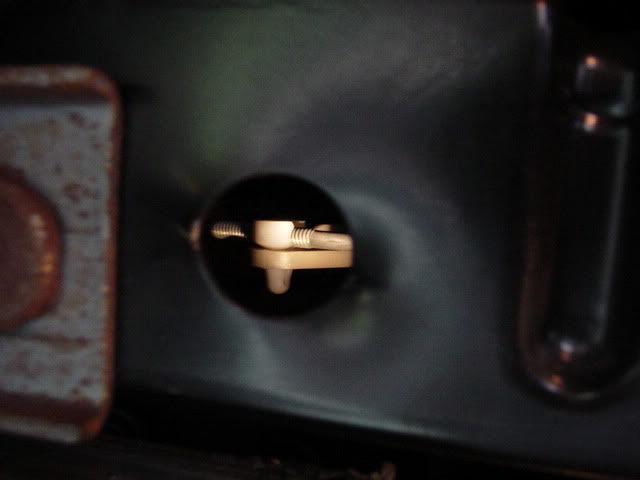

Name:  HVAClinkage2.jpg
Views: 2
Size:  20.4 KB
This pic is looking through a hole, behind the glovebox that shows the rod in place in the white connector. The small plastic box is the airmix actuator, and the rod that comes off the box snaps into the small, white, round connector on the airmix door.

And if all else fails and you can't fix it at the moment, you can always rig it for the time being....Wren'* Redneck Fix
Echo SSEI is offline   Reply With Quote
Old 06-06-2006, 06:54 PM   #14
Senior Member
Posts like a Camaro

Join Date: Aug 2004
Location: Chi-Town
Posts: 1,116
Thanks: 0
Thanked 0 Times in 0 Posts
Boreas is on a distinguished road
Default

I solved my own A/C blowing hot problem by nudging that plastic more into that metal rod with a screwdriver, now it works like a charm.
Boreas is offline   Reply With Quote
Old 06-07-2006, 09:30 PM   #15
Junior Member
Thread Starter

Join Date: Aug 2004
Location: Calgary, Alberta
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
zero10 is on a distinguished road
Default

I don't quite understand that drawing. All of that stuff is behind the air bag brackets.

Everybody said that the air mix actuator was on top. There is no way I can reach that from the bottom. The vents sit almost against the dash all the way around.
Is the motor actually on the bottom??

His body control module is still acting up. Has anybody ever seen one go bad?
If he doesn't latch his seatbelt when he leaves the car, the interior lights will stay on indefinately. I think we found the module, but are not certain of the best way to remove it from it'* mounting plate. Any advice?
Does anybody have a replacement module for a reasonable price?
zero10 is offline   Reply With Quote
Old 06-08-2006, 08:18 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The air mix is actually on top and yes it is possible with a few scratches to get it from below. Glad you fixed it up with a nudge though.

BCM..yes..we have seen them go bad and do the types of things you are describing.

I don't have one right at the moment..but might by the end of the w/e.. I'll keep you updated. As for bracket attachment..I think it'* a plastic white bracket that clips on at the bottom..no?
BillBoost37 is offline   Reply With Quote
Old 06-09-2006, 07:35 PM   #17
Junior Member
Thread Starter

Join Date: Aug 2004
Location: Calgary, Alberta
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
zero10 is on a distinguished road
Default

We're just afraid to break the plastic plate it mounts on. Do we just pull it off? (the BCM)

For the air mix motor, we will try to reach it, I'm starting to get how that picture fits together now. Hopefully my big hands will fit up there.

Keep us posted on the BCM.
zero10 is offline   Reply With Quote
Old 06-10-2006, 12:21 AM   #18
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Quote:
Originally Posted by zero10
We're just afraid to break the plastic plate it mounts on. Do we just pull it off? (the BCM)

For the air mix motor, we will try to reach it, I'm starting to get how that picture fits together now. Hopefully my big hands will fit up there.

Keep us posted on the BCM.
I have never removed a BCM, but I thought that it was held on by little plastic tabs. I really don't know....sorry
Echo SSEI is offline   Reply With Quote
Old 06-15-2006, 01:02 AM   #19
Junior Member
Thread Starter

Join Date: Aug 2004
Location: Calgary, Alberta
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
zero10 is on a distinguished road
Default

I haven't been near the car for a few days, but I think if I slide a flat-head screwdriver up behind it that the module will slide right off.
I wanted to dig into it over the weekend, but both my dad and I were busy. Hopefully next weekend we will figure it out.
zero10 is offline   Reply With Quote
