Old 04-18-2005, 12:08 AM   #11
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Quote:
Originally Posted by Merlin 91/97
How hard is that to install/wire up? If I ever find a Tornado I might have to grab those parts.... looks really cool.

BTW..... do you have a solution for fixing the two clips on the upper and lower console pieces in your car? Both clips on mine are broken and I'm kinda stumped what to do.

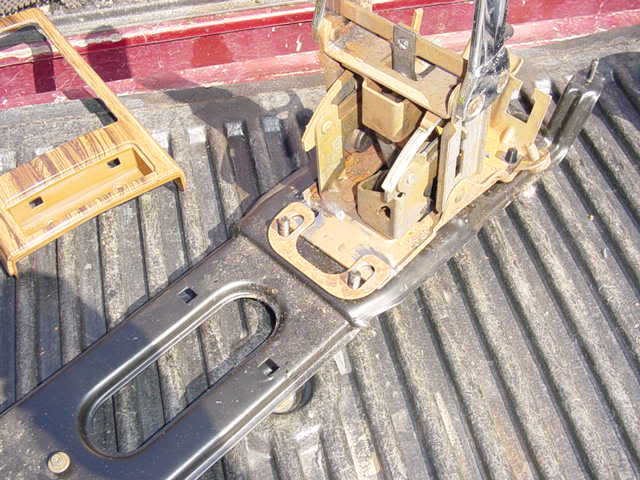

Physical installation of the shifter is pretty easy. The front bolts right up and this is my solution for the rear:

Name:  DSC01423.jpg
Views: 1
Size:  54.2 KB

That U shaped piece is from a 93 shifter (I'm not sure what it'* actual function is). You can also see some shiny areas where I had to grind so the piece would fit. The console obviously needed some cutting. You know that you've hit the point of no return when you cut out the PRND321 section of the console. It took some trial and error to fit it over the shifter. There are provisions for two lights in the inner trim piece but the bulbs are much smaller than the originals. No biggie... just grab the two bulbs & sockets from the donor car and splice in.

Now that it'* in and working, it has to look good. This is the challange. The clip tabs on the inner trim are made of acrylic and are extremely brittle. I accidentally broke one off and had to cut the other when I decided on a method of mounting. If the epoxy holds, the inner piece will be firmly mounted and you could potentially be done but I'm going to refine it further with more fiberglass. The PRN... is blue which doesn't make me very happy so I'm already thinking of making my own inner trim piece. I also have to figure out what to do with the little "brushes" to cover the open tracks.

I bought my car with a broken latch for the storage bin so every time I wanna put a drink down, I have to use two hands to separate the two parts. I haven't come up with a simple solution except for ordering another part.
randman1 is offline   Reply With Quote
Old 04-18-2005, 07:00 AM   #12
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Halifax, Canada 91SSE / 97SSEi
Posts: 5,857
Thanks: 0
Thanked 0 Times in 0 Posts
Merlin 91/97 is on a distinguished road
Default

Quote:
Originally Posted by randman1
I bought my car with a broken latch for the storage bin so every time I wanna put a drink down, I have to use two hands to separate the two parts. I haven't come up with a simple solution except for ordering another part.
Except the parts are discontinued....... :(
Merlin 91/97 is offline   Reply With Quote
Old 04-18-2005, 11:55 AM   #13
Senior Member
Posts like a Camaro

Join Date: Nov 2002
Location: Ottawa,Can
Posts: 1,038
Thanks: 0
Thanked 0 Times in 0 Posts
Paulnold is on a distinguished road
Default

looks sweet dude.
Paulnold is offline   Reply With Quote
Old 04-18-2005, 04:07 PM   #14
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

SWEEEEET
toastedoats is offline   Reply With Quote
Old 04-20-2005, 10:13 PM   #15
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

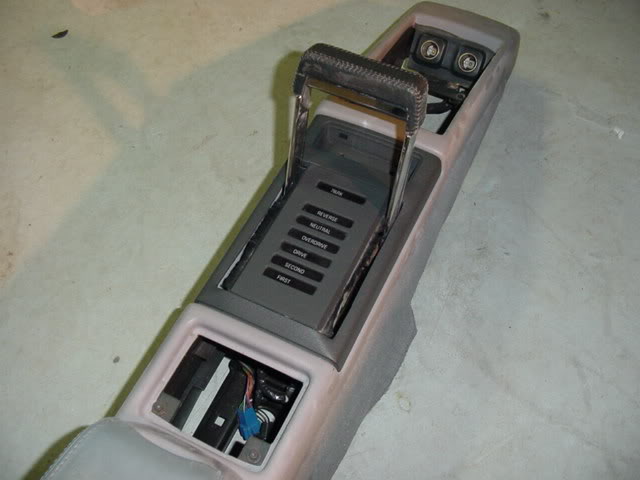

Here are the results of a couple days of fiberglassing and sanding my hiney off. I'm pretty happy with it although I wish the lettering was red instead of blue and I couldn't come up with any "brush" type thingy to cover the opening on the outside.

Name:  DSC01472.jpg
Views: 0
Size:  34.7 KB

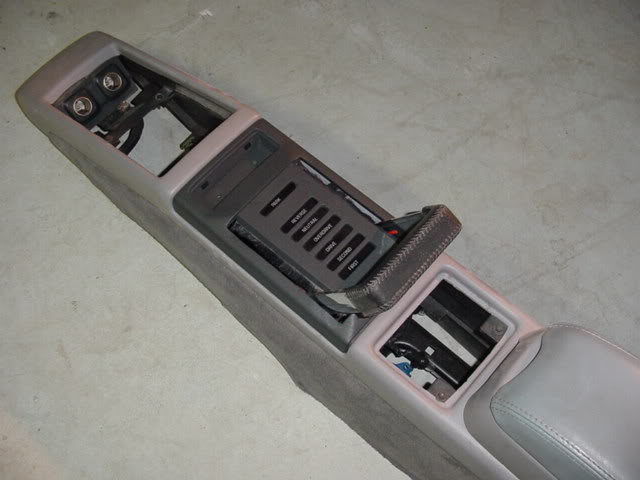

Name:  DSC01471.jpg
Views: 1
Size:  34.9 KB




I managed to blend the flat and curved surfaces pretty well. The following pics try to illustrate how much the surface was built up in order to look decent:

Name:  DSC01446.jpg
Views: 0
Size:  50.3 KB

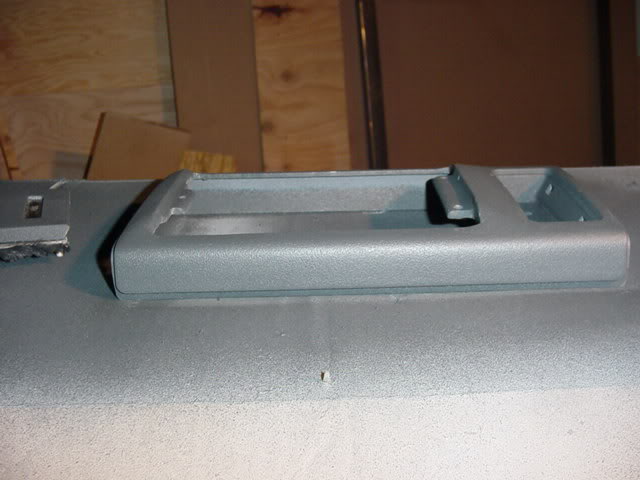

Name:  DSC01475.jpg
Views: 1
Size:  38.9 KB

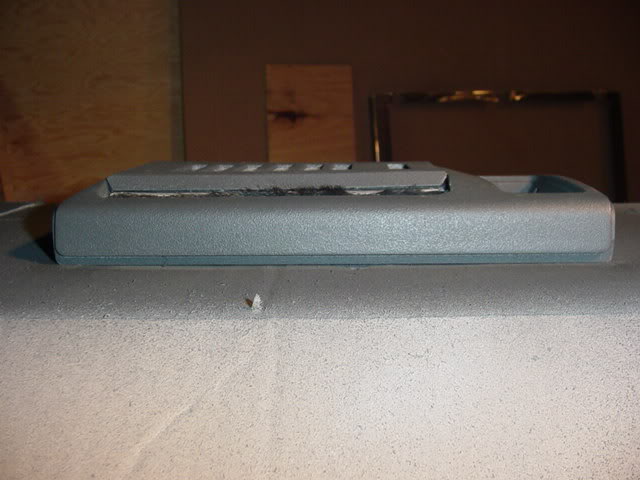

Name:  DSC01477.jpg
Views: 0
Size:  41.4 KB

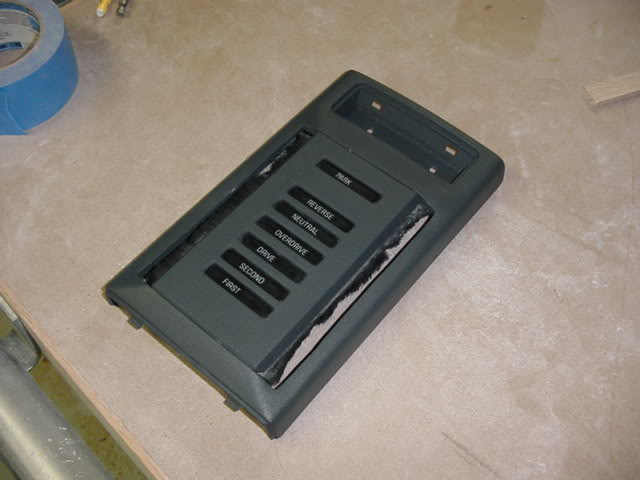

Name:  DSC01480.jpg
Views: 0
Size:  36.3 KB


My brother'* GF is a graphics designer so I'm going to see if I can do up another one with red letters and LED backlighting. This will be OK for now though.

Enjoy
randman1 is offline   Reply With Quote
Old 04-20-2005, 10:24 PM   #16
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

haro would love that blue...lol

your creativity is F***ing awesome
1993 SLE is offline   Reply With Quote
Old 04-20-2005, 10:25 PM   #17
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

For a brush strip, check out www.mcmaster.com

They've got all kinds of good stuff...
J Wikoff is offline   Reply With Quote
Old 04-20-2005, 10:34 PM   #18
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Quote:
Originally Posted by jwikoff99
For a brush strip, check out www.mcmaster.com

They've got all kinds of good stuff...
Whoa, you are the MAN. They have something that will work. I didn't even think of them as I was pondering. Thanks for the heads up.
randman1 is offline   Reply With Quote
Old 04-20-2005, 10:53 PM   #19
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Wow that looks good. I was a little worried at first when i saw the cut up wood panel cover but that looks real good now.
95naSTA is offline   Reply With Quote
Old 04-20-2005, 11:35 PM   #20
Senior Member
Posts like a Turbo

Join Date: Dec 2004
Location: Zelienople, Pennsylvania
Posts: 237
Thanks: 0
Thanked 0 Times in 0 Posts
digitaloutsider is on a distinguished road
Default

That is ABSOLUTELY f'n awesome, dude..
digitaloutsider is offline   Reply With Quote
