Default Teaser of latest project-Complete. More pics

randman1 is offline   Reply With Quote
Old 04-17-2005, 01:28 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Is that out of a Toronado?
J Wikoff is offline   Reply With Quote
Old 04-17-2005, 01:30 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

hmmmmmmmmmmmmm....yum

is that from your 90? it has a white interior?
harofreak00 is offline   Reply With Quote
Old 04-17-2005, 01:43 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Yep, a Trofeo. BillBost and I went to the junkyard yesterday and while looking for some parts, I spotted the shifter. I always thought they looked cool and wondered If it would fit in the 90. I bought it for $16 including the middle trim plate.

Bill and I had it in the car and working mechanically within an hour. The safety cable that prevents the shifter from moving from Park while the ignition is off didn't even come close so I'm going to have to go back and get the cable. The front mounting locations matched up perfectly but the rears came up a little short. I used that little U shaped bracket from an extra 93 shifter I had laying around to secure the back. Although I thisk it will work just fine, I still might weld the U bracket in place.

The trim is proving to be a nightmare. It would be easy to just mold it into the existing trim but it has to be removable. I already broke one of the snap clip tabs so I had to figure out another solution. Fiberglass is drying now.

The interior is gray but looks lighter in the pic. The sun was out in full force yesterday. I;m somewhat sunburnt too
randman1 is offline   Reply With Quote
Old 04-17-2005, 08:42 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Looks like a fun project which will definitely be unique. Not sure how you can make that while still being removeable, but there has to be a way.
JimmyFloyd is offline   Reply With Quote
Old 04-17-2005, 09:00 PM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Here'* what I came up with:

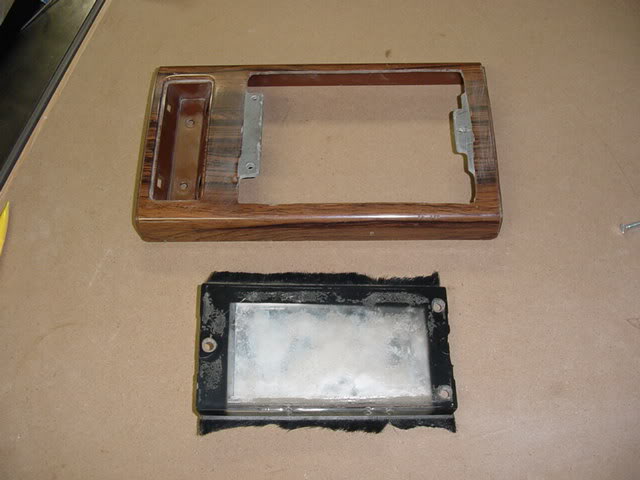

Name:  DSC01430.jpg
Views: 0
Size:  36.8 KB

The gray areas are fiberglass that I had to add to the original trim piece. I dismantled the Olds trim and drilled and countersunk for three 8 x 32 screws that are epoxied in to produce studs. Outer trim goes over the shifter first then the inner piece is installed on top and nuts are screwed on from the bottom. I have to wait until tomorrow to see if the epoxy will do the trick.

The other problem is that the inner trim is flat but the outer trim is curved. Since the inner trim is on top, I'll have to add more fiberglass and blend the two shapes.

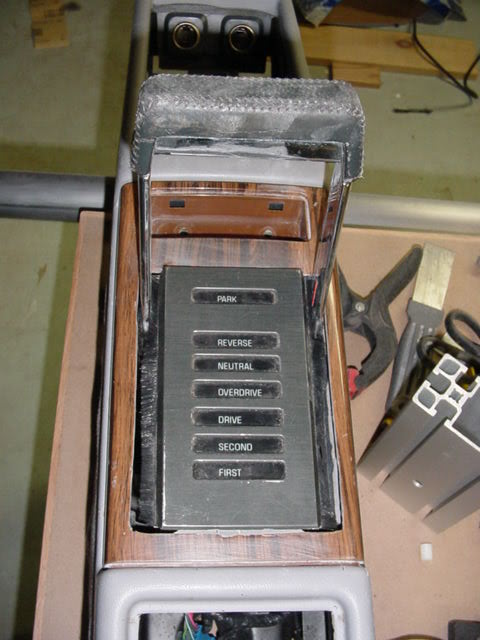

Name:  DSC01428.jpg
Views: 0
Size:  49.4 KB
randman1 is offline   Reply With Quote
Old 04-17-2005, 10:03 PM   #7
Senior Member
Posts like a Camaro

Join Date: May 2004
Location: Columbia, MO
Posts: 963
Thanks: 0
Thanked 0 Times in 0 Posts
BonEvilSSEi is on a distinguished road
Default

ALL HAIL the Bonne interior GOD
BonEvilSSEi is offline   Reply With Quote
Old 04-17-2005, 10:18 PM   #8
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Toronto, Ontario, Canada
Posts: 5,158
Thanks: 0
Thanked 0 Times in 0 Posts
repinS is on a distinguished road
Default

Hot damn is *that* cool
repinS is offline   Reply With Quote
Old 04-17-2005, 11:03 PM   #9
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Halifax, Canada 91SSE / 97SSEi
Posts: 5,857
Thanks: 0
Thanked 0 Times in 0 Posts
Merlin 91/97 is on a distinguished road
Default

Quote:
Originally Posted by repinS
Hot damn is *that* cool
Agreed

randman you are the mod-man....

How hard is that to install/wire up? If I ever find a Tornado I might have to grab those parts.... looks really cool.

BTW..... do you have a solution for fixing the two clips on the upper and lower console pieces in your car? Both clips on mine are broken and I'm kinda stumped what to do.
Merlin 91/97 is offline   Reply With Quote
Old 04-17-2005, 11:19 PM   #10
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

darn, maybe i should get another bonneville so i can try that!
