Default By popular demand(1 request) Pics of my sneaky intake! no56k

Name:  intake1.jpg
Views: 1
Size:  72.1 KB

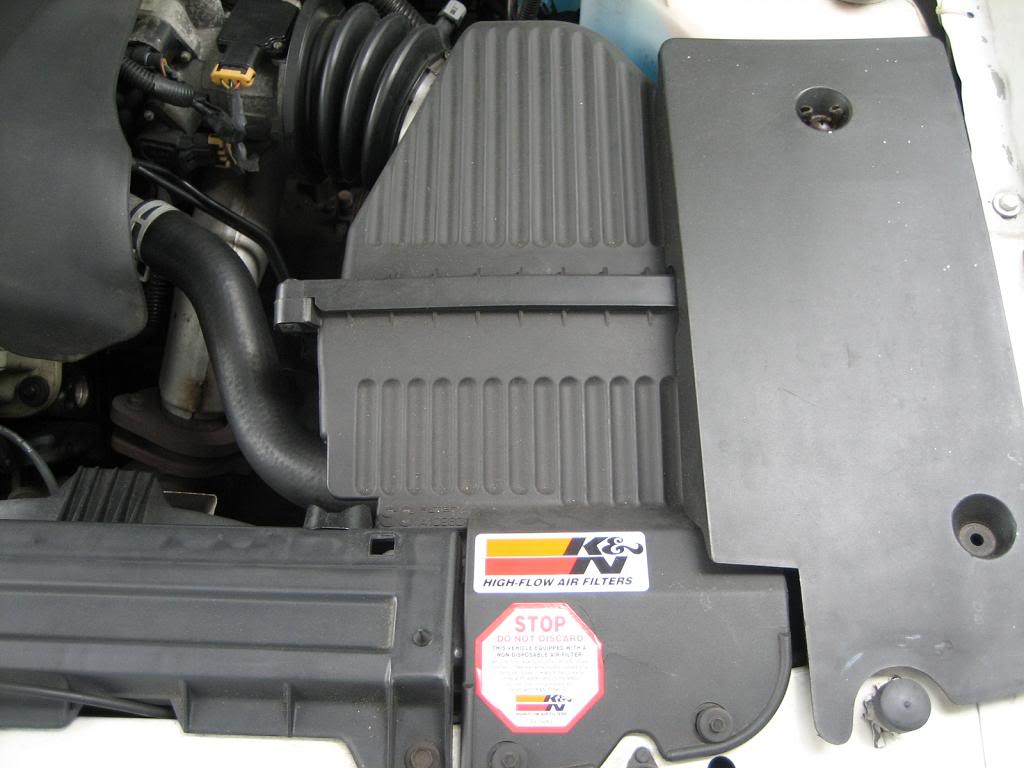

Oh what have we here? looks like someone replace their filter with a K&N...

Name:  intake2.jpg
Views: 1
Size:  82.1 KB

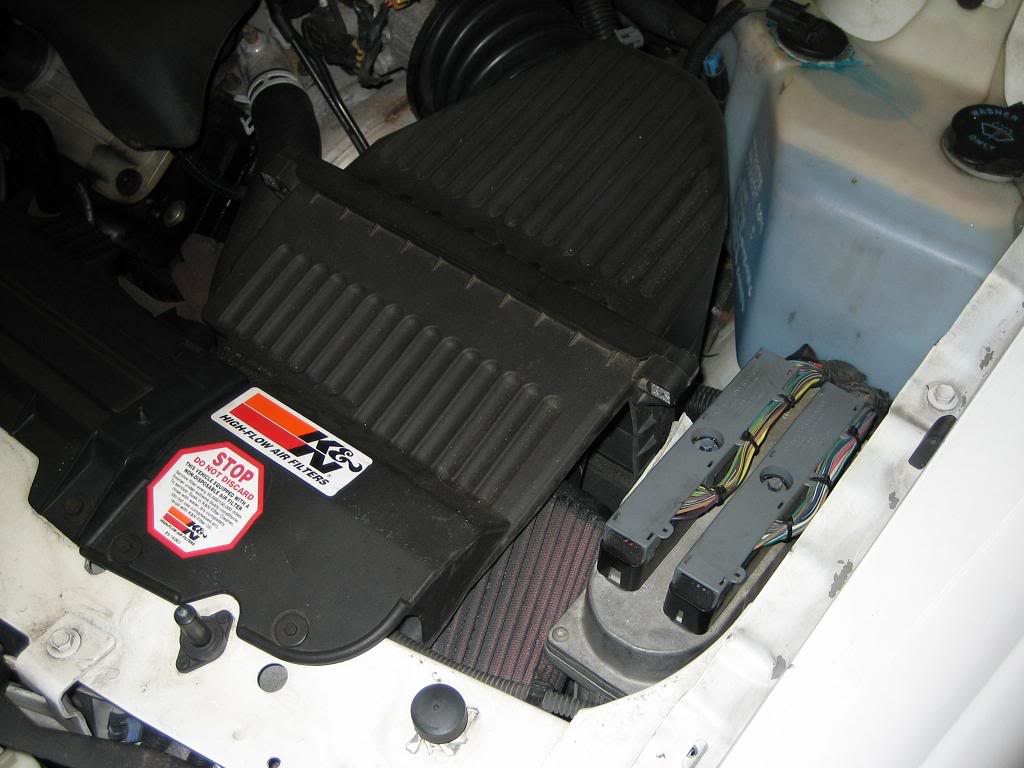

Peekaboo what have we here?

Name:  intake3.jpg
Views: 1
Size:  128.8 KB

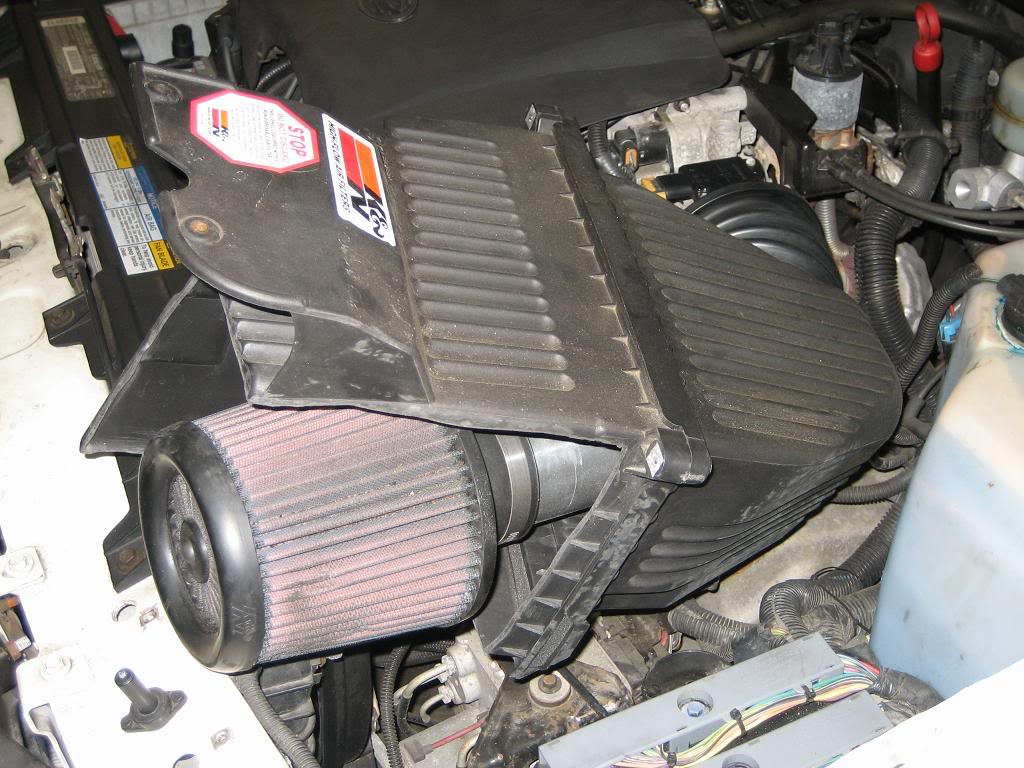

OMGWTFBBQ CONE INTAKE!

Name:  intake4.jpg
Views: 1
Size:  109.5 KB

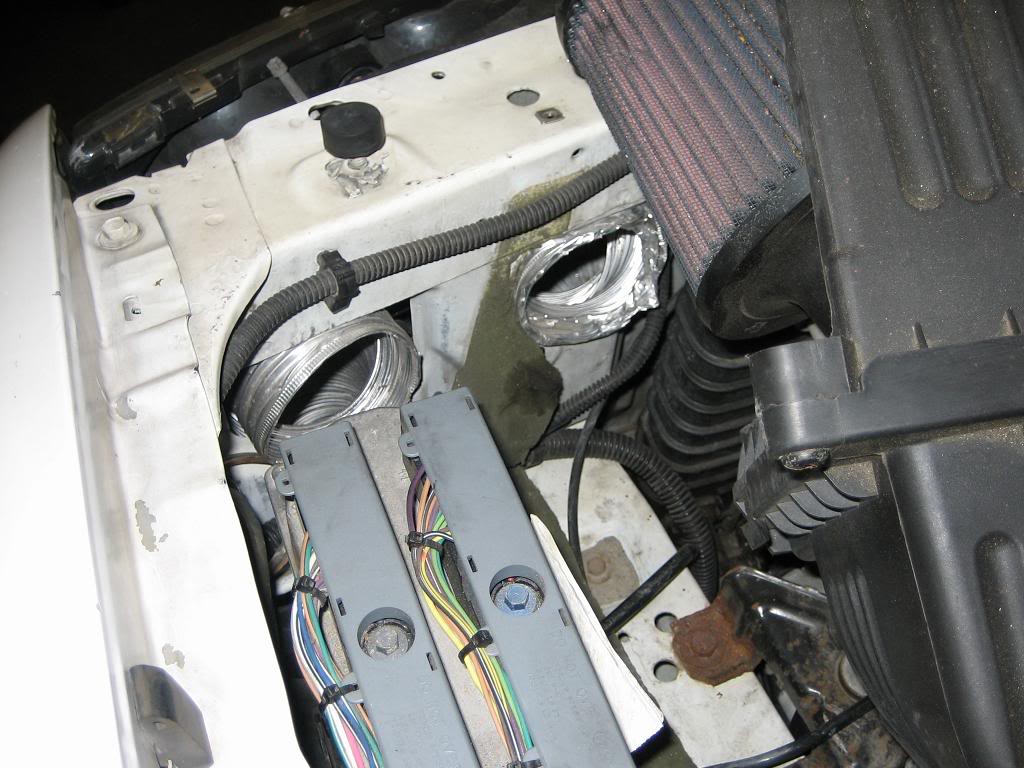

OH NOS! what'* going on here!?

Name:  intake5.jpg
Views: 1
Size:  70.1 KB

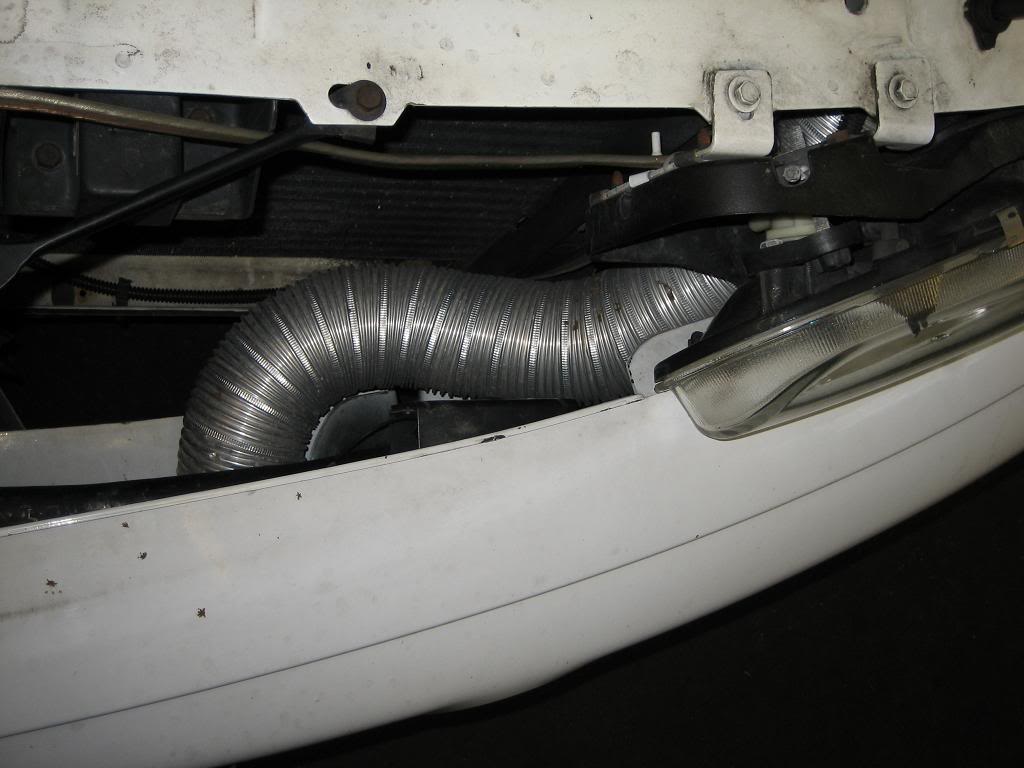

DUCTING!

Name:  intake6.jpg
Views: 1
Size:  64.4 KB

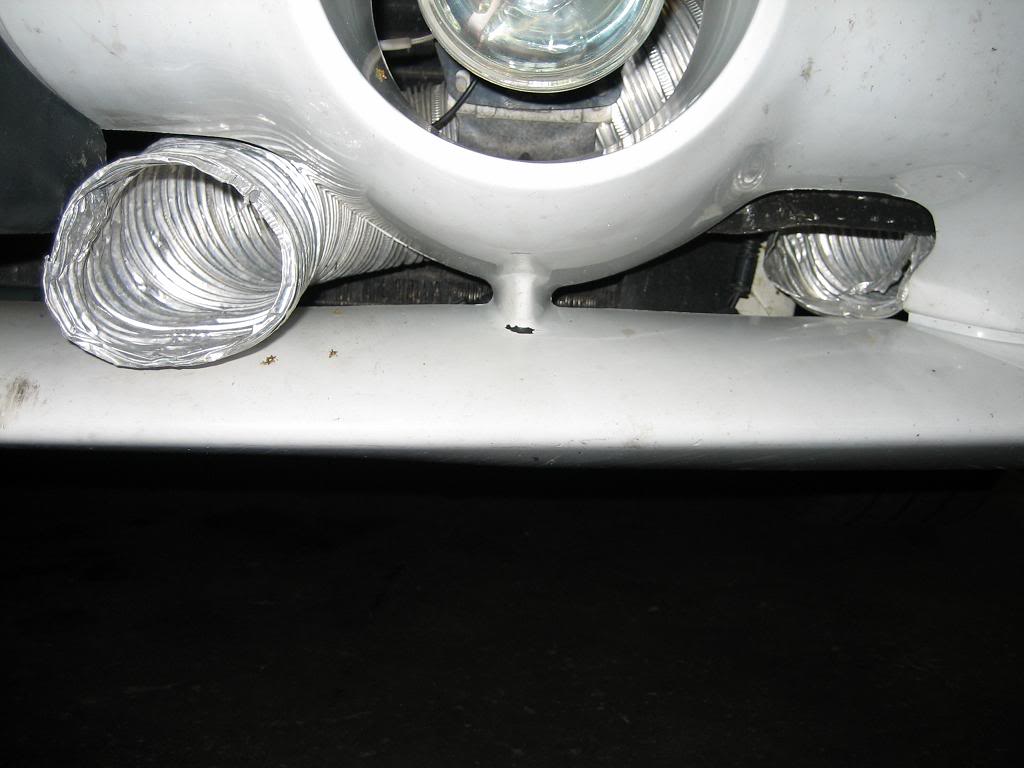

Double ram air! woo!

Ok now for some details, yes the ramair is dryer ducting, lol but it works great, i could get right out of the car after an hour of driving and the intake will be cool as the outside air, the existing ducting was a bit to thick and got crushe dina few spot and recently ripped in one area so i will be replacing with something a bit narrower in the future, the intake is a standard autozone ricepipe with a K&N cone, don't remeber the number, it'* a perfect fit inside the completely gutted airbox and the shape of the airbox, is great for keeping that hot engien air away, and bonus point for anyone who notices something that doesn't belong (YES that ducting IS supposed to be there :P )

EDIT: oh and i have one intake duct jutting out for maximum flow in good weather, and the second on is recessed back to airflow when the main one gets clogged with snow in the winter
