Default GP GT gets a top swap

One of the local Mass guys had wanted to top swap. He cruised in Friday afternoon as an NA and drove out Sunday early in the evening supercharged.

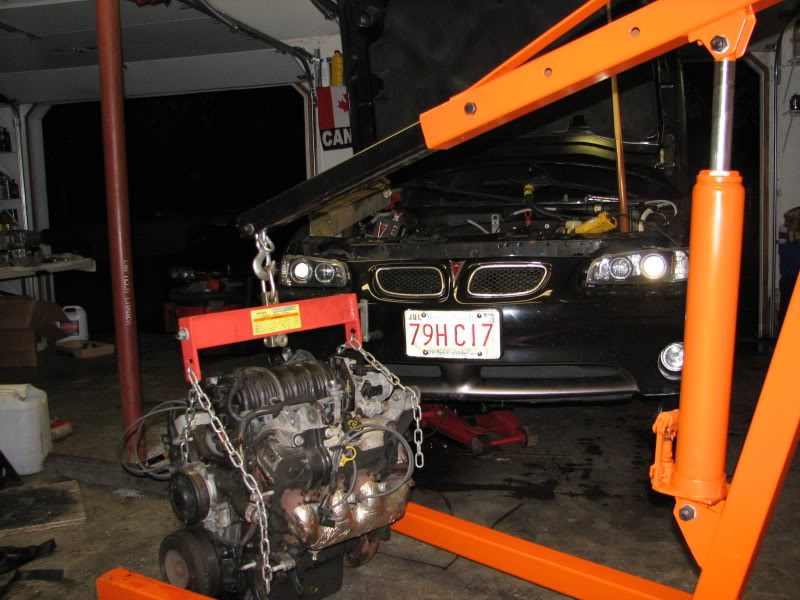

Friday night we yanked the motor and cleaned down the engine bay a bit. It needed it.
Name:  IMG_4898.jpg
Views: 0
Size:  101.3 KB
Name:  IMG_4900.jpg
Views: 0
Size:  141.2 KB

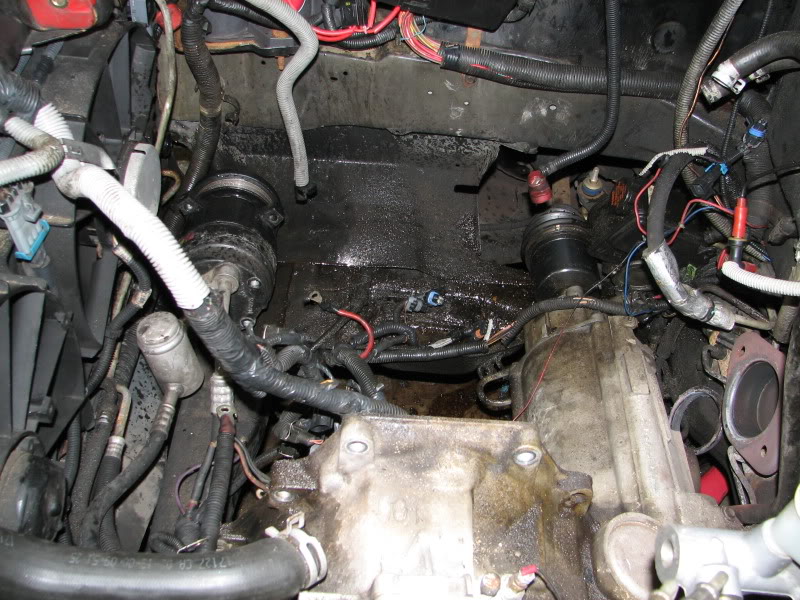

Something missing in there?
Name:  IMG_4906.jpg
Views: 0
Size:  100.9 KB

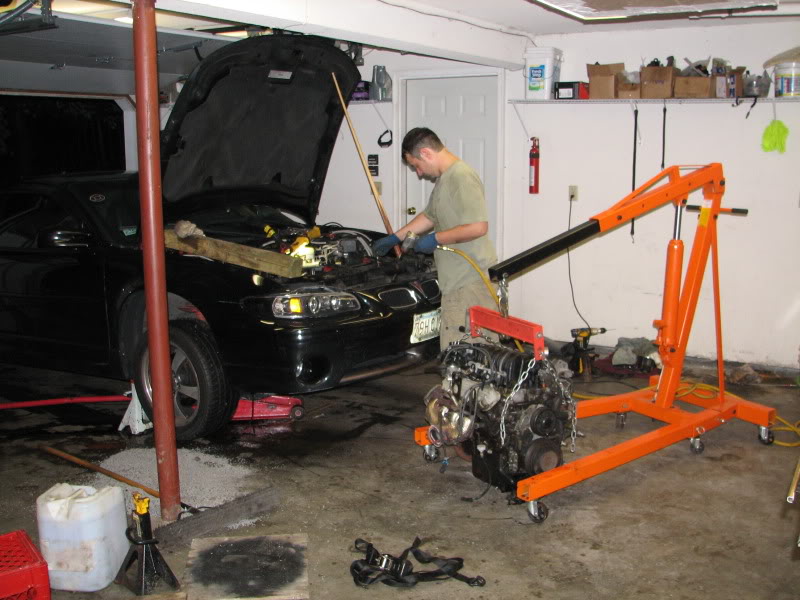

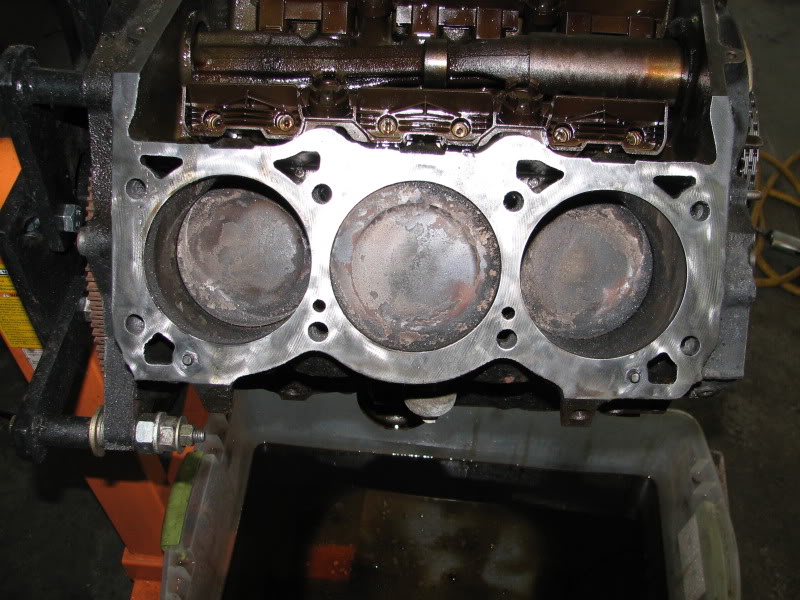

Saturday was try for the start up. Came close.
Name:  IMG_4920.jpg
Views: 0
Size:  114.0 KB

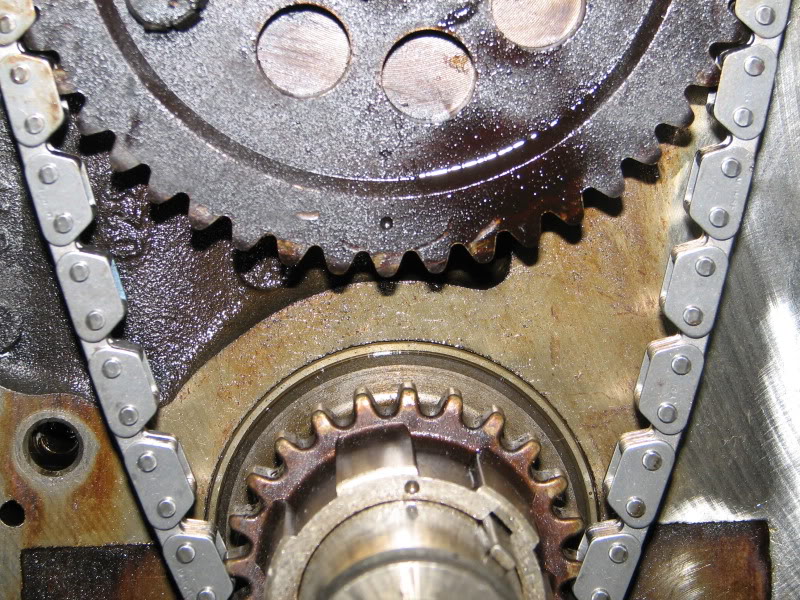

VIP: Very Important Picture
Name:  IMG_4917.jpg
Views: 0
Size:  187.7 KB

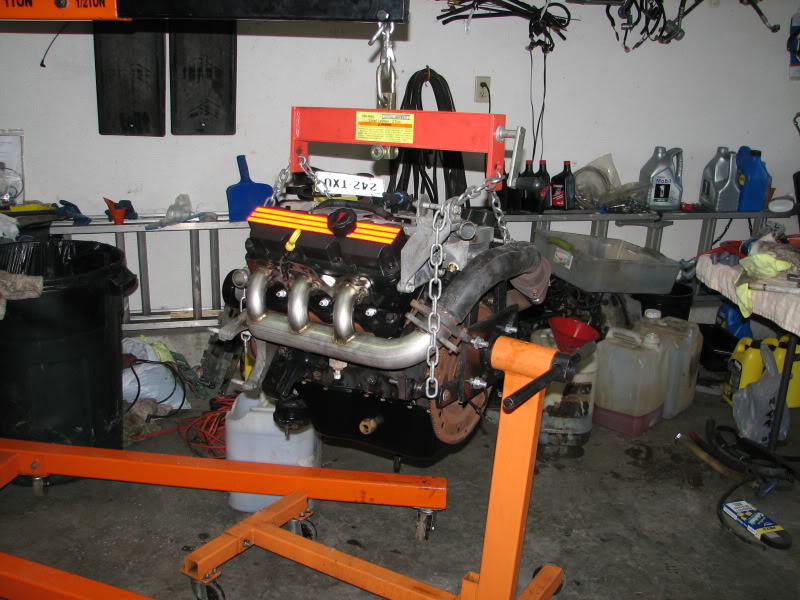

Ready to head back in
Name:  IMG_4928.jpg
Views: 0
Size:  109.2 KB
Ran into Sun with the last few things to hookup. All in all it was busy and good. Car started, ran like a champ and is now topswapped with 1.9 rockers, Plog, new oil pan (rusted), etc.
BillBoost37 is offline   Reply With Quote
Old 08-03-2009, 10:54 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Nice work Bill. Do I see a NA to SC write up coming?
Danthurs is offline   Reply With Quote
Old 08-03-2009, 11:24 AM   #3
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Looks like the 'villa Garage got a workout! OK n/a'*....., proof top swaps can happen and not blow yer **** up. LOL! Nice work and pics Boosty.

BTW, nice "ladder shelf"
GXP Venom is offline   Reply With Quote
Old 08-03-2009, 12:17 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

No write up with pics. A write up mabey, I'm swapped overall in life at the moment.

Basics the way Brian choose to go was tear the UIM, LIM and heads off. Supercharged heads, intake, SC, fuel rail, SC coil pack bracket and tensioner, SC idler pulley and a couple other little things.

We were hauling butt on this one. I had suggested he have the intercooler heat exchanger and pump mounted to the car and ready to go. Unfortunately when he arrived he had

Top swap parts, radiator, wiring harness and a bunch of other things. Literally once the motor and car seperated, I worked on the motor and he got the car. Things came back together Sat afternoon and started being hooked back up and figured out.

Overall it'* not hard and could have been done in the car. There were enough things that needed to be done that it worked out to be worthwhile pulling the motor.
BillBoost37 is offline   Reply With Quote
Old 08-03-2009, 12:34 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Don't forget the balancer pulley. How much tuning was needed?
Danthurs is offline   Reply With Quote
Old 08-03-2009, 01:22 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Being on the tight timeframe and him already doing some tuning (he has a DHP) I left the tuning to him. The swap itself took the weekend.
BillBoost37 is offline   Reply With Quote
Old 08-03-2009, 09:03 PM   #7
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Sounds like a fun little project. Bet the owner will notice more pickup in the car after its completely done.
yutzybrian is offline   Reply With Quote
Old 08-03-2009, 09:20 PM   #8
Senior Member
Posts like a Turbo

Y2KSTARSHIP's Avatar

Join Date: Feb 2009
Location: Belgium, Wisconsin
Posts: 204
Thanks: 0
Thanked 0 Times in 0 Posts
Y2KSTARSHIP is on a distinguished road
Default

Bill.
I your opinion, what should someone all have to do the swap? Do you favor a top-end vs. a whole motor swap? What about the trans/axles?
Y2KSTARSHIP is offline   Reply With Quote
Old 08-04-2009, 10:51 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

To do a topswap you are going to want to research it to death. Know the pros and cons. Know how to tune your car yourself.

To do this swap, we had (L67 is the engine code for the SC motor)
L67 Heads
L67 LIM
Modified Fuel Rail
L67 Injectors
L67 Coil pack bracket
L67 Tensioner
L67 Idler
L67 Harmonic Balancer
L67 Belt

A complete motor would only need to be dropped in, an SC wiring kit installed (2 wires), pcm updated for the correct file and fuel lines converted to the new locations.

On the transmission. Interesting tidbit, the 4T65E and 4T65E-HD is the same basic transmission with a few exceptions.
Gear ratio
Differential
Diff cover
Output shaft.
Passenger axle length

All these items can be swapped relatively easily except the gear ratio. And that is not overly necessary.
BillBoost37 is offline   Reply With Quote
Old 08-12-2009, 11:13 PM   #10
Senior Member
Posts like a Turbo

Bville_GXP's Avatar

Join Date: May 2009
Location: South Carolina
Posts: 248
Thanks: 0
Thanked 0 Times in 0 Posts
Bville_GXP is on a distinguished road
Default

Thats pretty cool!!!!!!!!! Sweet!!!
