Default Only the driver'* electric window and lock work

The electric window and lock work on the drivers door of my 05 bonneville GXP, but none of the others do.
I thought it was probably in the switches on the drivers side door panel , but upon checking the car with a scanner, all of the switches are working and signaling to the computer to actuate the appropriate electric motor. However , nothing happens when you hit those switches.

Has anyone else had this problem , if so were they able to get it corrected and how ?

Love the car , it'* holding up pretty well for it'* age.
Any and all replies appreciated, thank you .
cssorkinman is offline   Reply With Quote
Old 05-17-2016, 06:21 AM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

You most likely have water under the carpet, that has pooled under the driver'* seat and corrosion has creep-ed into areas where the electrical lines connect. What is required is to remove the drivers seat and cut back the carpet to get to these unassuming connections. If you don't want to cut the carpet the repair requires removing both front seats, console, and then removing the entire carpet. Do a search under my name and you will find pictures of the repair.
GunsOfNavarone is offline   Reply With Quote
The Following 2 Users Say Thank You to GunsOfNavarone For This Useful Post:
cssorkinman (05-18-2016), Soft Ride (05-18-2016)
Old 05-17-2016, 03:08 PM   #3
Junior Member
Posts like a V-Tak

Join Date: Apr 2016
Posts: 27
Thanks: 0
Thanked 3 Times in 3 Posts
peter123wallace is on a distinguished road
Default

Because it'* only one window that means that the solution is more complicated. If there were all of the windows most probably you could work something out under the dash. You need to follow the wiring to the switch. From there you can continue following the wire to the motor. Testing it with a 12v test light. I think it'* possible that you'll find a corroded connector interrupting the voltage to the motor. Good luck and get back to us.
peter123wallace is offline   Reply With Quote
The Following User Says Thank You to peter123wallace For This Useful Post:
cssorkinman (05-18-2016)
Old 05-17-2016, 10:57 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2010
Posts: 10
Thanked 0 Times in 0 Posts
cssorkinman is on a distinguished road
Default

Quote:
Originally Posted by GunsOfNavarone View Post
You most likely have water under the carpet, that has pooled under the driver'* seat and corrosion has creep-ed into areas where the electrical lines connect. What is required is to remove the drivers seat and cut back the carpet to get to these unassuming connections. If you don't want to cut the carpet the repair requires removing both front seats, console, and then removing the entire carpet. Do a search under my name and you will find pictures of the repair.
Thanks for the reply, much appreciated. It'* soaking wet under the carpet so I'm reasonably sure that If i can find the junction, that'* probably where the problem lies.

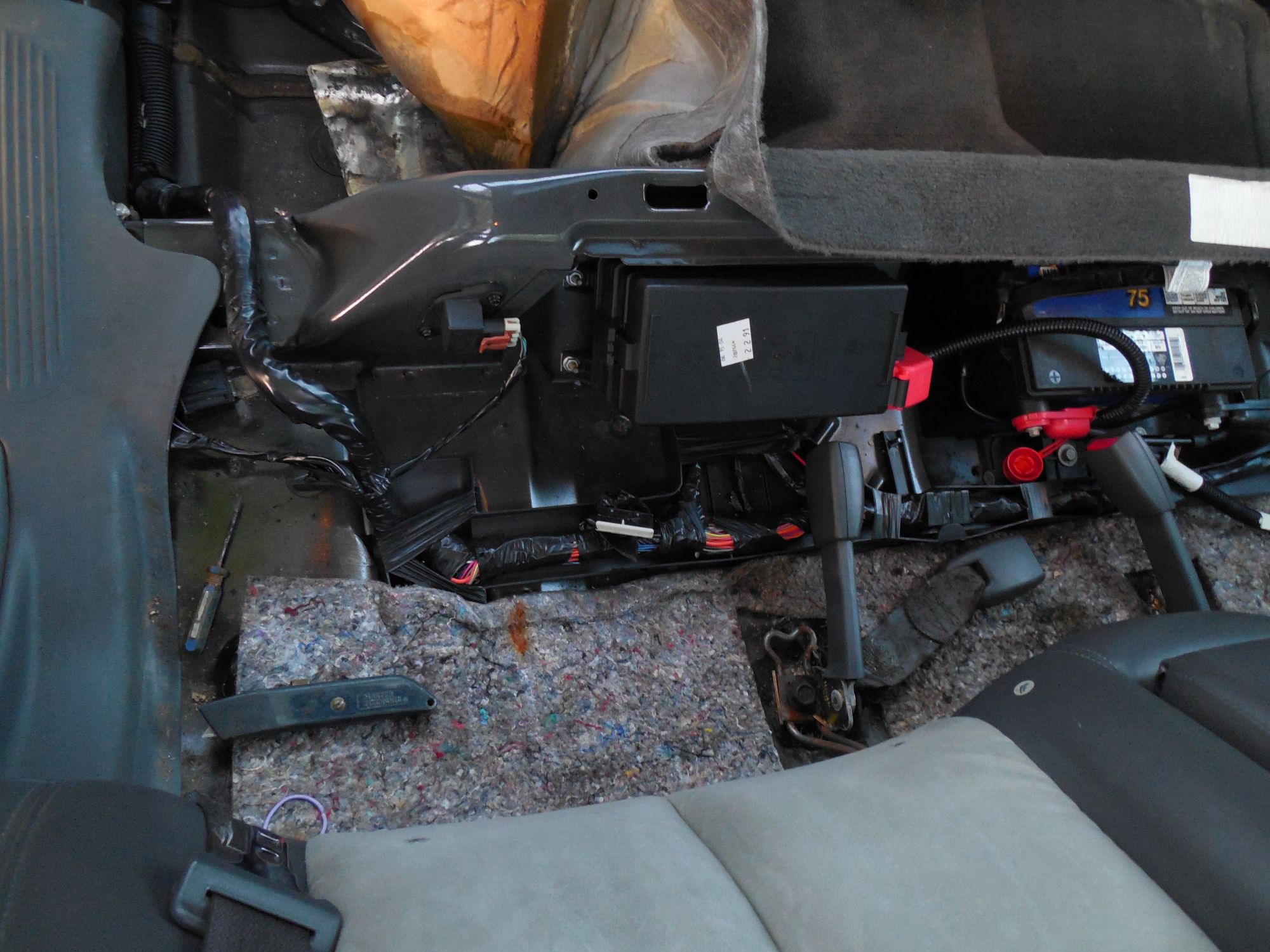

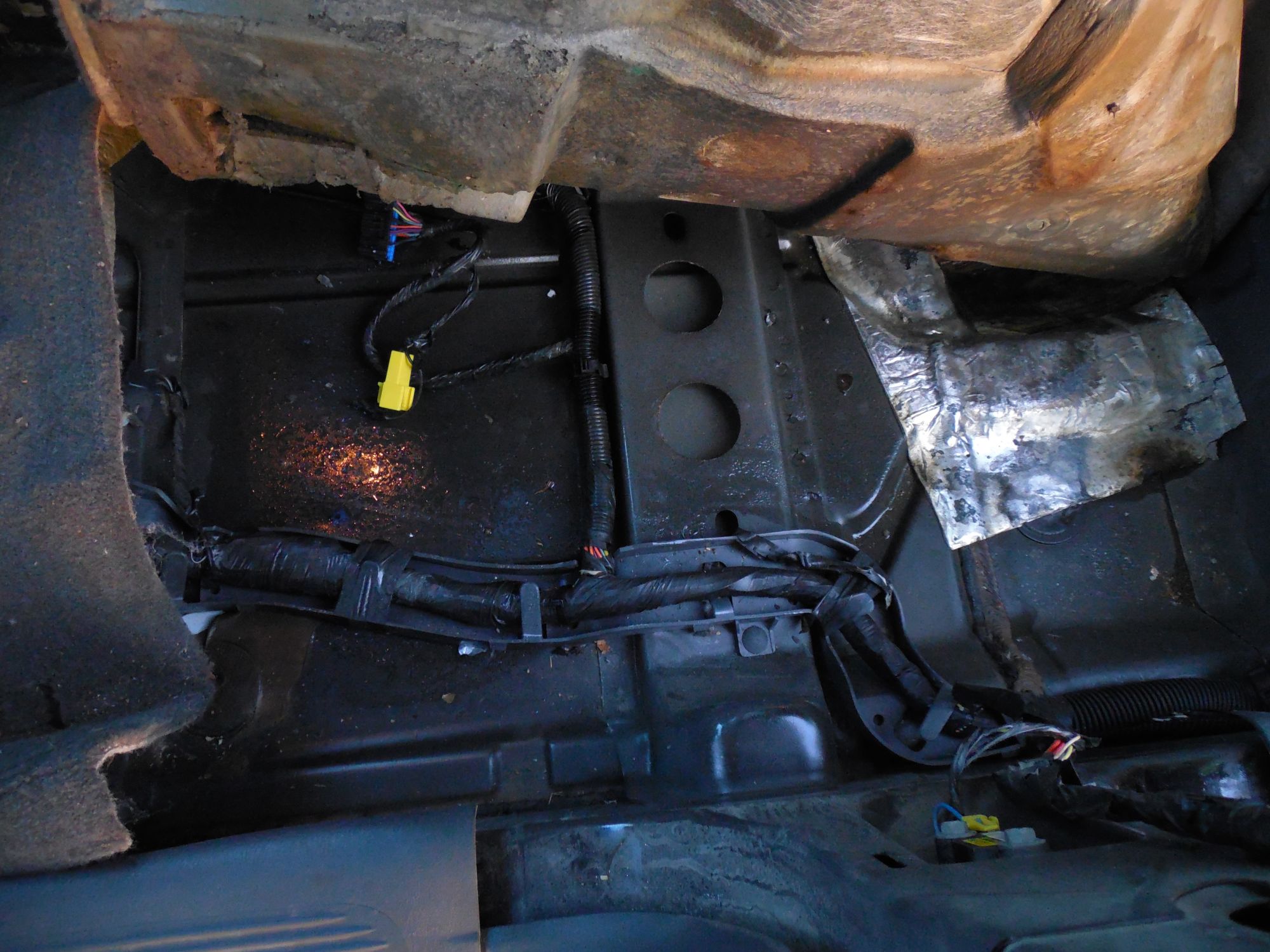

Any hints as to what I am looking for ? A plug? a bus bar? wire nut???? Heres a couple pictures of where I am so far.





carpics_003-large2.jpg Photo by cssorkinman | Photobucket
Attached Thumbnails
Only the driver's electric window and lock work-80-dscn0421_23b68b57f3144e85adc56d0a56c923d4a08b6821.jpg   Only the driver's electric window and lock work-80-dscn0422_c600e43a8e5c45019d638316679775e4af572b9c.jpg
cssorkinman is offline   Reply With Quote
Old 05-18-2016, 05:54 PM   #5
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,581
Thanked 335 Times in 298 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Probably a bus bar, they are wide & normally taped up well with black electrical tape along the side runners. Connectors need to be clean/rust free and dry.
A hair dryer and compressed air to connectors can go a long way to dry them out.
Electrical spray contact cleaner, may help too.
Soft Ride is offline   Reply With Quote
The Following User Says Thank You to Soft Ride For This Useful Post:
cssorkinman (05-18-2016)
Old 05-18-2016, 11:09 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2010
Posts: 10
Thanked 0 Times in 0 Posts
cssorkinman is on a distinguished road
Default

Quote:
Originally Posted by Soft Ride View Post
Probably a bus bar, they are wide & normally taped up well with black electrical tape along the side runners. Connectors need to be clean/rust free and dry.
A hair dryer and compressed air to connectors can go a long way to dry them out.
Electrical spray contact cleaner, may help too.
I didn't think about that, QD cleaner might be something I will try.
Thank you for the reply
cssorkinman is offline   Reply With Quote
