i disconnected the plugs at the front and back,didnt make a diff ...
vendo is offline   Reply With Quote
Old 01-23-2013, 09:49 AM   #22
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by vendo View Post
i disconnected the plugs at the front and back,didnt make a diff ...

Which plugs?
2kg4u is offline   Reply With Quote
Old 01-23-2013, 10:20 AM   #23
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

I'm with William, especially if it comes from several sources. Could be the battery ground to the body/chassis. Could be a ground wire fixed in the trunk. Could be the antenna ground itself.
GXP Venom is offline   Reply With Quote
Old 01-23-2013, 10:56 PM   #24
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Thanks: 0
Thanked 1 Time in 1 Post
vendo is on a distinguished road
Default

i meant the little plugs on the windows..they are the antenna conn right?
vendo is offline   Reply With Quote
Old 08-31-2013, 11:25 PM   #25
Junior Member

Join Date: Aug 2013
Location: Clearwater, BC
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Goldengirl is on a distinguished road
Default

I had that problem and found out the on the passenger side on the right of your legs under the plastic, there is a connection for the radio. Mine pulled out partially. Pushed it back in and the radio works great. My problem now is the Module ASM-RDO Ant Part #22618677.
Mine fried the wires for my defroster and the radio antenna goes through that Module also. The antenna is in the window grid. Would anyone know where I could get one, good used.GM wants $169.00 for this little box.
Goldengirl is offline   Reply With Quote
Old 09-01-2013, 04:27 AM   #26
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Gm parts online lists that part at $111. Search around for pricing on it.
You should buy the OE part though. When the ant/defogger module goes it is because often the wires melt going into module. I have heard going in with larger diameter wire is what is needed to stop a new one from frying. If it get used lots they wont last a year.
Mine is fried too and I used it only for short bursts and turned it off as quick as the window was cleared.
Soft Ride is offline   Reply With Quote
Old 09-01-2013, 10:17 AM   #27
Junior Member

Join Date: Aug 2013
Location: Clearwater, BC
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Goldengirl is on a distinguished road
Default

Thank you for your reply. So do I have to take heavier wire right from the defogger switch or would I splice it in where the two wire burnt going into the module. What gauge of wire would you think I would need? I will need to but the end that plugs into the module also,as that melted & burnt the module inside too. Any suggestions are appreciated.
Goldengirl is offline   Reply With Quote
Old 09-01-2013, 03:08 PM   #28
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

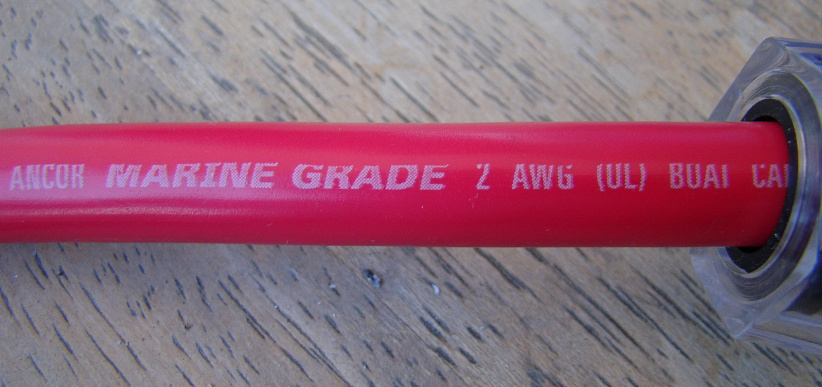

Just rewire /splice as close as you can going into the module with anything thicker than the oe wires. For this applications 16ga in an Ancor Marine grade would do it.
Tin Copper with better shielding wont fry like junk copper auto wires.
When I re-wired the high output alternator I was able to find on the spool Accor Marine grade at a local marine supply retail out let. I also use Ancor heat shink tubing that stuff is sticky and really will seal it.
Link about Ancor: Available in red & black.
Wire & Cable | Marinco
Quality Wires that you can count on !
Attached Thumbnails
Rear defogger causes static in radio.-ancormarinegradetincopperwire_zps061905c5.jpg
Soft Ride is offline   Reply With Quote
Old 09-02-2013, 11:19 AM   #29
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Thanks: 0
Thanked 1 Time in 1 Post
vendo is on a distinguished road
Default

funny thing is I had days where it was fine
vendo is offline   Reply With Quote
Old 11-27-2013, 03:57 PM   #30
Junior Member

Join Date: Aug 2013
Location: Clearwater, BC
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Goldengirl is on a distinguished road
Default

I am back asking question again on the rear defroster on a 2003 Olds Alero. I replaced the module and the wires to the module. I have a green light on the switch that turns on the defroster. I have replaced the fuse under the hood. I still can not get power to the grid. Any ideas out there. Stumped now.
2003 Olds Alero 2 door.
Goldengirl is offline   Reply With Quote
