Default rear defog won't work

fuse is good, replaced temp control, can hear a click behind glovebox. is there a relay there? 99 grand prix

Last edited by ike; 02-28-2014 at 11:29 PM.
ike is offline   Reply With Quote
Old 03-01-2014, 09:51 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

check the plug at the back for power, could be an open trace in it
jwfirebird is offline   Reply With Quote
Old 03-02-2014, 04:32 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I agree....Check for power AND ground at the grid on the rear window....
Tech II is offline   Reply With Quote
Old 04-05-2014, 05:49 PM   #4
ike
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2013
Posts: 12
Thanked 3 Times in 1 Post
ike is on a distinguished road
Default

where do I find the plug
ike is offline   Reply With Quote
Old 04-06-2014, 01:03 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Rear defogger has to be "on"....

You will have to remove the interior trims on both sides of the rear window......usually the passenger side is power in, and the driver'* side is the ground........attach your test light to both sides to see if you have power......if it doesn't light, attach light to the left side and and other end of light to a good ground.....if it lights, you have a bad ground on the other side.....some grounds have a black ground module, and I have seen the connectors coming out melted...

If it doesn't light, then you have to chase that circuit back to the control head.....more often than not, it'* a bad relay, or it can be a bad contact in a harness connection(for example, in C200), that has actually heated up and melted the plastic surrounding the connection....also check your rear defogger fuse....

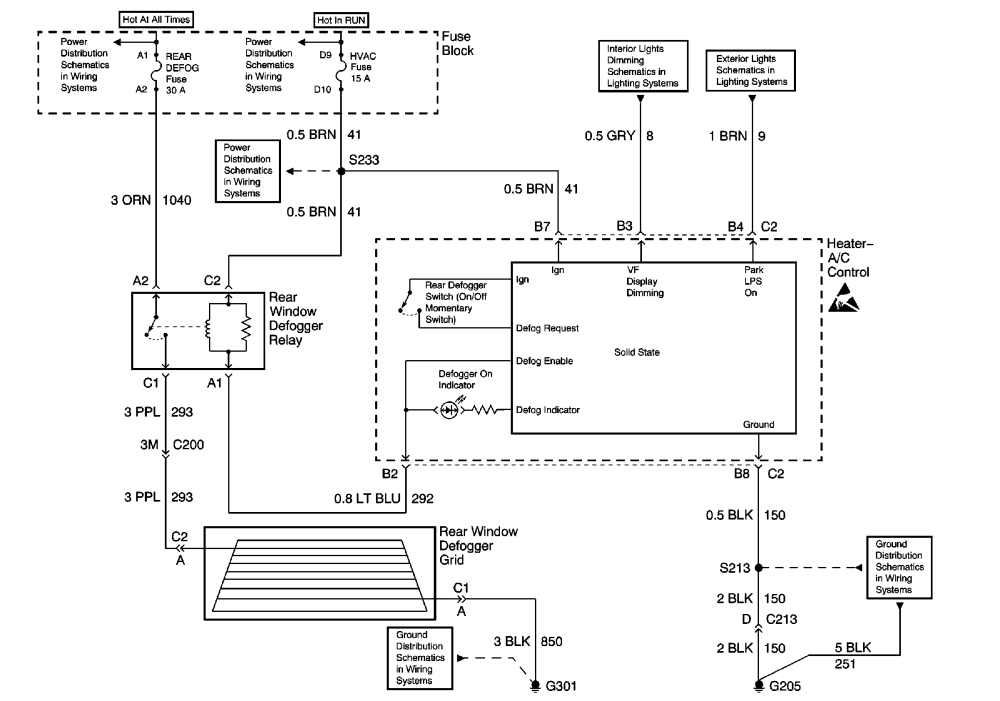

Attached Thumbnails
rear defog won't work-0996b43f80243672.gif
Tech II is offline   Reply With Quote
Old 04-06-2014, 10:52 PM   #6
ike
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2013
Posts: 12
Thanked 3 Times in 1 Post
ike is on a distinguished road
Default

thanks. will let you know what happens
