Default Help, Indicator Lights Won't go off

Hello, I am new on this fourm. Yesterday I had to install a new drivers side mirror on my 2000 Pontiac Bonneville. When I installed it I realized that the power mirror wasn't working. The mirror worked prior to changing it so I decided to check the fuses in the fuse box. All the fuses were good so I put everything back in where they were and started my car. Now my Traction, ABS & break light indicators on the dash are lit and will not go off. Also the tire gauge info is blank and just has lines where it would normally show the tire pressure amounts. Everything was working fine prior to pulling anything in the fuse box. I don't know if their is any system reset I have to do. Any information is greatly appreciated. Thank You
nyanks78 is offline   Reply With Quote
Old 02-25-2014, 12:19 AM   #2
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nyanks78 is on a distinguished road
Default

I also wanted to add that the fuse panel I checked was the one on the drivers side door and I only pulled the fuses. I did not pull any modules or anything like that. Thank again.
nyanks78 is offline   Reply With Quote
Old 02-25-2014, 07:52 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

sometimes the fuse sockets get loose anyway so messing with them probably made one loose contact. i would use a small screwdriver and carefully tighten the fuses you pulled out paying attention to there being voltage on all of those so dont go across two at once.


im trashing your other thread, we would rather you stick to one per question to alleviate confusion.
jwfirebird is offline   Reply With Quote
Old 02-25-2014, 10:20 AM   #4
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nyanks78 is on a distinguished road
Default

Thanks, I will look at that.
I also made a mistake, the fuse panel that I checked was on the passenger side Not the driver side. And to give a little more information. It was a boy for fuse that I pulled. Fuse # 5,6, 9 & 10. They were for the lo beam and hi beams. I was looking for the fuse for the mirror but didn't see anything in the Manuel. Thanks again. Any help is appreciated.
nyanks78 is offline   Reply With Quote
Old 02-25-2014, 12:11 PM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it comes from the driver door module, which is powered by the drvmdl fuse and power wdo circuit breaker, both are under the rear seat
jwfirebird is offline   Reply With Quote
Old 02-25-2014, 01:13 PM   #6
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nyanks78 is on a distinguished road
Default

That'* where the fuse for the mirror is? Thank you
nyanks78 is offline   Reply With Quote
Old 02-25-2014, 03:28 PM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the mirror is powered from the driver door module
jwfirebird is offline   Reply With Quote
Old 03-02-2014, 04:25 AM   #8
Junior Member
Thread Starter

Join Date: Feb 2014
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
nyanks78 is on a distinguished road
Default

Thank You
nyanks78 is offline   Reply With Quote
Old 03-02-2014, 04:23 PM   #9
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,147
Thanked 782 Times in 611 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

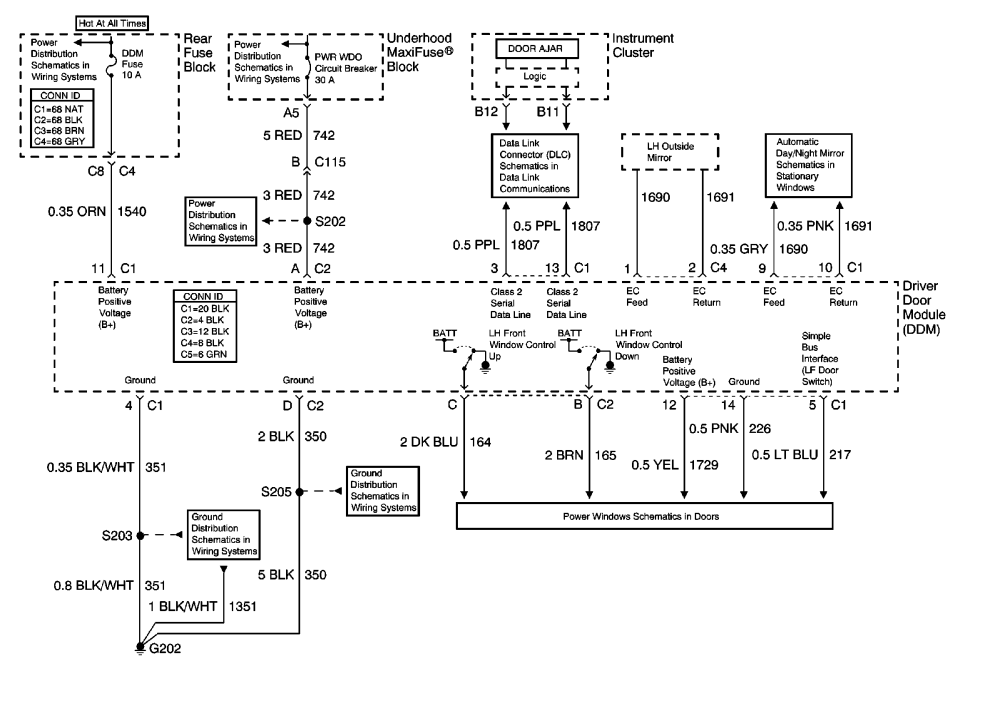

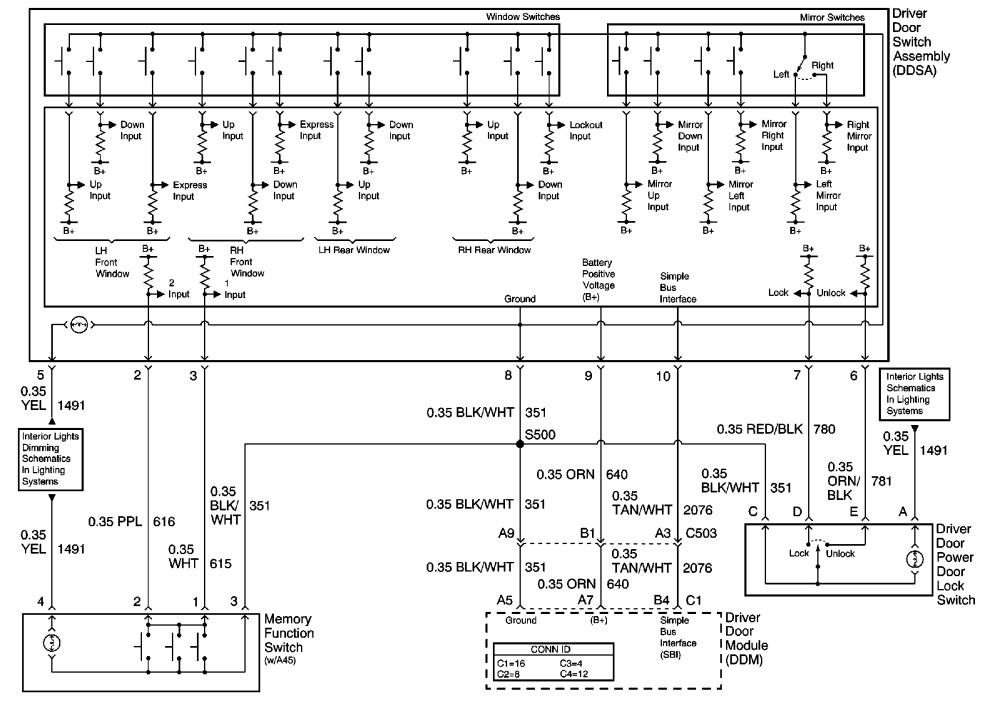

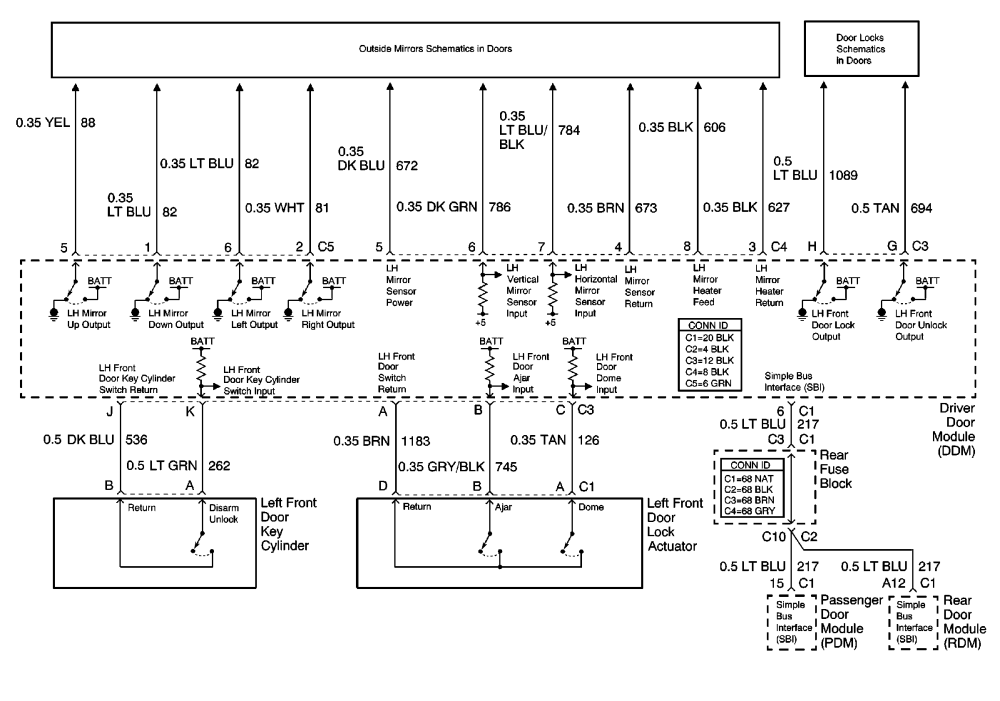

Does this help?





Attached Thumbnails
Help, Indicator Lights Won't go off-0996b43f80243ab4.gif   Help, Indicator Lights Won't go off-0996b43f802439f5.gif   Help, Indicator Lights Won't go off-0996b43f80243ab3.gif
