Default engine fire

Hi all,

I had the injectors pulled to clean them and my son cranked the engine and we had a small engine fire.

Looks like the wires to the injector are toast as well as the "vacuum tower?". The intake manifold has burns all over it but I think it'* still usable.

What is the "vacuum tower" called?

Anything else I should look for before trying to salvage this?

I also heard that the series 3 intake manifold bolts right on to the series 1 and is all metal. Can someone confirm this?

Thanks
ggenovez is offline   Reply With Quote
Old 07-21-2015, 04:27 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Series 3 parts are far different than Series 1. Series 3 will fit Series 2. Not 1.

Take a pic of this so called "vacuum tower".
Mike is offline   Reply With Quote
Old 07-21-2015, 04:46 PM   #3
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Attached Thumbnails

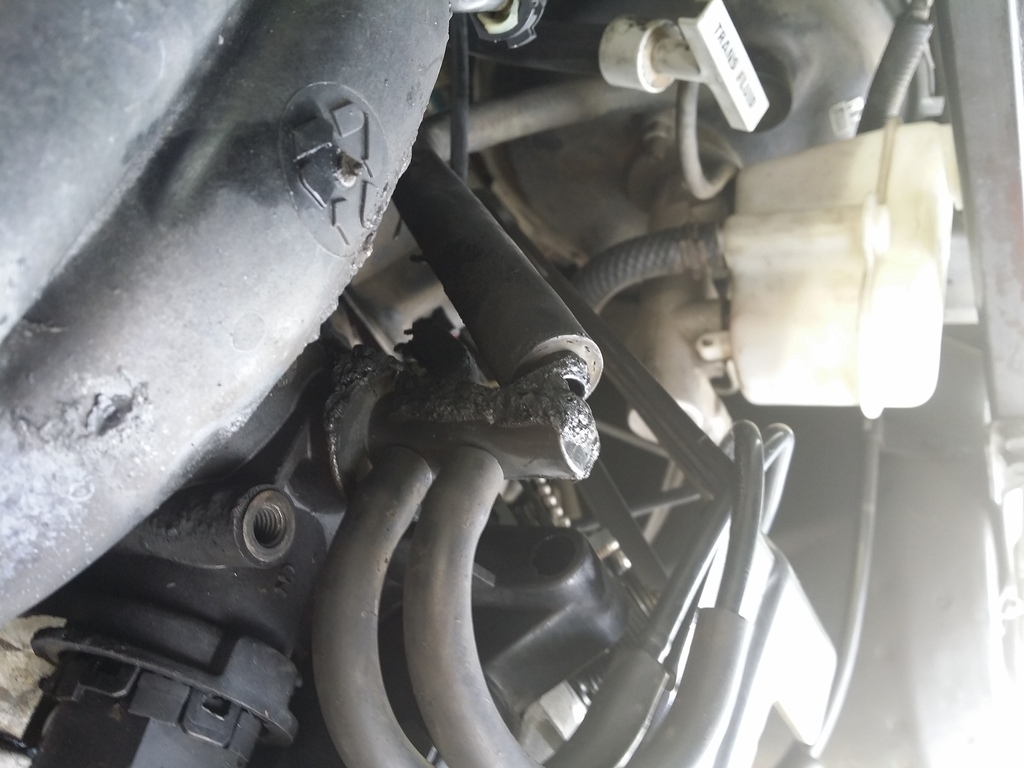

engine fire-20150721_144252.jpg
ggenovez is offline   Reply With Quote
Old 07-21-2015, 04:47 PM   #4
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Its on the uim
ggenovez is offline   Reply With Quote
Old 07-21-2015, 06:37 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Looks like a vacuum T. More than likely, dealer only.
Mike is offline   Reply With Quote
Old 07-21-2015, 09:13 PM   #6
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

The 92 Bonneville should have an aluminum UIM as it is. What year is this engine from? How many miles on it, and has the LIM gaskets or UIM been replaced at all?
rjolly87 is offline   Reply With Quote
Old 07-21-2015, 10:44 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Hey Randall,

No it does not. I just finished replacing the UIM and LIM gasket last winter. 180K No idea if it came from something else.

I replaced the UIM as well since it was leaking. Had to order a plastic one from doorman. my understanding was they made a different one for 92 than the other years.
ggenovez is offline   Reply With Quote
Old 07-21-2015, 11:41 PM   #8
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Quote:
Originally Posted by ggenovez View Post
Hey Randall,

No it does not. I just finished replacing the UIM and LIM gasket last winter. 180K No idea if it came from something else.

I replaced the UIM as well since it was leaking. Had to order a plastic one from doorman. my understanding was they made a different one for 92 than the other years.
You are absolutely correct, the 1992 UIM was different from other years, in that it was aluminium, and had no EGR passage. I believe all 91-92 L27 applications were like this. The 93-95 L27 applications received the plastic UIM (like yours), and had an EGR system as well.

Another concern to look at is see if it (vacuum distribution manifold maybe?) is to confirm it is the same as the GM unit. I seem to remember some issue with mine, like the old one didn't fit right so I had to use the new one when I replaced the UIM, which if that is the case, you will need to get one from Dorman, and not GM.

It may be time for a salvage yard trip, because it would also let you get replacement fuel injector harnesses, fuel lines, etc.

I don't know how hot it got under there, but my gut keeps nagging to urge replacement of the UIM. I wouldn't want it to crumble on you and make little plastic manifold bits get ingested, or anything else that may arise.
