Hey guys,
Does anybody have a electrical diagram for a 97 bonne with auto air. My blower motor had run intermitent for awhile and now stopped. Its not the motor, jumped, it runs all day. I have 1.8v going to the motor and with the weird looking resistor pack unplugged( both connectors) it drops to 1.3 v. The blower is located in the middle of firewall and the resistor pack is under the relays under the hood..I dont think I should have any voltage going to the blower with things unplugged? I also checked the voltages going to the resistor thing. The red wire is all by itself I plugged my red lead into that from my ohm meter and checked the other connector with the black lead. I dont remember the color of the wires but got 12v on one, 10v on another and 0v on the last one..Thanks
deder_2 is offline   Reply With Quote
Old 09-15-2012, 08:55 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

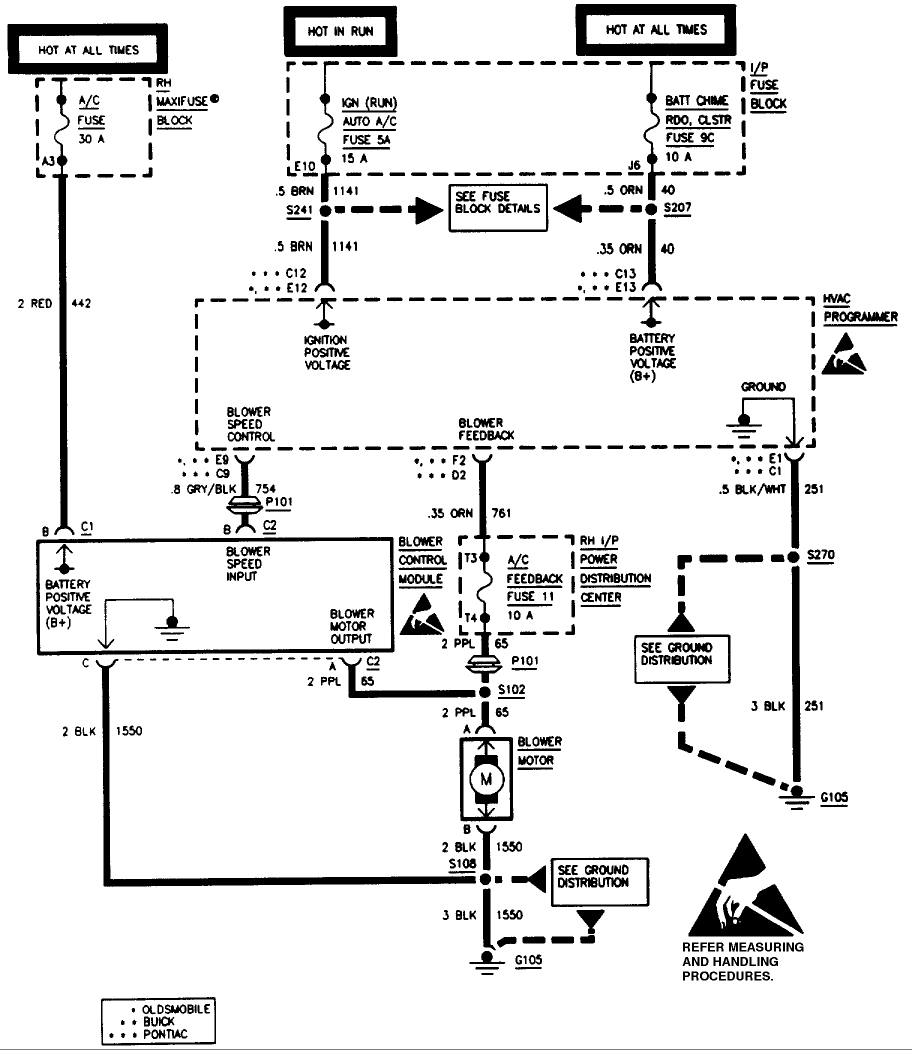

I think you may have a bad blower motor resistor. But here is the schematic that you requested...
Attached Thumbnails
97 bonne blower issue-62542529.gif
Mike is offline   Reply With Quote
Old 09-15-2012, 04:05 PM   #3
Junior Member
Posts like a V-Tak

Join Date: Sep 2012
Posts: 28
Thanks: 0
Thanked 0 Times in 0 Posts
04goat is on a distinguished road
Default

yep the resistor goe'* out quite often. Replace and it should be good
04goat is offline   Reply With Quote
Old 09-15-2012, 04:34 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2012
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
deder_2 is on a distinguished road
Default

Thanks for the help guys. Looked at the schematic and now see why I have 1.3 volts with everything unplugged. Theres a feed back curcuit..Went to the junk yard and pulled one out of a buick ultra. Looked smaller but everything else was the same. Installed it and now have a fan. Thanks again..
