Default 04 Grand Am fuel pump won't turn on.

04 Grand Am gt. 150k miles. V6.
Recently replaced front struts then on my test drive I was having fun and floored the accelerator. Few minutes later the engine started to bog down and finally stalled. It will crank but won't start. The fuel pump relay is good as well as the fuel pump fuse from the under hood fuse box. Engine will start after a shot of ether but dies after a few seconds. I pressed the Schrader valve on the fuel rail and no fuel came out. When I first turn the key to "on" the security light and check engine light comes on. After a failed start, the security light goes out but the check engine light remains on. My OBD mx blue tooth link says there are no stored codes. I also do not hear the hum of the fuel pump. Replaced the fuel filter. I've read about possible security or bcm issues. I'm looking for guidance to assure me that it'* the fuel pump before I drop the tank - which happens to be full. How do I test to see that the fuel pump is getting power?
mpeters3 is offline   Reply With Quote
Old 03-28-2014, 04:21 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Find the harness at the tank and find out which pin is +, attach a test light or multi-meter and have someone turn the key on.
Mike is offline   Reply With Quote
Old 03-28-2014, 08:05 PM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

it only stays on for a few seconds so you have to do as mike said while you are watching it
jwfirebird is offline   Reply With Quote
Old 03-28-2014, 11:10 PM   #4
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Bang on the fuel tank while cranking, good possibility fuel pump is the problem. You sure there is fuel in the tank? Check you circuits as mentioned.
chevy82 is offline   Reply With Quote
Old 03-29-2014, 03:24 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

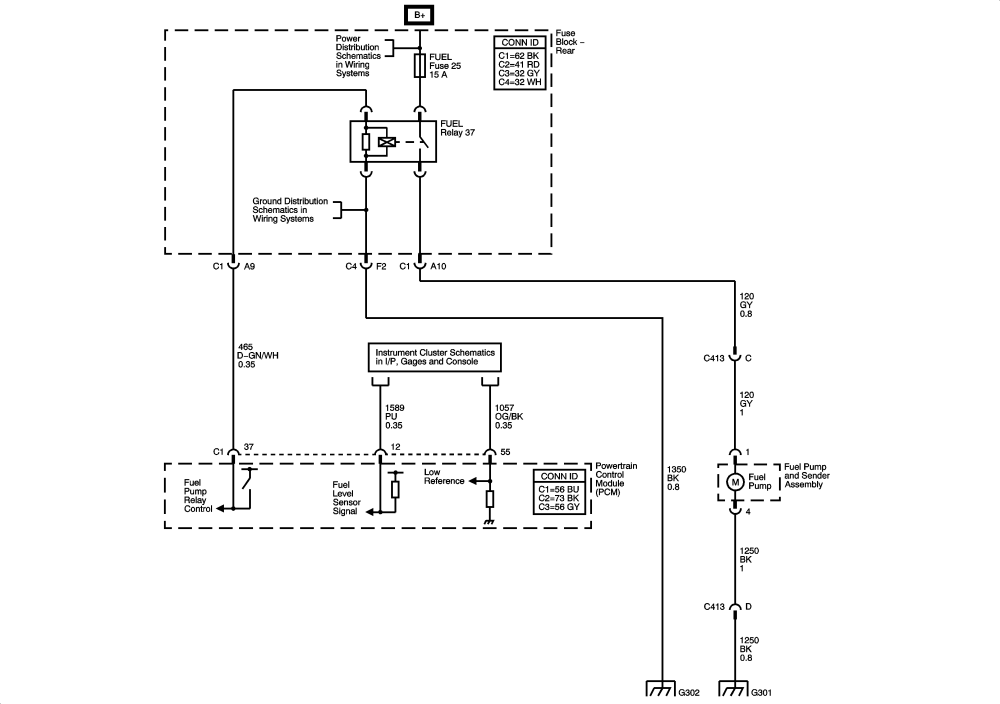

Disconnect the harness to the tank....attach a test light to the fuel pump circuits, black and grey wires, at the C and D connectors of the harness....

Turn key to "on"......test light shines for 2 seconds and goes out....now have someone crank the vehicle......light will be on, as long as you crank......if it does this you need a pump....

Attached Thumbnails
04 Grand Am fuel pump won't turn on.-0996b43f80241d1a.gif
Tech II is offline   Reply With Quote
Old 04-05-2014, 11:50 AM   #6
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Iowa
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
mpeters3 is on a distinguished road
Default

I wasn't able to test it since I didn't have a helper. I replaced the fuel pump and it works fine now. Thanks guys for your help!
