Old 04-27-2007, 09:36 AM   #481
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Ever consider getting a newer PCM/harness and custom tuning the mess. That way you'd have good data logging, and full control to custom tune?

BTW..you are welcome and now we are both at page 25.
BillBoost37 is offline   Reply With Quote
Old 04-27-2007, 09:45 AM   #482
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

A new PCM and harness would be a nightmare. The only issues I've changed are with regards to flow/fueling. The wideband O2 will give me the numbers I need, and I can have a custom PCM burned from a couple different sources for very little investment.
willwren is offline   Reply With Quote
Old 04-28-2007, 05:59 PM   #483
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
chadow427 is on a distinguished road
Default

Off topic jaunt, but how do you texture fiberglass?
chadow427 is offline   Reply With Quote
Old 04-28-2007, 07:05 PM   #484
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll have pics up shortly. I'll post them here, as it is somewhat related to the build/gauge package I chose. Last coat of color just went on the pillar.

EDIT:

Here they are. Please note that this was done due to cracks and chipping in the original that started before last season. Fiberglass repairs are not shown (first pic shows the bondo/smoothing process after fiberglass/roughing in):

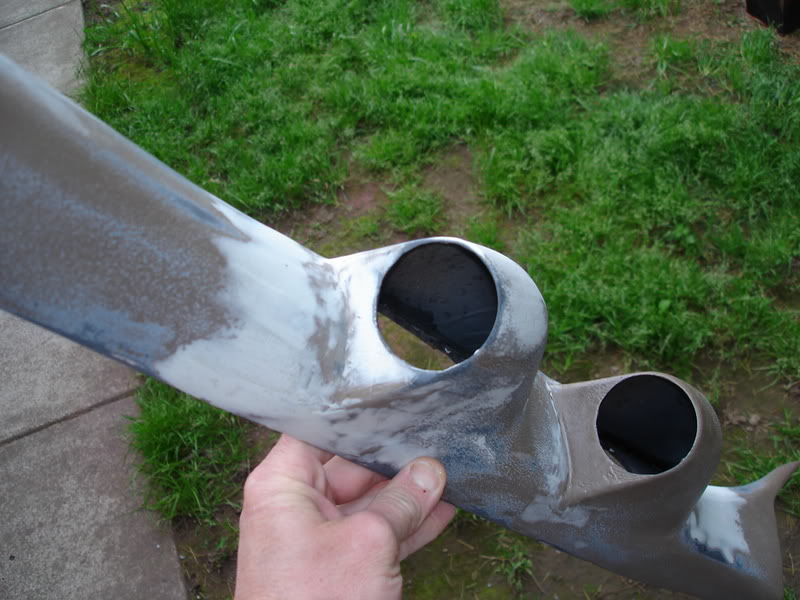

Name:  DSC03972-1.jpg
Views: 0
Size:  83.8 KB

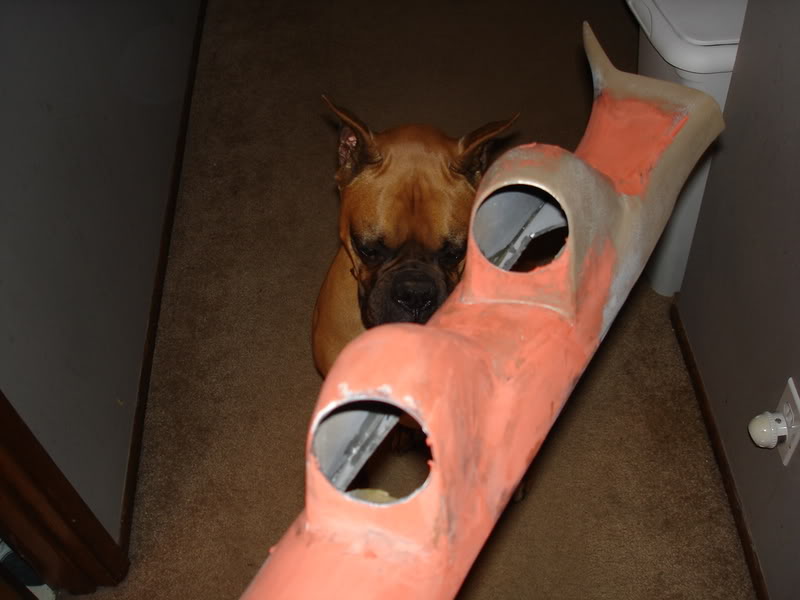

Name:  DSC03973-1.jpg
Views: 0
Size:  50.0 KB

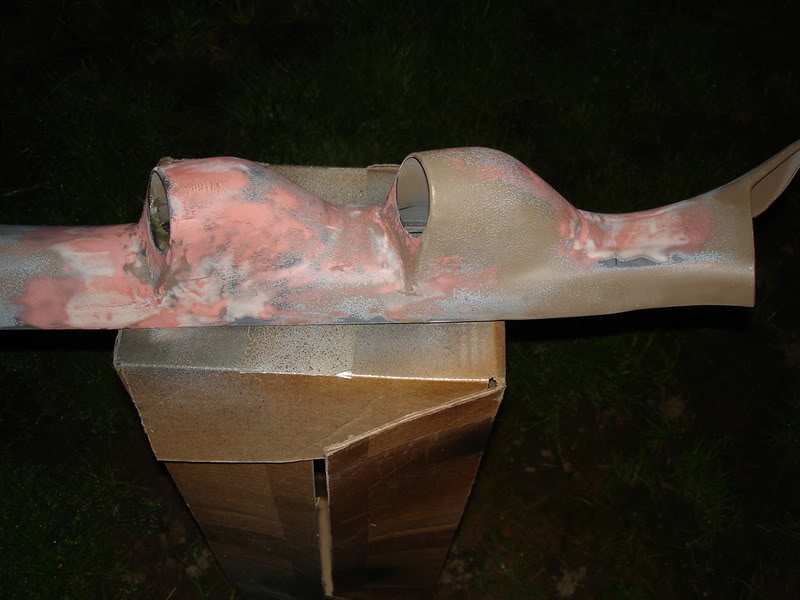

Name:  DSC03974.jpg
Views: 0
Size:  57.6 KB

Name:  DSC03975.jpg
Views: 1
Size:  102.4 KB

Name:  DSC03976.jpg
Views: 1
Size:  161.9 KB

Name:  DSC03977.jpg
Views: 0
Size:  151.8 KB

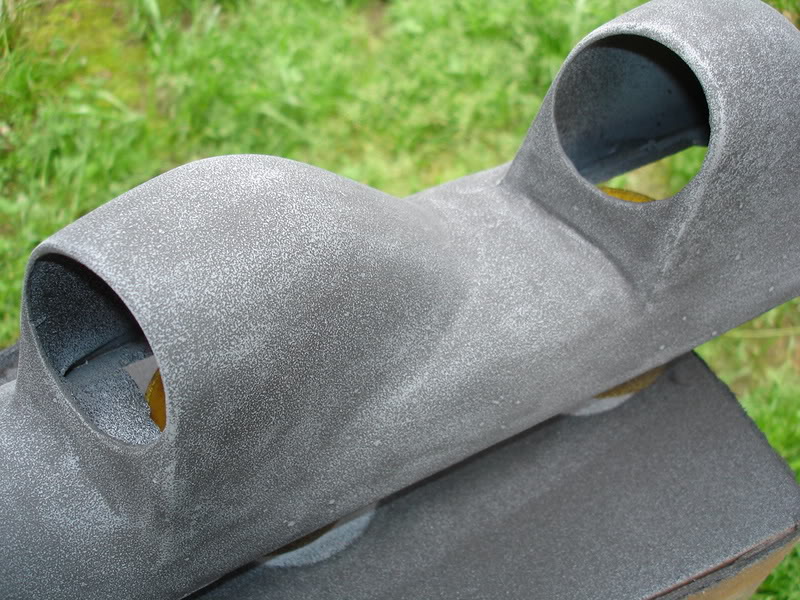

Name:  DSC03978.jpg
Views: 1
Size:  125.9 KB

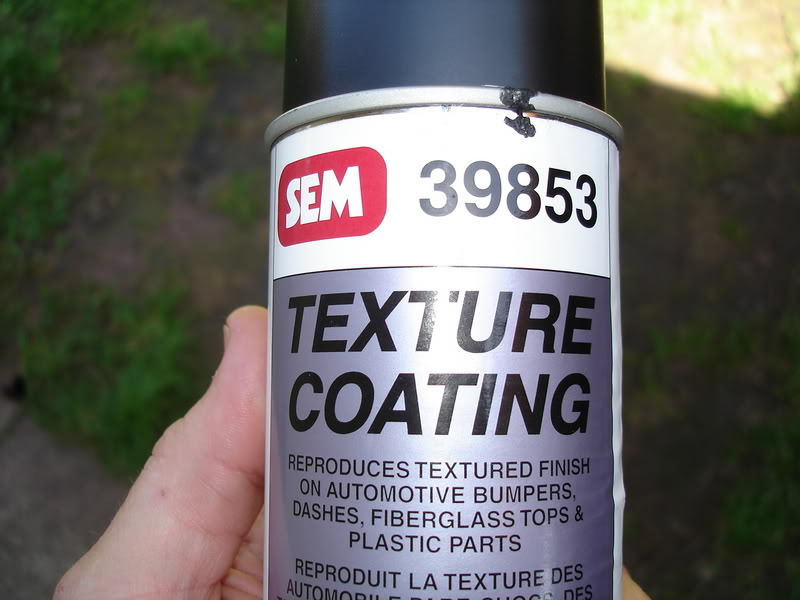

Name:  DSC03981.jpg
Views: 1
Size:  66.7 KB

Name:  DSC03979.jpg
Views: 1
Size:  117.7 KB

Name:  DSC03980.jpg
Views: 0
Size:  93.2 KB

Name:  DSC03982.jpg
Views: 0
Size:  92.9 KB

A few steps were not pictured. Basically fix the issues with fiberglass, blend and smooth with Bondo, fix the little leftovers and smooth all factory texture with glazing putty, prime, texture, lightly sand the texture to knock it down to where you want it, and paint. This will closely match the existing factory texture in the car, and cut down on glare.
willwren is offline   Reply With Quote
Old 04-28-2007, 08:13 PM   #485
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Looks killer Bill, but one thing....... it'* too dark -I'll let you know if it needs to be repainted once it arrives here in MN for installation on one of the many 97-99'* around here with the lighter tan (Seth, Travis, Mark, Maria, John, me and a few others).
OLBlueEyesBonne is offline   Reply With Quote
Old 04-28-2007, 10:02 PM   #486
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

There'* a mod here wondering how these last couple posts are performance related.

I told him to chill

He'* got a point though

(He'* a bud drinker btw)
BillBoost37 is offline   Reply With Quote
Old 04-28-2007, 11:04 PM   #487
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Tell TFC to STFU.

It'* performance related as the whole package.....gauges are installed (new gauges). Pics up shortly.

Shortly is here:



As you can see, the battery is low from working on the wiring, and the trans temp is in configuration mode for the warning levels. Trans temp has hi-lo memory, and is configurable for pre-warning and drop-dead warning levels. Boost/vac gauge is too, but that needs some other work before it and the wideband O2 gauges can be installed.
willwren is offline   Reply With Quote
Old 04-28-2007, 11:46 PM   #488
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Looks good Bill whats that to the left of the trans temp gauge?
PontiacDad is offline   Reply With Quote
Old 04-29-2007, 12:03 AM   #489
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* the switch for the hi-lo memory recall.
willwren is offline   Reply With Quote
Old 04-29-2007, 09:31 AM   #490
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Sweet! It looks awesome!
CFoote is offline   Reply With Quote
