Old 10-09-2006, 07:53 PM   #11
Senior Member
Posts like a 4 Banger

Join Date: Aug 2006
Location: Alexandria VA
Posts: 106
Thanks: 0
Thanked 0 Times in 0 Posts
MPsulamon is on a distinguished road
Default

Dont forget a 12 pack and some good company!
MPsulamon is offline   Reply With Quote
Old 10-09-2006, 09:43 PM   #12
Senior Member
Posts like a Turbo

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

I will be there through most of the process (hey it is my camera!). He was set back a bit because the car he was going to be using while the Riviera is in pieces was delayed and hasn't recieved all the gasketts. Oldsman needs to have a daily driver because of work and other things.
Buickman104 is offline   Reply With Quote
Old 11-03-2006, 01:37 AM   #13
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Ok folks time for the updates.

Pulled off the supercharger and LIM.

Name:  DSCF0001-5.jpg
Views: 0
Size:  48.2 KB

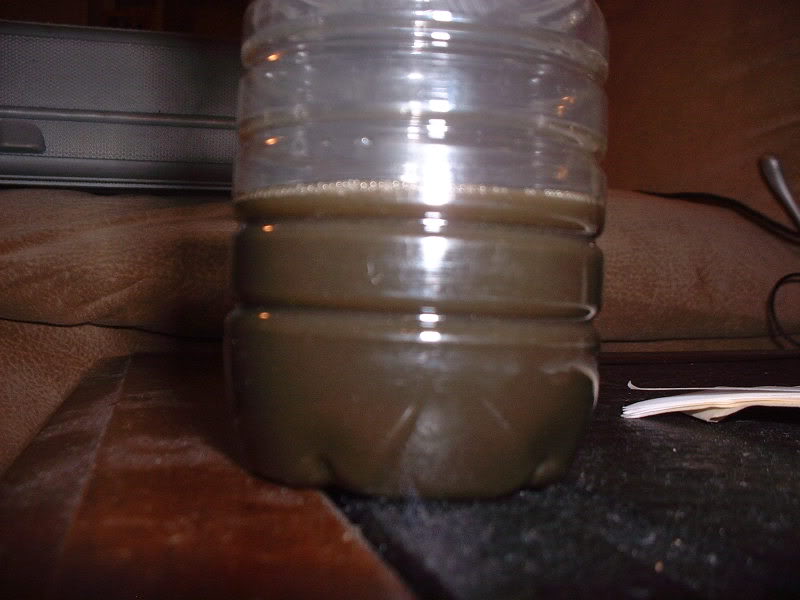

This is the SC oil after 3000 miles . I didn't clean it well the first time but now I did

Name:  DSCF0006-5.jpg
Views: 0
Size:  85.2 KB
Name:  DSCF0008-6.jpg
Views: 0
Size:  77.7 KB
Name:  DSCF0009-6.jpg
Views: 0
Size:  46.0 KB

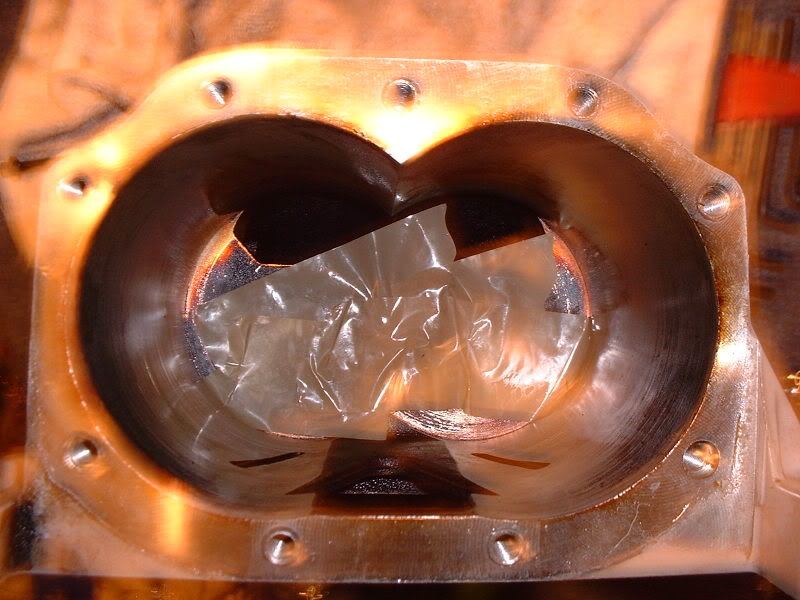

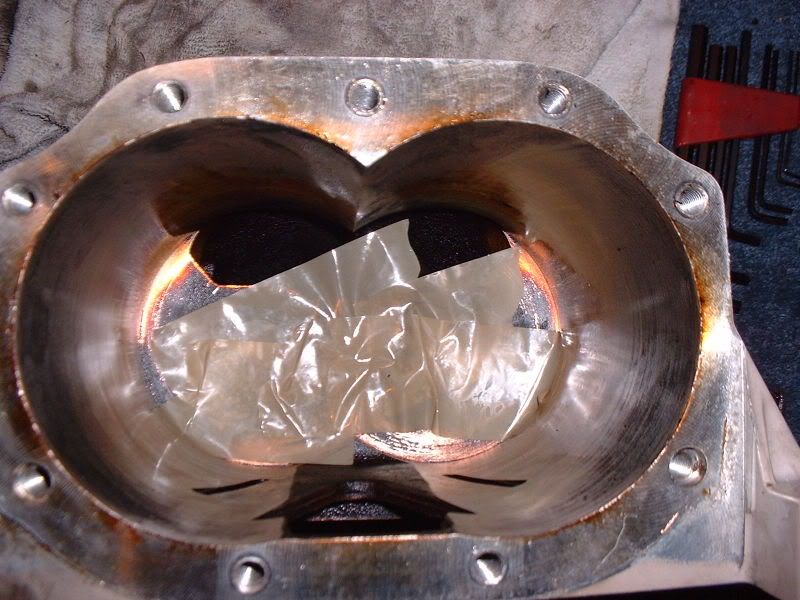

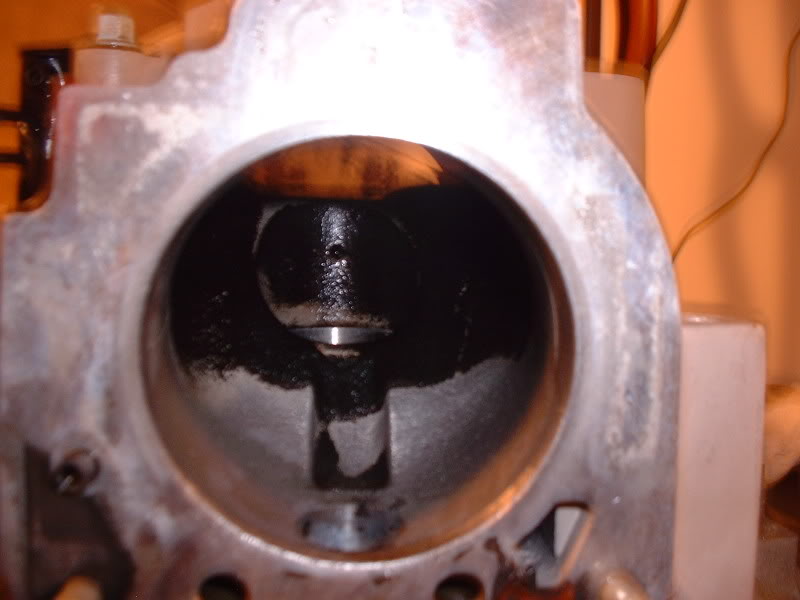

Shots of the SC casing before porting. The I still haven't gotten all carbon out of it using 2 cans of carb cleaner and a bottle of castrol super clean.

Name:  DSCF0010-5.jpg
Views: 0
Size:  39.8 KB
Name:  DSCF0011-6.jpg
Views: 0
Size:  36.8 KB
Name:  DSCF0012-5.jpg
Views: 0
Size:  37.9 KB

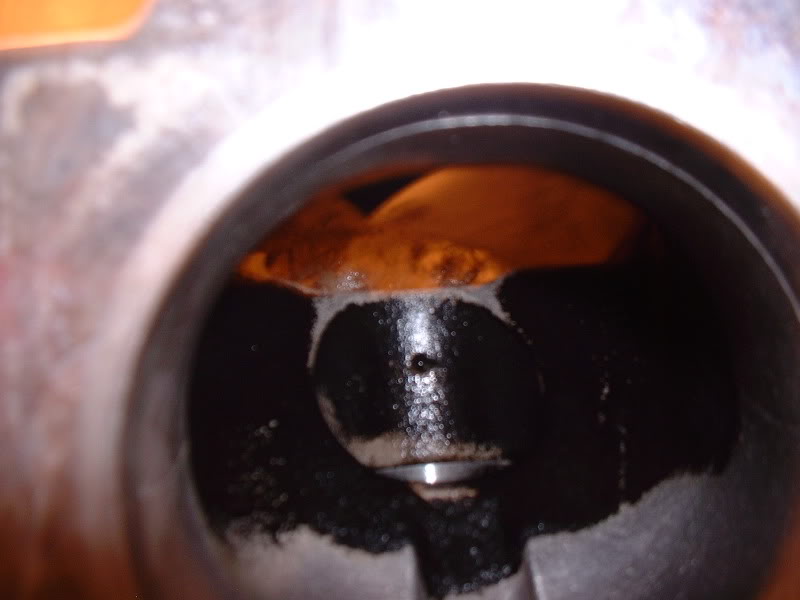

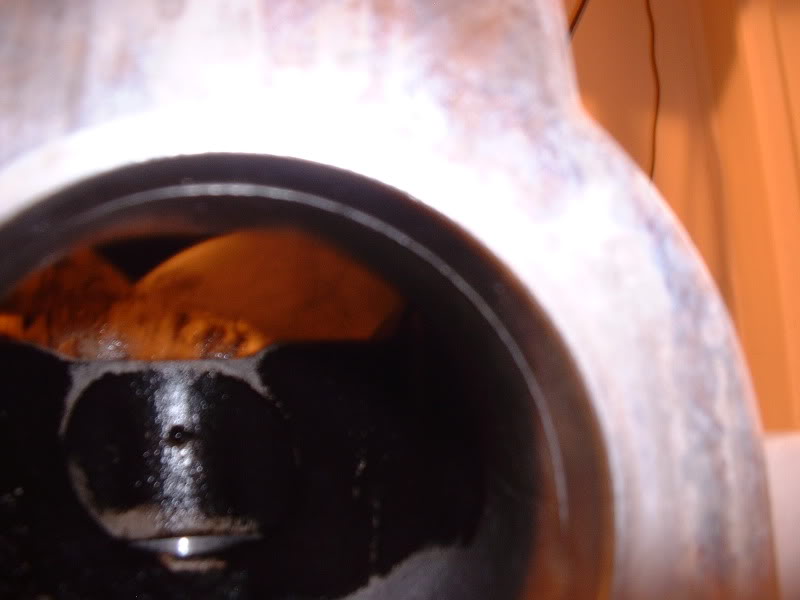

There was a imperfection on the inlet like Harofreaks M90 but mine isn't as severe.that will get smoothed out soon.

Name:  DSCF0014-4.jpg
Views: 0
Size:  54.3 KB
Name:  DSCF0015-4.jpg
Views: 0
Size:  47.1 KB

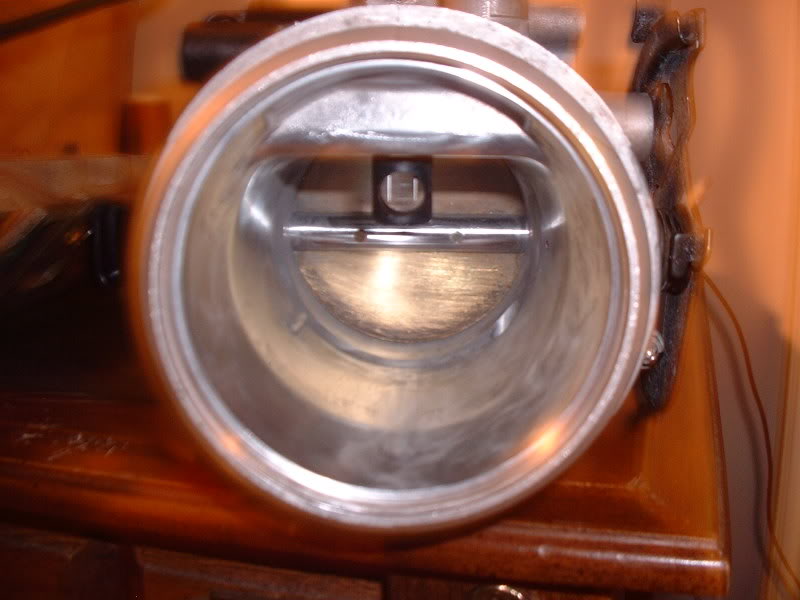

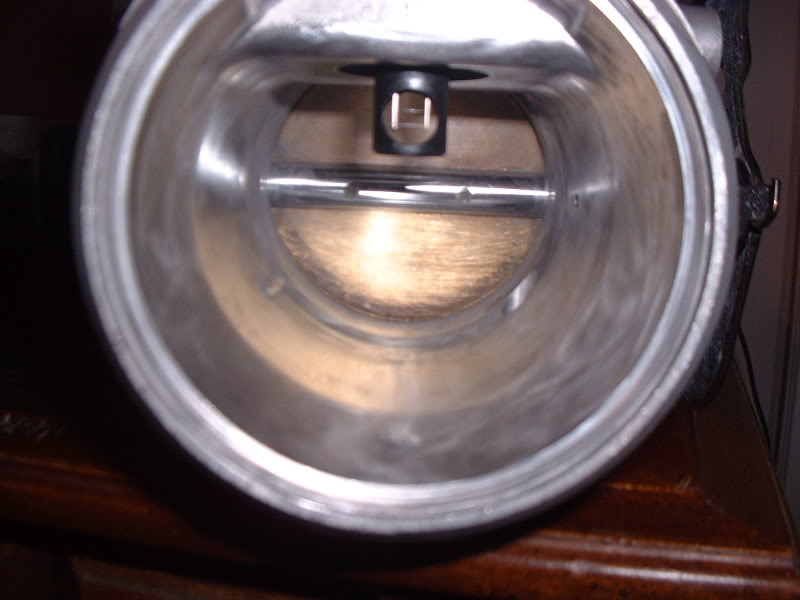

The throttle body came out well. I am very pleased with it. I still have the 96 throttle body if the PCM doesn't like the polished 99 TB.

Name:  DSCF0002-5.jpg
Views: 0
Size:  54.7 KB
Name:  DSCF0003-5.jpg
Views: 0
Size:  60.8 KB
Name:  DSCF0005-5.jpg
Views: 0
Size:  46.3 KB

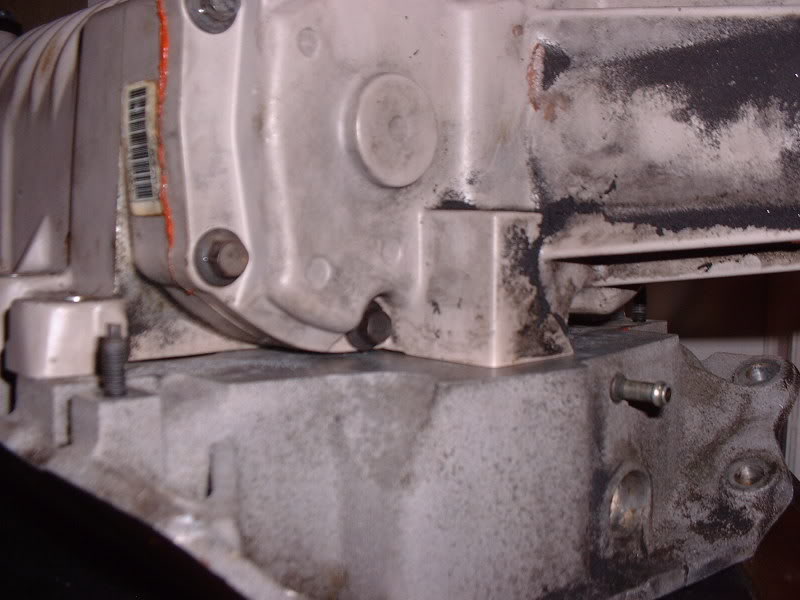

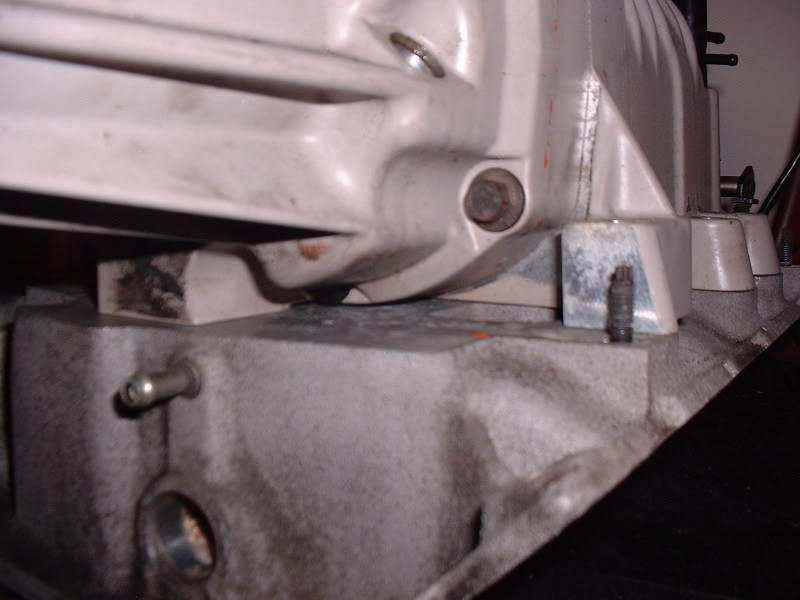

I took some pictures of the SC and the LIM because I want to add a drain to the SC and I thought these would help others as well to plan the drain.

Name:  drain.jpg
Views: 0
Size:  1.37 MB

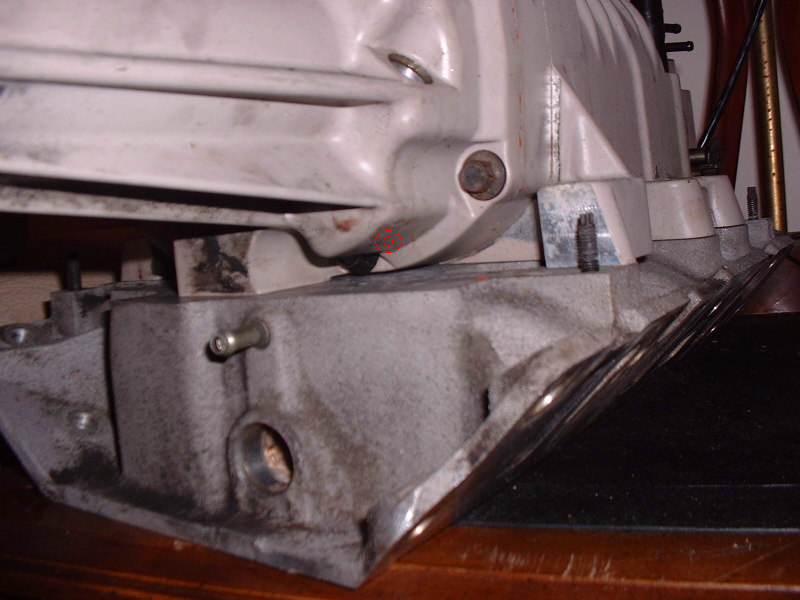

This is where I am thinking to add the drain.

I am getting a wbody store ported LIM so that I have the option of a intercooler in the future I will add more tommarow and during the next week.

Engage.
OLDsman105 is offline   Reply With Quote
Old 11-09-2006, 02:52 AM   #14
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

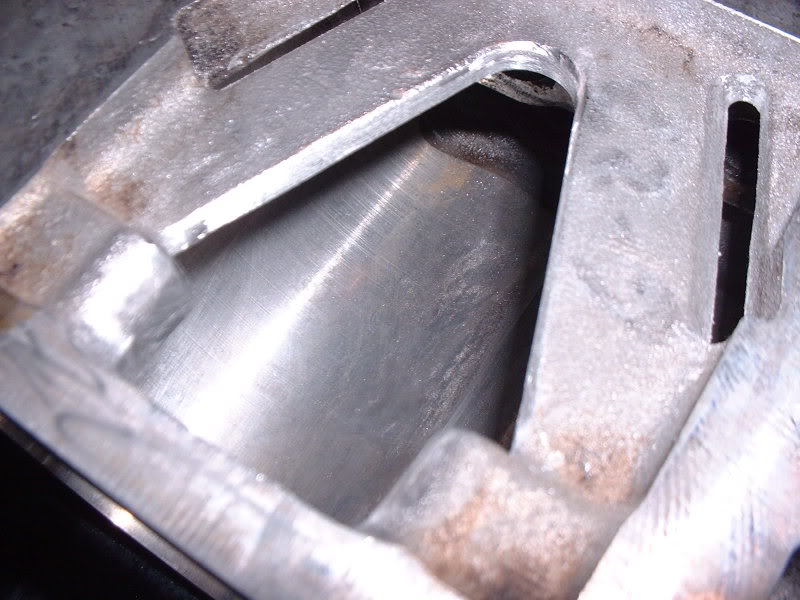

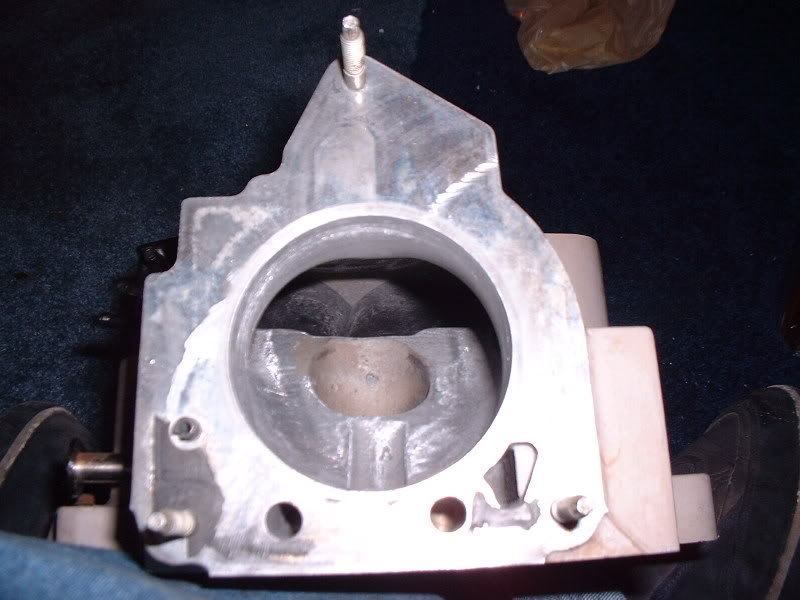

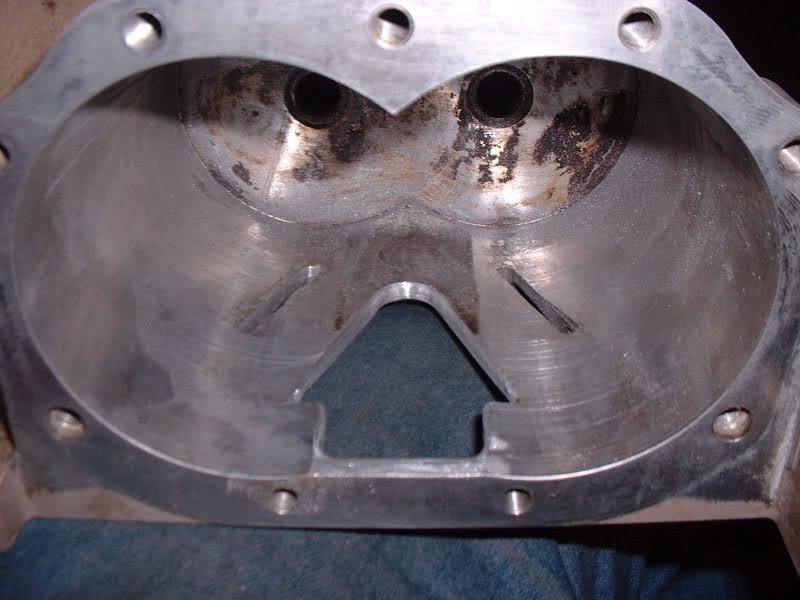

More updates on the porting (not finished)

Name:  DSCF0145.jpg
Views: 0
Size:  59.1 KB


Name:  DSCF0147.jpg
Views: 0
Size:  76.5 KB
Name:  DSCF0151.jpg
Views: 0
Size:  66.6 KB

cans used to clean SC and LIM

Name:  DSCF0153.jpg
Views: 0
Size:  71.6 KB
OLDsman105 is offline   Reply With Quote
Old 11-09-2006, 08:31 PM   #15
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

get some castrol super clean to really get it clean... works great on the rotors too..

what are you using to do the polishing?
harofreak00 is offline   Reply With Quote
Old 11-09-2006, 09:47 PM   #16
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
get some castrol super clean to really get it clean... works great on the rotors too..

what are you using to do the polishing?
The castrol superclean could not cut through the carbon on the inlet . I am not cleaning the rotors do to fear of damaging the coating. Plus the carbon adds a little effiency to it. As for polishing I am not even up to that yet just smoothing out the roughness first. Now I an rounding of some of the sharp edges. then I will polish. Up to this point I have used sanding drums, 80 girt sand flapper, and 60 and 320 grit sand paper.
OLDsman105 is offline   Reply With Quote
Old 11-10-2006, 12:25 AM   #17
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by OLDsman105
Up to this point I have used sanding drums, 80 girt sand flapper, and 60 and 320 grit sand paper.
You might want to go over the 60 scratches with 120 and 220 grit sand paper cause you'll be sanding the 60 gouges with 320 for forever.
95naSTA is offline   Reply With Quote
Old 11-29-2006, 09:43 PM   #18
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Update:

Finally got the LIM back from Wbody store. I started to put everything back together but I cant get the damn LIM gaskets to stay in there place. Any suggestions would be appriecated, I am going to reattempt it tommarrow. Pics will be up tomarrow also.

Thanks in advance

Enrique
OLDsman105 is offline   Reply With Quote
Old 11-29-2006, 10:20 PM   #19
Member
Posts like a V-Tak

Join Date: May 2006
Posts: 81
Thanks: 0
Thanked 0 Times in 0 Posts
Regal_Kid_05 is on a distinguished road
Default

I know they sell a gasket adhesive spray depending on what the gasket is made out of. Or maybe some system of dowels or pins of some sort that could be used to line things up but long enough to be pulled out the other side after a few bolts are in place? Just some ideas don't know if they'll work.
Regal_Kid_05 is offline   Reply With Quote
Old 11-29-2006, 10:23 PM   #20
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by Rogue
Valve cover gaskets.
Assembly adhesive (for the LIM gasket)

INTENSE Coupler change kit (you got the blower off, might as well change the coupler and oil )
See bold above. I've personally never had an issue, but S1 gaskets may be easier to keep in place.
willwren is offline   Reply With Quote
