Default Tearing down the Top Update: 12-01-06 (56k nope) .

I have decided to park the Riviera for a couple of days. In this time I will be removing the supercharger, intake and exhaust manifolds to change all the gaskets and some porting and polishing. Hear is a list of the gaskets I have please help me make sure I have everthing I need.

Throttle body gasket
Intake manifold gaskets
Supercharger gasket
Coolant o-rings
Exhaust manifold gaskets.
crossover pipe o gasket

I am purchasing dremel heads based on "willwren'*" porting and polishing a superchager page. Also buying a 6" scale (ruler with up to 64ths of an inch). Any tips and opinions are welcome, I will be taking pictures as I go along.

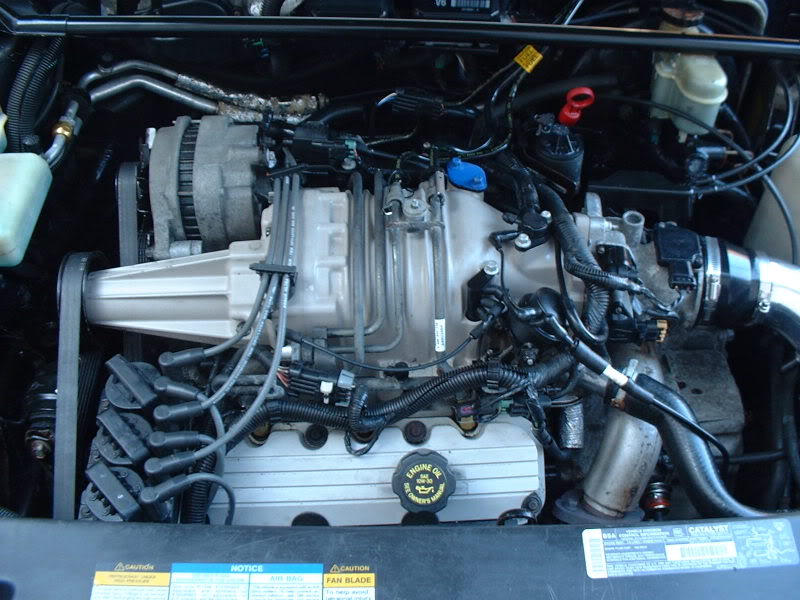

(current state of affairs)

Name:  DSCF0014-2.jpg
Views: 1
Size:  90.6 KB

more pics to follow.
OLDsman105 is offline   Reply With Quote
Old 10-04-2006, 10:23 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

Valve cover gaskets.
Assembly adhesive (for the LIM gasket)

INTENSE Coupler change kit (you got the blower off, might as well change the coupler and oil )
Rogue is offline   Reply With Quote
Old 10-04-2006, 10:27 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Totally agree with Rogue.. while you are there..it'* cake.

Don't forget plenty of brake clean for gasket surfaces and TB cleaner for the TB. Some Ultra Copper RTV (I prefer it to the stuff they give you with the gaskets)

On the P&P...
SC: Flap wheels of 80 and 120 grit.. you'll need 3 of each and a few of the buffing puffy things up to 320 grit.
Intake: I got the bit Bill mentioned..however found the sanding drums to work fantastic for the easy to get at areas.
BillBoost37 is offline   Reply With Quote
Old 10-04-2006, 11:09 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Use Castrol SuperClean to clean your LIM and TB.

I don't use the assembly adhesive on the gaskets, but it might make it easier to replace the LIM.

Don't neglect your coolant ports in the LIM. You may find they are as restricted as the outlets.

You'll need a swivel-head torque wrench to re-torque the exhaust mani'*. Don't use a universal joint or universal socket. They won't torque consistently.
willwren is offline   Reply With Quote
Old 10-04-2006, 12:23 PM   #5
Senior Member
Posts like a Northstar

Join Date: Apr 2006
Location: Dimondale, MI
Posts: 549
Thanks: 0
Thanked 0 Times in 0 Posts
F14CRAZY is on a distinguished road
Default

Fuel injector O rings?
F14CRAZY is offline   Reply With Quote
Old 10-04-2006, 01:15 PM   #6
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

10mm, 11mm,13mm, 14mm, 15mm regular and deep well sockets plus extensions and swivals.
JimmyFloyd is offline   Reply With Quote
Old 10-04-2006, 01:27 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No swivels needed for the top end. Other than a swivel head ratchet to make the exhaust mani'* easier.
willwren is offline   Reply With Quote
Old 10-04-2006, 03:51 PM   #8
Senior Member
Certified GM nut
Thread Starter

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Thanks guys for all the help. I already changed the coupler so that won't be an issue. Teardown is in slight delay as My parts store quoted me $50 for Exhaust manifold gaskets . I ordered them from parts america at 16.18 for the pair. I am also waiting for the black satin coating material I ordered.
OLDsman105 is offline   Reply With Quote
Old 10-04-2006, 03:53 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

BTW.. you can expect no gasket on the front and only a metal thin one on the back.
BillBoost37 is offline   Reply With Quote
Old 10-09-2006, 03:23 PM   #10
Member
Posts like a V-Tak

Join Date: May 2006
Posts: 81
Thanks: 0
Thanked 0 Times in 0 Posts
Regal_Kid_05 is on a distinguished road
Default

Any updates or pics?
Regal_Kid_05 is offline   Reply With Quote
