Default Spark plug inspection

Decided to pull my plugs today and give them a good inspection. I'm posting this to show what to watch for, as well what can be done.

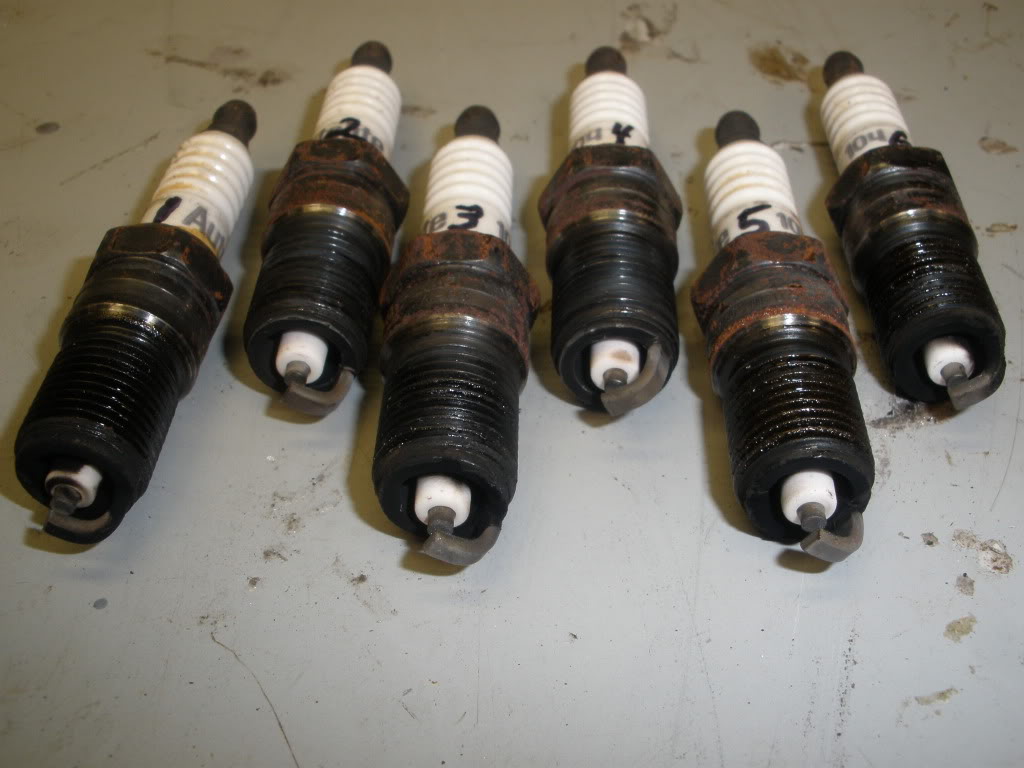

Name:  P9100001.jpg
Views: 0
Size:  106.0 KB

It'* a bit hard to see but #1 and #6 are both a little black so are running rich. #3 and #5 are also a bit black, but not nearly as rich. #2 and #4 are both running good.

Any time you change your exhaust from a stock set up you change the flow rate. This will cause the front bank to run lean. This is where tuning software comes in. Trust me on this, if your going to be working on your engine this is truly the best $500 you can spend.

I started off with skewing the front bank to 1.0200, so 1, 3, and 5 all get a bit more fuel.

Here is what I have now
Danthurs is offline   Reply With Quote
Old 09-10-2009, 03:09 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

So Dan...did you add 1.02 to 1-3-5? Or....?
Purplehazeir is offline   Reply With Quote
Old 09-10-2009, 03:11 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I started by skewing 1 3 and 5 to 1.0200 and leaving 2 4 and 6 at 1.0000 I then adjusted each injector a bit to balance them off.
Danthurs is offline   Reply With Quote
Old 09-10-2009, 03:26 PM   #4
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Do you remember what the stock pulse width'* were? I'm not trying to be a pain, but this is good info and I want to get a better understanding of this and using my HP suite.
Purplehazeir is offline   Reply With Quote
Old 09-10-2009, 03:28 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The stock settings are 1.0000 on all injectors.
Danthurs is offline   Reply With Quote
Old 09-13-2009, 02:39 PM   #6
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

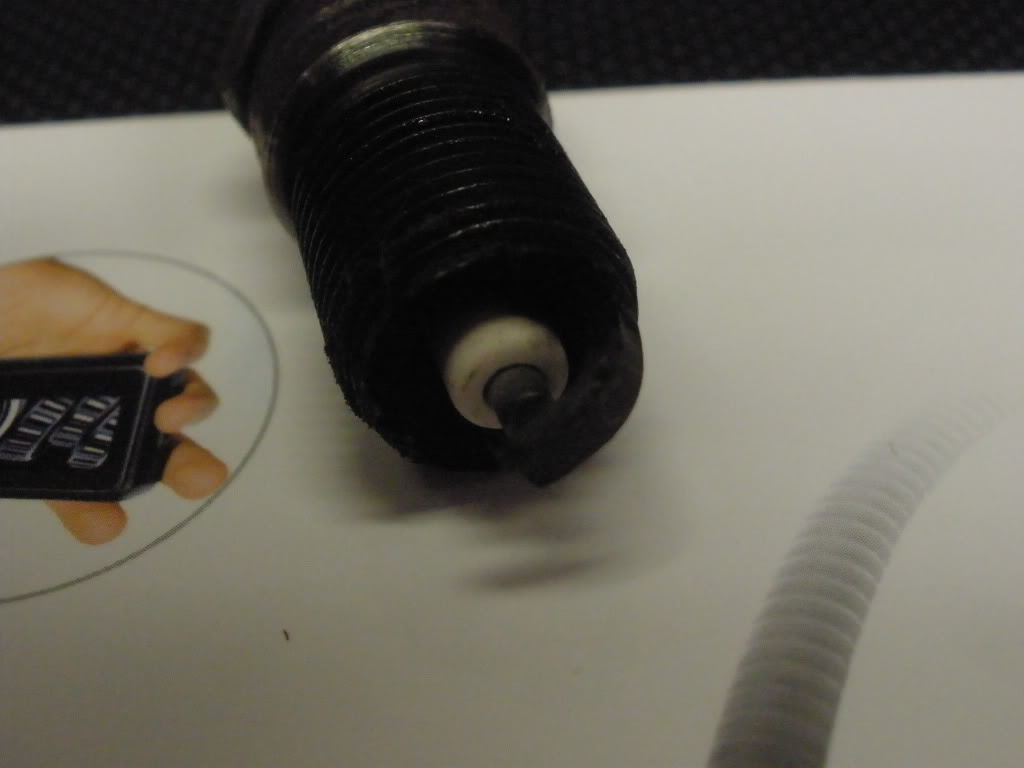

Pulled plugs again today, all looked good, but #1 was still a bit rich. Pulled another .5% off that injector.

Name:  P9130002.jpg
Views: 0
Size:  60.7 KB

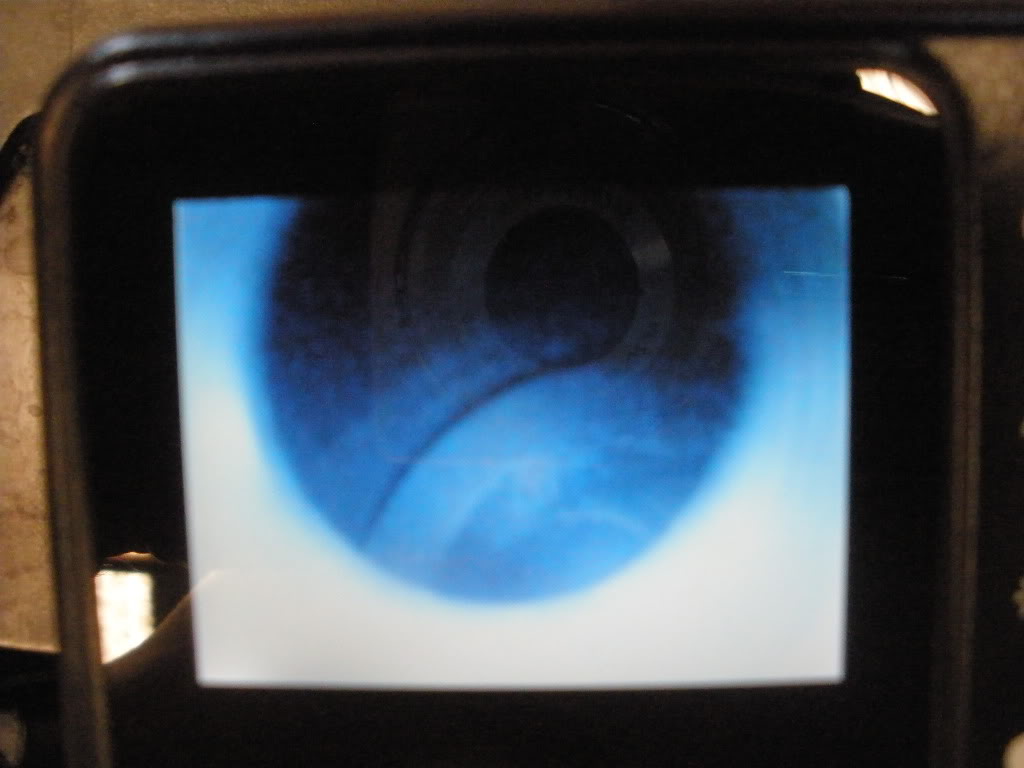

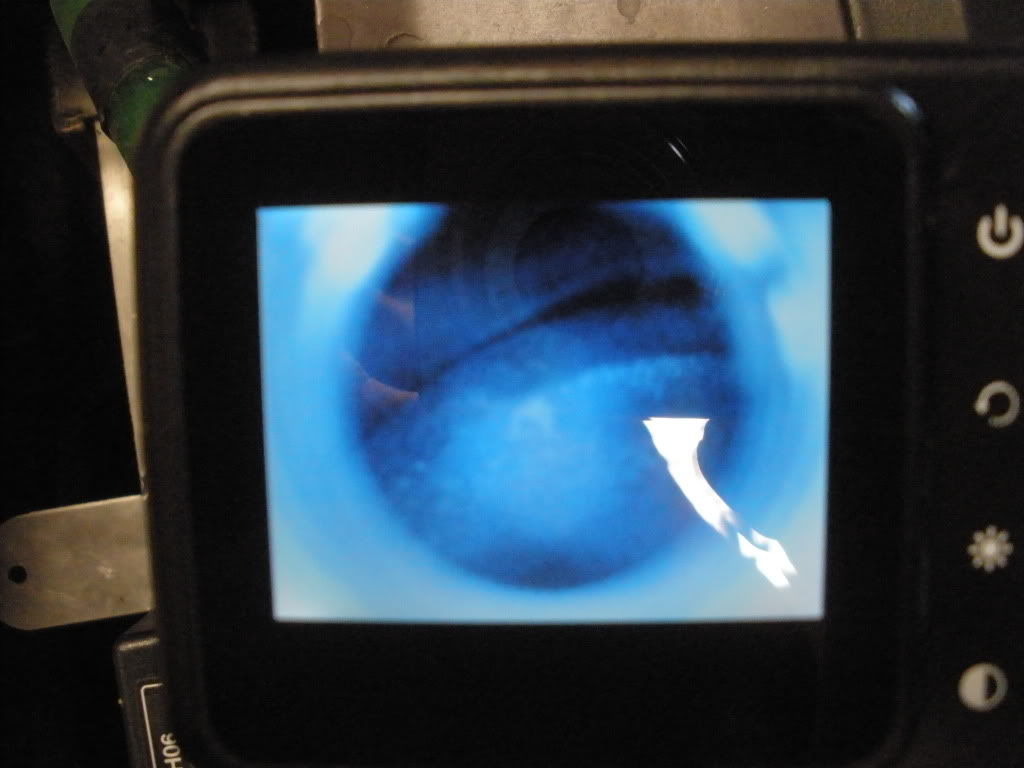

Played around with the seesnake came today. Was disappointed that the camera will not fit in the plug hole. But I still was able to look inside the cylinder.

Name:  P9130006.jpg
Views: 0
Size:  78.3 KB

Name:  P9130009.jpg
Views: 2
Size:  76.5 KB

Camera comes with a inspection mirror, I'll have to see how that works.
