I am thinking about ordering the FWI from Intense and I was wanting to see what you guys did for a box around the cone. A buddy of mine has an enclosed box around his intake on his GP. Wondering if anyone has something similar.
champ5601 is offline   Reply With Quote
Old 03-04-2008, 12:19 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You don't need a box for the FWI. It pulls air from OUTSIDE the engine bay. That'* the beauty of the design. This isn't a CAI inside the engine bay.
willwren is offline   Reply With Quote
Old 03-04-2008, 12:22 AM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Mar 2007
Location: Illinois
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
champ5601 is on a distinguished road
Default

True. Does everyone just have the cone sitting in the airbox opening, behind the headlight? I figured with a box, it would definitely get the cooler air and also make the compartment look cleaner.
champ5601 is offline   Reply With Quote
Old 03-04-2008, 12:22 AM   #4
Senior Member
Posts like a Northstar

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

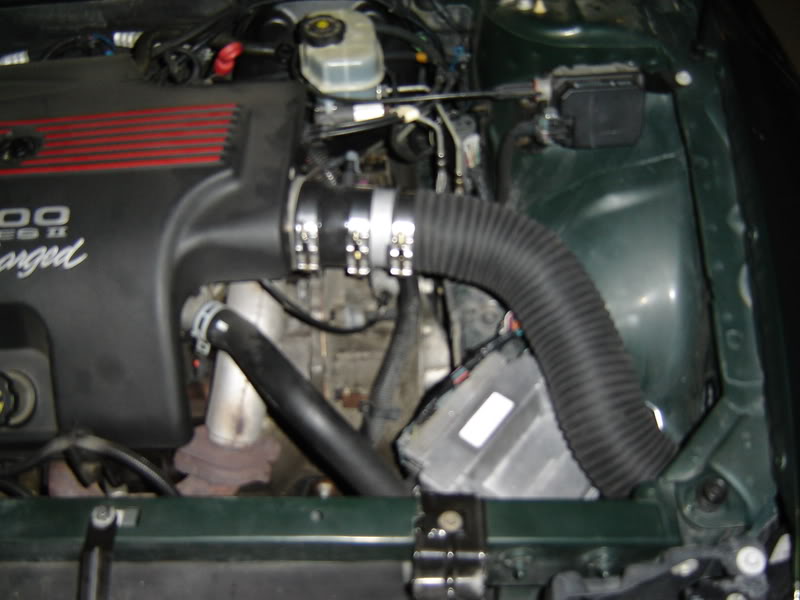

The intake tubing goes through a hole in the engine bay and into the fender well.
Name:  DSC00100.jpg
Views: 0
Size:  54.9 KB
lglarum is offline   Reply With Quote
Old 03-04-2008, 12:24 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

willwren is offline   Reply With Quote
Old 03-04-2008, 12:25 AM   #6
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Mar 2007
Location: Illinois
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
champ5601 is on a distinguished road
Default

And it just sits inside the opening?

EDIT: That link that you posted is different in the '00+ right?
champ5601 is offline   Reply With Quote
Old 03-04-2008, 12:29 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Different in WHERE it goes through, but yes, it pulls from the fender area. Protected entirely from engine bay heat.

There is no reason or benefit to builing a 'box'. This is what sets the FWI apart from the competition.
willwren is offline   Reply With Quote
Old 03-04-2008, 12:31 AM   #8
Senior Member
Posts like a Northstar

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

It fits in there pretty snug, plus it'* clamped very well to the tubing once you get it in. To install it you have to take off the tire and remove the plastic fender well liner. With the tubing attached to the filter with all the supplied parts you'll need you have to feed the tube up through the hole that your current airbox sticks it'* nose into. (considering we're talking about the '01 that'* listed in your sig). That was probably the hardest part of the install, slowly working the tube through the hole because it can get hung up on some edges in the fender.
lglarum is offline   Reply With Quote
Old 03-04-2008, 12:31 AM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Mar 2007
Location: Illinois
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
champ5601 is on a distinguished road
Default

Ok, thats what I was thinking.

lglarum, do you have a pic of your filter inside the well?
champ5601 is offline   Reply With Quote
Old 03-04-2008, 12:36 AM   #10
Senior Member
Posts like a Northstar

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

Quote:
Originally Posted by champ5601
Ok, thats what I was thinking.

lglarum, do you have a pic of your filter inside the well?
No I dont, but it'll sit straight up and down once it'* in. And as long as you made sure your clamps are tight it'* not going anywhere. And once you get the fender well liners back in you cant see it at all. Also with the design of our fender wells the filter is more protected from water than the 99 and before are. Is there something specifically you want to know about the placement?
